Instrument Panel Safety Pad: Reassembly

  1. INSTALL INSTRUMENT PANEL SPACER
  2. INSTALL ENGINE SWITCH
    1. Engage the 2 claws and install the engine switch.
    Fig 1: Installing Engine Switch
    G04050945Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL AUTOMATIC LIGHT CONTROL SENSOR
    1. Engage the 2 claws and install the automatic light control sensor.
    Fig 2: Installing Automatic Light Control Sensor
    G04050946Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. INSTALL DEFROSTER NOZZLE GARNISH
    1. Engage the 8 claws and 2 clips, and install the defroster nozzle garnish.
    Fig 3: Installing Defroster Nozzle Garnish
    G04050947Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. INSTALL FRONT PASSENGER AIRBAG ASSEMBLY (See  INSTALLATION  )
  6. INSTALL NO. 2 INSTRUMENT PANEL WIRE
    1. Engage the 5 clamps.
    2. Connect the connector and install the No. 2 instrument panel wire.

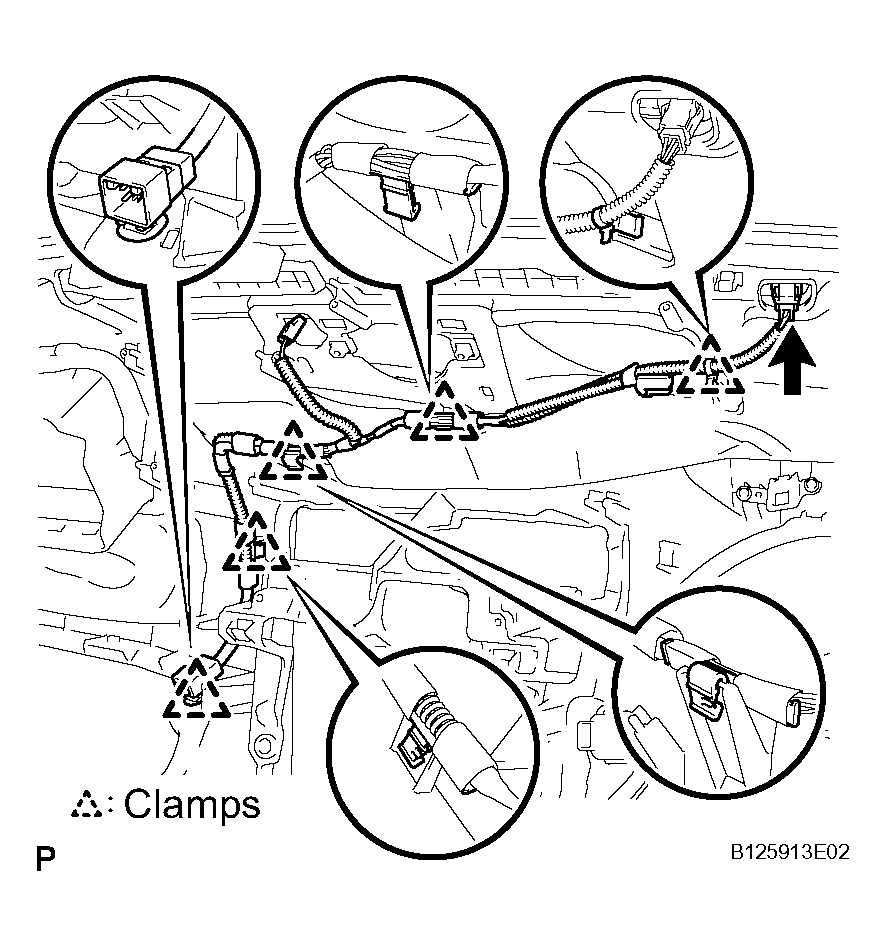

    Fig 4: Installing No. 2 Instrument Panel Wire
    G04050948Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. INSTALL NAVIGATION ANTENNA (See  INSTALLATION  )
  8. INSTALL NO. 2 ANTENNA CORD SUB-ASSEMBLY (See Step 10 in  INSTALLATION  )
  9. INSTALL SIDE DEFROSTER NOZZLE
    1. Engage the 4 claws and install the side defroster nozzle.

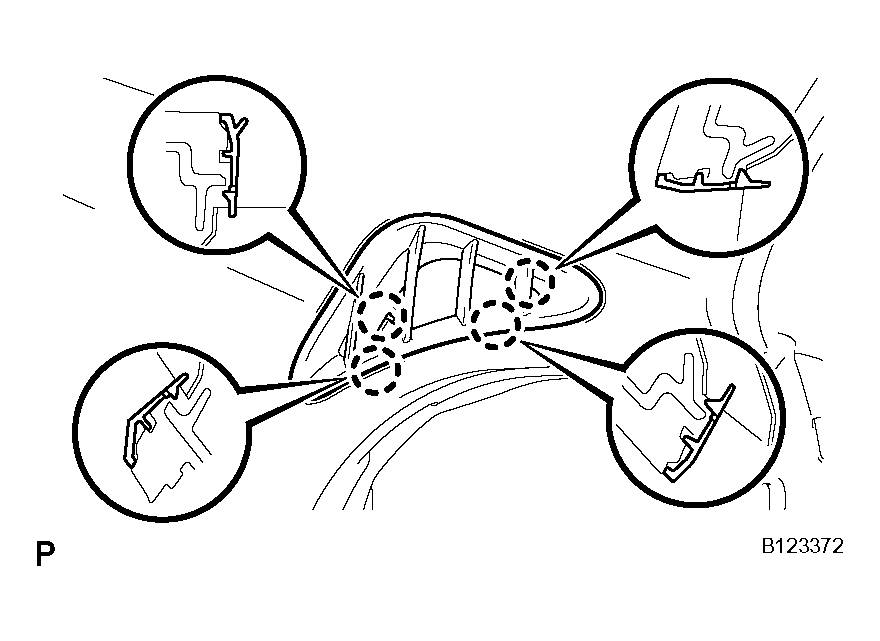

    Fig 5: Installing Side Defroster Nozzle
    G04050949Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. INSTALL NO. 2 HEATER TO REGISTER DUCT
    1. Install the No. 2 heater to register duct with the 4 screws < F >.

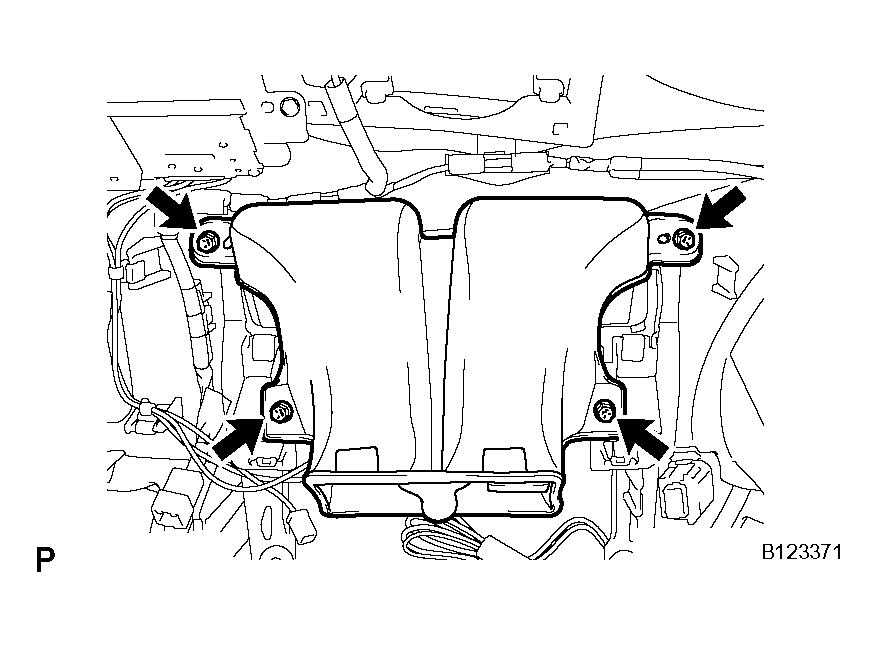

    Fig 6: Installing No. 2 Heater To Register Duct
    G04050950Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. INSTALL DEFROSTER NOZZLE ASSEMBLY
    1. Install the defroster nozzle assembly with the 3 screws < F >.

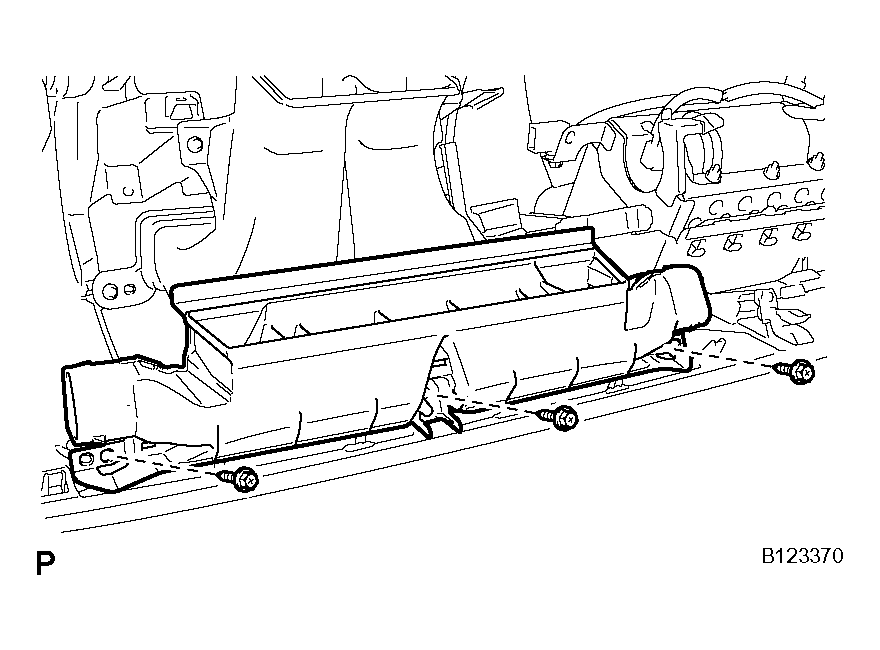

    Fig 7: Installing Defroster Nozzle Assembly
    G04050951Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. INSTALL SIDE NO. 2 DEFROSTER NOZZLE DUCT
    1. Install the side No. 2 defroster nozzle duct with the screw < F >.

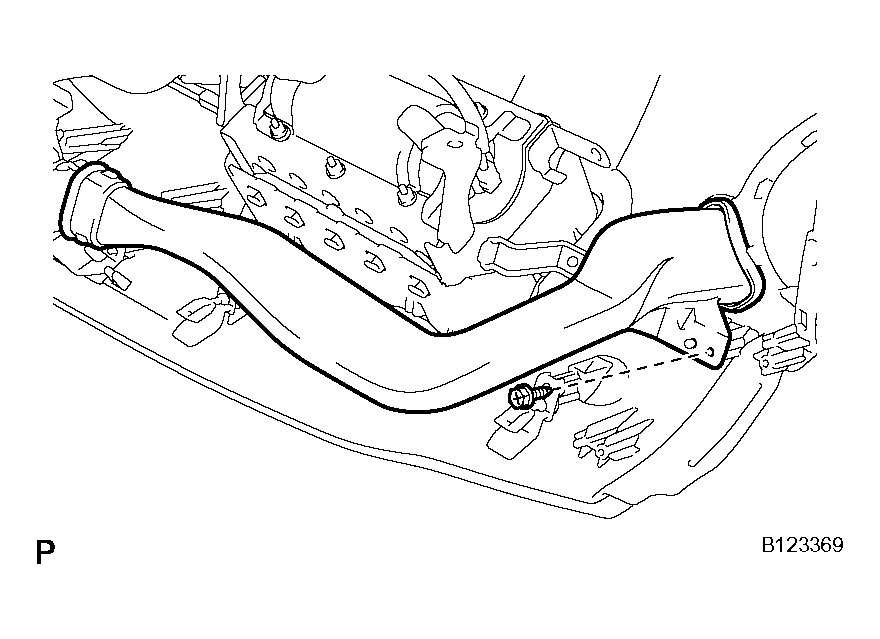

    Fig 8: Installing Side No. 2 Defroster Nozzle Duct
    G04050952Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. INSTALL SIDE NO. 1 DEFROSTER NOZZLE DUCT
    1. Install the side No. 1 defroster nozzle duct with the screw < F >.

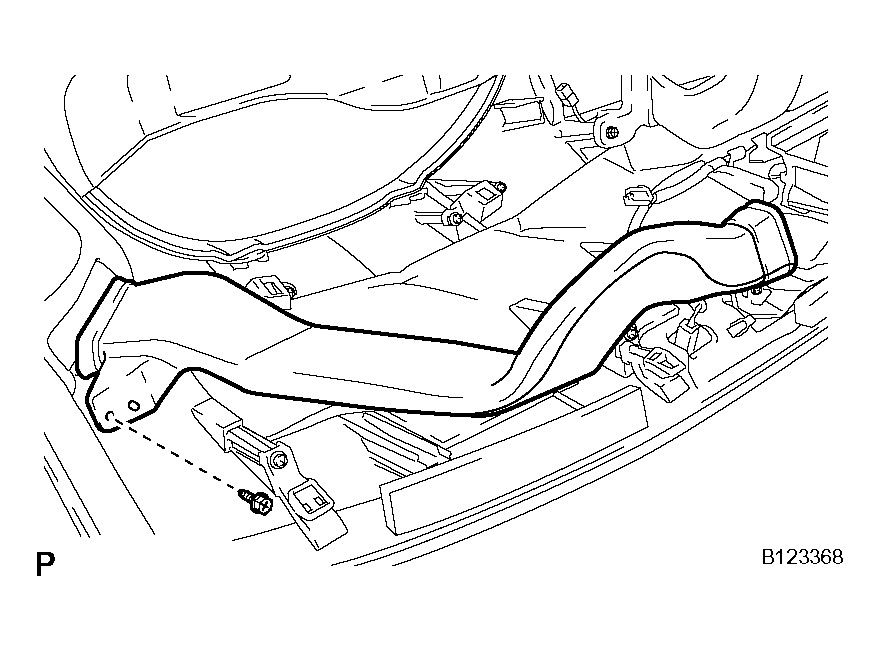

    Fig 9: Installing Side No. 1 Defroster Nozzle Duct
    G04050953Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. INSTALL NO. 3 HEATER TO REGISTER DUCT
    1. Install the No. 3 heater to register duct with the 3 screws < F >.

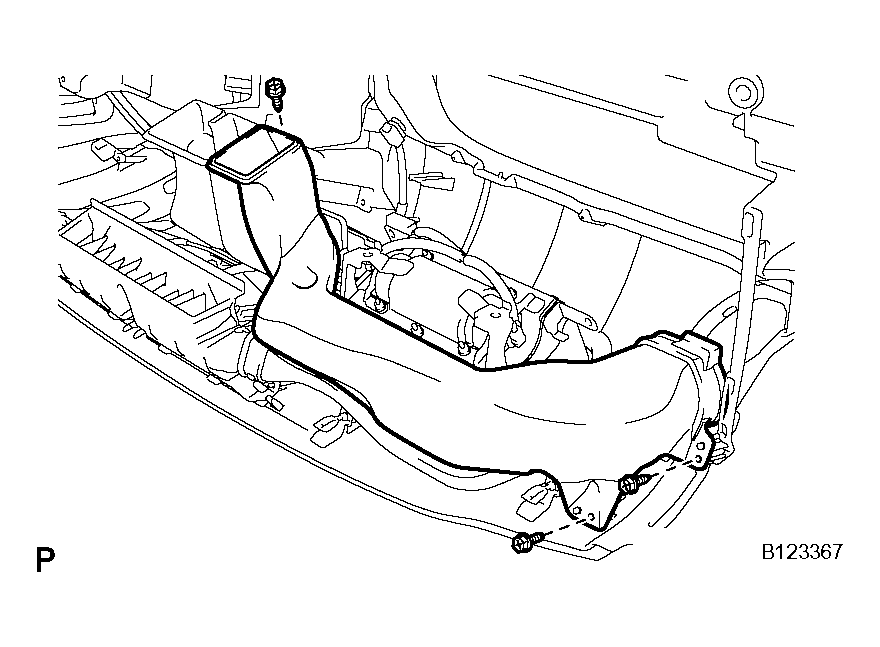

    Fig 10: Installing No. 3 Heater To Register Duct
    G04050954Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. INSTALL NO. 1 HEATER TO REGISTER DUCT
    1. Install the No. 1 heater to register duct with the 3 screws < F >.

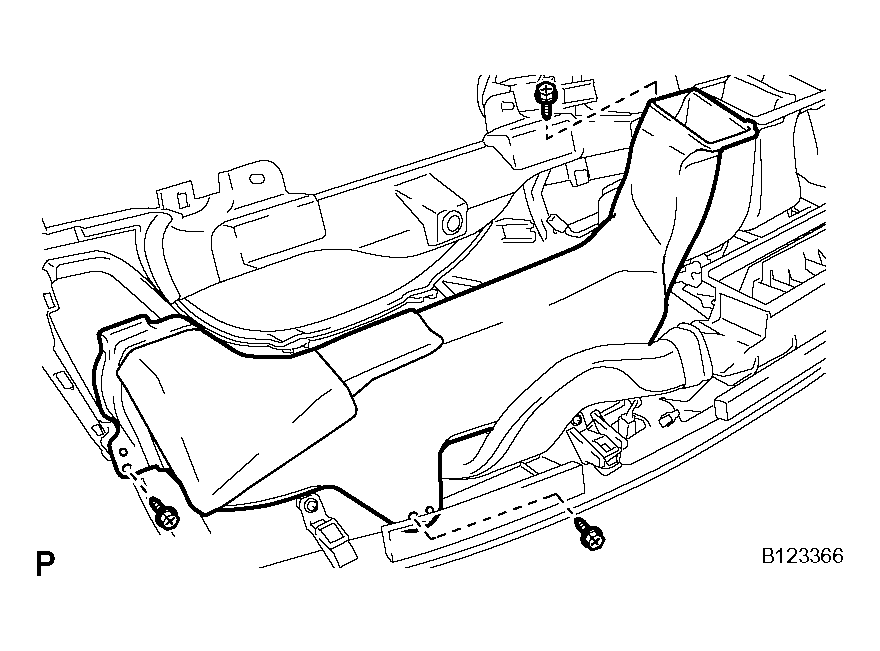

    Fig 11: Installing No. 1 Heater To Register Duct With Screws
    G04050955Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
