Engine Switch: Inspection

  1. INSPECT ENGINE SWITCH
    1. Measure the resistance according to the value(s) in the table below.

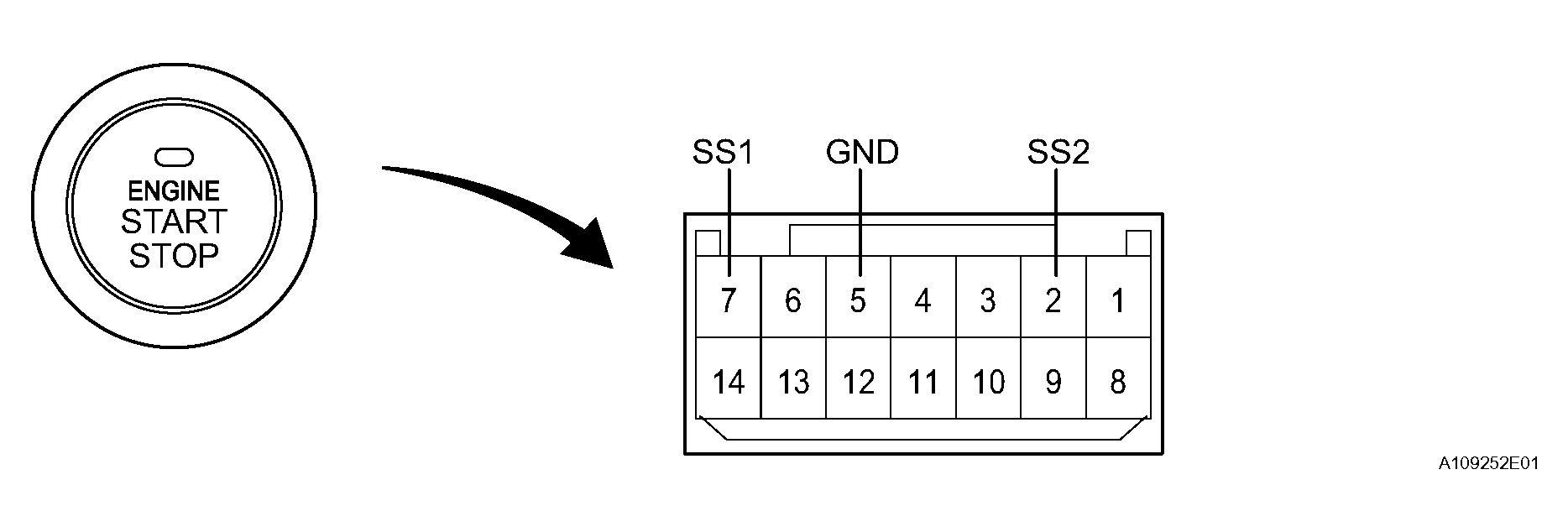

      Fig 1: Identifying Engine Switch Connector
      G04052773Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard resistance

      TESTER CONNECTION SPECIFIED CONDITION CHART

      Tester Connection Switch Condition Specified Condition
      7 (SS1) - 5 (GND) Pushed Below 1 Ω
      2 (SS2) - 5 (GND) Pushed Below 1 Ω
      7 (SS1) - 5 (GND) Not pushed 10 kΩ or higher
      2 (SS2) - 5 (GND) Not pushed 10 kΩ or higher

      If the result is not as specified, replace the engine switch.

    2. Apply battery voltage between the terminals of the switch, and check the illumination condition of the switch.

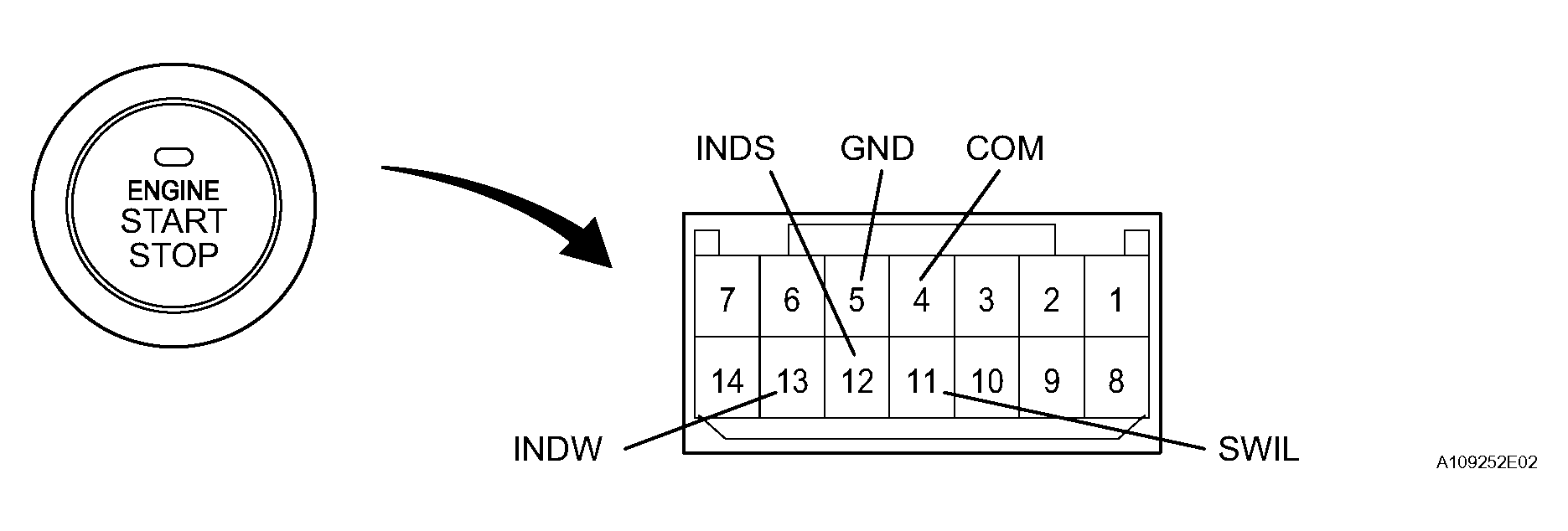

      Fig 2: Identifying Engine Switch Connector
      G04052774Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard resistance

      MEASUREMENT CONDITION SPECIFIED CONDITION CHART

      Measurement Condition Specified Condition
      Battery positive (+) -->Terminal 11 (SWIL) Battery negative (-) -->Terminal 4 (COM) or 5 (GND) Illuminates
      Battery positive (+) -->Terminal 12 (INDS) Battery negative (-) -->Terminal 4 (COM) or 5 (GND) Illuminates
      Battery positive (+) -->Terminal 13 (INDW) Battery negative (-) -->Terminal 4 (COM) or 5 (GND) Illuminates

      If the result is not as specified, replace the engine switch.
