Engine Switch: Installation

  1. INSTALL ENGINE SWITCH
    1. Attach the 2 claws to install the switch.
    2. Connect the switch connector.

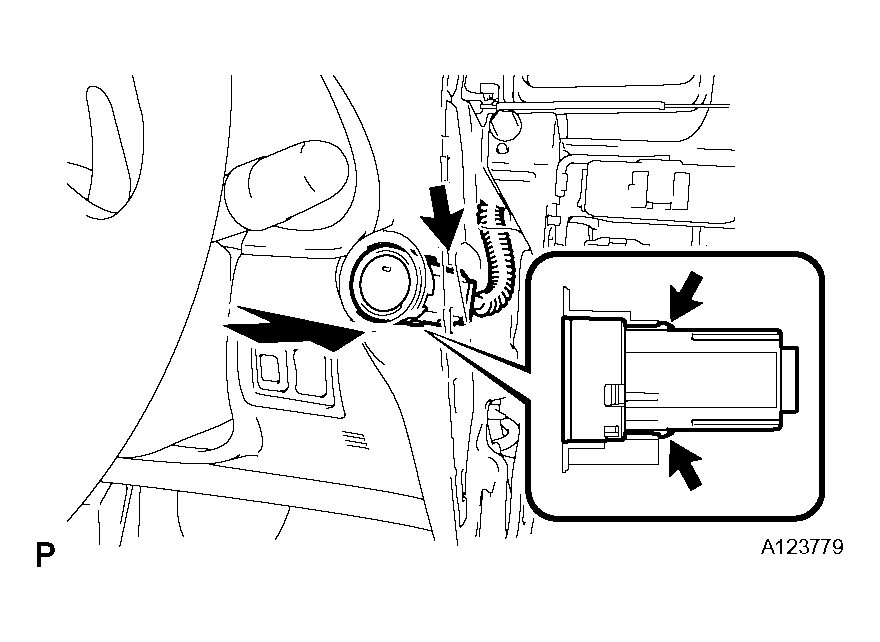

      Fig 1: Installing Claws To Switch
      G04052775Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL INTEGRATION CONTROL PANEL WITH RADIO RECEIVER ASSEMBLY (w/o Navigation System) (See  INSTALLATION  )
  3. INSTALL MULTI-DISPLAY WITH RADIO RECEIVER ASSEMBLY (w/ Navigation System) (See  INSTALLATION  )
  4. INSTALL CENTER LOWER INSTRUMENT CLUSTER FINISH PANEL (See  INSTALLATION  )
  5. INSTALL NO. 3 INSTRUMENT PANEL REGISTER ASSEMBLY (See  INSTALLATION  )
  6. INSTALL CONSOLE BOX (See  INSTALLATION  )
  7. INSTALL CONSOLE BOX REGISTER ASSEMBLY (See  INSTALLATION  )
  8. INSTALL FRONT ASH RECEPTACLE SUBASSEMBLY (See  INSTALLATION  )
  9. INSTALL CONSOLE PANEL SUB-ASSEMBLY (See  INSTALLATION  )
  10. INSTALL UPPER NO. 2 CONSOLE PANEL GARNISH (See  INSTALLATION  )
  11. INSTALL UPPER NO. 1 CONSOLE PANEL GARNISH (See  INSTALLATION  )
  12. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY
