Engine Switch: Removal

  1. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY (See  REMOVAL  )
  2. REMOVE UPPER NO. 1 CONSOLE PANEL GARNISH (See  REMOVAL  )
  3. REMOVE UPPER NO. 2 CONSOLE PANEL GARNISH (See  REMOVAL  )
  4. REMOVE CONSOLE PANEL SUB-ASSEMBLY (See  REMOVAL  )
  5. REMOVE FRONT ASH RECEPTACLE SUBASSEMBLY (See  REMOVAL  )
  6. REMOVE CONSOLE BOX REGISTER ASSEMBLY (See  REMOVAL  )
  7. REMOVE CONSOLE BOX (See  REMOVAL  )
  8. REMOVE NO. 3 INSTRUMENT PANEL REGISTER ASSEMBLY (See  REMOVAL  )
  9. REMOVE CENTER LOWER INSTRUMENT CLUSTER FINISH PANEL (See  REMOVAL  )
  10. REMOVE INTEGRATION CONTROL PANEL WITH RADIO RECEIVER ASSEMBLY (w/o Navigation System) (See  REMOVAL  )
  11. REMOVE MULTI-DISPLAY WITH RADIO RECEIVER ASSEMBLY (w/ Navigation System) (See  REMOVAL  )
  12. REMOVE ENGINE SWITCH
    1. Disconnect the switch connector.
    2. Detach the 2 claws and remove the switch.

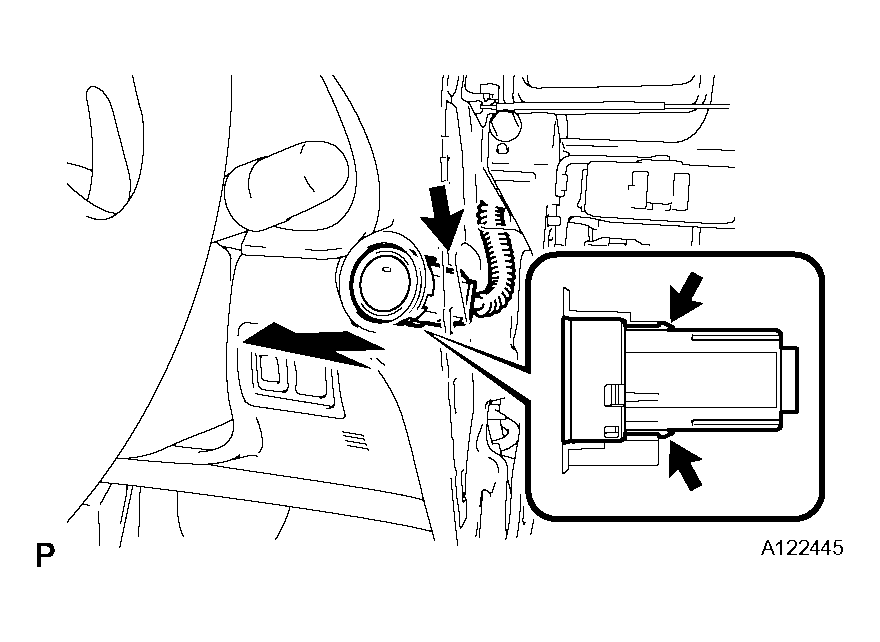

      Fig 1: Identifying Claws And Switch
      G04052772Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
