System Diagram

  1. EMISSION CONTROL SYSTEM DIAGRAM

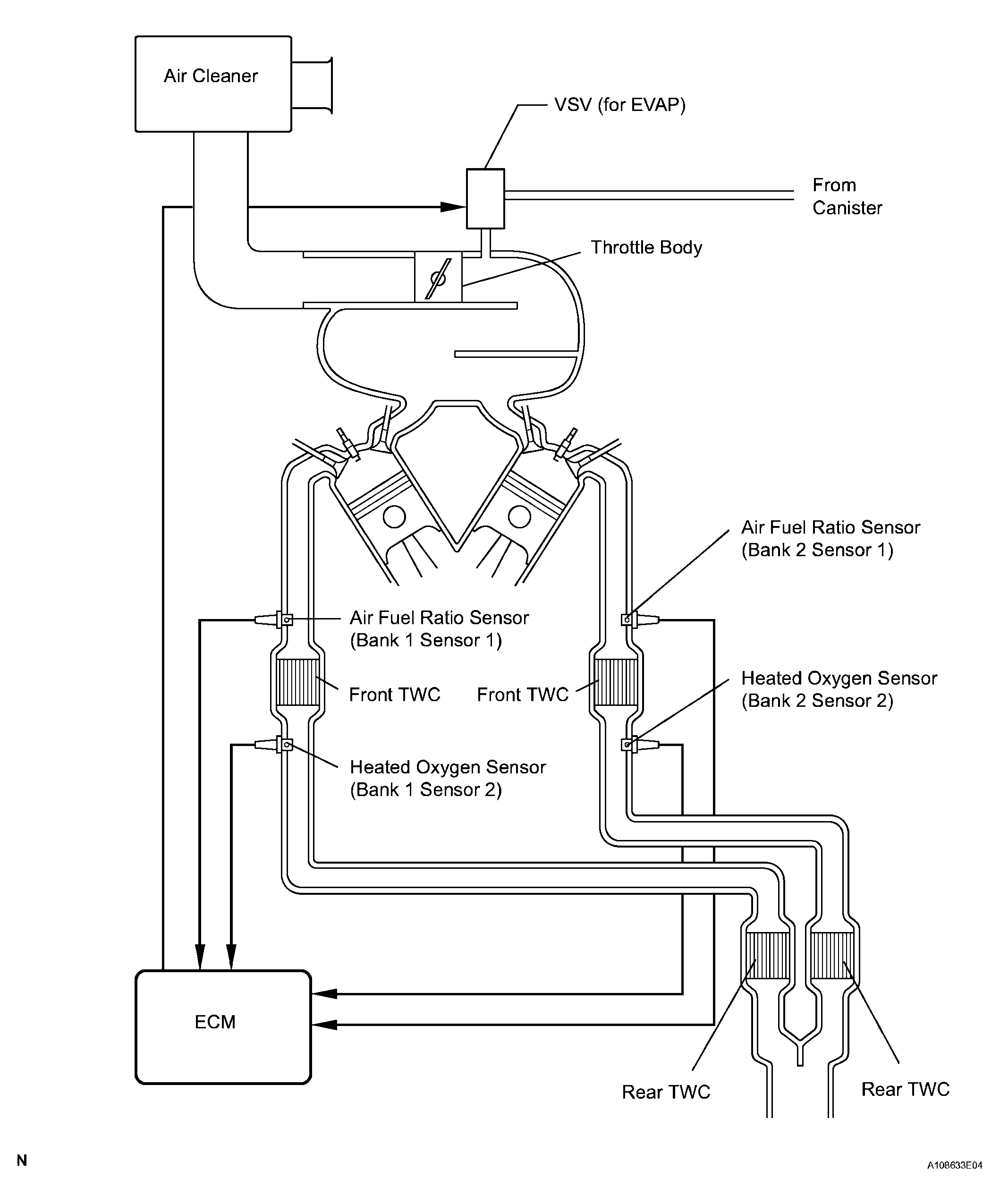

    Fig 1: System Diagram - Emission Control System
    G04057689Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. EVAP CONTROL SYSTEM DIAGRAM

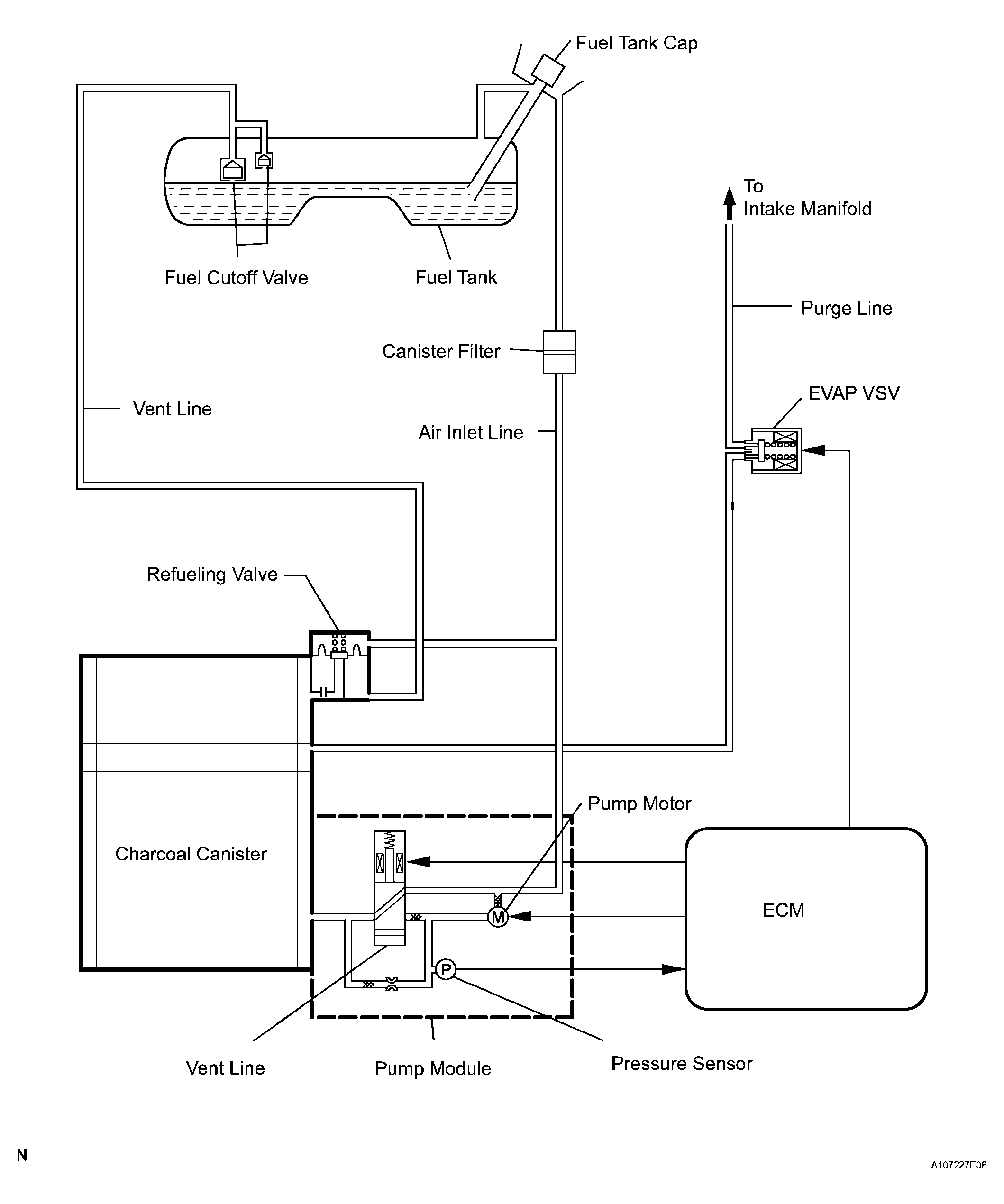

    Fig 2: EVAP Control System Diagram
    G04057690Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. EVAP SYSTEM WIRING DIAGRAM

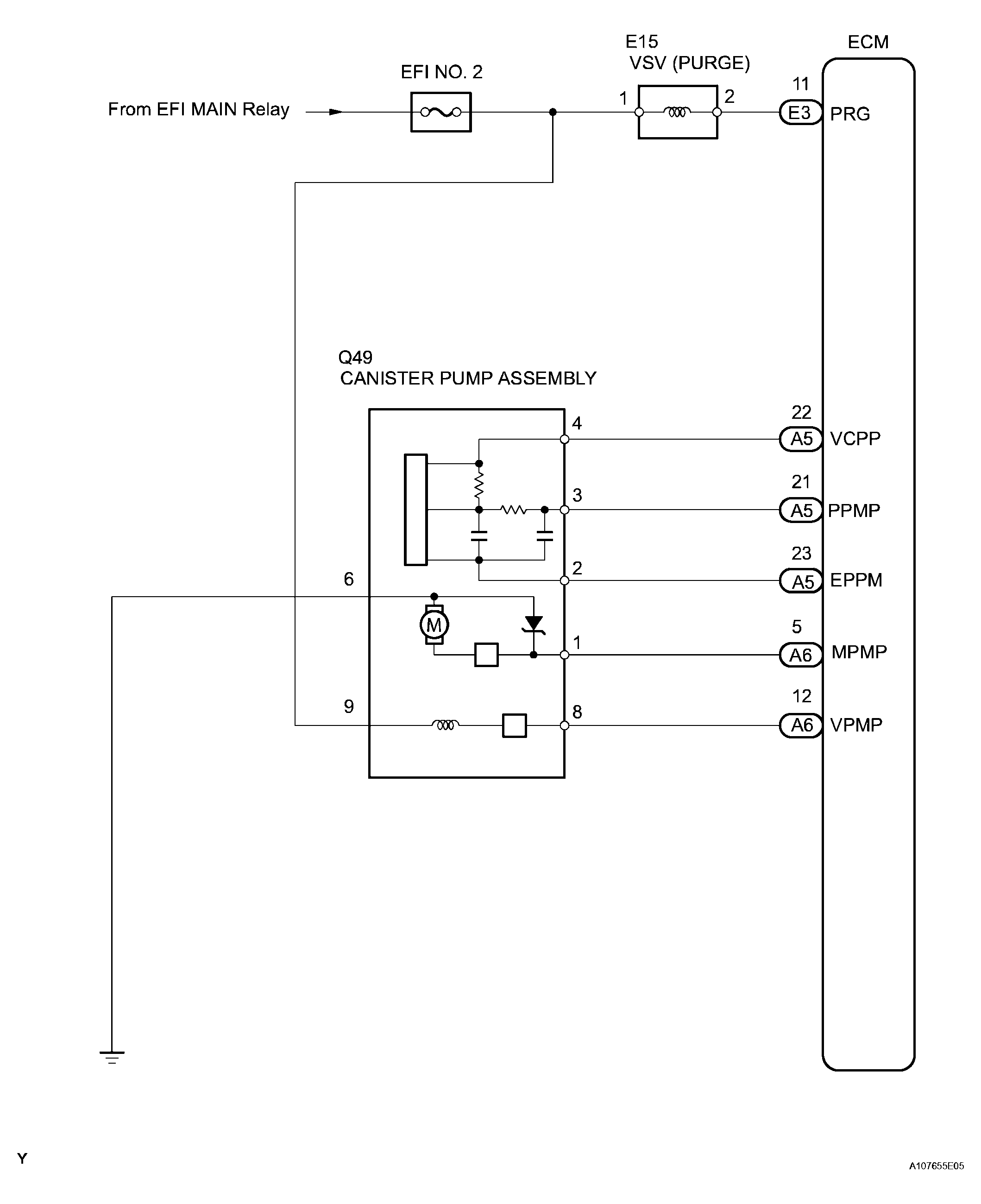

    Fig 3: EVAP System Wiring Diagram
    G04057691Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. EMISSION CONTROL SYSTEM WIRING DIAGRAM

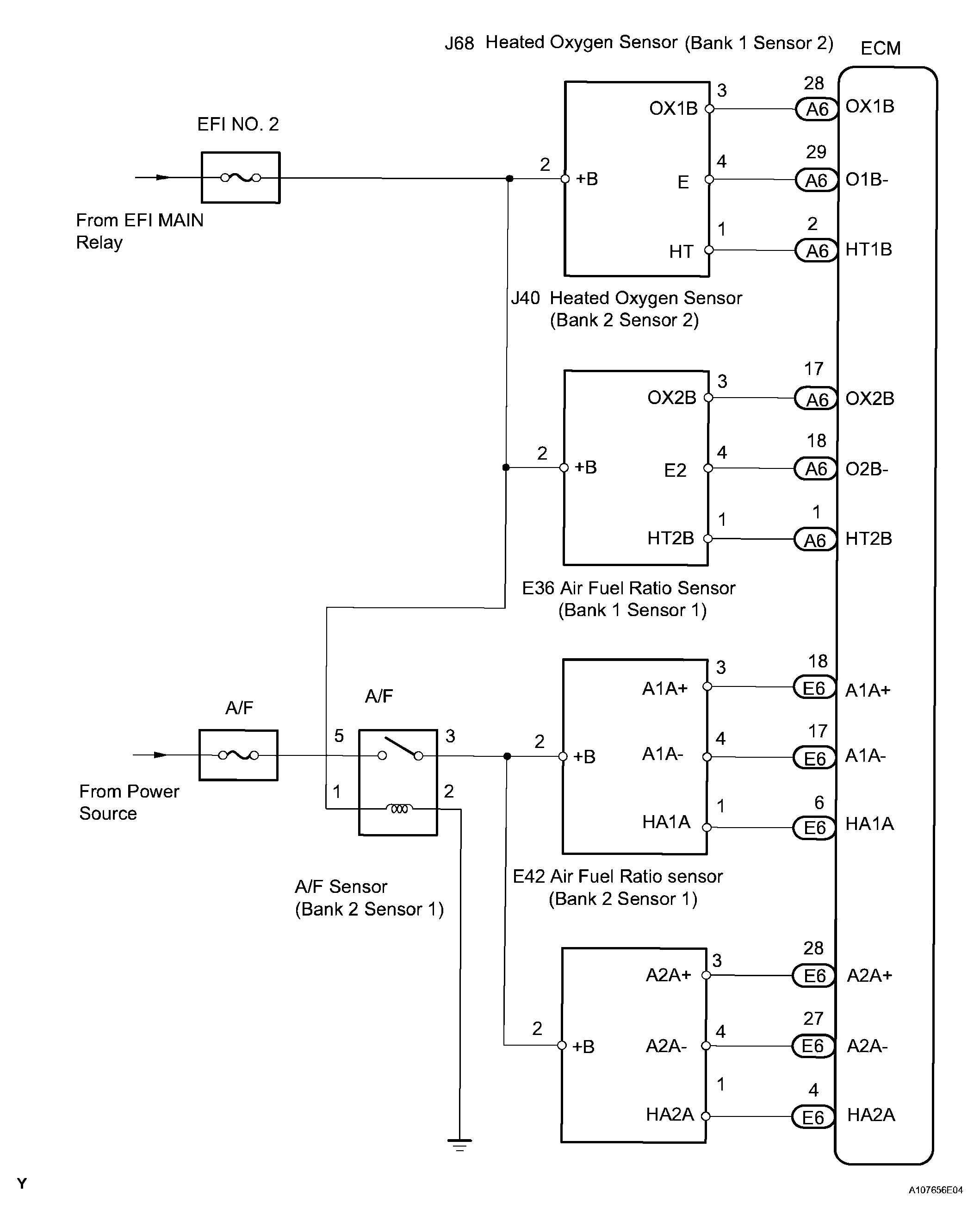

    Fig 4: Wiring Diagram - Emission Control System
    G04057692Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
