Injector Driver: Removal

  1. REMOVE COOL AIR INTAKE DUCT SEAL (See  REMOVAL  )
  2. REMOVE NO. 1 INLET AIR CLEANER (See  REMOVAL  )
  3. REMOVE NO. 1 ENGINE COVER (See  REMOVAL  )
  4. REMOVE INJECTOR DRIVER
    1. Move the lock lever in the direction indicated by the arrow to release the connector lock. Disconnect the 3 connectors with wire harness locks and the connector from the injector driver.

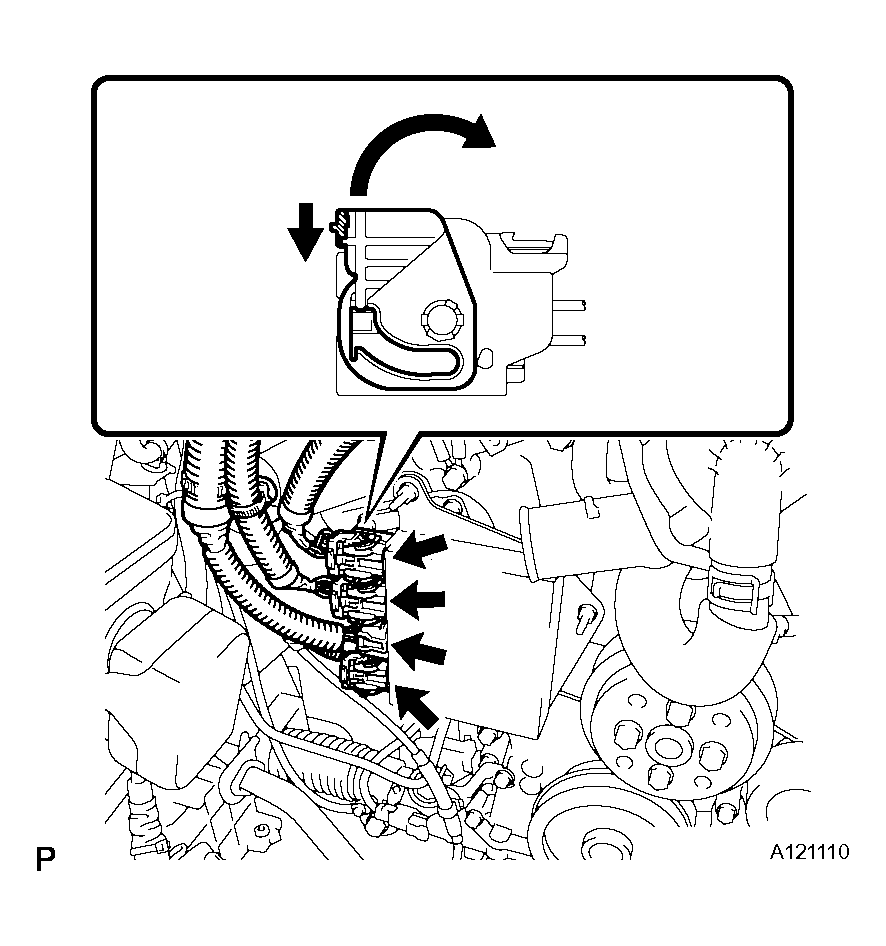

      Fig 1: Identifying Connector Lock
      G04056484Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt, 2 nuts and injector driver.

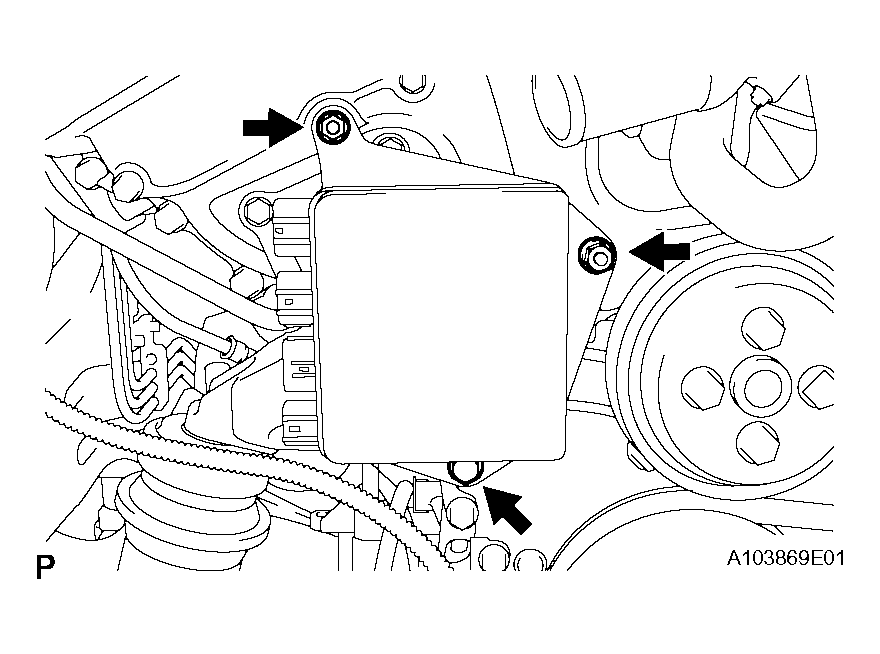

      Fig 2: Identifying Injector Driver Bolt And Nut
      G04056485Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE: Be careful not to drop or strike the injector driver.
