Fuel Pump Resistor: Removal

  1. REMOVE COOL AIR INTAKE DUCT SEAL (See  REMOVAL  )
  2. REMOVE ENGINE ROOM SIDE COVER RH (See  REMOVAL  )
  3. REMOVE FUEL PUMP RESISTOR
    1. Disconnect the connector and clamp from the fuel pump resistor.
    2. Remove the 3 bolts and fuel pump resistor, and disconnect the ground wires.

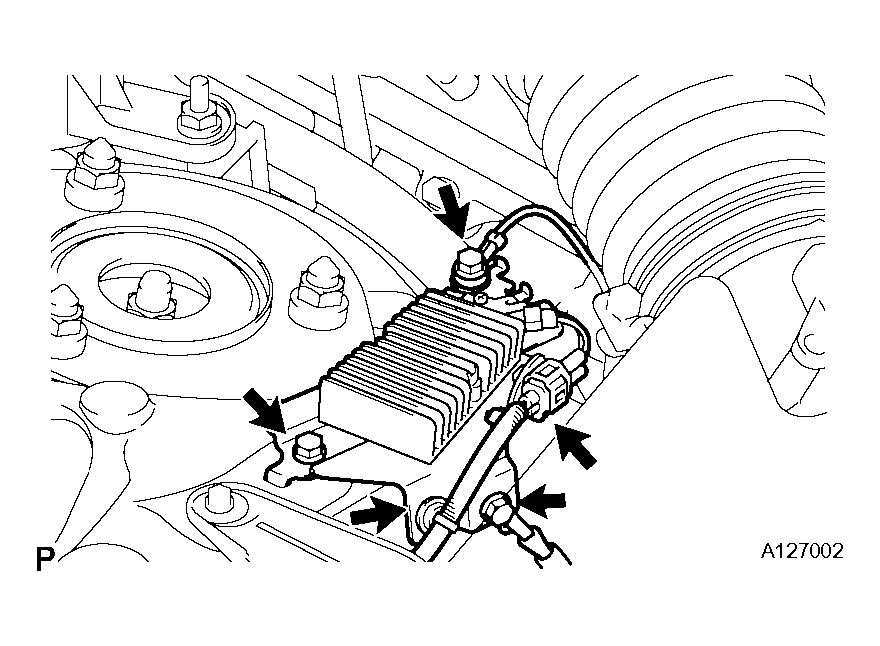

      Fig 1: Identifying Bolts And Fuel Pump Resistor
      G04056542Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
