System Diagram

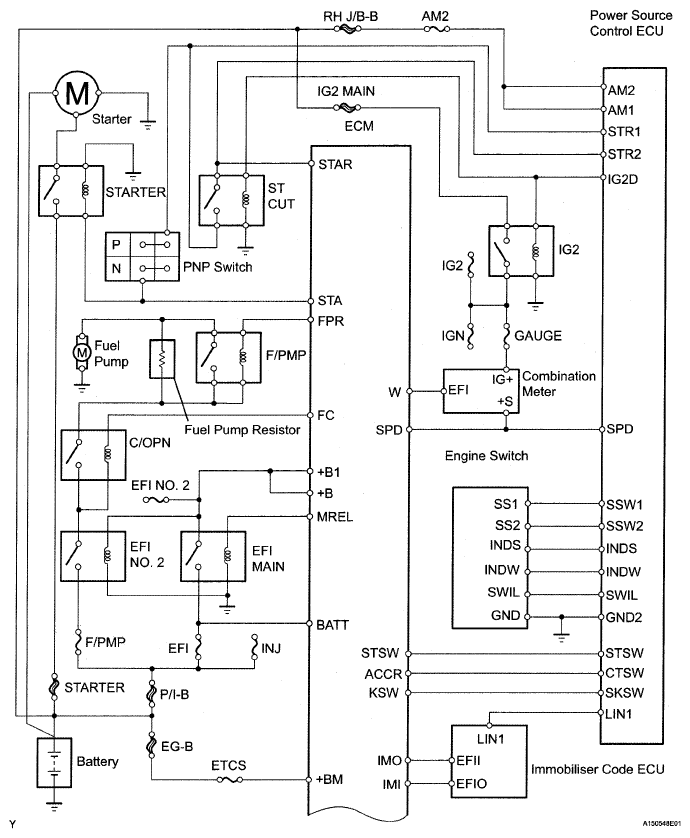

Fig 1: SFI System Diagram (1 Of 5)
G05285015Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

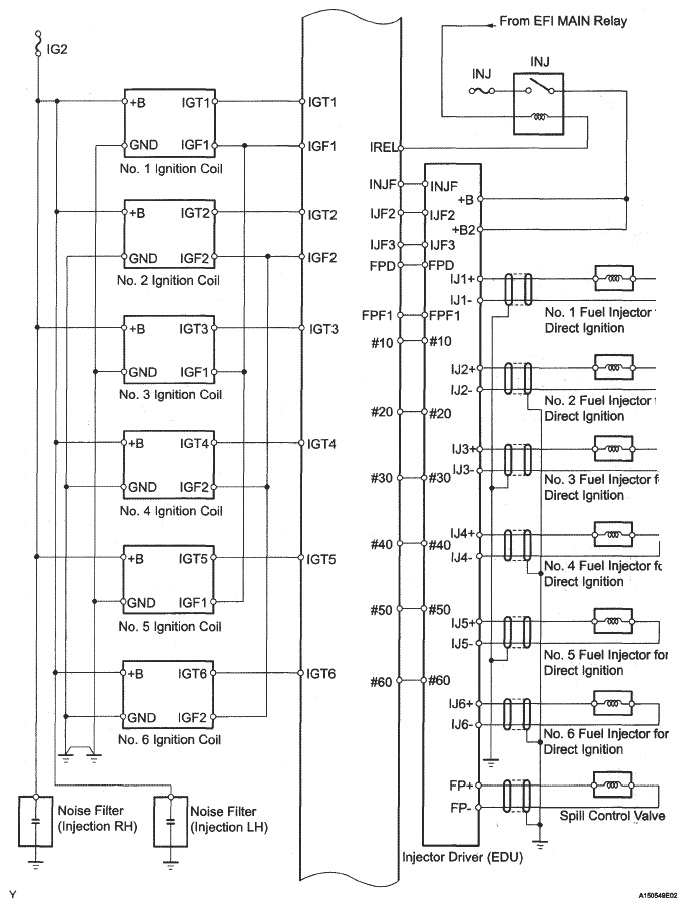

Fig 2: SFI System Diagram (2 Of 5)
G05315871Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

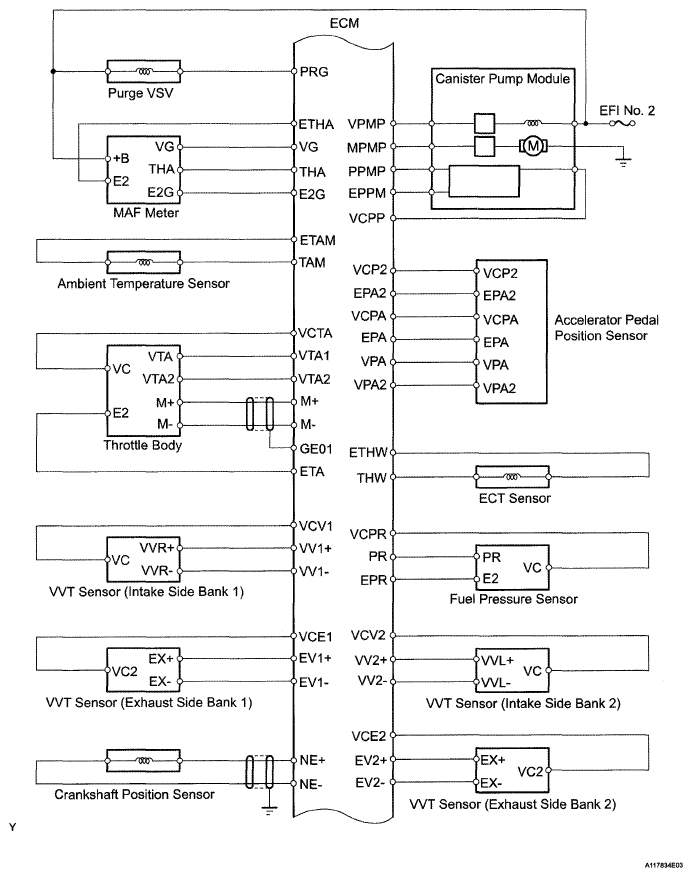

Fig 3: SFI System Diagram (3 Of 5)
G05315872Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

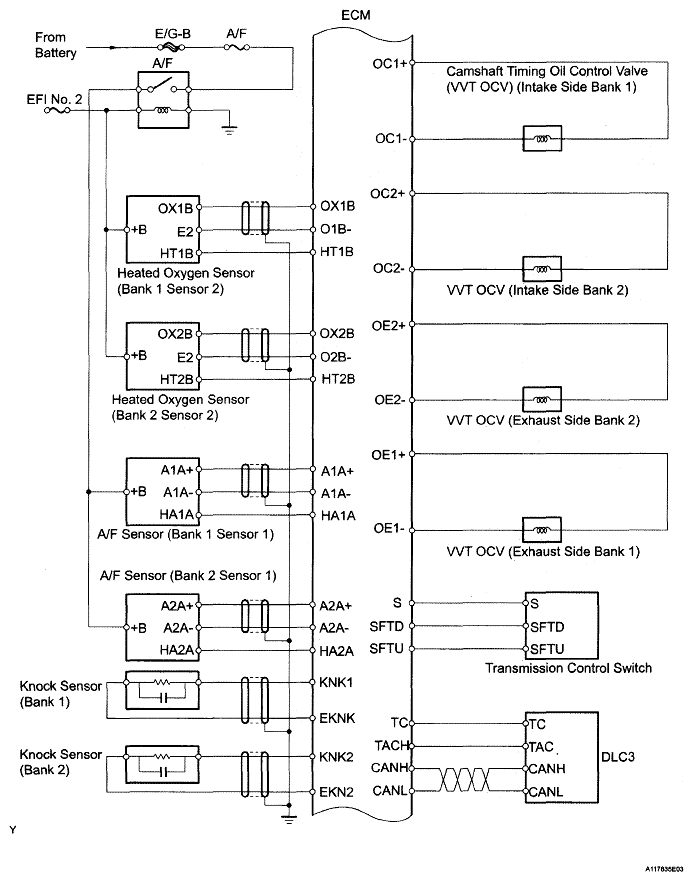

Fig 4: SFI System Diagram (4 Of 5)
G05315873Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

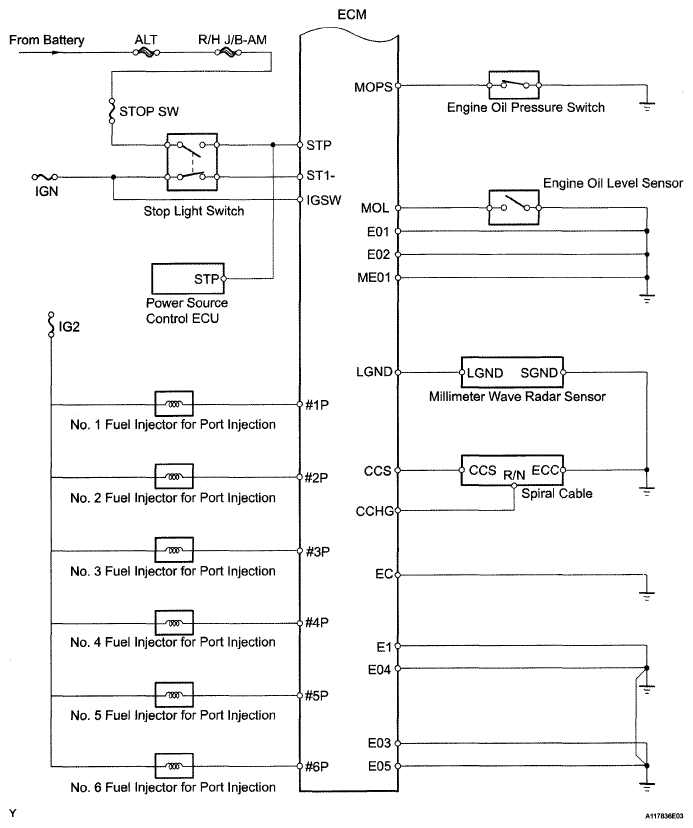

Fig 5: SFI System Diagram (5 Of 5)
G05315874Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
