Engine Control System (2GR-FSE) - System And Circuit Testing, On-Vehicle Inspection, Removal, Inspection And Installation: ECM: Components

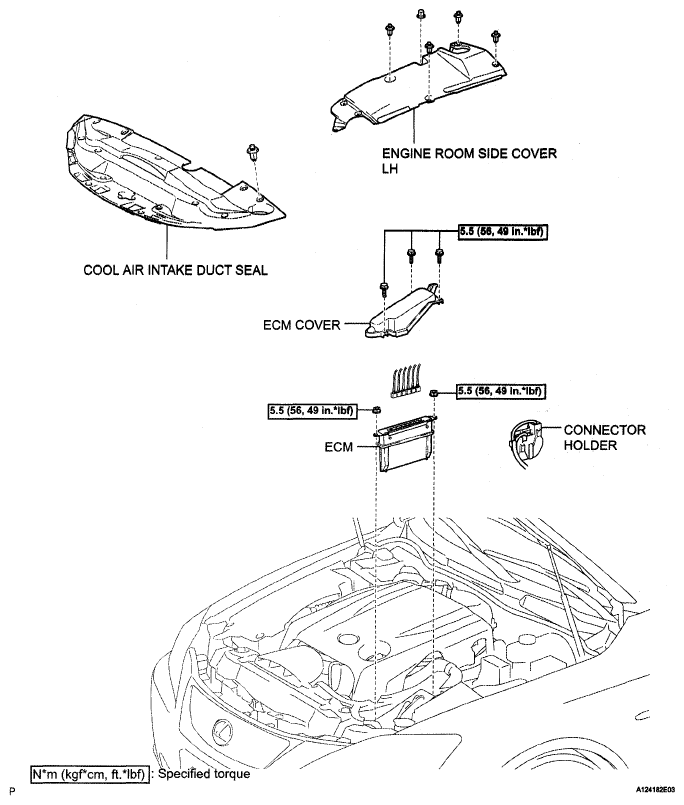

Fig 1: Identifying ECM Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
