Air Conditioning Unit: Components

Fig 1: Exploded View Of Air Conditioning Unit With Torque Specifications (1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Exploded View Of Air Conditioning Unit With Torque Specifications (2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Exploded View Of Air Conditioning Unit With Torque Specifications (3 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Exploded View Of Air Conditioning Unit With Torque Specifications (4 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 5: Exploded View Of Air Conditioning Unit With Torque Specifications (5 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 6: Instrument Cluster And Related Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 7: Glove Box And Related Components

Fig 8: Exploded View Of Instrument Panel And Related Components

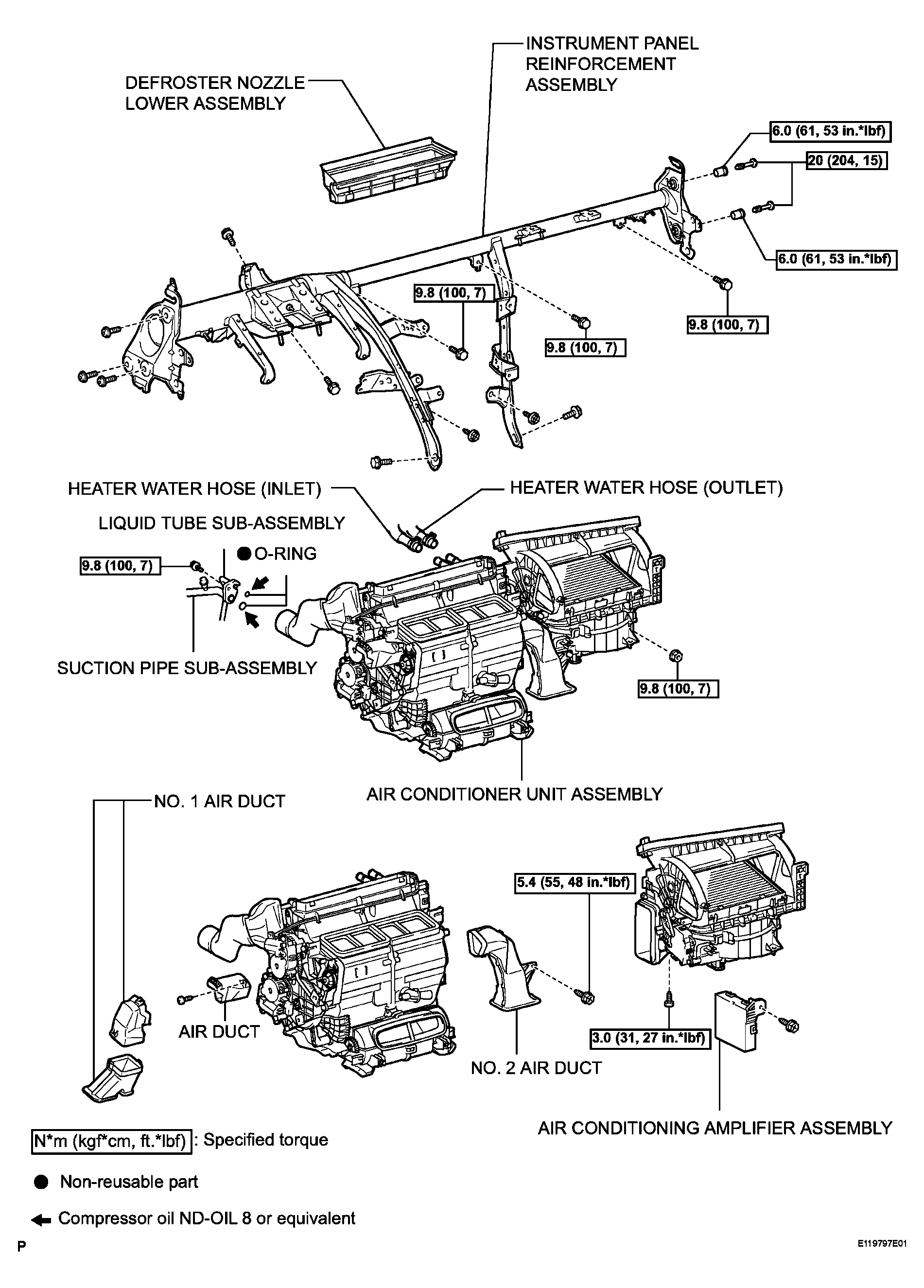

Fig 9: Exploded View Of Air Conditioning Unit With Torque Specifications (1 Of 2)

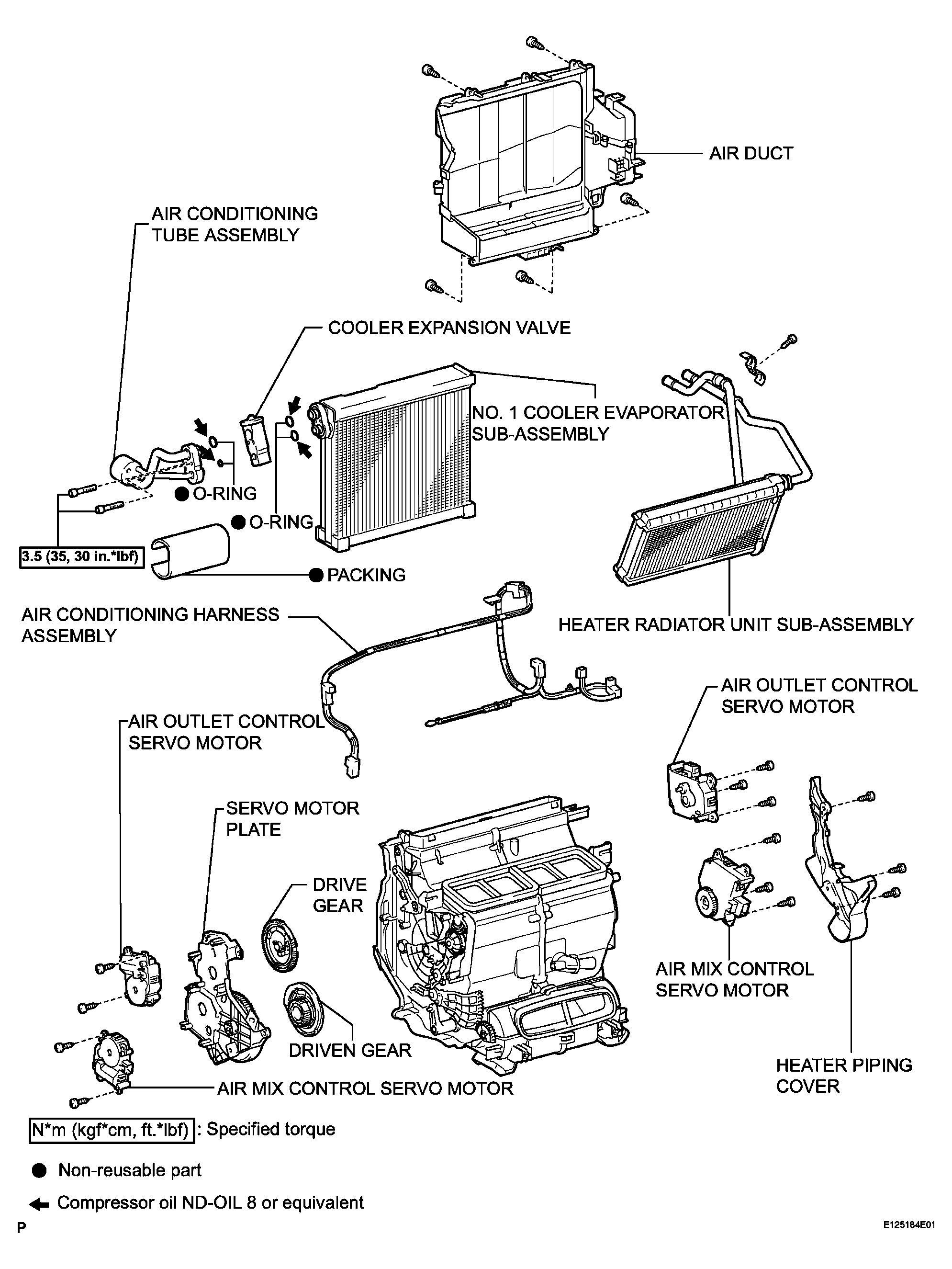

Fig 10: Exploded View Of Air Conditioning Unit With Torque Specifications (2 Of 2)
