Ambient Temperature Sensor: Installation

1. INSTALL AMBIENT TEMPERATURE SENSOR
   1. Install the ambient temperature sensor with the clamp.
   2. Connect the connector.
2. INSTALL FRONT BUMPER ASSEMBLY
3. INSTALL COOL AIR INTAKE DUCT SEAL (See  INSTALLATION  )
4. PREPARE VEHICLE FOR FOG LIGHT AIM (See  ADJUSTMENT  )
5. PREPARE FOR FOG LIGHT AIMING (See  ADJUSTMENT  )
6. INSPECT FOG LIGHT AIMING (See  ADJUSTMENT  )
7. ADJUST FOG LIGHT AIMING (See  ADJUSTMENT  )

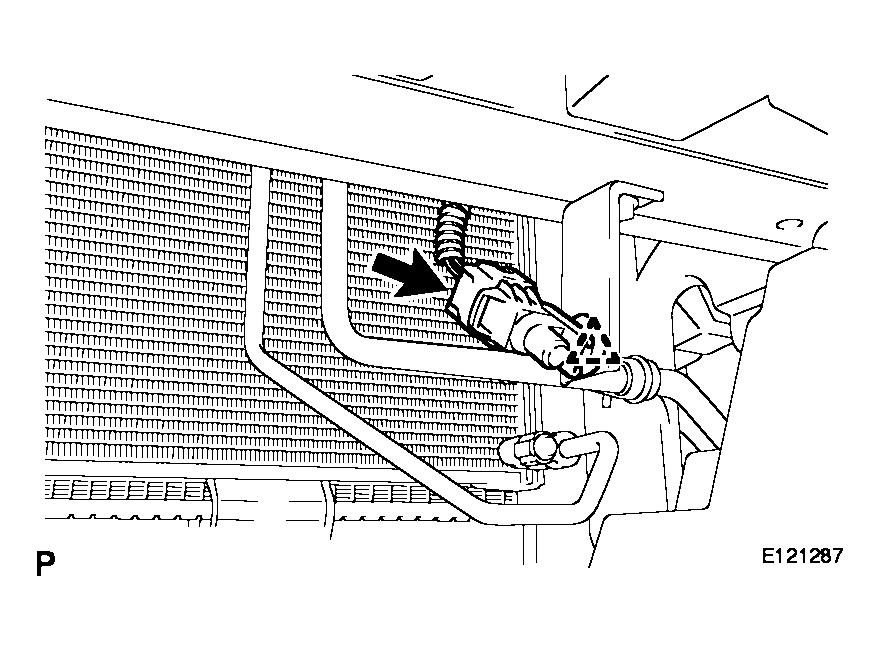

Fig 1: Identifying Connector

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
