Ambient Temperature Sensor: Removal
- REMOVE COOL AIR INTAKE DUCT SEAL (See REMOVAL
)
- REMOVE FRONT BUMPER ASSEMBLY (See REMOVAL
)

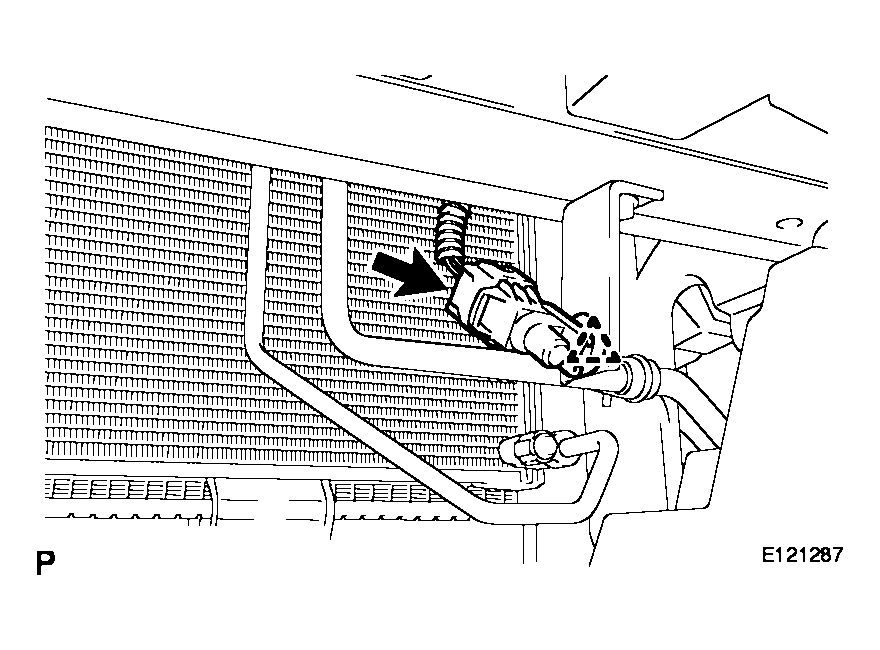

- REMOVE AMBIENT TEMPERATURE SENSOR
- Disconnect the connector and detach the clamp.
- Remove the ambient temperature sensor.
