Blower Unit: Installation

  1. INSTALL BLOWER ASSEMBLY
    1. Install the blower assembly with the 2 claws and screw.

      Torque: 3.0 N*m (31 kgf*cm, 27 in.*lbf)

    2. Connect the connector.

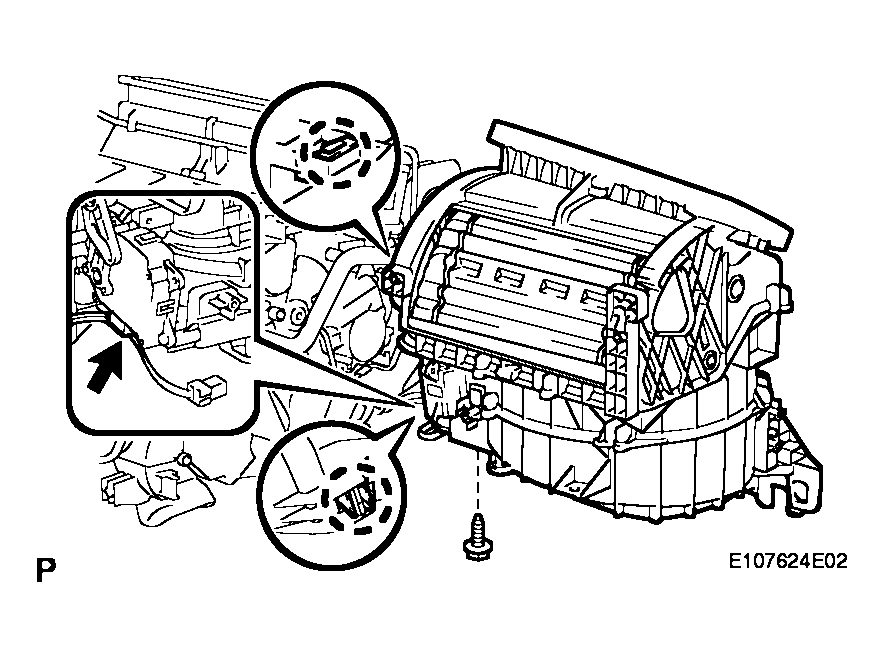

    Fig 1: Identifying Connector
    G04048456Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL AIR CONDITIONING AMPLIFIER ASSEMBLY (See  REMOVAL   )
  3. INSTALL NO. 2 AIR DUCT (See  INSTALLATION   )
  4. INSTALL AIR CONDITIONER UNIT ASSEMBLY (See  INSTALLATION   )
  5. INSTALL INSTRUMENT PANEL REINFORCEMENT ASSEMBLY (See  INSTALLATION   )
  6. INSTALL IMMOBILISER CODE ECU
  7. INSTALL DEFROSTER NOZZLE LOWER ASSEMBLY (See  INSTALLATION   )
  8. INSTALL STEERING COLUMN ASSEMBLY (for Manual Tilt) (See  INSTALLATION  )
  9. INSTALL STEERING COLUMN ASSEMBLY (for Power Tilt and Power Telescopic) (See  INSTALLATION  )
  10. INSTALL STEERING SLIDING YOKE SUBASSEMBLY (for 2WD) (See  INSTALLATION  )
  11. INSTALL NO. 2 STEERING INTERMEDIATE SHAFT ASSEMBLY (for 4WD) (See  INSTALLATION  )
  12. INSTALL NO. 1 AIR DUCT (See  INSTALLATION  )
  13. INSTALL INSTRUMENT PANEL SAFETY PAD ASSEMBLY (See  INSTALLATION  )
  14. CONNECT PASSENGER AIRBAG CONNECTOR
  15. INSTALL NO. 2 CONSOLE BOX DUCT (for Manual Transmission) (See  INSTALLATION  )
  16. INSTALL NO. 1 CONSOLE BOX DUCT (for Automatic Transmission) (See  INSTALLATION  )
  17. INSTALL NO. 2 CONSOLE BOX DUCT (for Manual Transmission) (See  INSTALLATION  )
  18. INSTALL FRONT STEREO COMPONENT SPEAKER ASSEMBLY (w/ Front Center Speaker) (See  INSTALLATION  )
  19. INSTALL NO. 3 INSTRUMENT PANEL SPEAKER PANEL SUB-ASSEMBLY (See  INSTALLATION  )
  20. INSTALL NO. 2 INSTRUMENT PANEL REGISTER ASSEMBLY (See  INSTALLATION  )
  21. INSTALL NO. 1 INSTRUMENT PANEL REGISTER ASSEMBLY (See  INSTALLATION  )
  22. INSTALL FRONT PILLAR GARNISH LH (See  INSTALLATION  )
  23. INSTALL FRONT PILLAR GARNISH RH
  24. INSTALL GLOVE COMPARTMENT DOOR ASSEMBLY (See  INSTALLATION  )
  25. INSTALL FRONT PASSENGER SIDE KNEE AIRBAG ASSEMBLY (See  INSTALLATION  )
  26. INSTALL NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY (See  INSTALLATION  )
  27. INSTALL SIDE INSTRUMENT PANEL RH (See  INSTALLATION  )
  28. INSTALL FRONT DOOR OPENING TRIM COVER RH (See  INSTALLATION  )
  29. INSTALL FRONT DOOR SCUFF PLATE RH (w/o Illumination)
  30. REMOVE FRONT DOOR SCUFF PLATE RH (w/ Illumination)
  31. INSTALL COMBINATION METER ASSEMBLY (See  INSTALLATION  )
  32. INSTALL INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY (See  INSTALLATION  )
  33. INSTALL DRIVER SIDE KNEE AIRBAG ASSEMBLY (See  INSTALLATION  )
  34. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY (See  INSTALLATION  )
  35. INSTALL NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY (See  INSTALLATION  )
  36. INSTALL SIDE INSTRUMENT PANEL LH (See  INSTALLATION  )
  37. INSTALL FRONT DOOR OPENING TRIM COVER LH (See  INSTALLATION  )
  38. INSTALL FRONT DOOR SCUFF PLATE LH (w/o Illumination) (See  INSTALLATION  )
  39. REMOVE FRONT DOOR SCUFF PLATE LH (w/ Illumination) (See  INSTALLATION  )
  40. INSTALL TURN SIGNAL SWITCH ASSEMBLY WITH SPIRAL CABLE SUB-ASSEMBLY (See  INSTALLATION  )
  41. INSTALL STEERING COLUMN COVER (for Manual Tilt) (See  INSTALLATION  )
  42. INSTALL STEERING COLUMN COVER (for Power Tilt and Power Telescopic) (See  INSTALLATION  )
  43. ADJUST SPIRAL CABLE SUB-ASSEMBLY (See  INSTALLATION  )
  44. INSTALL STEERING WHEEL ASSEMBLY (See  INSTALLATION  )
  45. INSTALL STEERING PAD (See  INSTALLATION  )
  46. INSTALL LOWER NO. 3 STEERING WHEEL COVER (See  INSTALLATION  )
  47. INSTALL LOWER NO. 2 STEERING WHEEL COVER (See  INSTALLATION  )
  48. INSTALL INTEGRATION CONTROL PANEL WITH RADIO RECEIVER ASSEMBLY (w/o Navigation System) (See  INSTALLATION  )
  49. INSTALL MULTI-DISPLAY WITH RADIO RECEIVER ASSEMBLY (w/ Navigation System) (See  INSTALLATION  )
  50. INSTALL CENTER LOWER INSTRUMENT CLUSTER FINISH PANEL (See  INSTALLATION  )
  51. INSTALL NO. 3 INSTRUMENT PANEL REGISTER ASSEMBLY (See  INSTALLATION  )
  52. INSTALL CONSOLE BOX (See  INSTALLATION  )
  53. INSTALL CONSOLE BOX REGISTER ASSEMBLY (See  INSTALLATION  )
  54. INSTALL FRONT ASH RECEPTACLE SUBASSEMBLY (See  INSTALLATION  )
  55. INSTALL FRONT CONSOLE PANEL SUB-ASSEMBLY (for Manual Transmission) (See  INSTALLATION  )
  56. INSTALL REAR CONSOLE PANEL SUB-ASSEMBLY (for Manual Transmission) (See  INSTALLATION  )
  57. INSTALL CONSOLE PANEL SUB-ASSEMBLY (for Automatic Transmission) (See  INSTALLATION  )
  58. INSTALL UPPER NO. 2 CONSOLE PANEL GARNISH (for Automatic Transmission) (See  INSTALLATION  )
  59. INSTALL UPPER NO. 1 CONSOLE PANEL GARNISH (for Automatic Transmission) (See  INSTALLATION  )
  60. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for Manual Transmission)
  61. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for Automatic Transmission)
  62. INSTALL WINDSHIELD WIPER MOTOR AND LINK ASSEMBLY (See  INSTALLATION  )
  63. INSTALL COWL TOP VENTILATOR LOUVER SUBASSEMBLY (See  INSTALLATION  )
  64. INSTALL FRONT WIPER ARM AND BLADE ASSEMBLY LH (See  INSTALLATION  )
  65. INSTALL FRONT WIPER ARM AND BLADE ASSEMBLY RH (See  INSTALLATION  )
  66. INSTALL FRONT WIPER ARM HEAD CAP (See  INSTALLATION  )
  67. INSTALL ROOF DRIP SIDE FINISH MOULDING LH
  68. INSTALL ROOF DRIP SIDE FINISH MOULDING RH
  69. INSTALL FRONT FENDER PROTECTOR UPPER LH (See  INSTALLATION  )
  70. INSTALL FRONT FENDER PROTECTOR UPPER RH (See  INSTALLATION  )
  71. INSTALL HEATER WATER INLET HOSE (See  INSTALLATION   )
  72. INSTALL HEATER WATER OUTLET HOSE (See  INSTALLATION   )
  73. INSTALL LIQUID TUBE SUB-ASSEMBLY (See  INSTALLATION   )
  74. INSTALL SUCTION PIPE SUB-ASSEMBLY (See  INSTALLATION   )
  75. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
  76. PERFORM INITIALIZATION
    NOTE: Some systems need initialization after reconnecting the cable to the negative battery terminal (See INITIALIZATION )
  77. CHARGE REFRIGERANT (See  REPLACEMENT   )
  78. WARM UP ENGINE (See  REPLACEMENT   )
  79. CHECK FOR LEAKAGE OF REFRIGERANT (See  REPLACEMENT   )
  80. INSTALL ENGINE ROOM SIDE COVER LH (See  INSTALLATION  )
  81. INSTALL ENGINE ROOM SIDE COVER RH (See  INSTALLATION  )
  82. INSTALL COOL AIR INTAKE DUCT SEAL (See  INSTALLATION  )
