COMPRESSOR AND MAGNETIC CLUTCH (for 2WD): Components

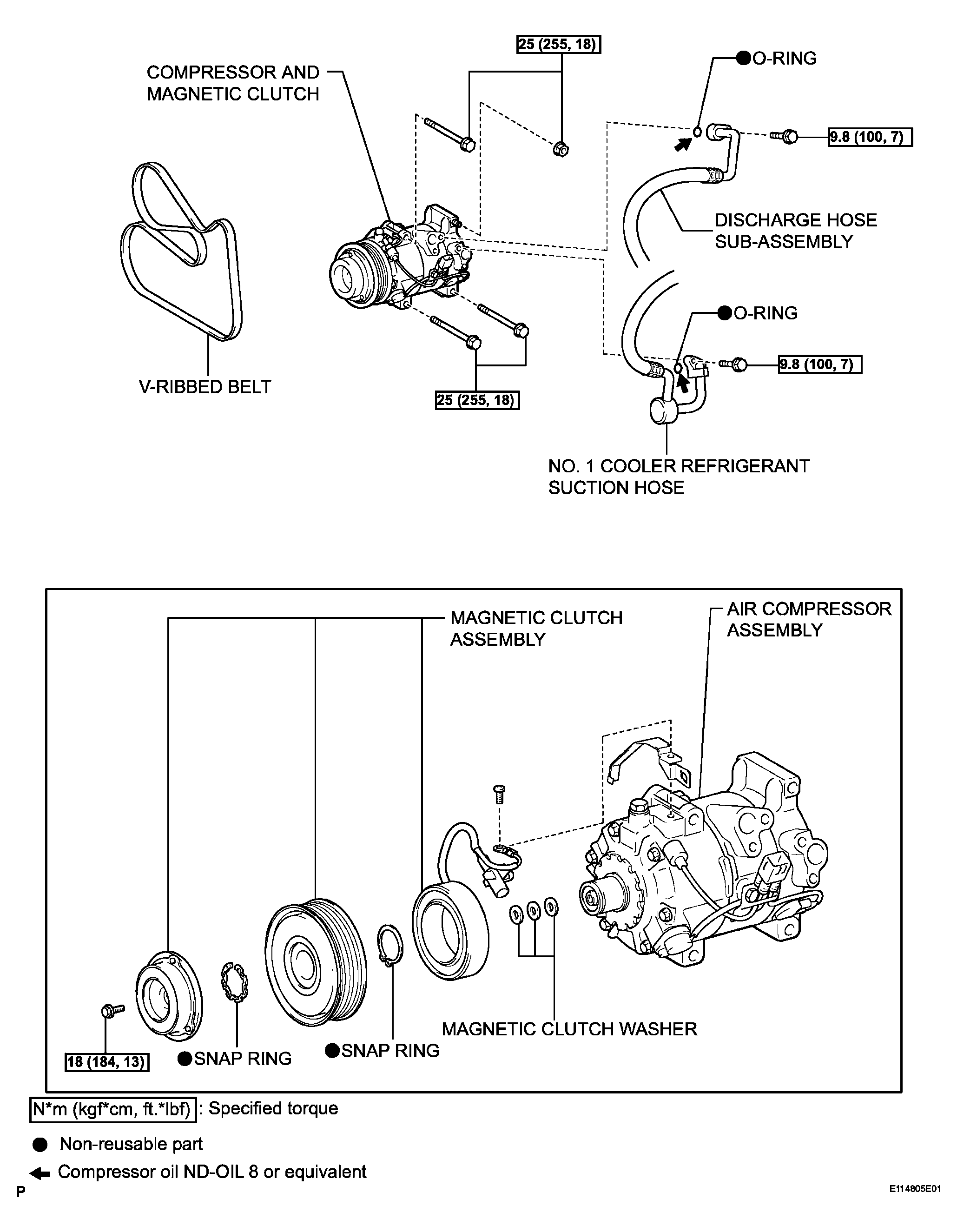

Fig 1: Exploded View Of Compressor And Magnetic Clutch (2WD) With Torque Specifications (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Exploded View Of Compressor And Magnetic Clutch (2WD) With Torque Specifications (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
