COMPRESSOR AND MAGNETIC CLUTCH (for 2WD): Disassembly

REMOVE MAGNETIC CLUTCH ASSEMBLY
1. Place the compressor and magnetic clutch in a vise.
2. Using vise pliers, hold the magnetic clutch hub.
3. Remove the bolt, magnetic clutch hub and magnetic clutch washers.
  HINT:

  There is no set number of magnetic clutch washers since they are used for adjusting.

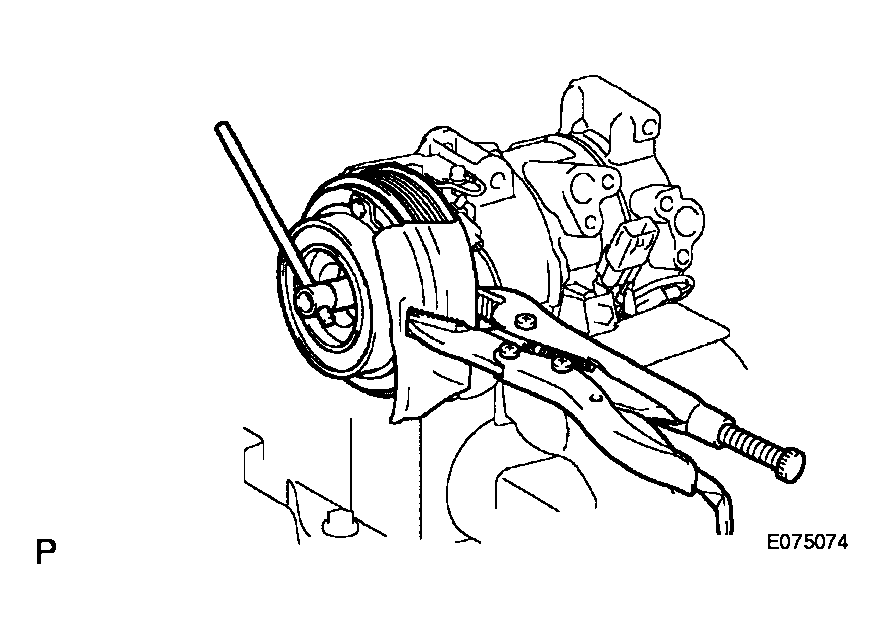

  Fig 1: Holding Magnetic Clutch Hub Using Vise Pliers
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Using a snap ring expander, remove the snap ring and magnetic clutch rotor.
  NOTE: Take care not to damage the seal cover of the bearing when removing the snap ring.
5. Disconnect the connector.
6. Remove the screw.

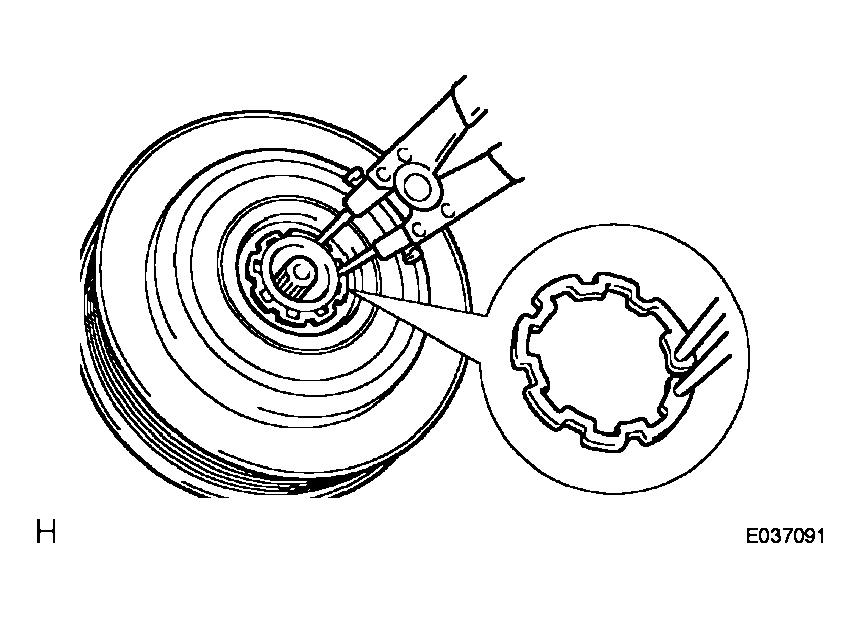

  Fig 2: Removing Snap Ring Magnetic Clutch Rotor Using Snap Ring Expander
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
7. Using a snap ring expander, remove the snap ring and magnetic clutch stator.

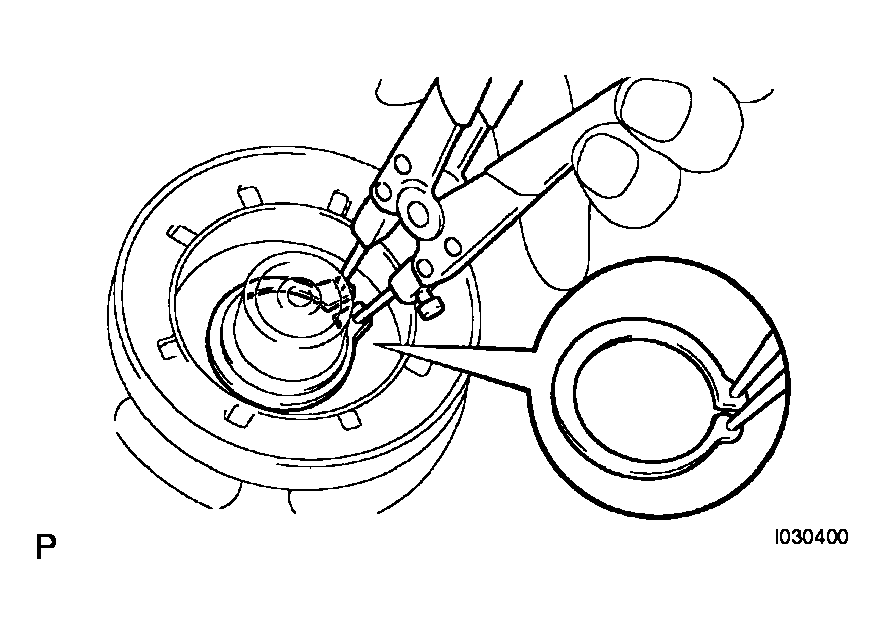

Fig 3: Removing Snap Ring Magnetic Clutch Stator Using Snap Ring Expander
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
