COMPRESSOR AND MAGNETIC CLUTCH (for 4WD): Installation

  1. TEMPORARILY TIGHTEN COMPRESSOR AND MAGNETIC CLUTCH
    1. Using an E8 "torx " socket, install the compressor with the stud bolt.

      Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

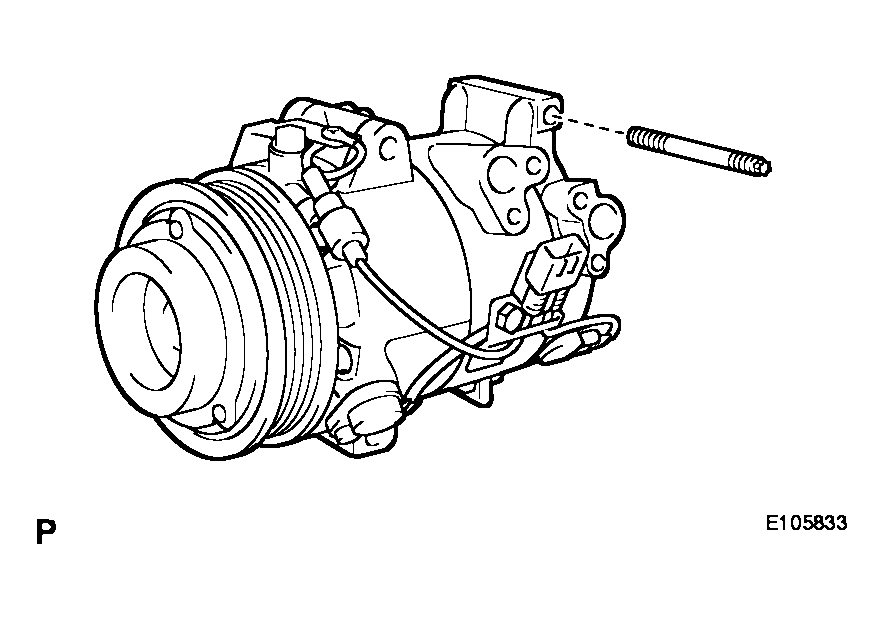

      Fig 1: Identifying Compressor Stud Bolt
      G04048489Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Temporarily tighten the cooler compressor with magnetic clutch assembly with the 2 bolts and nut.
  2. INSTALL DISCHARGE HOSE SUB-ASSEMBLY (See  INSTALLATION   )
  3. INSTALL NO. 1 COOLER REFRIGERANT SUCTION HOSE (See  INSTALLATION   )
    Fig 2: Identifying Magnetic Clutch Assembly And Bolts, Nut
    G04048490Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. INSTALL OIL FILTER BRACKET SUB-ASSEMBLY
    1. Install a new oil filter bracket gasket and the oil filter bracket sub-assembly with the 2 nuts and bolt.

      Torque:

      21 N*m (214 kgf*cm, 15 ft.*lbf)

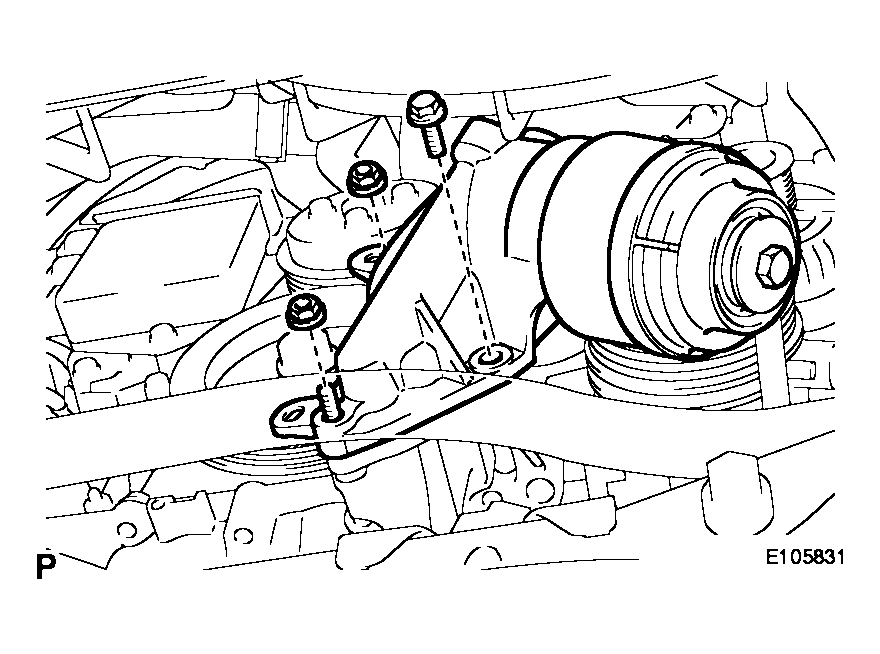

      Fig 3: Identifying Oil Filter Bracket
      G04048491Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Connect the connector and install the wire harness with the 2 clamps.

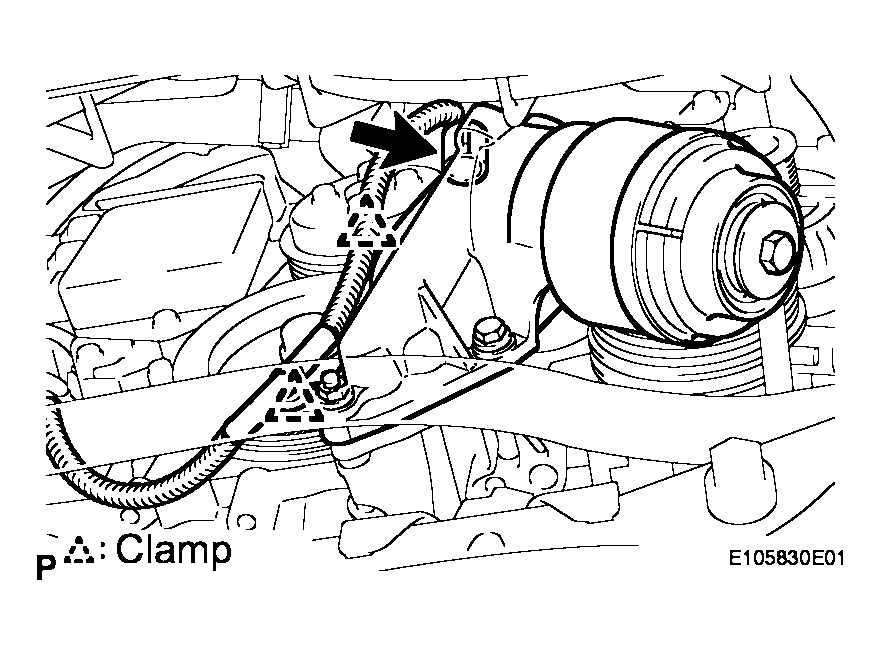

    Fig 4: Identifying Connector
    G04048492Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. INSTALL OIL FILTER BRACKET
    1. Install the oil filter bracket with the bolt and nut.

      Torque: 25 N*m (255 kgf*cm, 18 ft.*lbf)

      NOTE: Tighten the bolts in the order shown in the illustration to install the compressor.

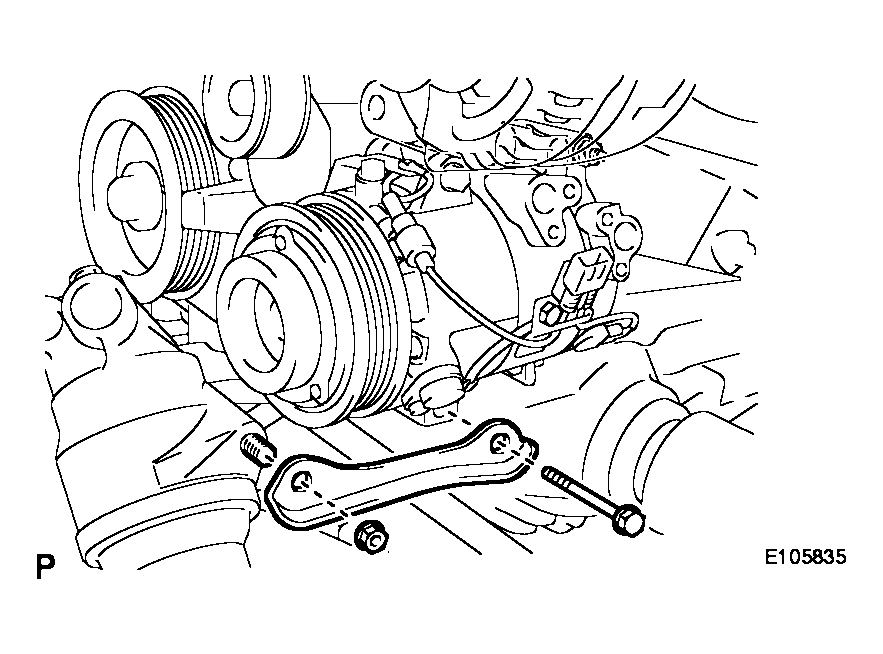

    Fig 5: Identifying Filter Bracket, Bolt And Nut
    G04048493Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. FULLY TIGHTEN COMPRESSOR AND MAGNETIC CLUTCH
    1. Install the compressor with the bolts and nut.

      Torque: 25 N*m (255 kgf*cm, 18 ft.*lbf)

      NOTE: Tighten the bolts in the order shown in the illustration to install the compressor.

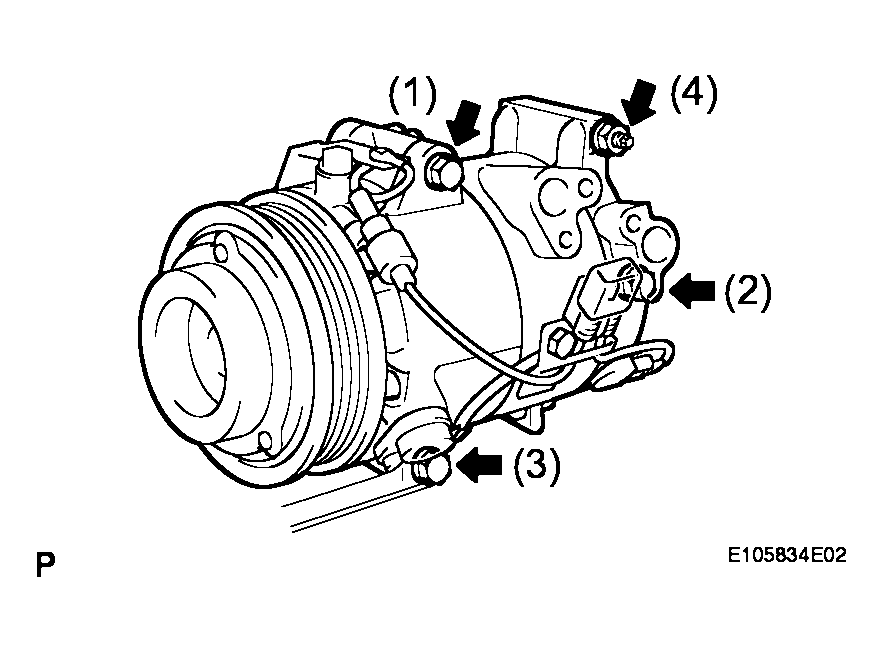

    Fig 6: Identifying Compressor And Bolts
    G04048494Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. INSTALL V-RIBBED BELT (See  INSTALLATION  )
  8. INSTALL UNDER ENGINE COVER
  9. CHARGE REFRIGERANT (See  REPLACEMENT   )
  10. WARM UP ENGINE (See  REPLACEMENT   )
  11. CHECK FOR LEAKAGE OF REFRIGERANT (See  REPLACEMENT   )
  12. INSTALL NO. 1 INLET AIR CLEANER (See  INSTALLATION  )
  13. INSTALL V-BANK COVER SUB-ASSEMBLY (See  INSTALLATION  )
  14. INSTALL COOL AIR INTAKE DUCT SEAL (See  INSTALLATION  )
