Home › Lexus › 2007 › IS 350 › Repair and Diagnosis › Heating, Ventilation & A/C (HVAC) › HVAC Control Systems › Air Conditioning › Heater Glow Plug › Components

Heater Glow Plug: Components

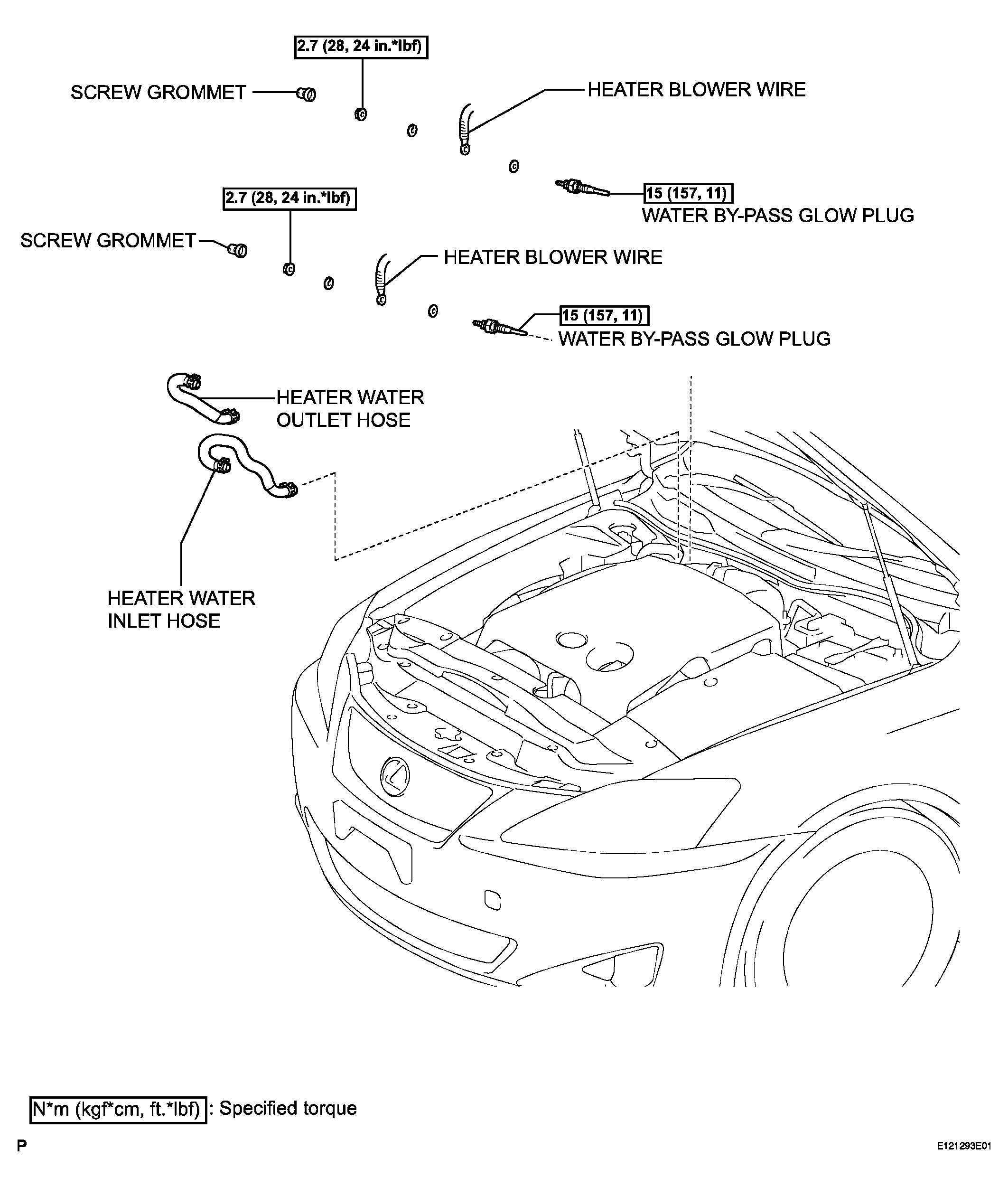

Fig 1: Heater Glow Plug Replacement Components With Torque Specifications
G04048525Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
