Integration Control And Panel: Reassembly

  1. INSTALL NO. 1 CONTROL KNOB SUB-ASSEMBLY
    1. Engage the 16 claws, and install the No. 1 control knob sub-assembly.

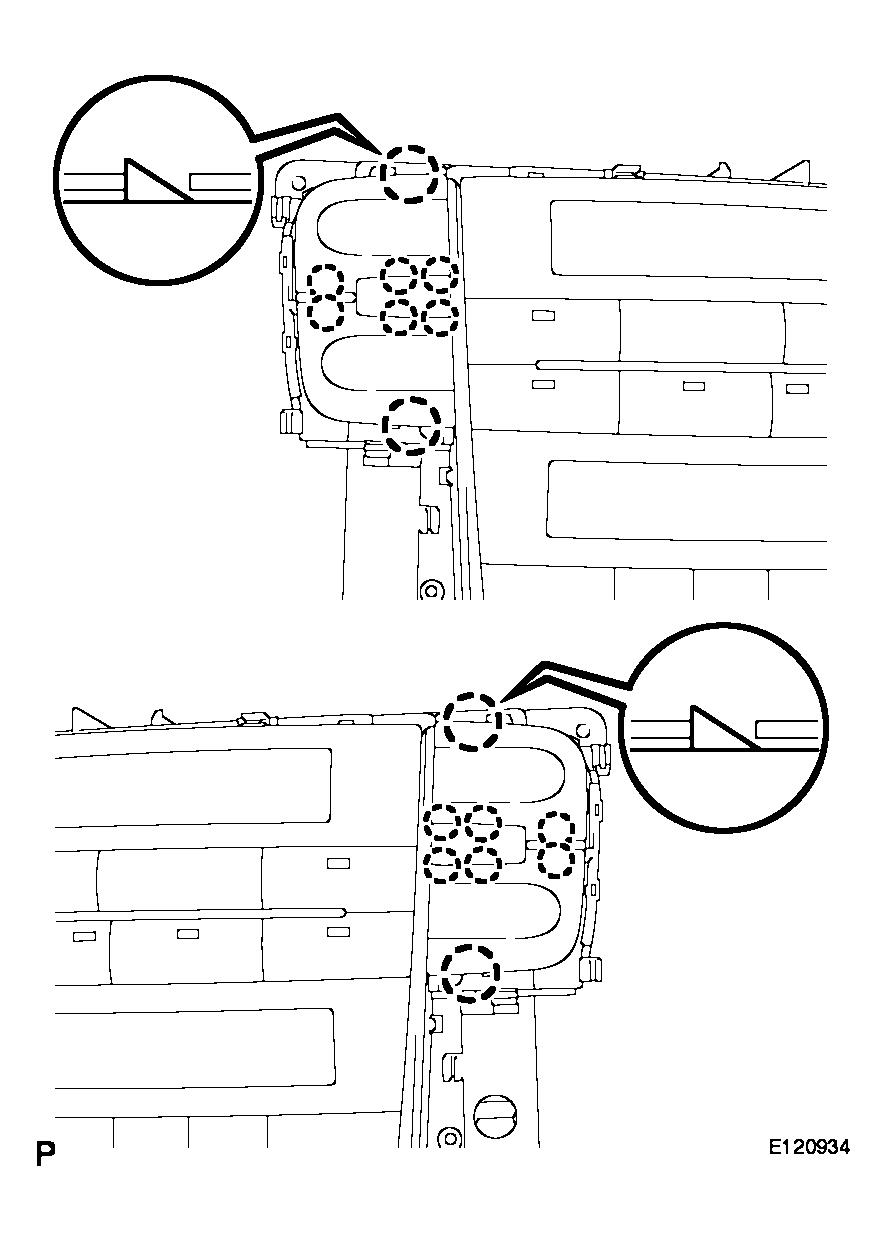

    Fig 1: Identifying Control Knob Sub-Assembly
    G04048541Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL INSTRUMENT CLUSTER FINISH PANEL CENTER
    1. Engage the 5 claws.

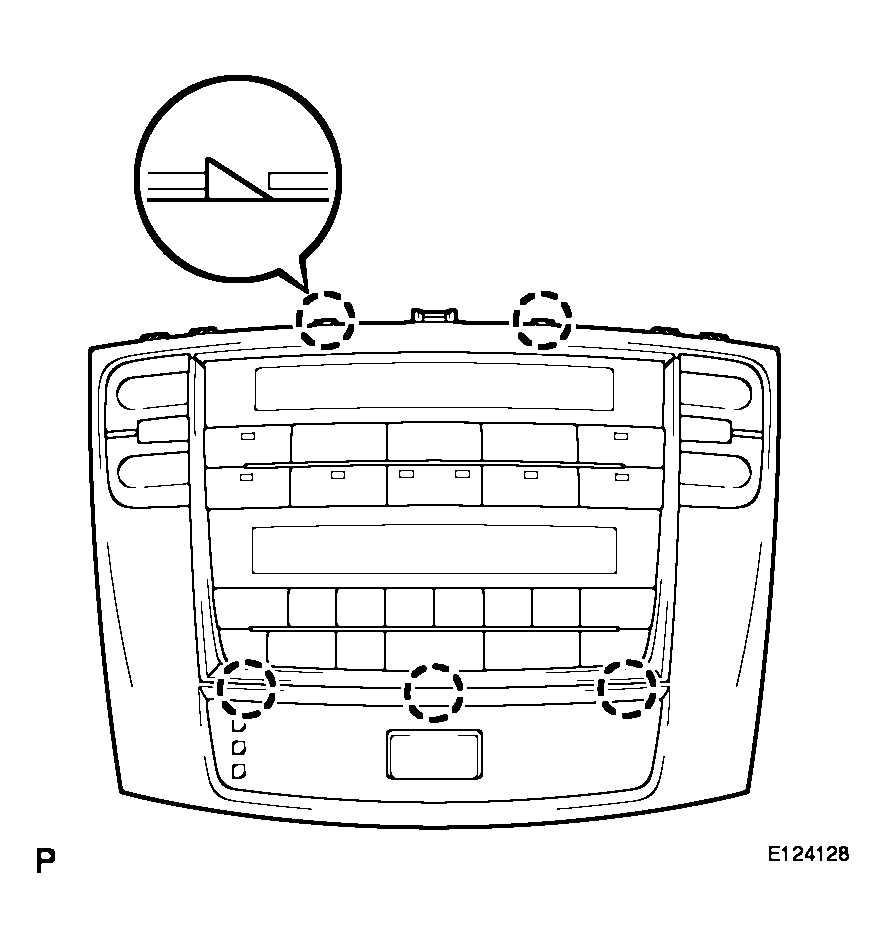

      Fig 2: Identifying Instrument Cluster Finish Panel Center
      G04048542Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the integration control panel with 6 screws.

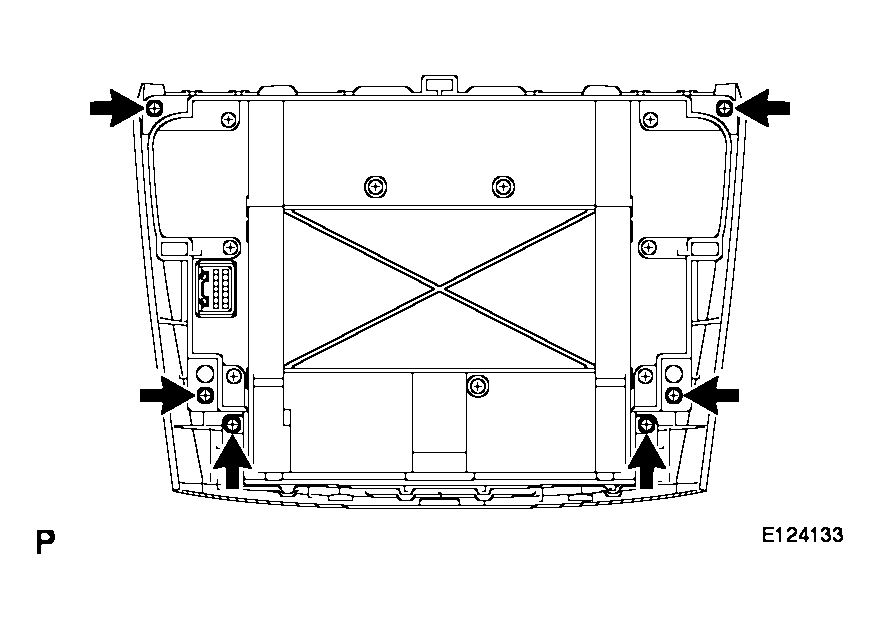

    Fig 3: Identifying Integration Control Panel And Screws
    G04048543Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
