Room Temperature Sensor: Inspection
- INSPECT ROOM TEMPERATURE SENSOR

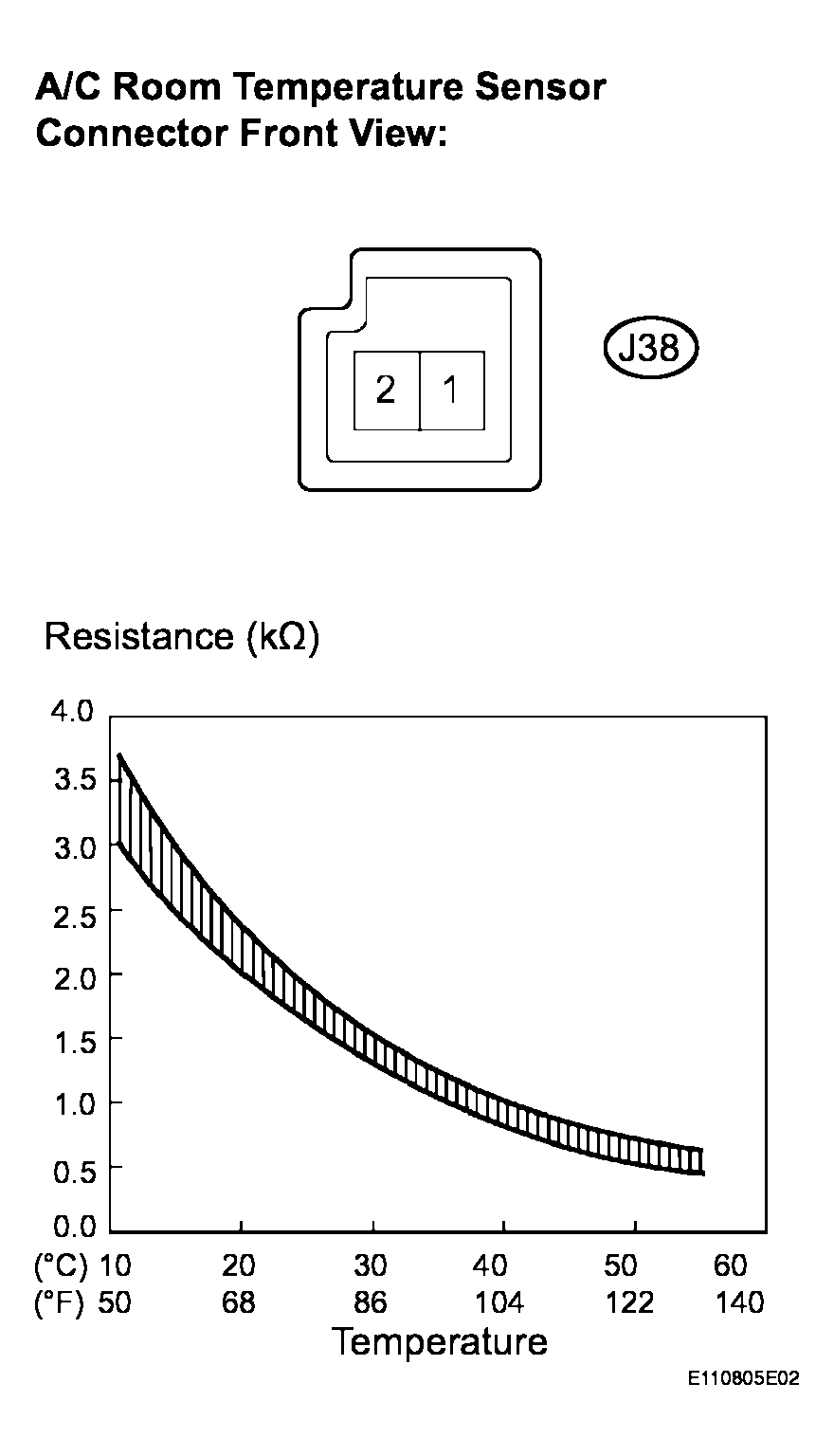

- Measure the resistance according to the value(s) in the table below.
Standard resistance
RESISTANCE SPECIFICATIONTester Connection Condition Specified Condition J38-1 - J38-2 10°C (50°F) 3.00 to 3.73 kΩ J38-1 - J38-2 15°C (59°F) 2.45 to 2.88 kΩ J38-1 - J38-2 20°C (68°F) 1.95 to 2.30 kΩ J38-1 - J38-2 15°C (77°F) 1.60 to 1.80 kΩ J38-1 - J38-2 30°C (86°F) 1.28 to 1.47 kΩ J38-1 - J38-2 35°C (95°F) 1.00 to 1.22 kΩ J38-1 - J38-2 40°C (104°F) 0.80 to 1.00 kΩ J38-1 - J38-2 45°C (113°F) 0.65 to 0.85 kΩ J38-1 - J38-2 50°C (122°F) 0.50 to 0.70 kΩ J38-1 - J38-2 55°C (131°F) 0.44 to 0.60 kΩ J38-1 - J38-2 60°C (140°F) 0.36 to 0.50 kΩ
NOTE:- Hold the sensor only by its connector. Touching the sensor may change the resistance value.
- When measuring, the sensor temperature must be the same as the ambient temperature.
HINT:
As the temperature increases, the resistance decreases (see the graph).
If the resistance is not as specified, replace the room temperature sensor.
- Measure the resistance according to the value(s) in the table below.
