Tire Pressure Warning Valve/Sensor Activation (PD039-06)
Publication date: 2006-08-08Reference number: PD039-06
TIRE PRESSURE WARNING VALVE/SENSOR ACTIVATION
TECHNICAL SERVICE BULLETIN
Reference Number(s): PD039-06, Date of Issue:
August 08, 2006
| LEXUS: | 2007 IS 250 & IS 350 |
| Section: | PRE-DELIVERY SERVICE |
| COPYRIGHT: | © 2018 Lexus, a division of Toyota Motor Sales, USA License Agreement TMS1002 |
Introduction
2007 model year IS 250 and IS 350 vehicles are equipped with a direct-type Tire Pressure Warning System (TPWS). Each tire has a tire pressure warning valve/sensor, and the measured tire pressure data is transmitted to the Tire Pressure Warning System antenna/receiver to the Tire Pressure Warning System ECU.
During Pre-Delivery Service (PDS), the tire pressure warning valves/sensors must be activated according to the procedure in this bulletin.
Applicable Vehicles
- 2007 model year IS 250 and IS 350 vehicles.
Required SSTs
REQUIRED SSTS
| ITEM NO. | SPECIAL SERVICE TOOLS (SSTs) | PART NUMBER | QTY | DRW(2) | |||||
|---|---|---|---|---|---|---|---|---|---|

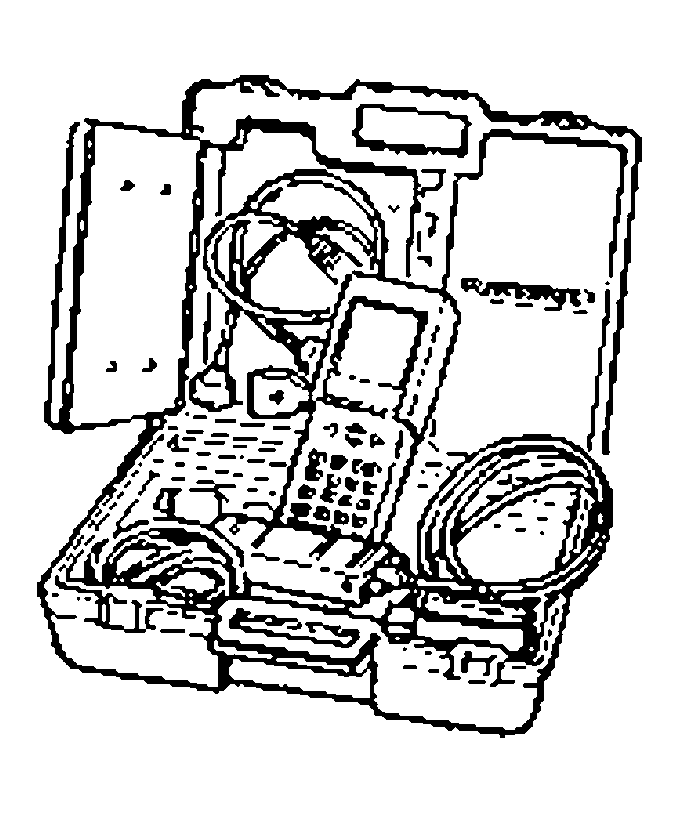

| 1 | Lexus Diagnostic Tester Kit (1)
NOTE:
|
LEX220036 | 1 | 8 | |||||
| 2 | CAN Interface Module Kit (1)
NOTE:
|
01002744 | 1 | 8 | |||||
|
|||||||||
NOTE:
Additional Diagnostic Tester Kits, CAN Interface Modules, Program Cards, or other SSTs may be ordered by calling SPX/OTC at 1-800-933-8335.
Warranty Information
WARRANTY INFORMATION
| OP CODE | DESCRIPTION | TIME | OFP | T1 | T2 |
|---|---|---|---|---|---|
| N/A | Not Applicable to Warranty | - | - | - | - |
Reference

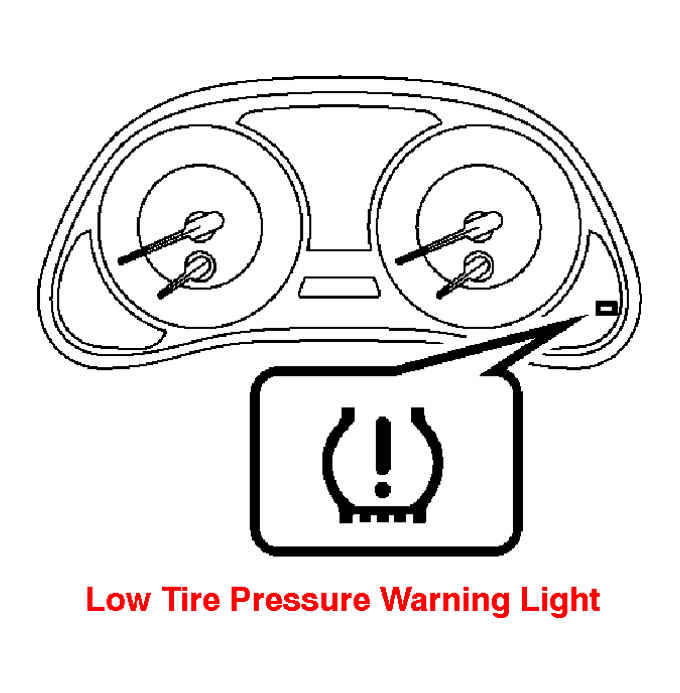

- The Low Tire Pressure Warning Light will blink until all the tire pressure warning valves/sensors are activated.
- The Diagnostic Trouble Codes (DTCs) listed below may be stored in the TPWS ECU until the tire pressure warning valves/sensors are activated.
- The DTCs will automatically clear when the tire pressure warning valves/sensors are activated.DTC CHART
DTC (1) DTC (2) DTC 11 C2111 Transmitter ID1 Inactive (Sleep Mode) 12 C2112 Transmitter ID2 Inactive (Sleep Mode) 13 C2113 Transmitter ID3 Inactive (Sleep Mode) 14 C2114 Transmitter ID4 Inactive (Sleep Mode) (1) Indicated by flashing of the Low Tire Pressure Warning Light. (2) Indicated on the Lexus Diagnostic Tester.
Activation Procedure
- Connect the Diagnostic Tester.
- Turn the ignition switch to the "IG-ON" mode and check that the Low Tire Pressure Warning Light blinks.

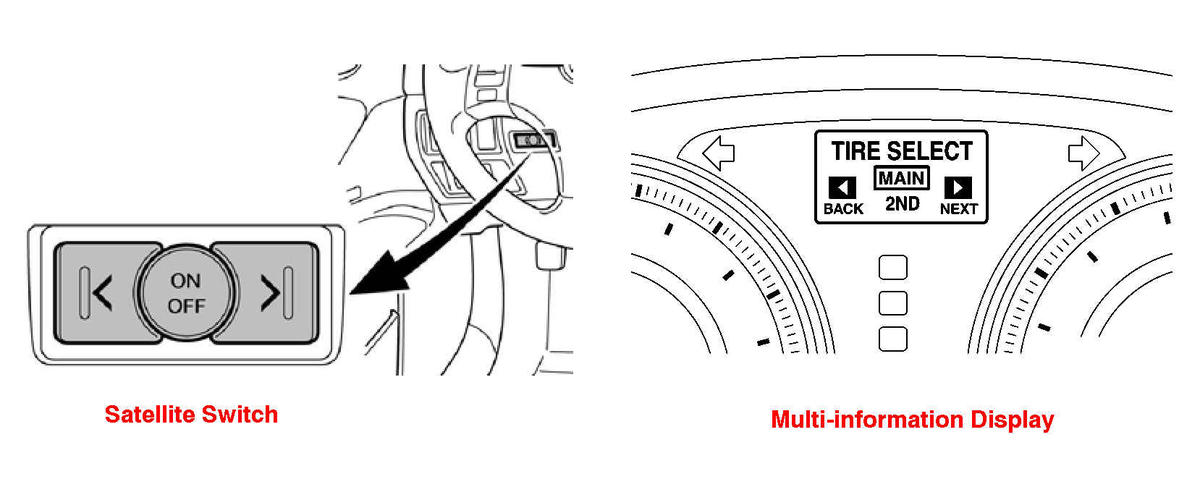

- Press and hold either the right or left side of the satellite switch until the multi-information display for "TIRE SELECT" appears. Check that "MAIN" is selected.NOTE: If "2ND" is selected, press the "ON/OFF" button until "MAIN" is selected.

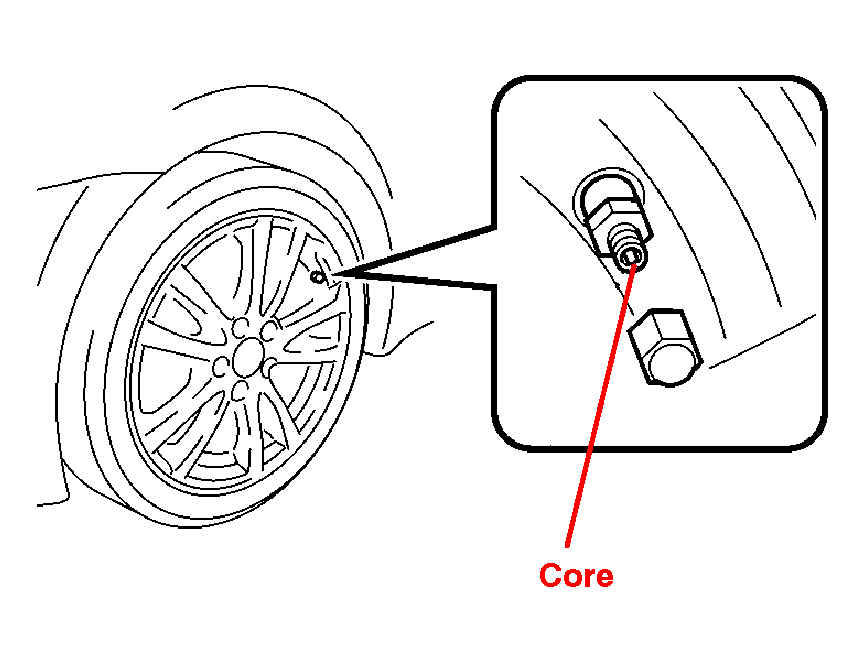

- Press or remove the valve core to reduce the tire inflation pressure rapidly by 6 psi (0.4 kgf/cm2
, 40 kPa), or more, within 30 seconds.
If the tire inflation pressure is NOT reduced by 6 psi (0.4 kgf/cm2 , 40 kPa), or more, within 30 seconds, the tire pressure warning valves/sensors will NOT be activated.
NOTE: This operation is required for the system to be activated and must be performed for each tire, one at a time. - Using the Diagnostic Tester, check for TPWS DTCs.
- If NO DTCs are stored, go to step 6.
- If DTCs C2111 - C2114 are stored, repeat step 4.
- If any other DTCs are stored, refer to the Repair Manual.

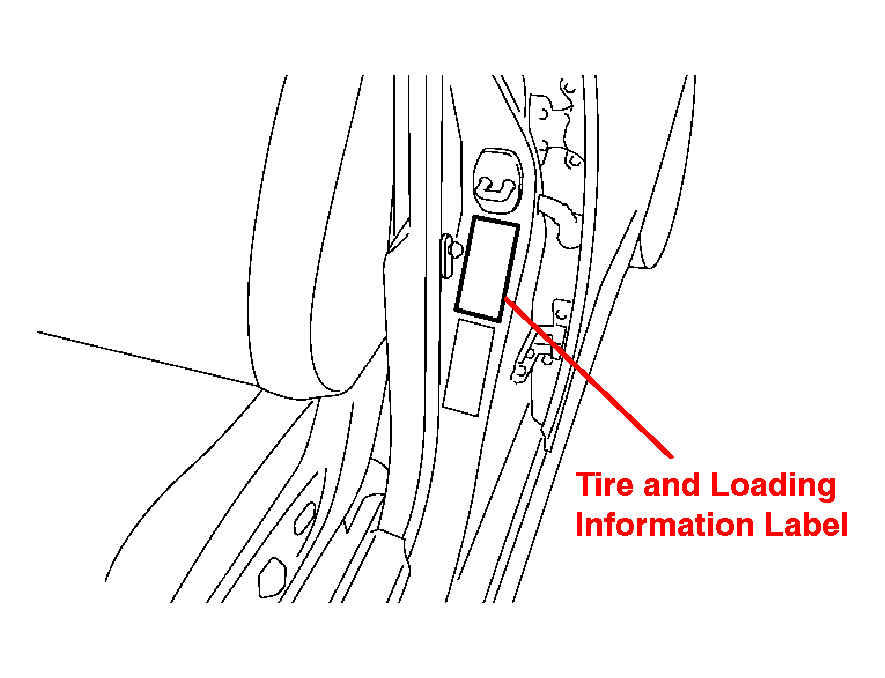

- Adjust all tires to the standard tire inflation pressure, as indicated on the Tire and Loading Information label located inside the driver's door jam and confirm that the Low Tire Pressure Warning Light is OFF.

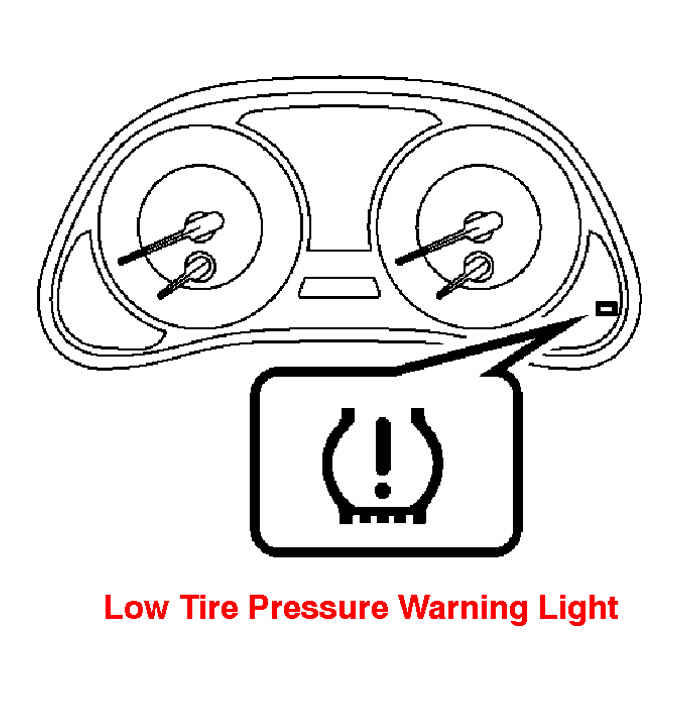

- Press and hold the left or right side of the satellite switch to display the "TIRE PRESSURE". Press and hold the "ON/OFF" button until the Low Tire Pressure Warning Light blinks 3 times and then turns OFF to set the tire pressure initialization.NOTE: It is necessary for the ignition to be in the "IG-ON" mode a maximum of 5 minutes for initialization to complete correctly.
