Seat Position Sensor: Components

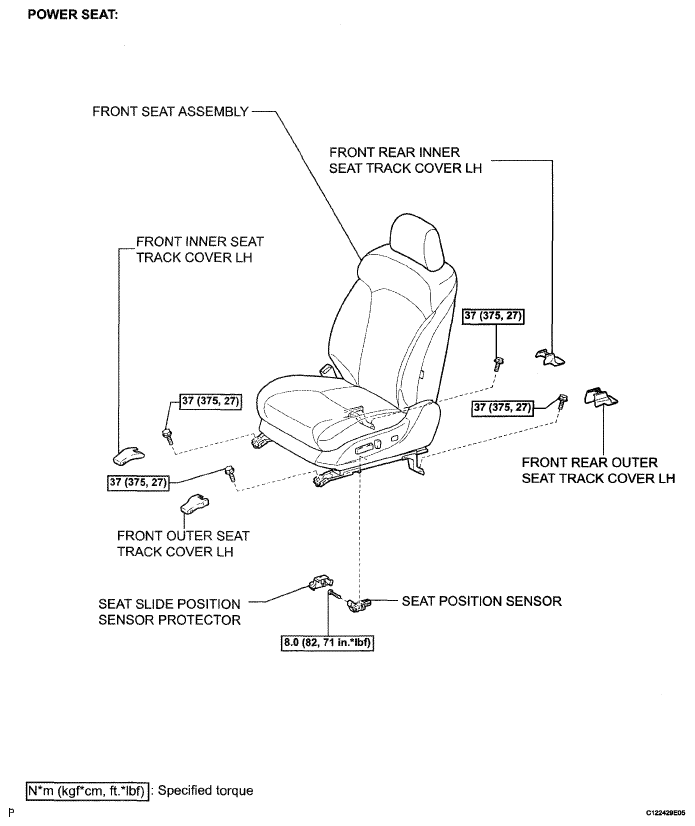

Fig 1: Seat Position Sensor Replacement Components With Torque Specifications (Power Seat)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

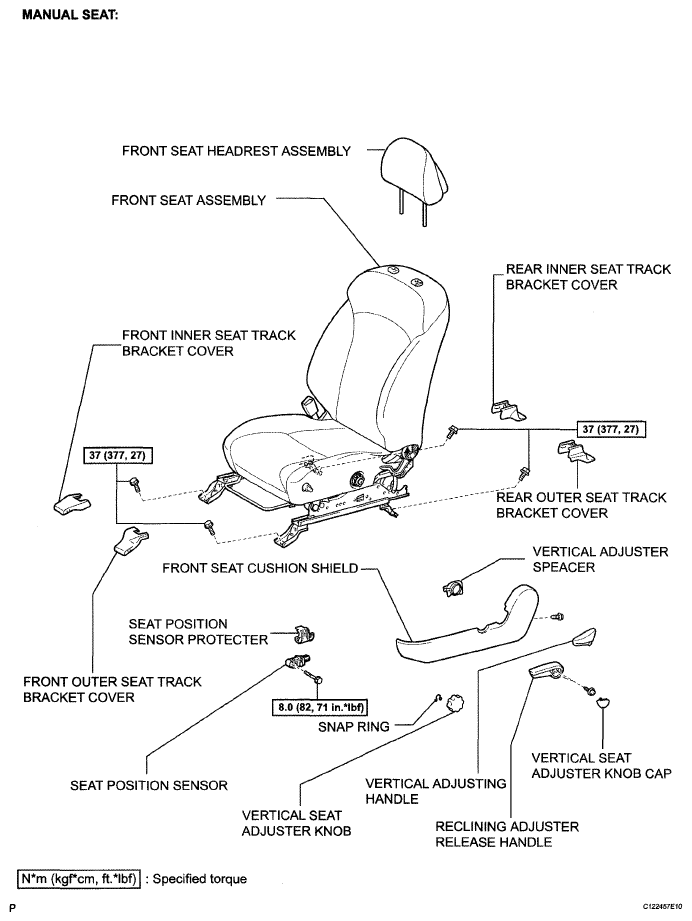

Fig 2: Seat Position Sensor Replacement Components With Torque Specifications (Manual Seat)
