Side Airbag Sensor: Components

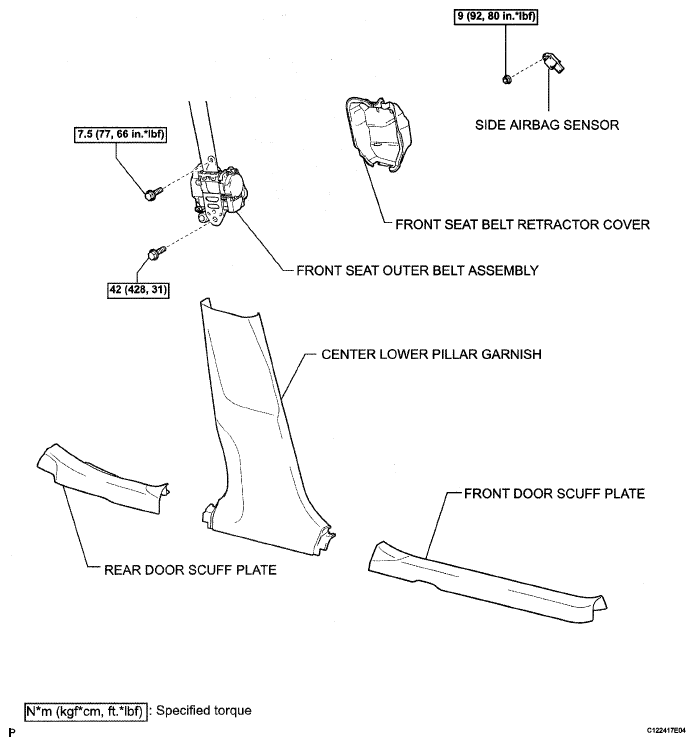

Fig 1: Side Airbag Sensor Replacement Components With Torque Specifications
G05320034Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
