Seat Belt Control Ecu: Components

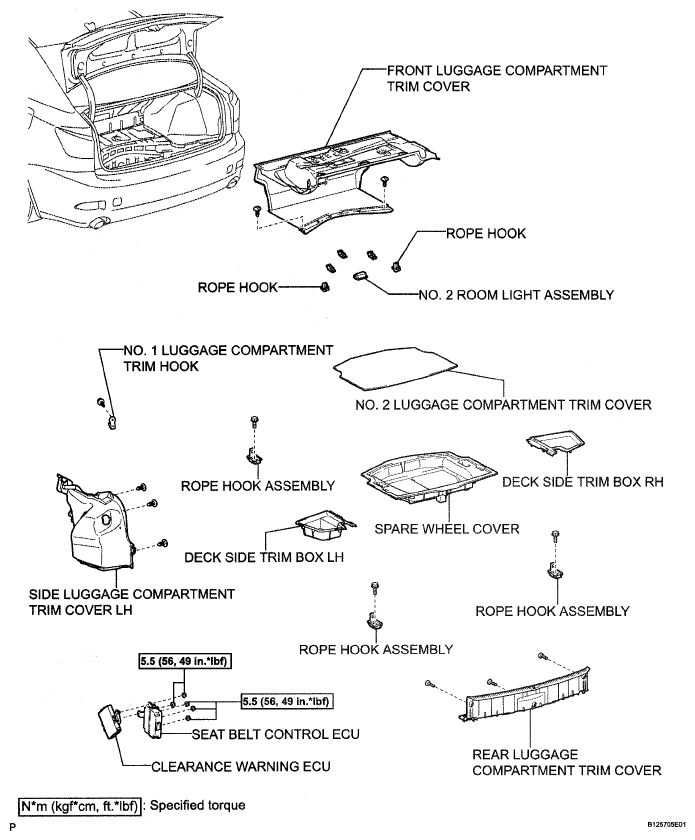

Fig 1: Seat Belt Control ECU Replacement Components With Torque Specifications
G05320247Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
