Lexus
›
2007
›
IS 350
›
Repair and Diagnosis
›
Transmission
›
Automatic Trans
›
Automatic Transaxle
›
Automatic Transmission System
›
Shift Paddle Switch Circuit
›
Wiring Diagram
Shift Paddle Switch Circuit: Wiring Diagram

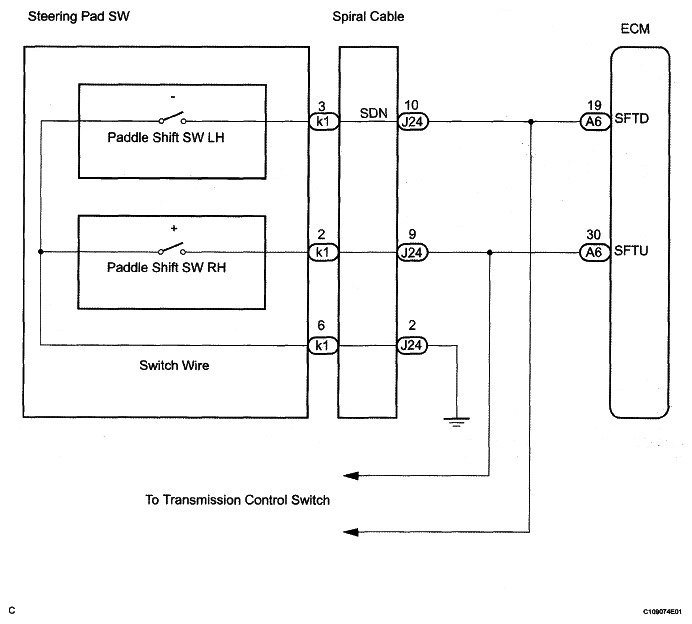

Fig 1: Wiring Diagram - Shift Paddle Switch Circuit
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
