Extension Housing Rear Oil Seal: Components

Fig 1: Extension Housing Rear Oil Seal Replacement Components With Torque Specifications (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

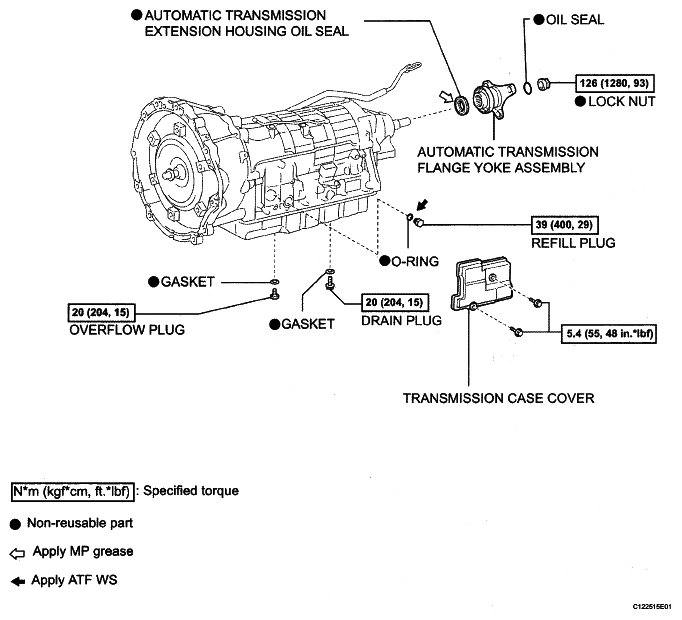

Fig 2: Extension Housing Rear Oil Seal Replacement Components With Torque Specifications (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
