Shift Lever Assembly: Components

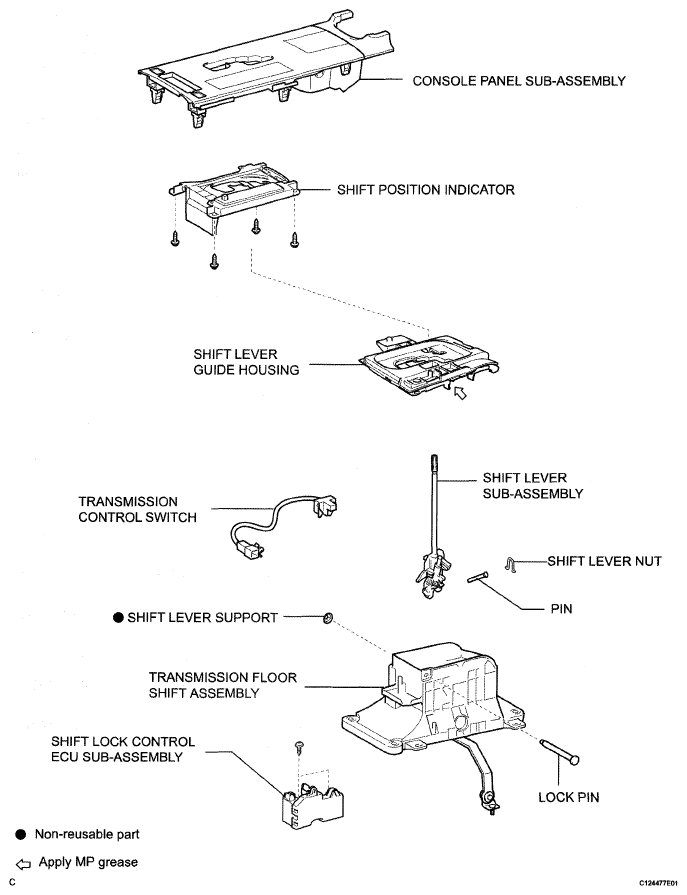

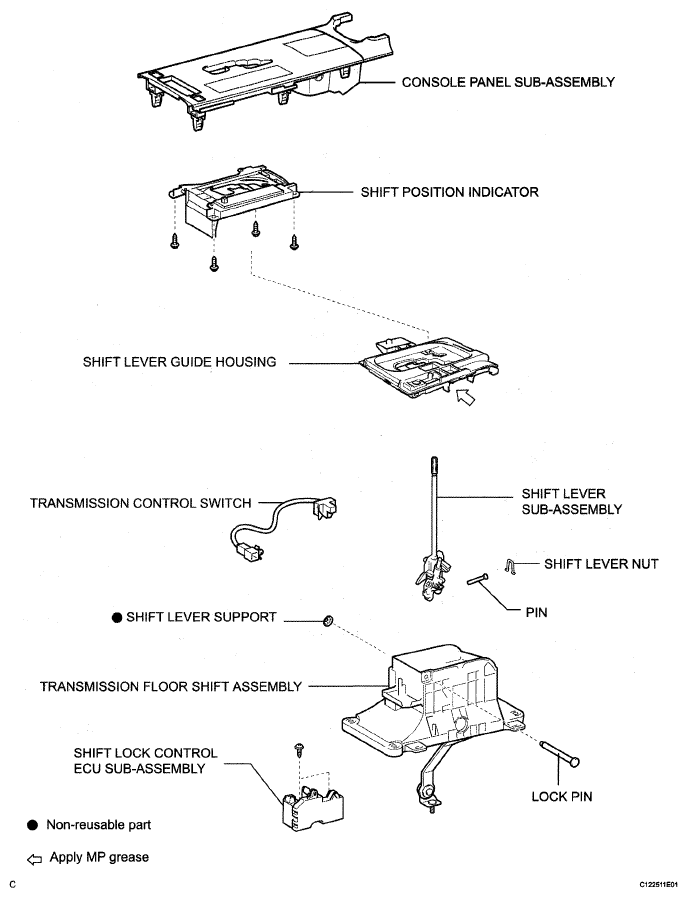

Fig 1: Identifying Shift Lever Assembly Components (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

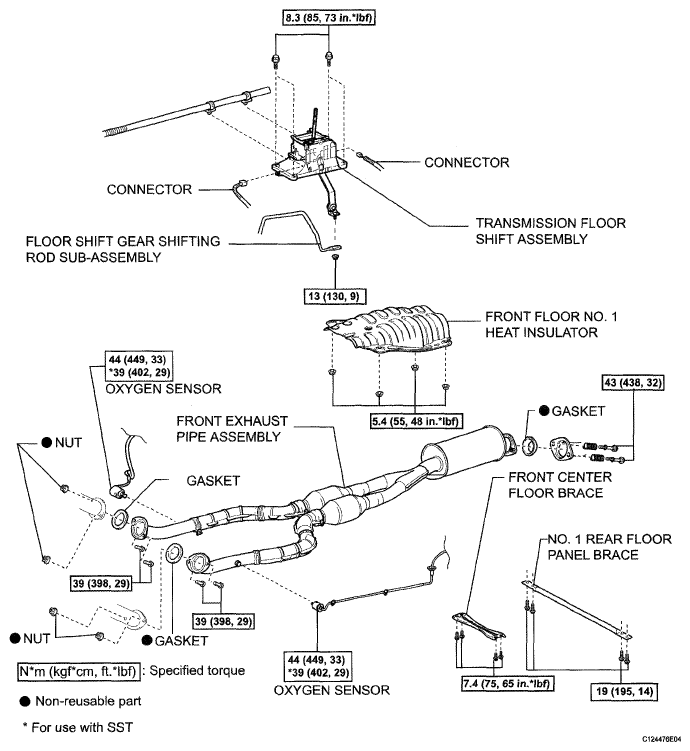

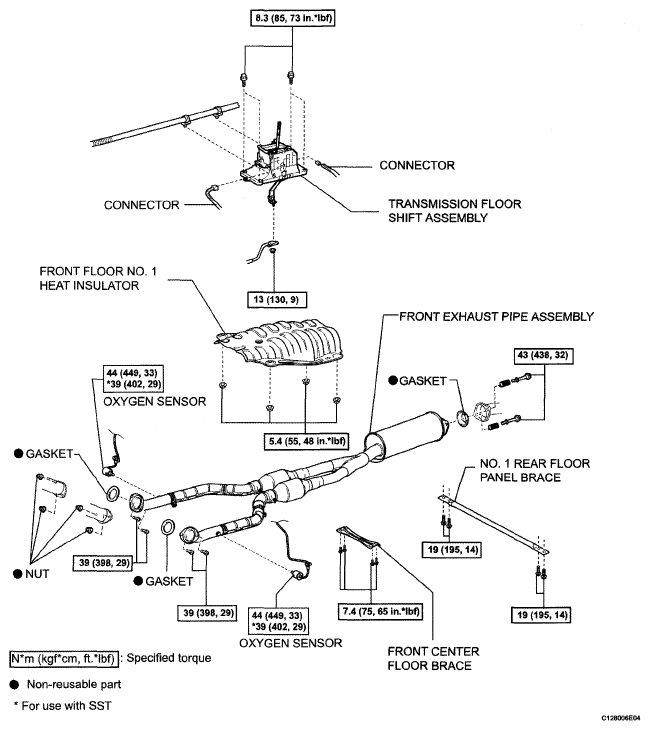

Fig 2: Shift Lever Assembly Replacement Components With Torque Specifications (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

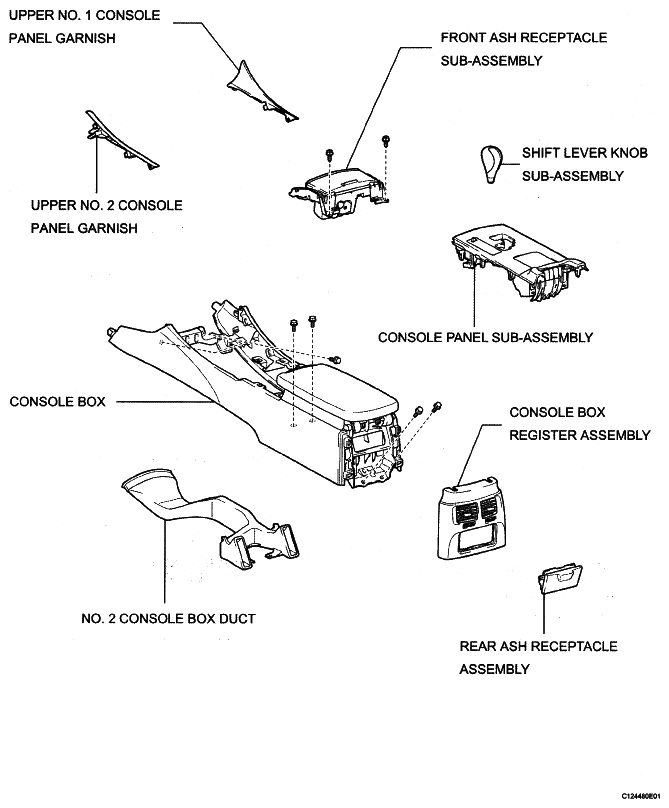

Fig 3: Identifying Shift Lever Assembly Components (3 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
