Rear Side Switch Module LIN Communication Malfunction
›
Wiring Diagram
Rear Side Switch Module LIN Communication Malfunction: Wiring Diagram

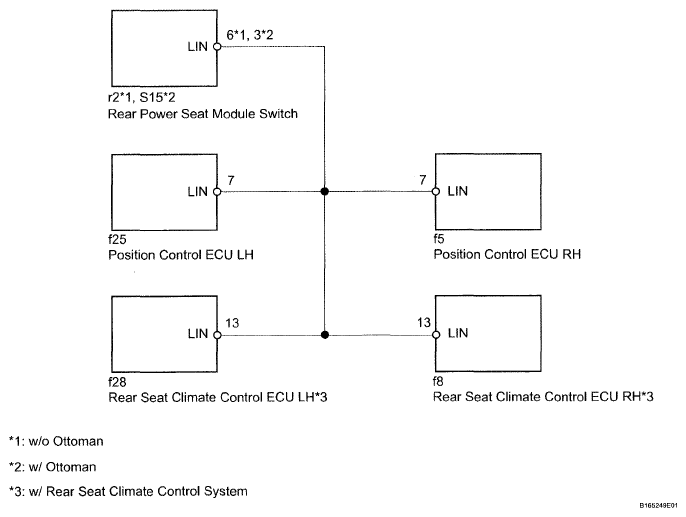

Fig 1: Rear Side Switch Module LIN Communication Malfunction - Wiring Diagram
