Inspection Procedure

  1. CHECK RADIO RECEIVER
    1. Reconnect the L52 receiver connector.
      2. Fig 1: Identifying Radio Receiver Connector Terminal
      G04953924Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using an oscilloscope, check the signal waveform between each terminal and the body ground according to the conditions, as shown in the chart below.

      Signal waveform

      TESTER CONNECTION SPECIFIED CONDITION

      Tester Connection Condition Specified Condition
      R32-20 (L4-) - Body ground Audio sound is being produced A waveform synchronized with sound is output
      R32-21 (L4+) - Body ground Audio sound is being produced A waveform synchronized with sound is output
      R32-22 (R4-) - Body ground Audio sound is being produced A waveform synchronized with sound is output
      R32-23 (R4+) - Body ground Audio sound is being produced A waveform synchronized with sound is output

    NG: REPLACE RADIO RECEIVER (See  REMOVAL   )

    OK: GO TO NEXT STEP

  2. CHECK SATELLITE RADIO TUNER AND/OR DISC PLAYER
    1. Check if the satellite radio tuner and/or disc player are equipped on the vehicle.

      Result

      RESULT CHART

      Result Proceed to
      w/o Satellite radio tuner, w/o disc player A
      w/ Satellite radio tuner, w/o disc player B
      w/o Satellite radio tuner, w/ disc player C
      w/ Satellite radio tuner, w/ disc player D

    B: Go to step   4

    C: Go to step   7

    D: Go to step   10

    A: GO TO NEXT STEP

  3. CHECK HARNESS AND CONNECTOR (RADIO RECEIVER - MULTI-DISPLAY CONTROLLER)
    1. Disconnect the L52 receiver connector.
    2. Disconnect the R32 controller connector.

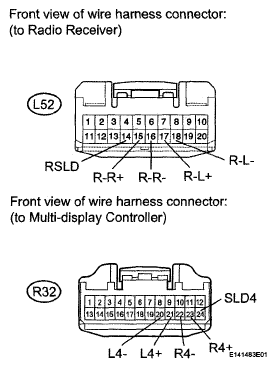

      Fig 2: Identifying Radio Receiver And Multi-Display Controller Connector Terminal
      G04953925Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      TESTER CONNECTION SPECIFIED CONDITION

      Tester Connection Condition Specified Condition
      L52-14 (RSLD) - R32-24 (SLD4) Always Below 1 Ω
      L52-15(R-R+)-R32-23 (R4+) Always Below 1 Ω
      L52-16 (R-R-) - R32-22 (R4-) Always Below 1 Ω
      L52-17(R-L+)-R32-21 (L4+) Always Below 1 Ω
      L52-18 (R-L-) - R32-20 (L4-) Always Below 1 Ω
      R32-23 (R4+) - Body ground Always 10 kΩ or higher
      R32-22 (R4-) - Body ground Always 10 kΩ or higher
      R32-21 (L4+) - Body ground Always 10 kΩ or higher
      R32-20 (L4-) - Body ground Always 10 kΩ or higher

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: REPLACE MULTI-DISPLAY CONTROLLER (See  REMOVAL   )

  4. CHECK HARNESS AND CONNECTOR (RADIO RECEIVER - SATELLITE RADIO TUNER)
    1. Disconnect the L52 receiver connector.
    2. Disconnect the R29 tuner connector.

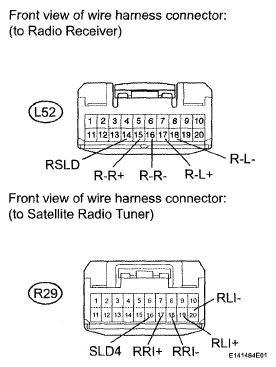

      Fig 3: Identifying Radio Receiver And Satellite Radio Tuner Connector Terminal
      G04953926Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      TESTER CONNECTION SPECIFIED CONDITION

      Tester Connection Condition Specified Condition
      L52-14(RSLD)-R29-16 (SLD4) Always Below 1 Ω
      L52-15(R-R+)-R29-17 (RRI+) Always Below 1 Ω
      L52-16{R-R-)-R29-18 (RRI-) Always Below 1 Ω
      L52-17(R-L+)-R29-19 (RLI+) Always Below 1 Ω
      L52-18 (R-L-) - R29-20 (RLI-) Always Below 1 Ω
      L52-15(R-R+)-Body ground Always 10 kΩ or higher
      L52-16(R-R-)-Body ground Always 10 kΩ or higher
      L52-17(R-L+)-Body ground Always 10 kΩ or higher
      L52-18(R-L-)-Body ground Always 10 kΩ or higher

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: GO TO NEXT STEP

  5. CHECK HARNESS AND CONNECTOR (SATELLITE RADIO TUNER - MULTI-DISPLAY CONTROLLER)
    1. Disconnect the R29 tuner connector.
    2. Disconnect the R32 controller connector.

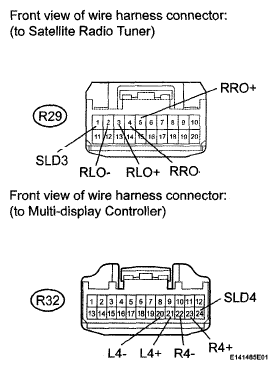

      Fig 4: Identifying Satellite Radio Tuner And Multi-Display Controller Connector Terminal
      G04953927Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      TESTER CONNECTION SPECIFIED CONDITION

      Tester Connection Condition Specified Condition
      R29-1 (SLD3) - R32-24 (SLD4) Always Below 1 Ω
      R29-2 (RLO-) - R32-20 (L4-) Always Below 1 Ω
      R29-3 (RLO+) - R32-21 (L4+) Always Below 1 Ω
      R29-4 (RRO-) - R32-22 (R4-) Always Below 1 Ω
      R29-S (RRO+) - R32-23 (R4+) Always Below 1 Ω
      R32-20 (L4-) - Body ground Always 10 kΩ or higher
      R32-21 (L4+) - Body ground Always 10 kΩ or higher
      R32-22 (R4-) - Body ground Always 10 kΩ or higher
      R32-23 (R4+) - Body ground Always 10 kΩ or higher

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: GO TO NEXT STEP

  6. REPLACE SATELLITE RADIO TUNER WITH NORMAL ONE AND CHECK
    1. Replace the satellite radio tuner with a normal one and check if the same problem occurs again (see REMOVAL  ).

      OK: Same problem does not occur.

    NG: REPLACE MULTI-DISPLAY CONTROLLER (See  REMOVAL   )

    OK: END (SATELLITE RADIO TUNER IS DEFECTIVE)

  7. CHECK HARNESS AND CONNECTOR (RADIO RECEIVER - DISC PLAYER)
    1. Disconnect the L52 receiver connector.
    2. Disconnect the R16 player connector.

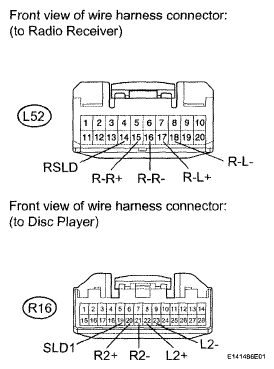

      Fig 5: Identifying Radio Receiver And Disc Player Connector Terminal
      G04953928Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      TESTER CONNECTION SPECIFIED CONDITION

      Tester Connection Condition Specified Condition
      L52-14(RSLD)-R16-19 (SLD1) Always Below 1 Ω
      L52-15(R-R+)-R16-20 (R2+) Always Below 1 Ω
      L52-16(R-R-)-R16-21 (R2-) Always Below 1 Ω
      L52-17(R-L+)-R16-22 (L2+) Always Below 1 Ω
      L52-18(R-L-)-R16-23 (L2-) Always Below 1 Ω
      L52-15(R-R+)-Body ground Always 10 kΩ or higher
      L52-16 (R-R-) - Body ground Always 10 kΩ or higher
      L52-17(R-L+)-Body ground Always 10 kΩ or higher
      L52-18 (R-L-) - Body ground Always 10 kΩ or higher

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: GO TO NEXT STEP

  8. CHECK HARNESS AND CONNECTOR (DISC PLAYER - MULTI-DISPLAY CONTROLLER)
    1. Disconnect the R16 player connector.
    2. Disconnect the R32 controller connector.

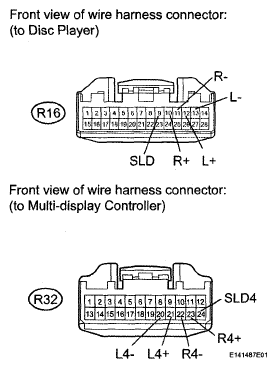

      Fig 6: Identifying Disc Player And Multi-Display Controller Connector Terminal
      G04953929Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      TESTER CONNECTION SPECIFIED CONDITION

      Tester Connection Condition Specified Condition
      R16-13(L-)-R32-20(L4-) Always Below 1 Ω
      R16-12(L+)-R32-21 (L4+) Always Below 1 Ω
      R16-11 (R-)-R32-22 (R4-) Always Below 1 Ω
      R16-10(R+)-R32-23 (R4+) Always Below 1 Ω
      R16-9(SLD)-R32-24 (SLD4) Always Below 1 Ω
      R32-20 (L4-) - Body ground Always 10 kΩ or higher
      R32-21 (L4+) - Body ground Always 10 kΩ or higher
      R32-22 (R4-) - Body ground Always 10 kΩ or higher
      R32-23 (R4+) - Body ground Always 10 kΩ or higher

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: GO TO NEXT STEP

  9. REPLACE DISC PLAYER WITH NORMAL ONE AND CHECK
    1. Replace the disc player with a normal one and check if the same problem occurs again (see DISC PLAYER (FOR OTTOMAN)  ).

      OK: Same problem does not occur.

    NG: REPLACE MULTI-DISPLAY CONTROLLER (See  REMOVAL   )

    OK: END (DISC PLAYER IS DEFECTIVE)

  10. CHECK HARNESS AND CONNECTOR (RADIO RECEIVER - SATELLITE RADIO TUNER)
    1. Disconnect the L52 receiver connector.
    2. Disconnect the R29 tuner connector.
      Fig 7: Identifying Radio Receiver And Satellite Radio Tuner Connector Terminal
      G04953926Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      TESTER CONNECTION SPECIFIED CONDITION

      Tester Connection Condition Specified Condition
      L52-14(RSLD)-R29-16 (SLD4) Always Below 1 Ω
      L52-15(R-R+)-R29-17 (RRI+) Always Below 1 Ω
      L52-16(R-R-)-R29-18 (RRI-) Always Below 1 Ω
      L52-17(R-L+)-R29-19 (RLI+) Always Below 1 Ω
      L52-18 (R-L-) - R29-20 (RLI-) Always Below 1 Ω
      L52-15(R-R+)-Body ground Always 10 kΩ or higher
      L52-16 (R-R-) - Body ground Always 10 kΩ or higher
      L52-17(R-L+)-Body ground Always 10 kΩ or higher
      L52-18(R-L-)-Body ground Always 10 kΩ or higher

    OK: REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: GO TO NEXT STEP

  11. CHECK HARNESS AND CONNECTOR (SATELLITE RADIO TUNER - DISC PLAYER)
    1. Disconnect the R29 tuner connector.
    2. Disconnect the R16 player connector.

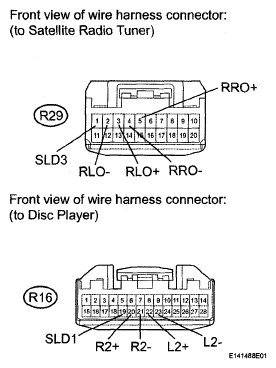

      Fig 8: Identifying Satellite Radio Tuner And Disc Player Connector Terminal
      G04953931Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      TESTER CONNECTION SPECIFIED CONDITION

      Tester Connection Condition Specified Condition
      R29-1 (SLD3)-R16-19 (SLD1) Always Below 1 Ω
      R29-2 (RLO-) - R16-23 (L2-) Always Below 1 Ω
      R29-3 (RLO+) - R16-22 (L2+) Always Below 1 Ω
      R29-4 (RRO-)-R16-21 (R2-) Always Below 1 Ω
      R29-5 (RRO+) - R16-20 (R2+) Always Below 1 Ω
      R29-2 (RLO-)- Body ground Always 10 kΩ or higher
      R29-3 (RLO+) - Body ground Always 10 kΩ or higher
      R29-4 (RRO-) - Body ground Always 10 kΩ or higher
      R29-S (RRO+) - Body ground Always 10 kΩ or higher

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: GO TO NEXT STEP

  12. CHECK HARNESS AND CONNECTOR (DISC PLAYER - MULTI-DISPLAY CONTROLLER)
    1. Disconnect the R16 player connector.
    2. Disconnect the R32 controller connector.
      Fig 9: Identifying Disc Player And Multi-Display Controller Connector Terminal
      G04953929Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      TESTER CONNECTION SPECIFIED CONDITION

      Tester Connection Condition Specified Condition
      R16-13(L-)-R32-20(L4-) Always Below 1 Ω
      R16-12(L+)-R32-21 (L4+) Always Below 1 Ω
      R16-11(R-)-R32-22 (R4-) Always Below 1 Ω
      R16-10(R+)-R32-23 (R4+) Always Below 1 Ω
      R16-9 (SLD) - R32-24 (SLD4) Always Below 1 Ω
      R32-20 (L4-) - Body ground Always 10 kΩ or higher
      R32-21 (L4+) - Body ground Always 10 kΩ or higher
      R32-22 (R4-) - Body ground Always 10 kΩ or higher
      R32-23 (R4+) - Body ground Always 10 kΩ or higher

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: GO TO NEXT STEP

  13. REPLACE SATELLITE RADIO TUNER WITH NORMAL ONE AND CHECK
    1. Replace the satellite radio tuner with a normal one and check if the same problem occurs again (see REMOVAL  ).

      OK: Same problem does not occur.

    NG: Go to step 14

    OK: END (SATELLITE RADIO TUNER IS DEFECTIVE)

  14. REPLACE DISC PLAYER WITH NORMAL ONE AND CHECK
    1. Replace the disc player with a normal one and check if the same problem occurs again (see DISC PLAYER (FOR OTTOMAN)  ).

      OK: Same problem does not occur.

    NG: REPLACE MULTI-DISPLAY CONTROLLER (See  REMOVAL   )

    OK: END (DISC PLAYER IS DEFECTIVE)
