System Diagram
System Diagram

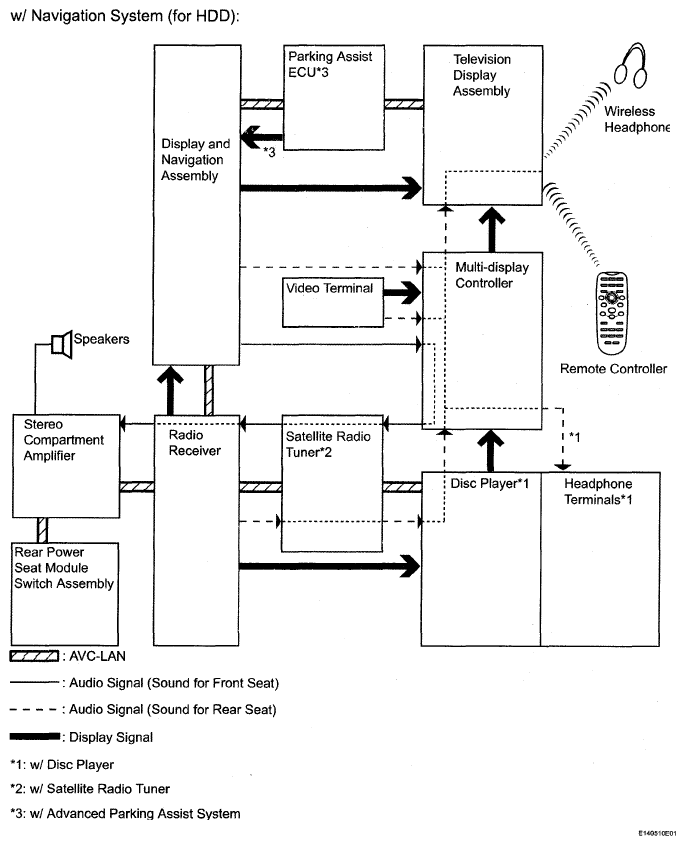

Fig 1: Rear Seat Entertainment - System Diagram (W/Navigation System (For HDD))
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

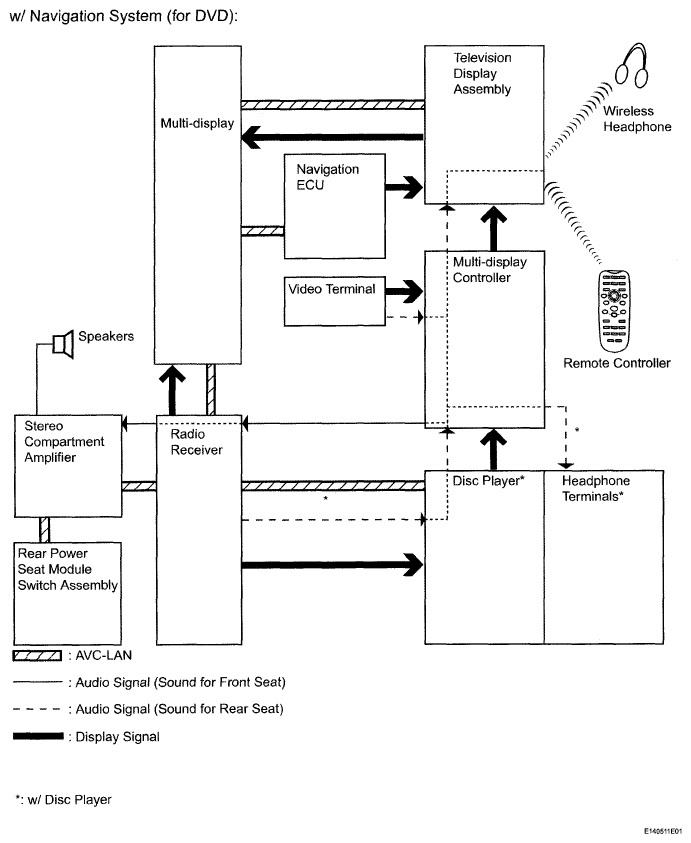

Fig 2: Rear Seat Entertainment - System Diagram (W/Navigation System (For DVD))
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

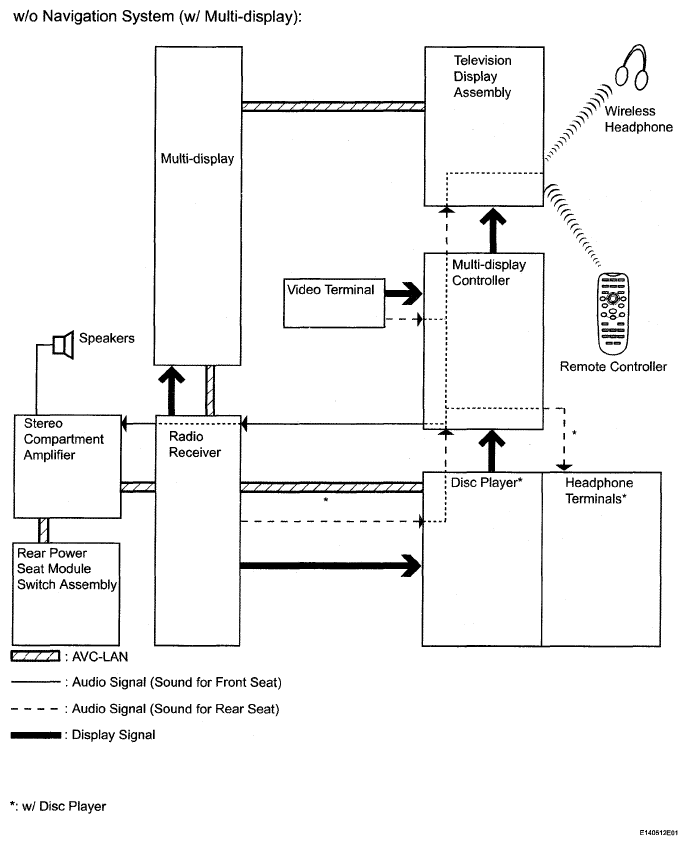

Fig 3: Rear Seat Entertainment - System Diagram (W/Navigation System (For W/Multi-Display))
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
