Automatic Light Control Function does not Operate
›
Wiring Diagram
Automatic Light Control Function does not Operate: Wiring Diagram

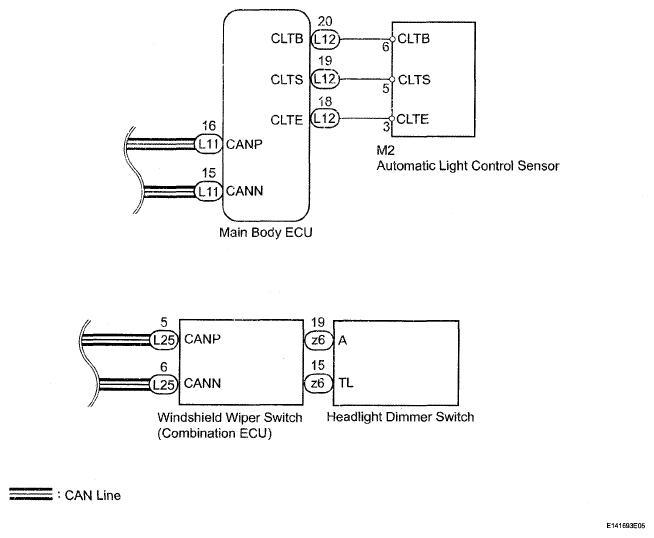

Fig 1: Automatic Light Control Function Does Not Operate - Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
