System Diagram

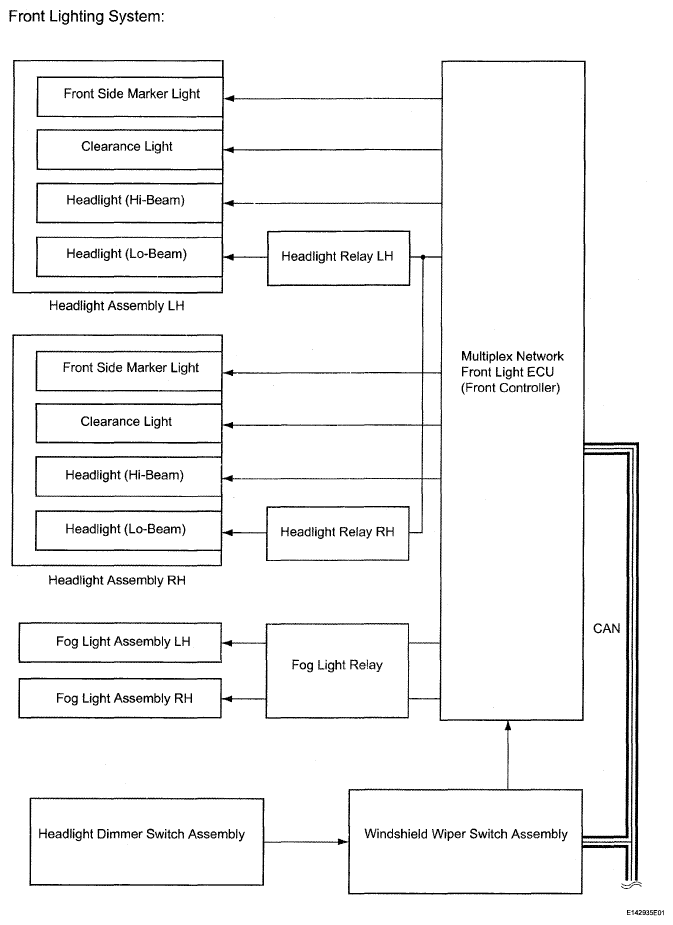

Fig 1: Front Lighting System - System Diagram (1 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

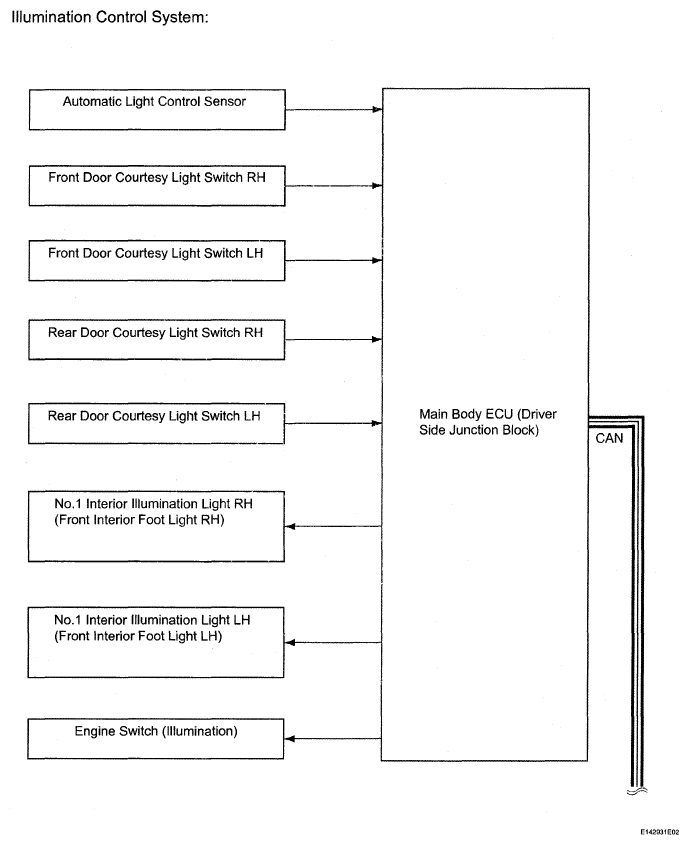

Fig 2: Front Lighting System - System Diagram (2 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

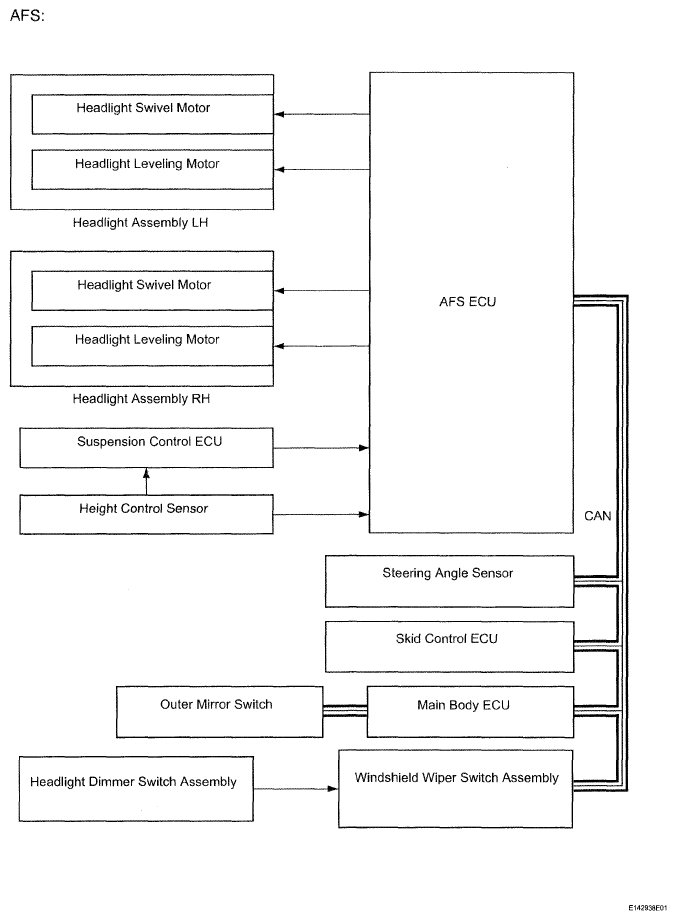

Fig 3: Front Lighting System - System Diagram (3 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

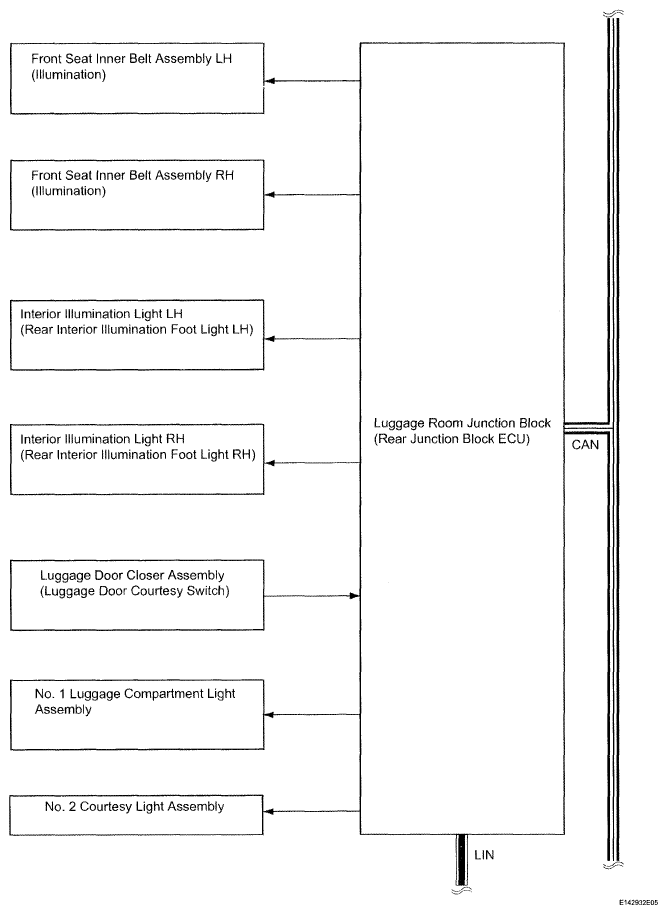

Fig 4: Front Lighting System - System Diagram (4 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

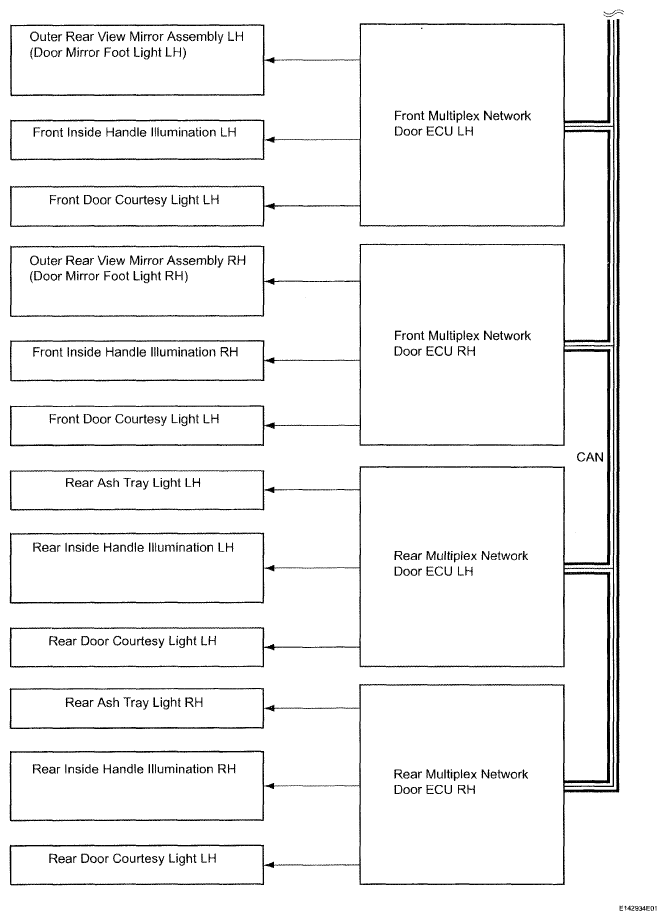

Fig 5: Front Lighting System - System Diagram (5 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

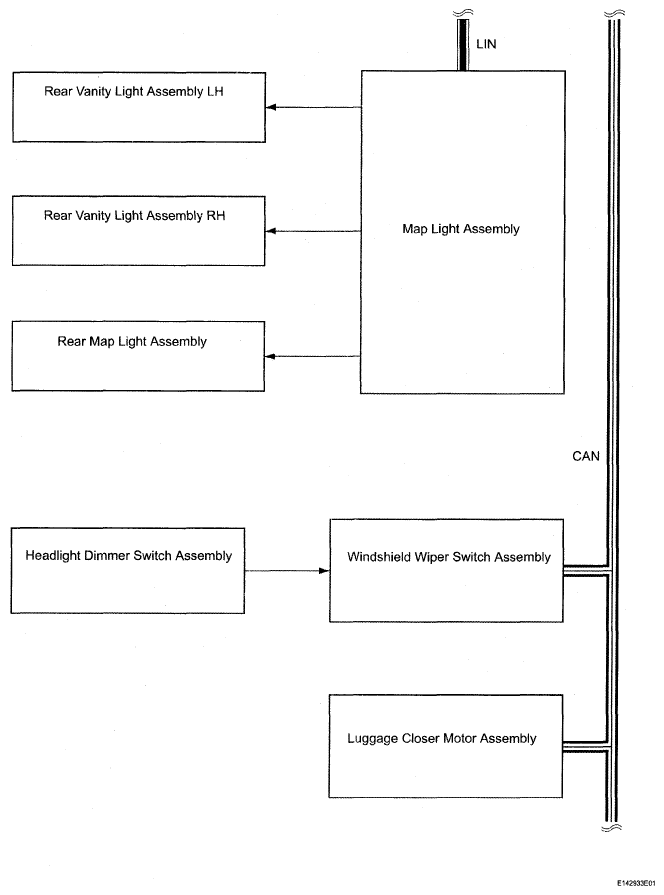

Fig 6: Front Lighting System - System Diagram (6 Of 6)

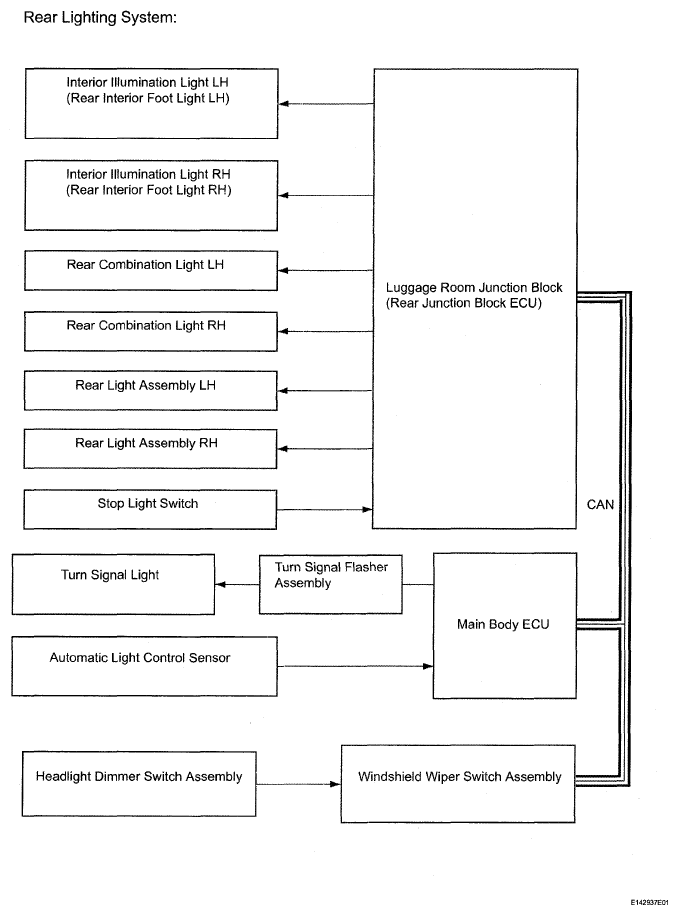

Fig 7: Rear Lighting System - System Diagram (1 Of 2)

Fig 8: Rear Lighting System - System Diagram (2 Of 2)
