Rear Door Lock: Components

Fig 1: Identifying Rear Door Lock Components (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

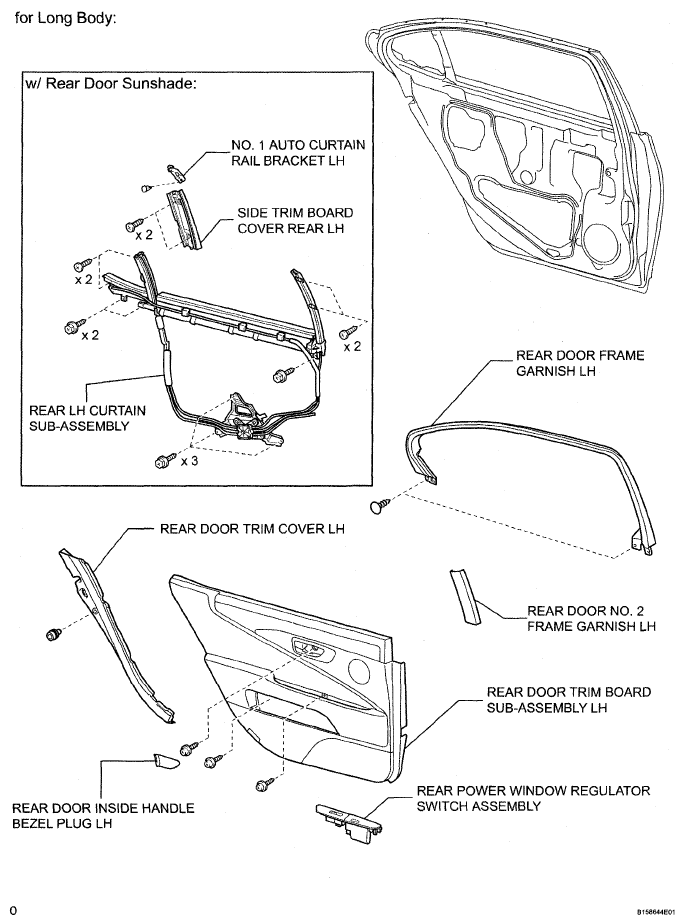

Fig 2: Identifying Rear Door Lock Components (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

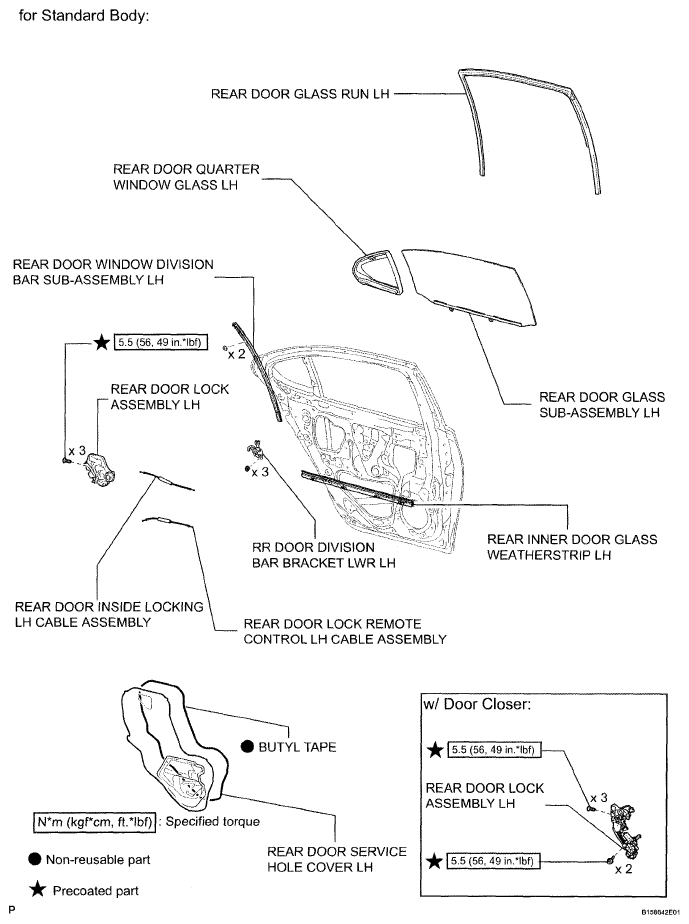

Fig 3: Rear Door Lock Replacement Components With Torque Specifications (3 Of 4)

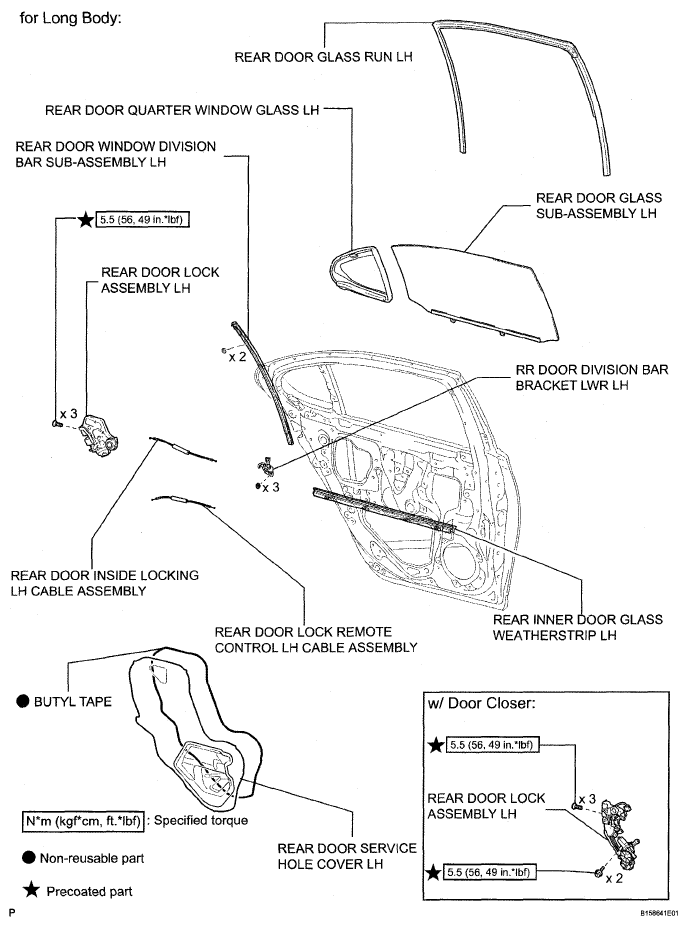

Fig 4: Rear Door Lock Replacement Components With Torque Specifications (4 Of 4)
