Front Power Seat Control System
›
Parts Location
Parts Location

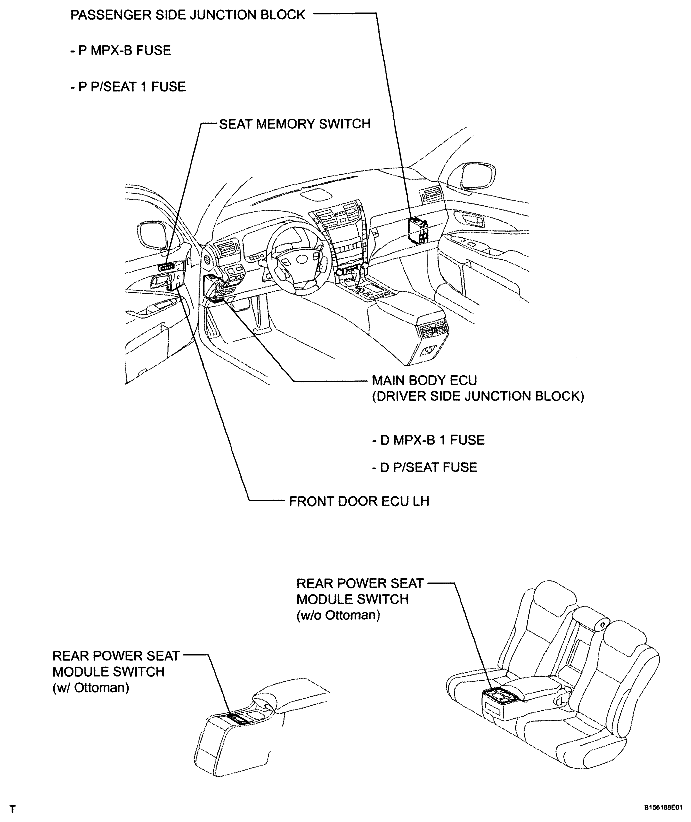

Fig 1: Identifying Front Power Seat Control System Parts Location
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Identifying Front Power Seat Control System Parts Location (Driver Side)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Identifying Front Power Seat Control System Parts Location (Passenger Side (W/ Folding Headrest))
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

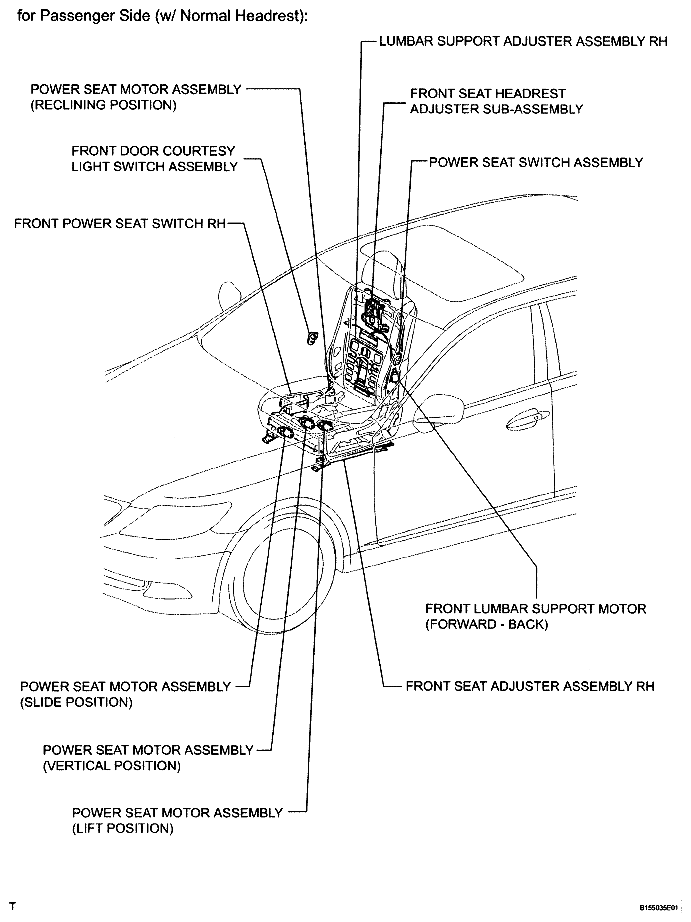

Fig 4: Identifying Front Power Seat Control System Parts Location (Passenger Side (W/ Normal Headrest))
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
