Parts Location

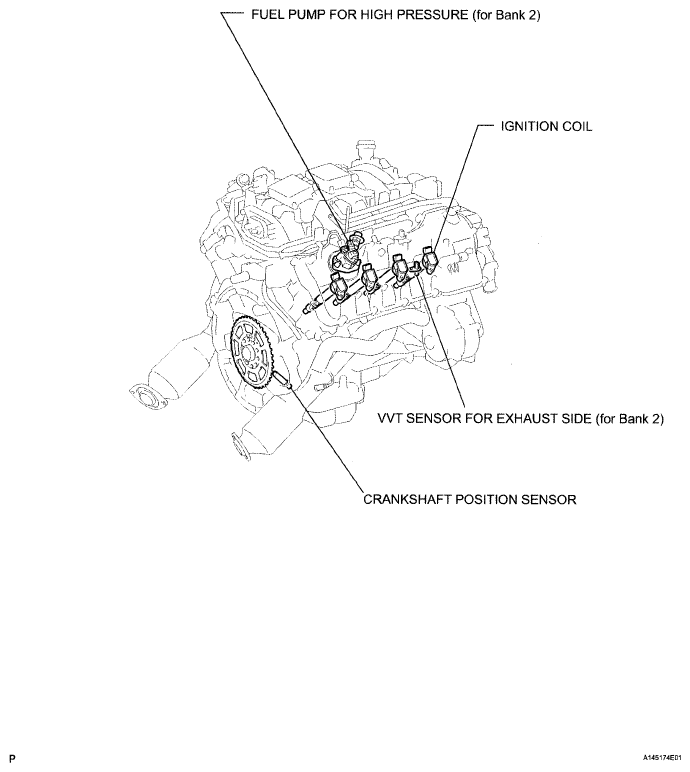

Fig 1: Identifying Engine Control System Components Parts Location (1 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

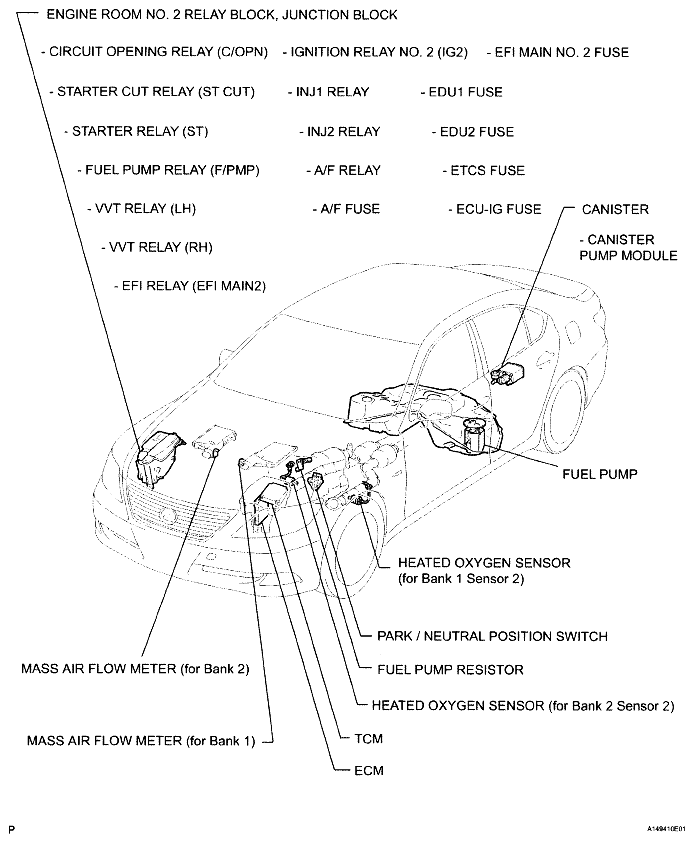

Fig 2: Identifying Engine Control System Components Parts Location (2 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

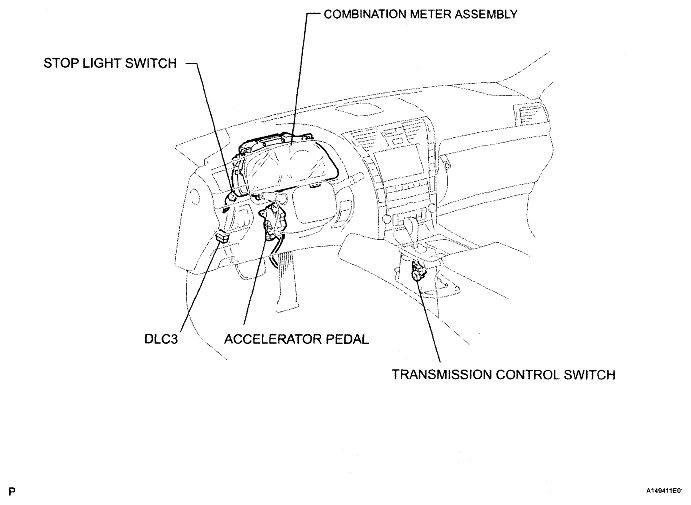

Fig 3: Identifying Engine Control System Components Parts Location (3 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

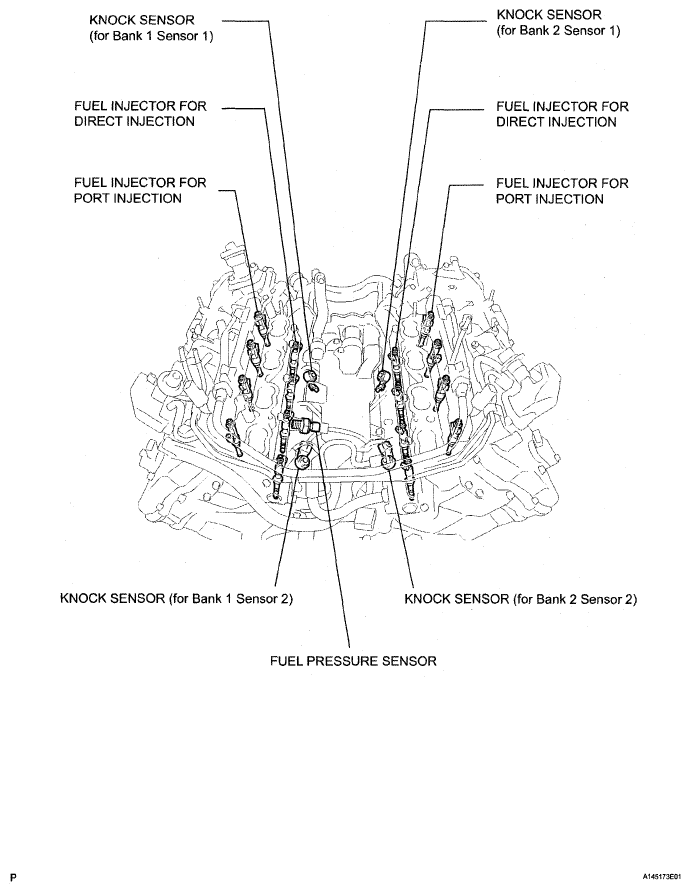

Fig 4: Identifying Engine Control System Components Parts Location (4 Of 6)

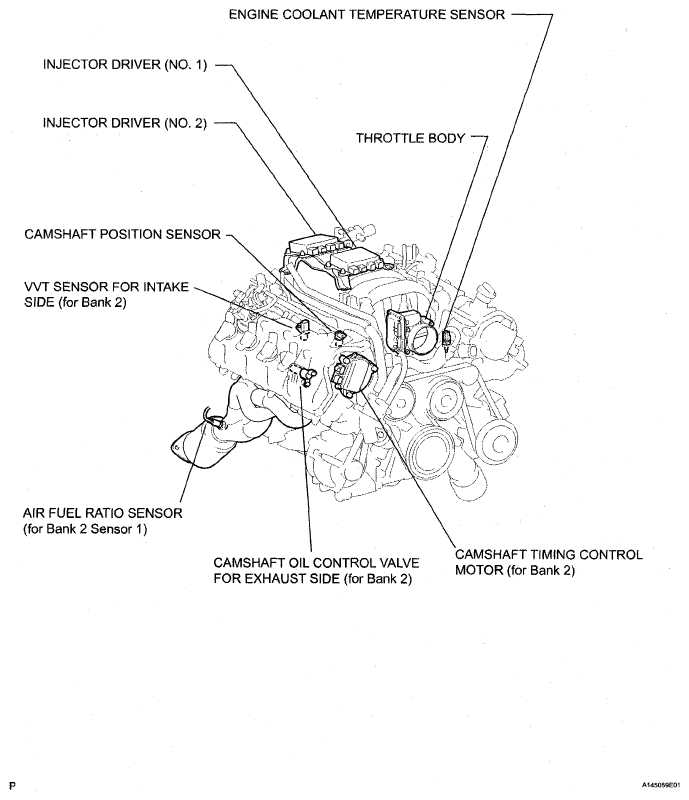

Fig 5: Identifying Engine Control System Components Parts Location (5 Of 6)

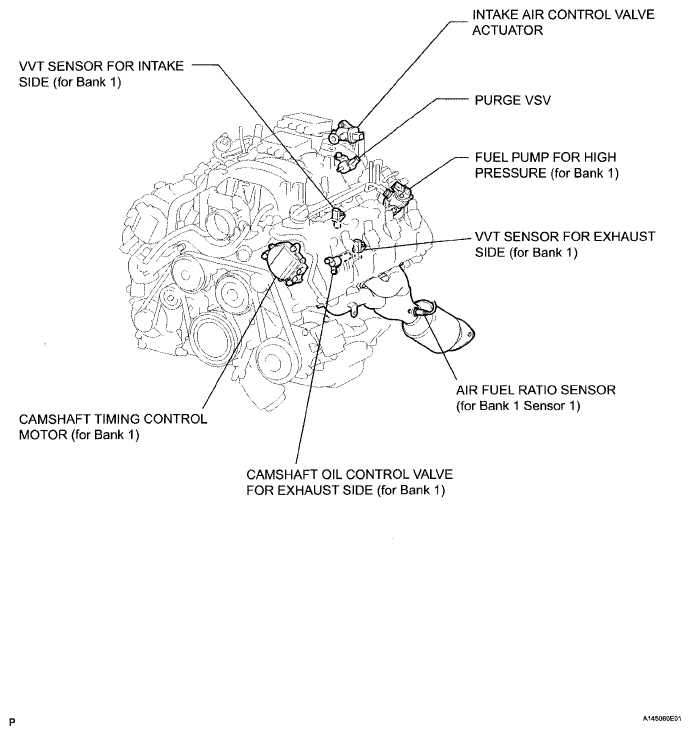

Fig 6: Identifying Engine Control System Components Parts Location (6 Of 6)
