Exploded View

WARNING: This page is about a different car, the 2009 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

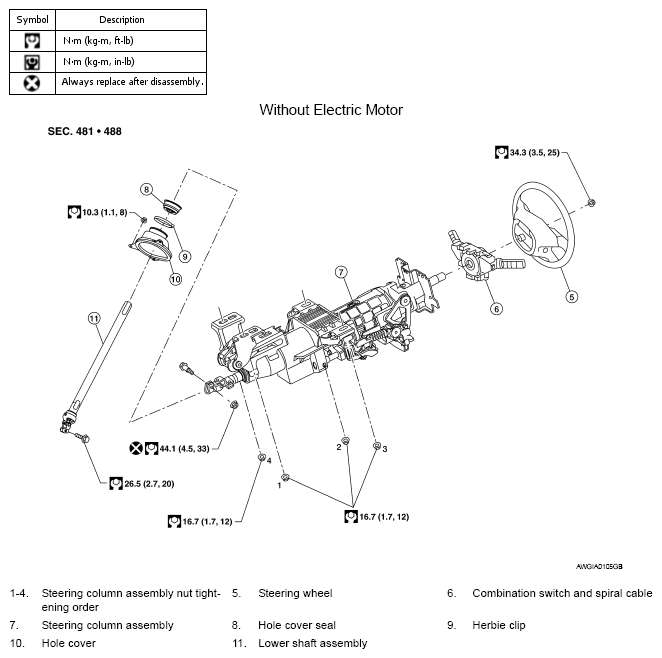

Fig 1: Exploded View Of Steering Column (Without Electric Motor) With Torque Specifications
G05877416Courtesy of NISSAN MOTOR CO., U.S.A.

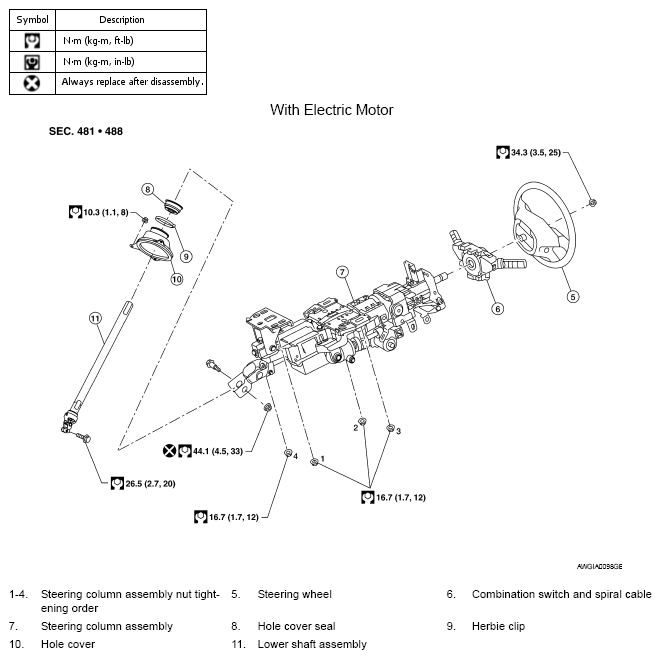

Fig 2: Exploded View Of Steering Column (With Electric Motor) With Torque Specifications
G05877417Courtesy of NISSAN MOTOR CO., U.S.A.
