Inspection Procedure

  1. CHECK HARNESS AND CONNECTOR (REAR JUNCTION BLOCK ECU - BATTERY AND BODY GROUND)
    1. Disconnect the LA, LD and LH rear junction block ECU connectors.

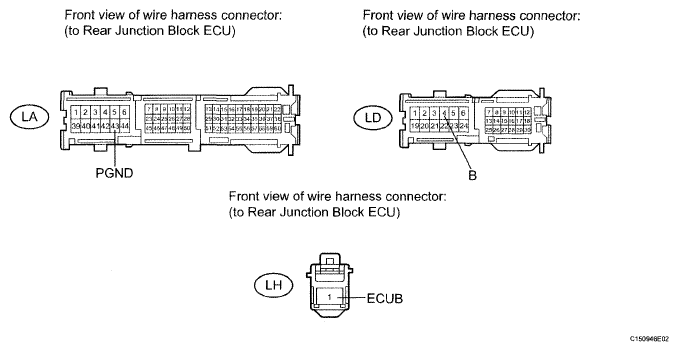

      Fig 1: Identifying Terminals Of LA, LD And LH Rear Junction Block ECU Connectors
      G04953414Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      TESTER CONNECTION SPECIFIED CONDITION CHART

      Tester Connection Condition Specified Condition
      LA-43 (PGND) - Body ground Always Below 1 Ω
    3. Measure the voltage according to the value(s) in the table below.

      Standard voltage

      TESTER CONNECTION SPECIFIED CONDITION CHART

      Tester Connection Condition Specified Condition
      LD-4 (B) - Body ground Always 11 to 14 V
      LH-1 (ECUB) - Body ground Always 11 to 14 V

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: REPLACE REAR JUNCTION BLOCK ECU
