Inspection Procedure

  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    1. Disconnect the cable from the negative (-) battery terminal before measuring the resistances of the main wire and the branch wire.
      CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
      NOTE:
      • After the engine switch is turned off, the HDD navigation system requires approximately 6 minutes to record various types of memory and settings. As a result, after turning the engine switch off, wait 6 minutes or more before disconnecting the cable from the negative (-) battery terminal.
      • When disconnecting the cable, some systems need to be initialized after the cable is reconnected (see INITIALIZATION ).
  2. CHECK CAN BUS WIRE (MAIN WIRE FOR DISCONNECTION, BUS LINE FOR SHORT CIRCUIT)
    1. Measure the resistance according to the value(s) in the table below.
      Fig 1: Identifying A50 Connector Terminals
      G04953459Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard resistance

      TESTER CONNECTION SPECIFIED CONDITION CHART

      Tester Connection Switch Condition Specified Condition Resistance of Malfunction
      A50-3 (CANP) - A50-4 (CANN) Engine switch off 54 to 69 Ω Below 53 Ω: Short in line
      Engine switch off 70 Ω or higher: Open in CAN main bus line
      A50-3 (CANP) - A50-1 (FMB3) Engine switch off 6 kΩ or higher Below 6 kΩ: +B short
      A50-4 (CANN) - A50-1 (FMB3) Engine switch off 6 kΩ or higher Below 6 kΩ: +B short
      A50-3 (CANP) - A50-2 (E) Engine switch off 200 Ω or higher Below 200 Ω: Ground short
      A50-4 (CANN) - A50-2 (E) Engine switch off 200 Ω or higher Below 200 Ω: Ground short

      Result

      RESULT REFERENCE CHART

      Result Proceed to
      NG
      • Open in CAN main wire
      		 A
      NG
      • Short in line
      • +B short
      • Ground short
      		 B
      OK C

    B: Go to step   21

    C: Go to step   94

    A: GO TO NEXT STEP

  3. CHECK FOR OPEN IN CAN MAIN BUS WIRE (NO. 10 JUNCTION CONNECTOR - FRONT CONTROLLER)
    1. Disconnect the L95 No. 10 junction connector connector.
      Fig 2: Identifying L95 No.10 Junction Connector Terminals
      G04953460Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      TESTER CONNECTION SPECIFIED CONDITION CHART

      Tester Connection Switch Condition Specified Condition
      L95-11 (CANH) - L95-22 (CANL) Engine switch off 108 to 132 Ω

    NG: Go to step   5

    OK: GO TO NEXT STEP

  4. CHECK FOR OPEN IN CAN BUS MAIN WIRE (NO. 10 JUNCTION CONNECTOR - REAR JUNCTION BLOCK ECU)
    1. Measure the resistance according to the value(s) in the table below.
      Fig 3: Identifying No.10 Junction Connector Terminals
      G04953461Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard resistance

      TESTER CONNECTION SPECIFIED CONDITION CHART

      Tester Connection Switch Condition Specified Condition
      L95-4 (CANH) - L95-15 (CANL) Engine switch off 108 to 132 Ω

    NG: Go to step   13

    OK: REPLACE NO. 10 JUNCTION CONNECTOR

  5. CONNECT CONNECTOR
    1. Reconnect the L95 No. 10 junction connector connector.
  6. CHECK FOR OPEN IN CAN BUS MAIN WIRE (NO. 9 JUNCTION CONNECTOR - FRONT CONTROLLER)
    1. Disconnect the R48 No. 9 junction connector connector. Measure the resistance according to the value(s) in the table below.
      Fig 4: Identifying R48 No. 9 Junction Connector Terminals
      G04953462Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard resistance

      TESTER CONNECTION SPECIFIED CONDITION CHART

      Tester Connection Switch Condition Specified Condition
      R48-3 (CANH) - R48-14 (CANL) Engine switch off 108 to 132 Ω

    NG: Go to step   8

    OK: GO TO NEXT STEP

  7. CHECK FOR OPEN IN CAN BUS MAIN WIRE (NO. 9 JUNCTION CONNECTOR - NO. 10 JUNCTION CONNECTOR)
    1. Measure the resistance according to the value(s) in the table below.
      Fig 5: Identifying R48 No. 9 Junction Connector Terminals
      G04953463Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard resistance

      TESTER CONNECTION SPECIFIED CONDITION CHART

      Tester Connection Switch Condition Specified Condition
      R48-4 (CANH) - R48-15 (CANL) Engine switch off 108 to 132 Ω

    NG: REPAIR OR REPLACE CAN MAIN WIRE OR CONNECTOR (NO. 9 JUNCTION CONNECTOR - NO. 10 JUNCTION CONNECTOR)

    OK: REPLACE NO. 9 JUNCTION CONNECTOR

  8. CONNECT CONNECTOR
    1. Reconnect the R48 No. 9 junction connector connector.
  9. CHECK FOR OPEN IN CAN BUS MAIN WIRE (NO. 8 JUNCTION CONNECTOR - FRONT CONTROLLER)
    1. Disconnect the R57 No. 8 junction connector connector.
      Fig 6: Identifying R57 No.8 Junction Connector Terminals
      G04953464Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      TESTER CONNECTION SPECIFIED CONDITION CHART

      Tester Connection Switch Condition Specified Condition
      R57-1 (CANH) - R57-3 (CANL) Engine switch off 108 to 132 Ω

    NG: Go to step   11

    OK: GO TO NEXT STEP

  10. CHECK FOR OPEN IN CAN BUS MAIN WIRE (NO. 8 JUNCTION CONNECTOR - NO. 9 JUNCTION CONNECTOR)
    1. Measure the resistance according to the value(s) in the table below.
      Fig 7: Identifying R57 No.8 Junction Connector Terminals
      G04953465Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard resistance

      TESTER CONNECTION SPECIFIED CONDITION CHART

      Tester Connection Switch Condition Specified Condition
      R57-5 (CANH) - R57-7 (CANL) Engine switch off 108 to 132 Ω

    NG: REPAIR OR REPLACE CAN MAIN WIRE OR CONNECTOR (NO. 8 JUNCTION CONNECTOR - NO. 9 JUNCTION CONNECTOR)

    OK: REPLACE NO. 8 JUNCTION CONNECTOR

  11. CONNECT CONNECTOR
    1. Reconnect the R57 No. 8 junction connector connector.
  12. CHECK FOR OPEN IN CAN BUS MAIN WIRE (FRONT CONTROLLER - NO. 8 JUNCTION CONNECTOR)
    1. Disconnect the A50 front controller connector.
      Fig 8: Identifying A50 Front Controller Connector Terminals
      G04953466Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      TESTER CONNECTION SPECIFIED CONDITION CHART

      Tester Connection Switch Condition Specified Condition
      A50-3 (CANP) - A50-4 (CANN) Engine switch off 108 to 132 Ω

    NG: REPAIR OR REPLACE CAN MAIN WIRE CONNECTED TO FRONT CONTROLLER (FRONT CONTROLLER - NO. 8 JUNCTION CONNECTOR)

    OK: REPLACE FRONT CONTROLLER

  13. CONNECT CONNECTOR
    1. Reconnect the L95 No. 10 junction connector connector.
  14. CHECK FOR OPEN IN CAN BUS MAIN WIRE (NO. 10 JUNCTION CONNECTOR - NO. 12 JUNCTION CONNECTOR)
    1. Disconnect the S59 No. 12 junction connector connector.
      Fig 9: Identifying S59 No.12 Junction Connector Terminals
      G04953467Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      TESTER CONNECTION SPECIFIED CONDITION CHART

      Tester Connection Switch Condition Specified Condition
      S59-4 (CANH) - S59-15 (CANL) Engine switch off 108 to 132 Ω

    NG: Go to step   18

    OK: GO TO NEXT STEP

  15. CHECK FOR OPEN IN CAN BUS MAIN WIRE (NO. 12 JUNCTION CONNECTOR - REAR JUNCTION BLOCK ECU)
    1. Measure the resistance according to the value(s) in the table below.
      Fig 10: Identifying S59 No.12 Junction Connector Terminals
      G04953468Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard resistance

      TESTER CONNECTION SPECIFIED CONDITION CHART

      Tester Connection Switch Condition Specified Condition
      S59-3 (CANH) - S59-14 (CANL) Engine switch off 108 to 132 Ω

    NG: Go to step 16

    OK: REPLACE NO. 12 JUNCTION CONNECTOR

  16. CONNECT CONNECTOR
    1. Reconnect the S59 No. 12 junction connector connector.
  17. CHECK FOR OPEN IN CAN BUS MAIN WIRE (REAR JUNCTION BLOCK ECU - NO. 12 JUNCTION CONNECTOR)
    1. Disconnect the S62 rear junction block ECU connector.
      Fig 11: Identifying S62 Rear Junction Block ECU Connector Terminals
      G04953469Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      TESTER CONNECTION SPECIFIED CONDITION CHART

      Tester Connection Switch Condition Specified Condition
      S62-20 (CANP) - S62-28 (CANN) Engine switch off 108 to 132 Ω

    NG: REPAIR OR REPLACE CAN MAIN WIRE CONNECTED TO REAR JUNCTION BLOCK ECU (REAR JUNCTION BLOCK ECU - NO. 12 JUNCTION CONNECTOR)

    OK: REPLACE REAR JUNCTION BLOCK ECU

  18. CONNECT CONNECTOR
    1. Reconnect the S59 No. 12 junction connector connector.
  19. CHECK FOR OPEN IN CAN BUS MAIN WIRE (NO. 10 JUNCTION CONNECTOR-NO. 11 JUNCTION CONNECTOR)
    1. Disconnect the S60 No. 11 junction connector connector.
      Fig 12: Identifying S60 No.11 Junction Connector Terminals
      G04953470Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      TESTER CONNECTION SPECIFIED CONDITION CHART

      Tester Connection Switch Condition Specified Condition
      S60-5 (CANH) - S60-16 (CANL) Engine switch off 108 to 132 Ω

    NG: REPAIR OR REPLACE CAN MAIN WIRE OR CONNECTOR (NO. 10 JUNCTION CONNECTOR - NO. 11 JUNCTION CONNECTOR)

    OK: GO TO NEXT STEP

  20. CHECK FOR OPEN IN CAN BUS MAIN WIRE (NO. 11 JUNCTION CONNECTOR - NO. 12 JUNCTION CONNECTOR)
    1. Measure the resistance according to the value(s) in the table below.
      Fig 13: Identifying S60 No.11 Junction Connector Terminals
      G04953471Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard resistance

      TESTER CONNECTION SPECIFIED CONDITION CHART

      Tester Connection Switch Condition Specified Condition
      S60-2 (CANH) - S60-13 (CANL) Engine switch off 108 to 132 Ω

    NG: REPAIR OR REPLACE CAN MAIN WIRE OR CONNECTOR (NO. 11 JUNCTION CONNECTOR - NO. 12 JUNCTION CONNECTOR)

    OK: REPLACE NO. 11 JUNCTION CONNECTOR

  21. CHECK FOR SHORT IN CAN BUS WIRES (NO. 12 JUNCTION CONNECTOR SIDE)
    1. Disconnect the S59 No. 12 junction connector connector.
      Fig 14: Identifying A50 And DLC3 Connector Terminals
      G04953472Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      TESTER CONNECTION SPECIFIED CONDITION CHART

      Tester Connection Switch Condition Specified Condition
      A50-3 (CANP) - A50-4 (CANN) Engine switch off 108 to 132 Ω
      A50-3 (CANP) - L31-4 (CG) Engine switch off 200 Ω or higher
      A50-4 (CANN) - L31-4 (CG) Engine switch off 200 Ω or higher
      A50-3 (CANP) - L31-16 (BAT) Engine switch off 6 kΩ or higher
      A50-4 (CANN) - L31-16 (BAT) Engine switch off 6 kΩ or higher

    NG: Go to step   31

    OK: GO TO NEXT STEP

  22. CHECK FOR SHORT IN CAN BUS WIRES (NO. 12 JUNCTION CONNECTOR - REAR POWER SEAT MODULE SWITCH)
    NOTE: For vehicles without rear power seat control system or seat heater system and rear power seat control system (w/ ottoman), go to  23 "CHECK FOR SHORT IN CAN BUS WIRES (NO. 12 JUNCTION CONNECTOR - POWER TRUNK LID CONTROL ECU)".
    1. Measure the resistance according to the value(s) in the table below.
      Fig 15: Identifying S59 And L31 Connector Terminals
      G04953473Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Result

      RESULT REFERENCE CHART

      Tester Connection Switch Condition Measured Resistance Proceed to
      S59-1 (CANH) - S59-12 (CANL) Engine switch off 1 Ω or higher OK
      S59-1 (CANH) - S59-12 (CANL) Engine switch off Below 1 Ω NG
      S59-1 (CANH) - L31-4 (CG) Engine switch off 1 Ω or higher OK
      S59-12 (CANL) - L31-4 (CG) Engine switch off 1 Ω or higher OK
      S59-1 (CANH) - L31-4 (CG) Engine switch off Below 1 Ω NG
      S59-12 (CANL) - L31-4 (CG) Engine switch off Below 1 Ω NG
      S59-1 (CANH) - L31-16 (BAT) Engine switch off 1 Ω or higher OK
      S59-12 (CANL) - L31-16 (BAT) Engine switch off 1 Ω or higher OK
      S59-1 (CANH) - L31-16 (BAT) Engine switch off Below 1 Ω NG
      S59-12 (CANL) - L31-16 (BAT) Engine switch off Below 1 Ω NG

    NG: Go to step   25

    OK: GO TO NEXT STEP

  23. CHECK FOR SHORT IN CAN BUS WIRES (NO. 12 JUNCTION CONNECTOR - POWER TRUNK LID CONTROL ECU)
    NOTE: For vehicles without power trunk lid system, go to  24 "CHECK FOR SHORT IN CAN BUS WIRES (NO. 12 JUNCTION CONNECTOR - REAR JUNCTION BLOCK ECU)".
    1. Measure the resistance according to the value(s) in the table below.
      Fig 16: Identifying S59 And L31 Connector Terminals
      G04953474Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Result

      RESULT REFERENCE CHART

      Tester Connection Switch Condition Measured Resistance Proceed to
      S59-2 (CANH) - S59-13 (CANL) Engine switch off 1 Ω or higher OK
      S59-2 (CANH) - S59-13 (CANL) Engine switch off Below 1 Ω NG
      S59-2 (CANH) - L31-4 (CG) Engine switch off 1 Ω or higher OK
      S59-13 (CANL) - L31-4 (CG) Engine switch off 1 Ω or higher OK
      S59-2 (CANH) - L31-4 (CG) Engine switch off Below 1 Ω NG
      S59-13 (CANL) - L31-4 (CG) Engine switch off Below 1 Ω NG
      S59-2 (CANH) - L31-16 (BAT) Engine switch off 1 Ω or higher OK
      S59-13 (CANL) - L31-16 (BAT) Engine switch off 1 Ω or higher OK
      S59-2 (CANH) - L31-16 (BAT) Engine switch off Below 1 Ω NG
      S59-13 (CANL) - L31-16 (BAT) Engine switch off Below 1 Ω NG

    NG: Go to step   27

    OK: GO TO NEXT STEP

  24. CHECK FOR SHORT IN CAN BUS WIRES (NO. 12 JUNCTION CONNECTOR - REAR JUNCTION BLOCK ECU)
    1. Measure the resistance according to the value(s) in the table below.
      Fig 17: Identifying S59 And L31 Connector Terminals
      G04953475Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Result

      RESULT REFERENCE CHART

      Tester Connection Switch Condition Measured Resistance Proceed to
      S59-3 (CANH) - S59-14 (CANL) Engine switch off 1 Ω or higher OK
      S59-3 (CANH) - S59-14 (CANL) Engine switch off Below 1 Ω NG
      S59-3 (CANH) - L31-4 (CG) Engine switch off 1 Ω or higher OK
      S59-14 (CANL) - L31-4 (CG) Engine switch off 1 Ω or higher OK
      S59-3 (CANH) - L31-4 (CG) Engine switch off Below 1 Ω NG
      S59-14 (CANL) - L31-4 (CG) Engine switch off Below 1 Ω NG
      S59-3 (CANH) - L31-16 (BAT) Engine switch off 1 Ω or higher OK
      S59-14 (CANL) - L31-16 (BAT) Engine switch off 1 Ω or higher OK
      S59-3 (CANH) - L31-16 (BAT) Engine switch off Below 1 Ω NG
      S59-14 (CANL) - L31-16 (BAT) Engine switch off Below 1 Ω NG

    NG: Go to step   29

    OK: REPAIR OR REPLACE NO. 12 JUNCTION CONNECTOR

  25. CONNECT CONNECTOR
    1. Reconnect the S59 No. 12 junction connector connector.
  26. CHECK FOR SHORT IN CAN BUS WIRES (REAR POWER SEAT MODULE SWITCH)
    1. Disconnect the S15* rear power seat module switch connector.

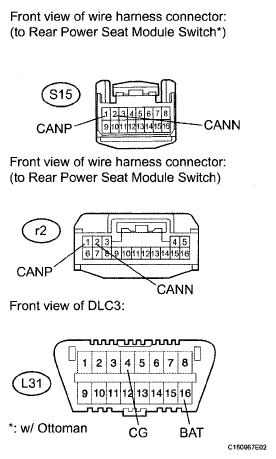

      Fig 18: Identifying S15, r2 And L31 Connector Terminals
      G04953476Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the r2 rear power seat module switch connector.
    3. Measure the resistance according to the value(s) in the table below.

      Result

      RESULT REFERENCE CHART

      Tester Connection Switch Condition Measured Resistance Result Proceed to
      S15-1 (CANP) - S15-2 (CANN)* Engine switch off 1 Ω or higher OK A
      S15-1 (CANP) - S15-2 (CANN)* Engine switch off Below 1 Ω NG C
      S15-1 (CANP) - L31-4 (CG)* Engine switch off 1 Ω or higher OK A
      S15-2 (CANN) - L31-4 (CG)* Engine switch off 1 Ω or higher OK A
      S15-1 (CANP) - L31-4 (CG)* Engine switch off Below 1 Ω NG C
      S15-2 (CANN) - L31-4 (CG)* Engine switch off Below 1 Ω NG C
      S15-1 (CANP) - L31-16 (BAT)* Engine switch off 1 Ω or higher OK A
      S15-2 (CANN) - L31-16 (BAT)* Engine switch off 1 Ω or higher OK A
      S15-1 (CANP) - L31-16 (BAT)* Engine switch off Below 1 Ω NG C
      S15-2 (CANN) - L31-16 (BAT)* Engine switch off Below 1 Ω NG C
      r2-1 (CANP) - r2-2 (CANN) Engine switch off 1 Ω or higher OK B
      r2-1 (CANP) - r2-2 (CANN) Engine switch off Below 1 Ω NG C
      r2-1 (CANP) - L31-4 (CG) Engine switch off 1 Ω or higher OK B
      r2-2 (CANN) - L31-4 (CG) Engine switch off 1 Ω or higher OK B
      r2-1 (CANP) - L31-4 (CG) Engine switch off Below 1 Ω NG C
      r2-2 (CANN) - L31-4 (CG) Engine switch off Below 1 Ω NG C
      r2-1 (CANP)-L31-16 (BAT) Engine switch off 1 Ω or higher OK B
      r2-2 (CANN) - L31-16 (BAT) Engine switch off 1 Ω or higher OK B
      r2-1 (CANP) - L31-16 (BAT) Engine switch off Below 1 Ω NG C
      r2-2 (CANN) - L31-16 (BAT) Engine switch off Below 1 Ω NG C
      HINT:
      *: w/ Ottoman

    B: REPLACE REAR POWER SEAT MODULE SWITCH  (See DISASSEMBLY )

    C: REPAIR OR REPLACE CAN BRANCH WIRE CONNECTED TO REAR POWER SEAT MODULE SWITCH (CANP, CANN)

    A: REPLACE REAR POWER SEAT MODULE SWITCH  (See DISASSEMBLY )

  27. CONNECT CONNECTOR
    1. Reconnect the S59 No. 12 junction connector connector.
  28. CHECK FOR SHORT IN CAN BUS WIRES (POWER TRUNK LID CONTROL ECU)
    1. Disconnect the S43 power trunk lid control ECU connector.
      Fig 19: Identifying S43 And L31 Connector Terminals
      G04953477Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the resistance according to the value(s) in the table below.

      Result

      RESULT REFERENCE CHART

      Tester Connection Switch Condition Measured Resistance Proceed to
      S43-6 (CANH) - S43-5 (CANL) Engine switch off 1 Ω or higher OK
      S43-6 (CANH) - S43-5 (CANL) Engine switch off Below 1 Ω NG
      S43-6 (CANH) - L31-4 (CG) Engine switch off 1 Ω or higher OK
      S43-5 (CANL) - L31-4 (CG) Engine switch off 1 Ω or higher OK
      S43-6 (CANH) - L31-4 (CG) Engine switch off Below 1 Ω NG
      S43-5 (CANL) - L31-4 (CG) Engine switch off Below 1 Ω NG
      S43-6 (CANH) - L31-16 (BAT) Engine switch off 1 Ω or higher OK
      S43-5 (CANL) - L31-16 (BAT) Engine switch off 1 Ω or higher OK
      S43-6 (CANH) - L31-16 (BAT) Engine switch off Below 1 Ω NG
      S43-5 (CANL) - L31-16 (BAT) Engine switch off Below 1 Ω NG

    NG: REPAIR OR REPLACE CAN BRANCH WIRE CONNECTED TO POWER TRUNK LID CONTROL ECU (CANH, CANL)

    OK: REPLACE POWER TRUNK LID CONTROL ECU  (See REMOVAL )

  29. CONNECT CONNECTOR
    1. Reconnect the S59 No. 12 junction connector connector.
  30. CHECK FOR SHORT IN CAN BUS WIRES (REAR JUNCTION BLOCK ECU)
    1. Disconnect the S62 rear junction block ECU connector.
      Fig 20: Identifying S62 And L31 Connector Terminals
      G04953478Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the resistance according to the value(s) in the table below.

      Result

      RESULT REFERENCE CHART

      Tester Connection Switch Condition Measured Resistance Proceed to
      S62-20 (CANP) - S62-28 (CANN) Engine switch off 1 Ω or higher OK
      S62-20 (CANP) - S62-28 (CANN) Engine switch off Below 1 Ω NG
      S62-20 (CANP) - L31-4 (CG) Engine switch off 1 Ω or higher OK
      S62-28 (CANN) - L31-4 (CG) Engine switch off 1 Ω or higher OK
      S62-20 (CANP) - L31-4 (CG) Engine switch off Below 1 Ω NG
      S62-28 (CANN) - L31-4 (CG) Engine switch off Below 1 Ω NG
      S62-20 (CANP) - L31-16 (BAT) Engine switch off 1 Ω or higher OK
      S62-28 (CANN) - L31-16 (BAT) Engine switch off 1 Ω or higher OK
      S62-20 (CANP) - L31-16 (BAT) Engine switch off Below 1 Ω NG
      S62-28 (CANN) - L31-16 (BAT) Engine switch off Below 1 Ω NG

    NG: REPAIR OR REPLACE CAN MAIN WIRE CONNECTED TO REAR JUNCTION BLOCK ECU (NO. 8 JUNCTION CONNECTOR - REAR JUNCTION BLOCK ECU)

    OK: REPLACE REAR JUNCTION BLOCK ECU

  31. CONNECT CONNECTOR
    1. Reconnect the S59 No. 12 junction connector connector.
  32. CHECK FOR SHORT IN CAN BUS WIRES (NO. 12 JUNCTION CONNECTOR - NO. 11 JUNCTION CONNECTOR)
    1. Disconnect the S60 No. 11 junction connector connector.
      Fig 21: Identifying S60 And L31 Connector Terminals
      G04953479Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      TESTER CONNECTION SPECIFIED CONDITION CHART

      Tester Connection Switch Condition Specified Condition
      S60-2 (CANH) - S60-13 (CANL) Engine switch off 108 to 132 Ω
      S60-2 (CANH) - L31-4 (CG) Engine switch off 200 Ω or higher
      S60-13 (CANL) - L31-4 (CG) Engine switch off 200 Ω or higher
      S60-2 (CANH) - L31-16 (BAT) Engine switch off 6 kΩ or higher
      S60-13 (CANL) - L31-16 (BAT) Engine switch off 6 kΩ or higher

    NG: REPAIR OR REPLACE CAN MAIN WIRE OR CONNECTOR (NO. 12 JUNCTION CONNECTOR - NO. 11 JUNCTION CONNECTOR)

    OK: GO TO NEXT STEP

  33. CHECK FOR SHORT IN CAN BUS WIRES (NO. 11 JUNCTION CONNECTOR SIDE)
    1. Measure the resistance according to the value(s) in the table below.
      Fig 22: Identifying A50 And L31 Connector Terminals
      G04953480Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard resistance

      TESTER CONNECTION SPECIFIED CONDITION CHART

      Tester Connection Switch Condition Specified Condition
      A50-3 (CANP) - A50-4 (CANN) Engine switch off 108 to 132 Ω
      A50-3 (CANP) - L31-4 (CG) Engine switch off 200 Ω or higher
      A50-4 (CANN) - L31-4 (CG) Engine switch off 200 Ω or higher
      A50-3 (CANP) - L31-16 (BAT) Engine switch off 6 kΩ or higher
      A50-4 (CANN) - L31-16 (BAT) Engine switch off 6 kΩ or higher

    OK: Go to step   46

    OK: GO TO NEXT STEP

  34. CHECK FOR SHORT IN CAN BUS WIRES (NO. 11 JUNCTION CONNECTOR - DRIVING SUPPORT ECU)
    NOTE: For vehicles without dynamic radar cruise control system or pre-collision system, go to  36 "CHECK FOR SHORT IN CAN BUS WIRES (NO. 11 JUNCTION CONNECTOR - FRONT POWER SEAT ECU AND SWITCH LH)".
    1. Measure the resistance according to the value(s) in the table below.
      Fig 23: Identifying L60 And L31 Connector Terminals
      G04953481Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Result

      RESULT REFERENCE CHART

      Tester Connection Switch Condition Measured Resistance Proceed to
      S60-6 (CANH) - S60-17 (CANL) Engine switch off 1 Ω or higher OK
      S60-6 (CANH) - S60-17 (CANL) Engine switch off Below 1 Ω NG
      S60-6 (CANH) - L31-4 (CG) Engine switch off 1 Ω or higher OK
      S60-17 (CANL) - L31-4 (CG) Engine switch off 1 Ω or higher OK
      S60-6 (CANH) - L31-4 (CG) Engine switch off Below 1 Ω NG
      S60-17 (CANL) - L31-4 (CG) Engine switch off Below 1 Ω NG
      S60-6 (CANH) - L31-16 (BAT) Engine switch off 1 Ω or higher OK
      S60-17 (CANL) - L31-16 (BAT) Engine switch off 1 Ω or higher OK
      S60-6 (CANH) - L31-16 (BAT) Engine switch off Below 1 Ω NG
      S60-17 (CANL) - L31-16 (BAT) Engine switch off Below 1 Ω NG

    NG: Go to step   38

    OK: GO TO NEXT STEP

  35. CHECK FOR SHORT IN CAN BUS WIRES (NO. 11 JUNCTION CONNECTOR - FRONT POWER SEAT ECU AND SWITCH LH)
    1. Measure the resistance according to the value(s) in the table below.
      Fig 24: Identifying L60 And L31 Connector Terminals
      G04953482Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Result

      RESULT REFERENCE CHART

      Tester Connection Switch Condition Measured Resistance Proceed to
      S60-1 (CANH) - S60-12 (CANL) Engine switch off 1 Ω or higher OK
      S60-1 (CANH) - S60-12 (CANL) Engine switch off Below 1 Ω NG
      S60-1 (CANH) - L31-4 (CG) Engine switch off 1 Ω or higher OK
      S60-12 (CANL) - L31-4 (CG) Engine switch off 1 Ω or higher OK
      S60-1 (CANH) - L31-4 (CG) Engine switch off Below 1 Ω NG
      S60-12 (CANL) - L31-4 (CG) Engine switch off Below 1 Ω NG
      S60-1 (CANH) - L31-16 (BAT) Engine switch off 1 Ω or higher OK
      S60-12 (CANL) - L31-16 (BAT) Engine switch off 1 Ω or higher OK
      S60-1 (CANH) - L31-16 (BAT) Engine switch off Below 1 Ω NG
      S60-12 (CANL) - L31-16 (BAT) Engine switch off Below 1 Ω NG

    NG: Go to step   40

    OK: GO TO NEXT STEP

  36. CHECK FOR SHORT IN CAN BUS WIRES (NO. 11 JUNCTION CONNECTOR - FRONT POWER SEAT ECU AND SWITCH LH)
    1. Measure the resistance according to the value(s) in the table below.
      Fig 25: Identifying S60 And L31 Connector Terminals
      G04953483Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Result

      RESULT REFERENCE CHART

      Tester Connection Switch Condition Measured Resistance Proceed to
      S60-4 (CANH) - S60-15 (CANL) Engine switch off 1 Ω or higher OK
      S60-4 (CANH) - S60-15 (CANL) Engine switch off Below 1 Ω NG
      S60-4 (CANH) - L31-4 (CG) Engine switch off 1 Ω or higher OK
      S60-15 (CANL) - L31-4 (CG) Engine switch off 1 Ω or higher OK
      S60-4 (CANH) - L31-4 (CG) Engine switch off Below 1 Ω NG
      S60-15 (CANL) - L31-4 (CG) Engine switch off Below 1 Ω NG
      S60-4 (CANH) - L31-16 (BAT) Engine switch off 1 Ω or higher OK
      S60-15 (CANL) - L31-16 (BAT) Engine switch off 1 Ω or higher OK
      S60-4 (CANH) - L31-16 (BAT) Engine switch off Below 1 Ω NG
      S60-15 (CANL) - L31-16 (BAT) Engine switch off Below 1 Ω NG

    NG: Go to step   42

    OK: GO TO NEXT STEP

  37. CHECK FOR SHORT IN CAN BUS WIRES (NO. 11 JUNCTION CONNECTOR - REAR MULTIPLEX NETWORK DOOR ECU LH)
    1. Measure the resistance according to the value(s) in the table below.
      Fig 26: Identifying S60 And L31 Connector Terminals
      G04953484Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Result

      RESULT REFERENCE CHART

      Tester Connection Switch Condition Measured Resistance Proceed to
      S60-3 (CANH) - S60-14 (CANL) Engine switch off 1 Ω or higher OK
      S60-3 (CANH) - S60-14 (CANL) Engine switch off Below 1 Ω NG
      S60-3 (CANH) - L31-4 (CG) Engine switch off 1 Ω or higher OK
      S60-14 (CANL) - L31-4 (CG) Engine switch off 1 Ω or higher OK
      S60-3 (CANH) - L31-4 (CG) Engine switch off Below 1 Ω NG
      S60-14 (CANL) - L31-4 (CG) Engine switch off Below 1 Ω NG
      S60-3 (CANH) - L31-16 (BAT) Engine switch off 1 Ω or higher OK
      S60-14 (CANL) - L31-16 (BAT) Engine switch off 1 Ω or higher OK
      S60-3 (CANH) - L31-16 (BAT) Engine switch off Below 1 Ω NG
      S60-14 (CANL) - L31-16 (BAT) Engine switch off Below 1 Ω NG

    NG: Go to step   44

    OK: REPAIR OR REPLACE NO. 11 JUNCTION CONNECTOR

  38. CONNECT CONNECTOR
    1. Reconnect the S60 No. 11 junction connector connector.
  39. CHECK FOR SHORT IN CAN BUS WIRES (DRIVING SUPPORT ECU)
    1. Disconnect the A33 driving support ECU connector.
      Fig 27: Identifying A33 And L31 Connector Terminals
      G04953485Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the resistance according to the value(s) in the table below.

      Result

      RESULT REFERENCE CHART

      Tester Connection Switch Condition Measured Resistance Proceed to
      A33-19 (CANP) - A33-18 (CANN) Engine switch off 1 Ω or higher OK
      A33-19 (CANP) - A33-18 (CANN) Engine switch off Below 1 Ω NG
      A33-19 (CANP) - L31-4 (CG) Engine switch off 1 Ω or higher OK
      A33-18 (CANN) - L31-4 (CG) Engine switch off 1 Ω or higher OK
      A33-19 (CANP) - L31-4 (CG) Engine switch off Below 1 Ω NG
      A33-18 (CANN) - L31-4 (CG) Engine switch off Below 1 Ω NG
      A33-19 (CANP) - L31-16 (BAT) Engine switch off 1 Ω or higher OK
      A33-18 (CANN) - L31-16 (BAT) Engine switch off 1 Ω or higher OK
      A33-19 (CANP) - L31-16 (BAT) Engine switch off Below 1 Ω NG
      A33-18 (CANN) - L31-16 (BAT) Engine switch off Below 1 Ω NG

    NG: REPAIR OR REPLACE CAN BRANCH WIRE CONNECTED TO DRIVING SUPPORT ECU (CANP, CANN)

    OK: REPLACE DRIVING SUPPORT ECU  (See REMOVAL )

  40. CONNECT CONNECTOR
    1. Reconnect the S60 No. 11 junction connector connector.
  41. CHECK FOR SHORT IN CAN BUS WIRES (FRONT POWER SEAT ECU AND SWITCH LH)
    1. Disconnect the e46 front power seat ECU and switch LH connector.
      Fig 28: Identifying e46 And L31 Connector Terminals
      G04953486Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the resistance according to the value(s) in the table below.

      Result

      RESULT REFERENCE CHART

      Tester Connection Switch Condition Measured Resistance Proceed to
      e46-25 (CANP) -e46-24 (CANN) Engine switch off 1 Ω or higher OK
      e46-25 (CANP) -e46-24 (CANN) Engine switch off Below 1 Ω NG
      e46-25 (CANP) - L31-4 (CG) Engine switch off 1 Ω or higher OK
      e46-24 (CANN) - L31-4 (CG) Engine switch off 1 Ω or higher OK
      e46-25 (CANP) - L31-4 (CG) Engine switch off Below 1 Ω NG
      e46-24 (CANN) - L31-4 (CG) Engine switch off Below 1 Ω NG
      e46-25 (CANP) - L31-16 (BAT) Engine switch off 1 Ω or higher OK
      e46-24 (CANN) - L31-16 (BAT) Engine switch off 1 Ω or higher OK
      e46-25 (CANP) - L31-16 (BAT) Engine switch off Below 1 Ω NG
      e46-24 (CANN) - L31-16 (BAT) Engine switch off Below 1 Ω NG

    NG: REPAIR OR REPLACE CAN BRANCH WIRE CONNECTED TO FRONT POWER SEAT ECU AND SWITCH LH (CANP, CANN)

    OK: REPLACE FRONT POWER SEAT ECU AND SWITCH LH  (See DISASSEMBLY )

  42. CONNECT CONNECTOR
    1. Reconnect the S60 No. 11 junction connector Connector.
  43. CHECK FOR SHORT IN CAN BUS WIRES (FRONT MULTIPLEX NETWORK DOOR ECU LH)
    1. Disconnect the N10 front multiplex network door ECU LH connector.
      Fig 29: Identifying N10 And L31 Connector Terminals
      G04953487Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the resistance according to the value(s) in the table below.

      Result

      RESULT REFERENCE CHART

      Tester Connection Switch Condition Measured Resistance Proceed to
      N10-9 (CANP) -N10-10 (CANN) Engine switch off 1 Ω or higher OK
      N10-9 (CANP) -N10-10 (CANN) Engine switch off Below 1 Ω NG
      N10-9 (CANP) - L31-4 (CG) Engine switch off 1 Ω or higher OK
      N10-10 (CANN) - L31-4 (CG) Engine switch off 1 Ω or higher OK
      N10-9 (CANP) - L31-4 (CG) Engine switch off Below 1 Ω NG
      N10-10(CANN) - L31-4 (CG) Engine switch off Below 1 Ω NG
      N10-9 (CANP) - L31-16 (BAT) Engine switch off 1 Ω or higher OK
      N10-10 (CANN) - L31-16 (BAT) Engine switch off 1 Ω or higher OK
      N10-9 (CANP) - L31-16 (BAT) Engine switch off Below 1 Ω NG
      N10-10 (CANN) - L31-16 (BAT) Engine switch off Below 1 Ω NG

    NG: REPAIR OR REPLACE CAN BRANCH WIRE CONNECTED TO FRONT MULTIPLEX NETWORK DOOR ECU LH (CANP, CANN)

    OK: REPLACE FRONT MULTIPLEX NETWORK DOOR ECU LH  (See REMOVAL )

  44. CONNECT CONNECTOR
    1. Reconnect the S60 No. 11 junction connector connector.
  45. CHECK FOR SHORT IN CAN BUS WIRES (REAR MULTIPLEX NETWORK DOOR ECU LH)
    1. Disconnect the O4 rear multiplex network door ECU LH connector.
      Fig 30: Identifying 014 And L31 Connector Terminals
      G04953488Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the resistance according to the value(s) in the table below.

      Result

      RESULT REFERENCE CHART

      Tester Connection Switch Condition Measured Resistance Proceed to
      014-9 (CANP) -014-10 (CANN) Engine switch off 1 Ω or higher OK
      O14-9 (CANP) -014-10 (CANN) Engine switch off Below 1 Ω NG
      O14-9 (CANP) - L31-4 (CG) Engine switch off 1 Ω or higher OK
      014-10 (CANN) - L31-4 (CG) Engine switch off 1 Ω or higher OK
      014-9 (CANP) - L31-4 (CG) Engine switch off Below 1 Ω NG
      014-10 (CANN) - L31-4 (CG) Engine switch off Below 1 Ω NG
      014-9 (CANP) - L31-16 (BAT) Engine switch off 1 Ω or higher OK
      014-10 (CANN) - L31-16 (BAT) Engine switch off 1 Ω or higher OK
      014-9 (CANP) - L31-16 (BAT) Engine switch off Below 1 Ω NG
      014-10 (CANN) - L31-16 (BAT) Engine switch off Below 1 Ω NG

    NG: REPAIR OR REPLACE CAN BRANCH WIRE CONNECTED TO REAR MULTIPLEX NETWORK DOOR ECU LH (CANP, CANN)

    OK: REPLACE REAR MULTIPLEX NETWORK DOOR ECU LH  (See REMOVAL )

  46. CONNECT CONNECTOR
    1. Reconnect the S60 No. 11 junction connector connector.
  47. CHECK FOR SHORT IN CAN BUS WIRES (NO. 11 JUNCTION CONNECTOR - NO. 10 JUNCTION CONNECTOR)
    1. Disconnect the L95 No. 10 junction connector connector.
      Fig 31: Identifying L95 And L31 Connector Terminals
      G04953489Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      TESTER CONNECTION SPECIFIED CONDITION CHART

      Tester Connection Switch Condition Specified Condition
      L95-4 (CANH) - L95-15 (CANL) Engine switch off 108 to 132 Ω
      L95-4 (CANH) - L31-4 (CG) Engine switch off 200 Ω or higher
      L95-15 (CANL) - L31-4 (CG) Engine switch off 200 Ω or higher
      L95-4 (CANH) - L31-16 (BAT) Engine switch off 6 kΩ or higher
      L95-15 (CANL) - L31-16 (BAT) Engine switch off 6 kΩ or higher

    NG: REPAIR OR REPLACE CAN MAIN WIRE OR CONNECTOR (NO. 11 JUNCTION CONNECTOR - NO. 10 JUNCTION CONNECTOR)

    OK: GO TO NEXT STEP

  48. CHECK FOR SHORT IN CAN BUS WIRES (NO. 10 JUNCTION CONNECTOR SIDE)
    1. Measure the resistance according to the value(s) in the table below.
      Fig 32: Identifying A50 And L31 Connector Terminals
      G04953480Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard resistance

      TESTER CONNECTION SPECIFIED CONDITION CHART

      Tester Connection Switch Condition Specified Condition
      A50-3 (CANP) - A50-4 (CANN) Engine switch off 108 to 132 Ω
      A50-3 (CANP) - L31-4 (CG) Engine switch off 200 Ω or higher
      A50-4 (CANN) - L31-4 (CG) Engine switch off 200 Ω or higher
      A50-3 (CANP) - L31-16 (BAT) Engine switch off 6 kΩ or higher
      A50-4 (CANN) - L31-16 (BAT) Engine switch off 6 kΩ or higher

    NG: Go to step   71

    OK: GO TO NEXT STEP

  49. CHECK FOR SHORT IN CAN BUS WIRES (NO. 10 JUNCTION CONNECTOR COMBINATION SWITCH)
    1. Measure the resistance according to the value(s) in the table below.
      Fig 33: Identifying L95 And L31 Connector Terminals
      G04953491Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Result

      RESULT REFERENCE CHART

      Tester Connection Switch Condition Measured Resistance Proceed to
      L95-8 (CANH) - L95-19 (CANL) Engine switch off 1 Ω or higher OK
      L95-8 (CANH) - L95-19 (CANL) Engine switch off Below 1 Ω NG
      L95-8 (CANH) - L31-4 (CG) Engine switch off 1 Ω or higher OK
      L95-19 (CANL) - L31-4 (CG) Engine switch off 1 Ω or higher OK
      L95-8 (CANH) - L31-4 (CG) Engine switch off Below 1 Ω NG
      L95-19 (CANL) - L31-4 (CG) Engine switch off Below 1 Ω NG
      L95-8 (CANH) - L31-16 (BAT) Engine switch off 1 Ω or higher OK
      L95-19 (CANL) - L31-16 (BAT) Engine switch off 1 Ω or higher OK
      L95-8 (CANH) - L31-16 (BAT) Engine switch off Below 1 Ω NG
      L95-19 (CANL) - L31-16 (BAT) Engine switch off Below 1 Ω NG

    NG: Go to step   56

    OK: GO TO NEXT STEP

  50. CHECK FOR SHORT IN CAN BUS WIRES (NO. 10 JUNCTION CONNECTOR - MAIN BODY ECU)
    1. Measure the resistance according to the value(s) in the table below.
      Fig 34: Identifying L95 And L31 Connector Terminals
      G04953492Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Result

      RESULT REFERENCE CHART

      Tester Connection Switch Condition Measured Resistance Proceed to
      L95-3 (CANH) - L95-14 (CANL) Engine switch off 1 Ω or higher OK
      L95-3 (CANH) - L95-14 (CANL) Engine switch off Below 1 Ω NG
      L95-3 (CANH) - L31-4 (CG) Engine switch off 1 Ω or higher OK
      L95-14 (CANL) - L31-4 (CG) Engine switch off 1 Ω or higher OK
      L95-3 (CANH) - L31-4 (CG) Engine switch off Below 1 Ω NG
      L95-14 (CANL) - L31-4 (CG) Engine switch off Below 1 Ω NG
      L95-3 (CANH) - L31-16 (BAT) Engine switch off 1 Ω or higher OK
      L95-14 (CANL) - L31-16 (BAT) Engine switch off 1 Ω or higher OK
      L95-3 (CANH) - L31-16 (BAT) Engine switch off Below 1 Ω NG
      L95-14 (CANL) - L31-16 (BAT) Engine switch off Below 1 Ω NG

    NG: Go to step   58

    OK: GO TO NEXT STEP

  51. CHECK FOR SHORT IN CAN BUS WIRE (NO. 10 JUNCTION CONNECTOR - MULTIPLEX TILT AND TELESCOPIC ECU)
    1. Measure the resistance according to the value(s) in the table below.
      Fig 35: Identifying L95 And L31 Connector Terminals
      G04953493Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Result

      RESULT REFERENCE CHART

      Tester Connection Switch Condition Measured Resistance Proceed to
      L95-6 (CANH) - L95-17 (CANL) Engine switch off 1 Ω or higher OK
      L95-6 (CANH) - L95-17 (CANL) Engine switch off Below 1 Ω NG
      L95-6 (CANH) - L31-4 (CG) Engine switch off 1 Ω or higher OK
      L95-17 (CANL) - L31-4 (CG) Engine switch off 1 Ω or higher OK
      L95-6 (CANH) - L31-4 (CG) Engine switch off Below 1 Ω NG
      L95-17 (CANL) - L31-4 (CG) Engine switch off Below 1 Ω NG
      L95-6 (CANH) - L31-16 (BAT) Engine switch off 1 Ω or higher OK
      L95-17 (CANL) - L31-16 (BAT) Engine switch off 1 Ω or higher OK
      L95-6 (CANH) - L31-16 (BAT) Engine switch off Below 1 Ω NG
      L95-17 (CANL) - L31-16 (BAT) Engine switch off Below 1 Ω NG

    NG: Go to step   60

    OK: GO TO NEXT STEP

  52. CHECK FOR SHORT IN CAN BUS WIRES (NO. 10 JUNCTION CONNECTOR - NO. 1 METER ECU)
    1. Measure the resistance according to the value(s) in the table below.
      Fig 36: Identifying L95 And L31 Connector Terminals
      G04953494Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Result

      RESULT REFERENCE CHART

      Tester Connection Switch Condition Measured Resistance Proceed to
      L95-7 (CANH) - L95-18 (CANL) Engine switch off 1 Ω or higher OK
      L95-7 (CANH) - L95-18 (CANL) Engine switch off Below 1 Ω NG
      L95-7 (CANH) - L31-4 (CG) Engine switch off 1 Ω or higher OK
      L95-18 (CANL) - L31-4 (CG) Engine switch off 1 Ω or higher OK
      L95-7 (CANH) - L31-4 (CG) Engine switch off Below 1 Ω NG
      L95-18 (CANL) - L31-4 (CG) Engine switch off Below 1 Ω NG
      L95-7 (CANH) - L31-16 (BAT) Engine switch off 1 Ω or higher OK
      L95-18 (CANL) - L31-16 (BAT) Engine switch off 1 Ω or higher OK
      L95-7 (CANH) - L31-16 (BAT) Engine switch off Below 1 Ω NG
      L95-18 (CANL) - L31-16 (BAT) Engine switch off Below 1 Ω NG

    NG: Go to step   62

    OK: GO TO NEXT STEP

  53. CHECK FOR SHORT IN CAN BUS WIRES (NO. 10 JUNCTION CONNECTOR CERTIFICATION ECU)
    1. Measure the resistance according to the value(s) in the table below.
      Fig 37: Identifying L95 And L31 Connector Terminals
      G04953495Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Result

      RESULT REFERENCE CHART

      Tester Connection Switch Condition Measured Resistance Proceed to
      L95-5 (CANH) - L95-16 (CANL) Engine switch off 1 Ω or higher OK
      L95-5 (CANH) - L95-16 (CANL) Engine switch off Below 1 Ω NG
      L95-5 (CANH) - L31-4 (CG) Engine switch off 1 Ω or higher OK
      L95-16 (CANL) - L31-4 (CG) Engine switch off 1 Ω or higher OK
      L95-5 (CANH) - L31-4 (CG) Engine switch off Below 1 Ω NG
      L95-16 (CANL) - L31-4 (CG) Engine switch off Below 1 Ω NG
      L95-5 (CANH) - L31-16 (BAT) Engine switch off 1 Ω or higher OK
      L95-16 (CANL) - L31-16 (BAT) Engine switch off 1 Ω or higher OK
      L95-5 (CANH) - L31-16 (BAT) Engine switch off Below 1 Ω NG
      L95-16 (CANL) - L31-16 (BAT) Engine switch off Below 1 Ω NG

    NG: Go to step   64

    OK: GO TO NEXT STEP

  54. CHECK FOR SHORT IN CAN BUS WIRES (NO. 10 JUNCTION CONNECTOR - OUTER MIRROR SWITCH)
    1. Measure the resistance according to the value(s) in the table below.
      Fig 38: Identifying L95 And L31 Connector Terminals
      G04953496Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Result

      RESULT REFERENCE CHART

      Tester Connection Switch Condition Measured Resistance Proceed to
      L95-10 (CANH) - L95-21 (CANL) Engine switch off 1 Ω or higher OK
      L95-10 (CANH) - L95-21 (CANL) Engine switch off Below 1 Ω NG
      L95-10 (CANH) - L31-4 (CG) Engine switch off 1 Ω or higher OK
      L95-21 (CANL) - L31-4 (CG) Engine switch off 1 Ω or higher OK
      L95-10 (CANH) - L31-4 (CG) Engine switch off Below 1 Ω NG
      L95-21 (CANL) - L31-4 (CG) Engine switch off Below 1 Ω NG
      L95-10 (CANH) - L31-16 (BAT) Engine switch off 1 Ω or higher OK
      L95-21 (CANL) - L31-16 (BAT) Engine switch off 1 Ω or higher OK
      L95-10 (CANH) - L31-16 (BAT) Engine switch off Below 1 Ω NG
      L95-21 (CANL) - L31-16 (BAT) Engine switch off Below 1 Ω NG

    NG: Go to step   66

    OK: GO TO NEXT STEP

  55. CHECK FOR SHORT IN CAN BUS WIRES (NO. 10 JUNCTION CONNECTOR - STEERING PAD ECU)
    1. Measure the resistance according to the value(s) in the table below.
      Fig 39: Identifying L95 And L31 Connector Terminals
      G04953497Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Result

      RESULT REFERENCE CHART

      Tester Connection Switch Condition Measured Resistance Proceed to
      L95-9 (CANH) - L95-20 (CANL) Engine switch off 1 Ω or higher OK
      L95-9 (CANH) - L95-20 (CANL) Engine switch off Below 1 Ω NG
      L95-9 (CANH) - L31-4 (CG) Engine switch off 1 Ω or higher OK
      L95-20 (CANL) - L31-4 (CG) Engine switch off 1 Ω or higher OK
      L95-9 (CANH) - L31-4 (CG) Engine switch off Below 1 Ω NG
      L95-20 (CANL) - L31-4 (CG) Engine switch off Below 1 Ω NG
      L95-9 (CANH) - L31-16 (BAT) Engine switch off 1 Ω or higher OK
      L95-20 (CANL) - L31-16 (BAT) Engine switch off 1 Ω or higher OK
      L95-9 (CANH) - L31-16 (BAT) Engine switch off Below 1 Ω NG
      L95-20 (CANL) - L31-16 (BAT) Engine switch off Below 1 Ω NG

    NG: Go to step   68

    OK: REPAIR OR REPLACE NO. 10 JUNCTION CONNECTOR

  56. CONNECT CONNECTOR
    1. Reconnect the L95 No. 10 junction connector connector.
  57. CHECK FOR SHORT IN CAN BUS WIRES (COMBINATION SWITCH)
    1. Disconnect the L25 combination switch connector.
      Fig 40: Identifying L25 And L31 Connector Terminals
      G04953498Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the resistance according to the value(s) in the table below.

      Result

      RESULT REFERENCE CHART

      Tester Connection Switch Condition Measured Resistance Proceed to
      L25-5 (CANP) - L25-6 (CANN) Engine switch off 1 Ω or higher OK
      L25-5 (CANP) - L25-6 (CANN) Engine switch off Below 1 Ω NG
      L25-5 (CANP) - L31-4 (CG) Engine switch off 1 Ω or higher OK
      L25-6 (CANN) - L31-4 (CG) Engine switch off 1 Ω or higher OK
      L25-5 (CANP) - L31-4 (CG) Engine switch off Below 1 Ω NG
      L25-6 (CANN) - L31-4 (CG) Engine switch off Below 1 Ω NG
      L25-5 (CANP) - L31-16 (BAT) Engine switch off 1 Ω or higher OK
      L25-6 (CANN) - L31-16 (BAT) Engine switch off 1 Ω or higher OK
      L25-5 (CANP) - L31-16 (BAT) Engine switch off Below 1 Ω NG
      L25-6 (CANN) - L31-16 (BAT) Engine switch off Below 1 Ω NG

    NG: REPAIR OR REPLACE CAN BRANCH WIRE CONNECTED TO COMBINATION SWITCH (CANP, CANN)

    OK: REPLACE COMBINATION SWITCH ASSEMBLY (WINDSHIELD WIPER SWITCH ASSEMBLY)  (See REMOVAL )

  58. CONNECT CONNECTOR
    1. Reconnect the L95 No. 10 junction connector connector.
  59. CHECK FOR SHORT IN CAN BUS WIRES (MAIN BODY ECU)
    1. Disconnect the L11 main body ECU connector.
      Fig 41: Identifying L11 And L31 Connector Terminals
      G04953499Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the resistance according to the value(s) in the table below.

      Result

      RESULT REFERENCE CHART

      Tester Connection Switch Condition Measured Resistance Proceed to
      L11-16 (CANP) - L11-15 (CANN) Engine switch off 1 Ω or higher OK
      L11-16 (CANP) - L11-15 (CANN) Engine switch off Below 1 Ω NG
      L11-16 (CANP) - L31-4 (CG) Engine switch off 1 Ω or higher OK
      L11-15 (CANN) - L31-4 (CG) Engine switch off 1 Ω or higher OK
      L11-16 (CANP) - L31-4 (CG) Engine switch off Below 1 Ω NG
      L11-15 (CANN) - L31-4 (CG) Engine switch off Below 1 Ω NG
      L11-16 (CANP) - L31-16 (BAT) Engine switch off 1 Ω or higher OK
      L11-15 (CANN) - L31-16 (BAT) Engine switch off 1 Ω or higher OK
      L11-16 (CANP) - L31-16 (BAT) Engine switch off Below 1 Ω NG
      L11-15 (CANN) - L31-16 (BAT) Engine switch off Below 1 Ω NG

    NG: REPAIR OR REPLACE CAN BRANCH WIRE CONNECTED TO MAIN BODY ECU (CANP, CANN)

    OK: REPLACE MAIN BODY ECU

  60. CONNECT CONNECTOR
    1. Reconnect the L95 No. 10 junction connector connector.
  61. CHECK FOR SHORT IN CAN BUS WIRES (MULTIPLEX TILT AND TELESCOPIC ECU)
    1. Disconnect the L34 multiplex tilt and telescopic ECU connector.
      Fig 42: Identifying L34 And L31 Connector Terminals
      G04953500Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the resistance according to the value(s) in the table below.

      Result

      RESULT REFERENCE CHART

      Tester Connection Switch Condition Measured Resistance Proceed to
      L34-5 (CANP) - L34-14 (CANN) Engine switch off 1 Ω or higher OK
      L34-5 (CANP) - L34-14 (CANN) Engine switch off Below 1 Ω NG
      L34-5 (CANP) - L31-4 (CG) Engine switch off 1 Ω or higher OK
      L34-14 (CANN) - L31-4 (CG) Engine switch off 1 Ω or higher OK
      L34-5 (CANP) - L31-4 (CG) Engine switch off Below 1 Ω NG
      L34-14 (CANN) - L31-4 (CG) Engine switch off Below 1 Ω NG
      L34-5 (CANP) - L31-16 (BAT) Engine switch off 1 Ω or higher OK
      L34-14 (CANN) - L31-16 (BAT) Engine switch off 1 Ω or higher OK
      L34-5 (CANP) - L31-16 (BAT) Engine switch off Below 1 Ω NG
      L34-14 (CANN) - L31-16 (BAT) Engine switch off Below 1 Ω NG

    NG: REPAIR OR REPLACE CAN BRANCH WIRE CONNECTED TO MULTIPLEX TILT AND TELESCOPIC ECU (CANP, CANN)

    OK: REPLACE MULTIPLEX TILT AND TELESCOPIC ECU  (See REMOVAL )

  62. CONNECT CONNECTOR
    1. Reconnect the L95 No. 10 junction connector connector.
  63. CHECK FOR SHORT IN CAN BUS WIRES (NO. 1 METER ECU)
    1. Disconnect the L10 No. 1 meter ECU connector.
      Fig 43: Identifying L10 And L31 Connector Terminals
      G04953501Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the resistance according to the value(s) in the table below.

      Result

      RESULT REFERENCE CHART

      Tester Connection Switch Condition Measured Resistance Proceed to
      L10-22 (CANP) - L10-23 (CANN) Engine switch off 1 Ω or higher OK
      L10-22 (CANP) - L10-23 (CANN) Engine switch off Below 1 Ω NG
      L10-22 (CANP) - L31-4 (CG) Engine switch off 1 Ω or higher OK
      L10-23 (CANN) - L31-4 (CG) Engine switch off 1 Ω or higher OK
      L10-22 (CANP) - L31-4 (CG) Engine switch off Below 1 Ω NG
      L10-23 (CANN) - L31-4 (CG) Engine switch off Below 1 Ω NG
      L10-22 (CANP) - L31-16 (BAT) Engine switch off 1 Ω or higher OK
      L10-23 (CANN) - L31-16 (BAT) Engine switch off 1 Ω or higher OK
      L10-22 (CANP) - L31-16 (BAT) Engine switch off Below 1 Ω NG
      L10-23 (CANN) - L31-16 (BAT) Engine switch off Below 1 Ω NG

    NG: REPAIR OR REPLACE CAN BRANCH WIRE CONNECTED TO NO. 1 METER ECU (CANP, CANN)

    OK: REPLACE COMBINATION METER ASSEMBLY (NO. 1 METER ECU SUB-ASSEMBLY)  (See DISASSEMBLY )

  64. CONNECT CONNECTOR
    1. Reconnect the L95 No. 10 junction connector connector.
  65. CHECK FOR SHORT IN CAN BUS WIRES (CERTIFICATION ECU)
    1. Disconnect the L15 certification ECU connector.
      Fig 44: Identifying L15 And L31 Connector Terminals
      G04953502Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the resistance according to the value(s) in the table below.

      Result

      RESULT REFERENCE CHART

      Tester Connection Switch Condition Measured Resistance Proceed to
      L15-27 (CANP) - L15-28 (CANN) Engine switch off 1 Ω or higher OK
      L15-27 (CANP) - L15-28 (CANN) Engine switch off Below 1 Ω NG
      L15-27 (CANP) - L31-4 (CG) Engine switch off 1 Ω or higher OK
      L15-28 (CANN) - L31-4 (CG) Engine switch off 1 Ω or higher OK
      L15-27 (CANP) - L31-4 (CG) Engine switch off Below 1 Ω NG
      L15-28 (CANN) - L31-4 (CG) Engine switch off Below 1 Ω NG
      L15-27 (CANP) - L31-16 (BAT) Engine switch off 1 Ω or higher OK
      L15-28 (CANN) - L31-16 (BAT) Engine switch off 1 Ω or higher OK
      L15-27 (CANP) - L31-16 (BAT) Engine switch off Below 1 Ω NG
      L15-28 (CANN) - L31-16 (BAT) Engine switch off Below 1 Ω NG

    NG: REPAIR OR REPLACE CAN BRANCH WIRE CONNECTED TO CERTIFICATION ECU (CANP, CANN)

    OK: REPLACE CERTIFICATION ECU

  66. CONNECT CONNECTOR
    1. Reconnect the L95 No. 10 junction connector connector.
  67. CHECK FOR SHORT IN CAN BUS WIRES (OUTER MIRROR SWITCH)
    1. Disconnect the L6 outer mirror switch connector.
      Fig 45: Identifying L6 And L31 Connector Terminals
      G04953503Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the resistance according to the value(s) in the table below.

      Result

      RESULT REFERENCE CHART

      Tester Connection Switch Condition Measured Resistance Proceed to
      L6-2 (CANP) - L6-3 (CANN) Engine switch off 1 Ω or higher OK
      L6-2 (CANP) - L6-3 (CANN) Engine switch off Below 1 Ω NG
      L6-2 (CANP) - L31-4 (CG) Engine switch off 1 Ω or higher OK
      L6-3 (CANN) - L31-4 (CG) Engine switch off 1 Ω or higher OK
      L6-2 (CANP) - L31-4 (CG) Engine switch off Below 1 Ω NG
      L6-3 (CANN) - L31-4 (CG) Engine switch off Below 1 Ω NG
      L6-2 (CANP) - L31-16 (BAT) Engine switch off 1 Ω or higher OK
      L6-3 (CANN) - L31-16 (BAT) Engine switch off 1 Ω or higher OK
      L6-2 (CANP) - L31-16 (BAT) Engine switch off Below 1 Ω NG
      L6-3 (CANN) - L31-16 (BAT) Engine switch off Below 1 Ω NG

    NG: REPAIR OR REPLACE CAN BRANCH WIRE CONNECTED TO OUTER MIRROR SWITCH (CANP, CANN)

    OK: REPLACE OUTER MIRROR SWITCH  (See REMOVAL )

  68. CONNECT CONNECTOR
    1. Reconnect the L95 No. 10 junction connector connector.
  69. CHECK FOR SHORT IN CAN BUS WIRES (STEERING PAD ECU)
    1. Disconnect the L24 spiral cable connector.
      Fig 46: Identifying L24 And L31 Connector Terminals
      G04953504Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the resistance according to the value(s) in the table below.

      Result

      RESULT REFERENCE CHART

      Tester Connection Switch Condition Measured Resistance Proceed to
      L24-9 (CANP) - L24-8 (CANN) Engine switch off 1 Ω or higher OK
      L24-9 (CANP) - L24-8 (CANN) Engine switch off Below 1 Ω NG
      L24-9 (CANP) - L31-4 (CG) Engine switch off 1 Ω or higher OK
      L24-8 (CANN) - L31-4 (CG) Engine switch off 1 Ω or higher OK
      L24-9 (CANP) - L31-4 (CG) Engine switch off Below 1 Ω NG
      L24-8 (CANN) - L31-4 (CG) Engine switch off Below 1 Ω NG
      L24-9 (CANP) - L31-16 (BAT) Engine switch off 1 Ω or higher OK
      L24-8 (CANN) - L31-16 (BAT) Engine switch off 1 Ω or higher OK
      L24-9 (CANP) - L31-16 (BAT) Engine switch off Below 1 Ω NG
      L24-8 (CANN) - L31-16 (BAT) Engine switch off Below 1 Ω NG

    NG: REPAIR OR REPLACE CAN BRANCH WIRE CONNECTED TO STEERING PAD ECU (CANP, CANN)

    OK: GO TO NEXT STEP

  70. INSPECT SPIRAL CABLE SUB-ASSEMBLY
    1. Disconnect the L24 and z7 cable connectors.

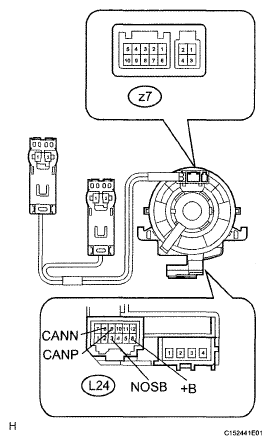

      Fig 47: Inspecting Spiral Cable Sub-Assembly
      G04953505Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Set the spiral cable to the center position (see INSTALLATION ).
    3. Measure the resistance between each terminal of the spiral cable according to the table below.
    4. After setting the spiral cable to the center position, rotate the spiral cable 2.5 times clockwise, and measure the resistance as shown. Then rotate the spiral cable 5 times counterclockwise, and measure the resistance as shown.

      Standard resistance

      TESTER CONNECTION SPECIFIED CONDITION CHART

      Tester Connection Condition Specified Condition
      z7-2 - L24-9 (CANP) Always Below 1 Ω
      z7-1 - L24-8 (CANN) Always Below 1 Ω
      z7-7 - L24-3 (NOSB) Always Below 1 Ω
      z7-10-L24-6 (+B) Always Below 1 Ω
    5. After setting the spiral cable to the center position, rotate the spiral cable 2.5 times clockwise, and measure the resistance as shown. Then rotate the spiral cable 5 times counterclockwise, and measure the resistance as shown.

      Standard resistance

      TESTER CONNECTION SPECIFIED CONDITION CHART

      Tester Connection Condition Specified Condition
      Z7-2 - L24-9 (CANP) Always Below 1 Ω
      Z7-1 - L24-8 (CANN) Always Below 1 Ω
      z7-7 - L24-3 (NOSB) Always Below 1 Ω
      z7-10-L24-6 (+B) Always Below 1 Ω
      NOTE: As the spiral cable may break, do not rotate the spiral cable more than the specified amount.

    NG: REPLACE SPIRAL CABLE SUB-ASSEMBLY  (See REMOVAL )

    OK: REPLACE STEERING PAD ECU  (See REMOVAL )

  71. CONNECT CONNECTOR
    1. Reconnect the L95 No. 10 junction connector connector.
  72. CHECK FOR SHORT IN CAN BUS WIRES (NO. 10 JUNCTION CONNECTOR - NO. 9 JUNCTION CONNECTOR)
    1. Disconnect the R48 No. 9 junction connector connector.
      Fig 48: Identifying R48 And L31 Connector Terminals
      G04953506Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      TESTER CONNECTION SPECIFIED CONDITION CHART

      Tester Connection Switch Condition Specified Condition
      R48-4 (CANH) - R48-15 (CANL) Engine switch off 108 to 132 Ω
      R48-4 (CANH) - L31-4 (CG) Engine switch off 200 Ω or higher
      R48-15 (CANL) - L31-4 (CG) Engine switch off 200 Ω or higher
      R48-4 (CANH) - L31-16 (BAT) Engine switch off 6 kΩ or higher
      R48-15 (CANL) - L31-16 (BAT) Engine switch off 6 kΩ or higher

    NG: REPAIR OR REPLACE CAN MAIN WIRE OR CONNECTOR (NO. 10 JUNCTION CONNECTOR - NO. 9 JUNCTION CONNECTOR)

    OK: GO TO NEXT STEP

  73. CHECK FOR SHORT IN CAN BUS WIRES (NO. 9 JUNCTION CONNECTOR SIDE)
    1. Measure the resistance according to the value(s) in the table below.
      Fig 49: Identifying A50 And L31 Connector Terminals
      G04953480Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard resistance

      TESTER CONNECTION SPECIFIED CONDITION CHART

      Tester Connection Switch Condition Specified Condition
      A50-3 (CANP) - A50-4 (CANN) Engine switch off 108 to 132 Ω
      A50-3 (CANP) - L31-4 (CG) Engine switch off 200 Ω or higher
      A50-4 (CANN) - L31-4 (CG) Engine switch off 200 Ω or higher
      A50-3 (CANP) - L31-16 (BAT) Engine switch off 6 kΩ or higher
      A50-4 (CANN) - L31-16 (BAT) Engine switch off 6 kΩ or higher

    NG: Go to step   86

    OK: GO TO NEXT STEP

  74. CHECK FOR SHORT IN CAN BUS WIRES (NO. 9 JUNCTION CONNECTOR - FRONT MULTIPLEX NETWORK DOOR ECU RH)
    1. Measure the resistance according to the value(s) in the table below.
      Fig 50: Identifying R48 And L31 Connector Terminals
      G04953508Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Result

      RESULT REFERENCE CHART

      Tester Connection Switch Condition Measured Resistance Proceed to
      R48-1 (CANH) -R48-12 (CANL) Engine switch off 1 Ω or higher OK
      R48-1 (CANH) -R48-12 (CANL) Engine switch off Below 1 Ω NG
      R48-1 (CANH) - L31-4 (CG) Engine switch off 1 Ω or higher OK
      R48-12 (CANL) - L31-4 (CG) Engine switch off 1 Ω or higher OK
      R48-1 (CANH) - L31-4 (CG) Engine switch off Below 1 Ω NG
      R48-12 (CANL) - L31-4 (CG) Engine switch off Below 1 Ω NG
      R48-1 (CANH) - L31-16 (BAT) Engine switch off 1 Ω or higher OK
      R48-12 (CANL) - L31-16 (BAT) Engine switch off 1 Ω or higher OK
      R48-1 (CANH) - L31-16 (BAT) Engine switch off Below 1 Ω NG
      R48-12 (CANL) - L31-16 (BAT) Engine switch off Below 1 Ω NG

    NG: Go to step   78

    OK: GO TO NEXT STEP

  75. CHECK FOR SHORT IN CAN BUS WIRES (NO. 9 JUNCTION CONNECTOR - BUS BUFFER ECU)
    NOTE: For vehicles without LEXUS link system, go to  76 "CHECK FOR SHORT IN CAN BUS WIRES (NO. 9 JUNCTION CONNECTOR - REAR MULTIPLEX NETWORK DOOR ECU RH).
    1. Measure the resistance according to the value(s) in the table below.
      Fig 51: Identifying R48 And L31 Connector Terminals
      G04953509Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Result

      RESULT REFERENCE CHART

      Tester Connection Switch Condition Measured Resistance Proceed to
      R48-6 (CANH) -R48-17 (CANL) Engine switch off 1 Ω or higher OK
      R48-6 (CANH) -R48-17 (CANL) Engine switch off Below 1 Ω NG
      R48-6 (CANH) - L31-4 (CG) Engine switch off 1 Ω or higher OK
      R48-17 (CANL) - L31-4 (CG) Engine switch off 1 Ω or higher OK
      R48-6 (CANH) - L31-4 (CG) Engine switch off Below 1 Ω NG
      R48-17 (CANL) - L31-4 (CG) Engine switch off Below 1 Ω NG
      R48-6 (CANH) - L31-16 (BAT) Engine switch off 1 Ω or higher OK
      R48-17 (CANL) - L31-16 (BAT) Engine switch off 1 Ω or higher OK
      R48-6 (CANH) - L31-16 (BAT) Engine switch off Below 1 Ω NG
      R48-17 (CANL) - L31-16 (BAT) Engine switch off Below 1 Ω NG

    NG: Go to step   80

    OK: GO TO NEXT STEP

  76. CHECK FOR SHORT IN CAN BUS WIRES (NO. 9 JUNCTION CONNECTOR - REAR MULTIPLEX NETWORK DOOR ECU RH)
    1. Measure the resistance according to the value(s) in the table below.
      Fig 52: Identifying R48 And L31 Connector Terminals
      G04953510Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Result

      RESULT REFERENCE CHART

      Tester Connection Switch Condition Measured Resistance Proceed to
      R48-2 (CANH) -R48-13 (CANL) Engine switch off 1 Ω or higher OK
      R48-2 (CANH) -R48-13 (CANL) Engine switch off Below 1 Ω NG
      R48-2 (CANH) - L31-4 (CG) Engine switch off 1 Ω or higher OK
      R48-13 (CANL) - L31-4 (CG) Engine switch off 1 Ω or higher OK
      R48-2 (CANH) - L31-4 (CG) Engine switch off Below 1 Ω NG
      R48-13 (CANL) - L31-4 (CG) Engine switch off Below 1 Ω NG
      R48-2 (CANH) - L31-16 (BAT) Engine switch off 1 Ω or higher OK
      R48-13 (CANL) - L31-16 (BAT) Engine switch off 1 Ω or higher OK
      R48-2 (CANH) - L31-16 (BAT) Engine switch off Below 1 Ω NG
      R48-13 (CANL) - L31-16 (BAT) Engine switch off Below 1 Ω NG

    NG: Go to step   82

    OK: GO TO NEXT STEP

  77. CHECK FOR SHORT IN CAN BUS WIRES (NO. 9 JUNCTION CONNECTOR - TIRE PRESSURE WARNING ECU)
    1. Measure the resistance according to the value(s) in the table below.
      Fig 53: Identifying R48 And L31 Connector Terminals
      G04953511Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Result

      RESULT REFERENCE CHART

      Tester Connection Switch Condition Measured Resistance Proceed to
      R48-5 (CANH) -R48-16 (CANL) Engine switch off 1 Ω or higher OK
      R48-5 (CANH) -R48-16 (CANL) Engine switch off Below 1 Ω NG
      R48-5 (CANH) - L31-4 (CG) Engine switch off 1 Ω or higher OK
      R48-16 (CANL) - L31-4 (CG) Engine switch off 1 Ω or higher OK
      R48-5 (CANH) - L31-4 (CG) Engine switch off Below 1 Ω NG
      R48-16 (CANL) - L31-4 (CG) Engine switch off Below 1 Ω NG
      R48-5 (CANH) - L31-16 (BAT) Engine switch off 1 Ω or higher OK
      R48-16 (CANL) - L31-16 (BAT) Engine switch off 1 Ω or higher OK
      R48-5 (CANH) - L31-16 (BAT) Engine switch off Below 1 Ω NG
      R48-16 (CANL) - L31-16 (BAT) Engine switch off Below 1 Ω NG

    NG: Go to step   84

    OK: REPAIR OR REPLACE NO. 9 JUNCTION CONNECTOR

  78. CONNECT CONNECTOR
    1. Reconnect the R48 No. 9 junction connector connector.
  79. CHECK FOR SHORT IN CAN BUS WIRES (FRONT MULTIPLEX NETWORK DOOR ECU RH)
    1. Disconnect the N1 front multiplex network door ECU RH connector.
      Fig 54: Identifying N1 And L31 Connector Terminals
      G04953512Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the resistance according to the value(s) in the table below.

      Result

      RESULT REFERENCE CHART

      Tester Connection Switch Condition Measured Resistance Proceed to
      N1-9 (CANP) -N1-10 (CANN) Engine switch off 1 Ω or higher OK
      N1-9 (CANP) - N1-10 (CANN) Engine switch off Below 1 Ω NG
      N1-9 (CANP) - L31-4 (CG) Engine switch off 1 Ω or higher OK
      N1-10 (CANN) - L31-4 (CG) Engine switch off 1 Ω or higher OK
      N1-9 (CANP) - L31-4 (CG) Engine switch off Below 1 Ω NG
      N1-10 (CANN) - L31-4 (CG) Engine switch off Below 1 Ω NG
      N1-9 (CANP) - L31-16 (BAT) Engine switch off 1 Ω or higher OK
      N1-10 (CANN) - L31-16 (BAT) Engine switch off 1 Ω or higher OK
      N1-9 (CANP) - L31-16 (BAT) Engine switch off Below 1 Ω NG
      N1-10 (CANN) - L31-16 (BAT) Engine switch off Below 1 Ω NG

    NG: REPAIR OR REPLACE CAN BRANCH WIRE CONNECTED TO FRONT MULTIPLEX NETWORK DOOR ECU RH (CANP, CANN)

    OK: REPLACE FRONT MULTIPLEX NETWORK DOOR ECU RH  (See REMOVAL )

  80. CONNECT CONNECTOR
    1. Reconnect the R48 No. 9 junction connector connector.
  81. CHECK FOR SHORT IN CAN BUS WIRES (BUS BUFFER ECU)
    1. Disconnect the L93 bus buffer ECU connector.
      Fig 55: Identifying L93 And L31 Connector Terminals
      G04953513Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the resistance according to the value(s) in the table below.

      Result

      RESULT REFERENCE CHART

      Tester Connection Switch Condition Measured Resistance Proceed to
      L93-1 (CAN+) - L93-2 (CAN-) Engine switch off 1 Ω or higher OK
      L93-1 (CAN+) - L93-2 (CAN-) Engine switch off Below 1 Ω NG
      L93-1 (CAN+) - L31-4 (CG) Engine switch off 1 Ω or higher OK
      L93-2 (CAN-) - L31-4 (CG) Engine switch off 1 Ω or higher OK
      L93-1 (CAN+) - L31-4 (CG) Engine switch off Below 1 Ω NG
      L93-2 (CAN-) - L31-4 (CG) Engine switch off Below 1 Ω NG
      L93-1 (CAN+) - L31-16 (BAT) Engine switch off 1 Ω or higher OK
      L93-2 (CAN-) - L31-16 (BAT) Engine switch off 1 Ω or higher OK
      L93-1 (CAN+) - L31-16 (BAT) Engine switch off Below 1 Ω NG
      L93-2 (CAN-) - L31-16 (BAT) Engine switch off Below 1 Ω NG

    NG: REPAIR OR REPLACE CAN BRANCH WIRE CONNECTED TO BUS BUFFER ECU (CAN+, CAN-)

    OK: REPLACE BUS BUFFER ECU  (See REMOVAL )

  82. CONNECT CONNECTOR
    1. Reconnect the R48 No. 9 junction connector connector.
  83. CHECK SHORT IN CAN BUS WIRES (REAR MULTIPLEX NETWORK DOOR ECU RH)
    1. Disconnect the O3 rear multiplex network door ECU RH connector.
      Fig 56: Identifying O3 And L31 Connector Terminals
      G04953514Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the resistance according to the value(s) in the table below.

      Result

      RESULT REFERENCE CHART

      Tester Connection Switch Condition Measured Resistance Proceed to
      O3-9 (CANP) -03-10 (CANN) Engine switch off 1 Ω or higher OK
      03-9 (CANP) -03-10 (CANN) Engine switch off Below 1 Ω NG
      03-9 (CANP) - L31-4 (CG) Engine switch off 1 Ω or higher OK
      03-10 (CANN) - L31-4 (CG) Engine switch off 1 Ω or higher OK
      03-9 (CANP) - L31-4 (CG) Engine switch off Below 1 Ω NG
      03-10 (CANN) - L31-4 (CG) Engine switch off Below 1 Ω NG
      03-9 (CANP) - L31-16 (BAT) Engine switch off 1 Ω or higher OK
      03-10 (CANN) - L31-16 (BAT) Engine switch off 1 Ω or higher OK
      03-9 (CANP) - L31-16 (BAT) Engine switch off Below 1 Ω NG
      03-10 (CANN) - L31-16 (BAT) Engine switch off Below 1 Ω NG

    NG: REPAIR OR REPLACE CAN BRANCH WIRE CONNECTED TO REAR MULTIPLEX NETWORK DOOR ECU RH

    OK: REPLACE REAR MULTIPLEX NETWORK DOOR ECU RH  (See REMOVAL )

  84. CONNECT CONNECTOR
    1. Reconnect the R48 No. 9 junction connector connector.
  85. CHECK FOR SHORT IN CAN BUS WIRES (TIRE PRESSURE WARNING ECU)
    1. Disconnect the L89 tire pressure warning ECU connector.
      Fig 57: Identifying L89 And L31 Connector Terminals
      G04953515Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the resistance according to the value(s) in the table below.

      Result

      RESULT REFERENCE CHART

      Tester Connection Switch Condition Measured Resistance Proceed to
      L89-6 (CANP) - L89-12 (CANN) Engine switch off 1 Ω or higher OK
      L89-6 (CANP) - L89-12 (CANN) Engine switch off Below 1 Ω NG
      L89-6 (CANP) - L31-4 (CG) Engine switch off 1 Ω or higher OK
      L89-12 (CANN) - L31-4 (CG) Engine switch off 1 Ω or higher OK
      L89-6 (CANP) - L31-4 (CG) Engine switch off Below 1 Ω NG
      L89-12 (CANN) - L31-4 (CG) Engine switch off Below 1 Ω NG
      L89-6 (CANP) - L31-16 (BAT) Engine switch off 1 Ω or higher OK
      L89-12 (CANN) - L31-16 (BAT) Engine switch off 1 Ω or higher OK
      L89-6 (CANP) - L31-16 (BAT) Engine switch off Below 1 Ω NG
      L89-12 (CANN) - L31-16 (BAT) Engine switch off Below 1 Ω NG

    NG: REPAIR OR REPLACE CAN BRANCH WIRE CONNECTED TO TIRE PRESSURE WARNING ECU (CANP, CANN)

    OK: REPLACE TIRE PRESSURE WARNING ECU  (See REMOVAL )

  86. CONNECT CONNECTOR
    1. Reconnect the R48 No. 9 junction connector connector.
  87. CHECK FOR SHORT IN CAN BUS WIRES (NO. 9 JUNCTION CONNECTOR - NO. 8 JUNCTION CONNECTOR)
    1. Disconnect the R57 No. 8 junction connector connector.
      Fig 58: Identifying R57 And L31 Connector Terminals
      G04953516Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      TESTER CONNECTION SPECIFIED CONDITION CHART

      Tester Connection Switch Condition Specified Condition
      R57-5 (CANH) - R57-7 (CANL) Engine switch off 108 to 132 Ω
      R57-5 (CANH) - L31-4 (CG) Engine switch off 200 Ω or higher
      R57-7 (CANL) - L31-4 (CG) Engine switch off 200 Ω or higher
      R57-5 (CANH) - L31-16 (BAT) Engine switch off 6 kΩ or higher
      R57-7 (CANL) - L31-16 (BAT) Engine switch off 6 kΩ or higher

    NG: REPAIR OR REPLACE CAN MAIN WIRE OR CONNECTOR (NO. 9 JUNCTION CONNECTOR - NO. 8 JUNCTION CONNECTOR)

    OK: GO TO NEXT STEP

  88. CHECK FOR SHORT IN CAN BUS WIRES (NO. 8 JUNCTION CONNECTOR - FRONT POWER SEAT ECU SWITCH RH)
    NOTE: For vehicles without rear power seat control system, go to  89 "CHECK FOR SHORT IN CAN BUS WIRES (NO. 8 JUNCTION CONNECTOR - FRONT CONTROLLER)".
    1. Measure the resistance according to the value(s) in the table below.
      Fig 59: Identifying R57 And L31 Connector Terminals
      G04953517Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Result

      RESULT REFERENCE CHART

      Tester Connection Switch Condition Measured Resistance Proceed to
      R57-6 (CANH) -R57-8 (CANL) Engine switch off 1 Ω or higher OK
      R57-6 (CANH) -R57-8 (CANL) Engine switch off Below 1 Ω NG
      R57-6 (CANH) - L31-4 (CG) Engine switch off 1 Ω or higher OK
      R57-8 (CANL) - L31-4 (CG) Engine switch off 1 Ω or higher OK
      R57-6 (CANH) - L31-4 (CG) Engine switch off Below 1 Ω NG
      R57-8 (CANL) - L31-4 (CG) Engine switch off Below 1 Ω NG
      R57-6 (CANH) - L31-16 (BAT) Engine switch off 1 Ω or higher OK
      R57-8 (CANL) - L31-16 (BAT) Engine switch off 1 Ω or higher OK
      R57-6 (CANH) - L31-16 (BAT) Engine switch off Below 1 Ω NG
      R57-8 (CANL) - L31-16 (BAT) Engine switch off Below 1 Ω NG

    NG: Go to step   90

    OK: GO TO NEXT STEP

  89. CHECK FOR SHORT IN CAN BUS WIRES (NO. 8 JUNCTION CONNECTOR - FRONT CONTROLLER)
    1. Measure the resistance according to the value(s) in the table below.
      Fig 60: Identifying R57 And L31 Connector Terminals
      G04953518Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Result

      RESULT REFERENCE CHART

      Tester Connection Switch Condition Measured Resistance Proceed to
      R57-1 (CANH) -R57-3 (CANL) Engine switch off 1 Ω or higher OK
      R57-1 (CANH) -R57-3 (CANL) Engine switch off Below 1 Ω NG
      R57-1 (CANH) - L31-4 (CG) Engine switch off 1 Ω or higher OK
      R57-3 (CANL) - L31-4 (CG) Engine switch off 1 Ω or higher OK
      R57-1 (CANH) - L31-4 (CG) Engine switch off Below 1 Ω NG
      R57-3 (CANL) - L31-4 (CG) Engine switch off Below 1 Ω NG
      R57-1 (CANH) - L31-16 (BAT) Engine switch off 1 Ω or higher OK
      R57-3 (CANL) - L31-16 (BAT) Engine switch off 1 Ω or higher OK
      R57-1 (CANH) - L31-16 (BAT) Engine switch off Below 1 Ω NG
      R57-3 (CANL) - L31-16 (BAT) Engine switch off Below 1 Ω NG

    NG: Go to step   92

    OK: REPAIR OR REPLACE NO. 8 JUNCTION CONNECTOR

  90. CONNECT CONNECTOR
    1. Reconnect the R57 No. 8 junction connector connector.
  91. CHECK FOR SHORT IN CAN BUS WIRES (FRONT POWER SEAT ECU AND SWITCH RH)
    1. Disconnect the e20 front power seat ECU and switch RH connector.
      Fig 61: Identifying e20 And L31 Connector Terminals
      G04953519Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the resistance according to the value(s) in the table below.

      Result

      RESULT REFERENCE CHART

      Tester Connection Switch Condition Measured Resistance Proceed to
      e20-25 (CANP) -e20-24 (CANN) Engine switch off 1 Ω or higher OK
      e20-25 (CANP) -e20-24 (CANN) Engine switch off Below 1 Ω NG
      e20-25 (CANP) - L31-4 (CG) Engine switch off 1 Ω or higher OK
      e20-24 (CANN) - L31-4 (CG) Engine switch off 1 Ω or higher OK
      e20-25 (CANP) - L31-4 (CG) Engine switch off Below 1 Ω NG
      e20-24 (CANN) - L31-4 (CG) Engine switch off Below 1 Ω NG
      e20-25 (CANP) - L31-16 (BAT) Engine switch off 1 Ω or higher OK
      e20-24 (CANN) - L31-16 (BAT) Engine switch off 1 Ω or higher OK
      e20-25 (CANP) - L31-16 (BAT) Engine switch off Below 1 Ω NG
      e20-24 (CANN) - L31-16 (BAT) Engine switch off Below 1 Ω NG

    NG: REPAIR OR REPLACE CAN BRANCH WIRE CONNECTED TO FRONT POWER SEAT ECU AND SWITCH RH (CANP, CANN)

    OK: REPLACE FRONT POWER SEAT ECU AND SWITCH RH  (See DISASSEMBLY )

  92. CONNECT CONNECTOR
    1. Reconnect the R57 No. 8 junction connector connector.
  93. CHECK FOR SHORT IN CAN BUS WIRES (FRONT CONTROLLER)
    1. Disconnect the A50 front controller connector.
      Fig 62: Identifying A50 And L31 Connector Terminals
      G04953520Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the resistance according to the value(s) in the table below.

      Result

      RESULT REFERENCE CHART

      Tester Connection Switch Condition Measured Resistance Proceed to
      A50-3 (CANP) - A50-4 (CANN) Engine switch off 1 Ω or higher OK
      A50-3 (CANP) - A50-4 (CANN) Engine switch off Below 1 Ω NG
      A50-3 (CANP) - L31-4 (CG) Engine switch off 1 Ω or higher OK
      A50-4 (CANN) - L31-4 (CG) Engine switch off 1 Ω or higher OK
      A50-3 (CANP) - L31-4 (CG) Engine switch off Below 1 Ω NG
      A50-4 (CANN) - L31-4 (CG) Engine switch off Below 1 Ω NG
      A50-3 (CANP) - L31-16 (BAT) Engine switch off 1 Ω or higher OK
      A50-4 (CANN) - L31-16 (BAT) Engine switch off 1 Ω or higher OK
      A50-3 (CANP) - L31-16 (BAT) Engine switch off Below 1 Ω NG
      A50-4 (CANN) - L31-16 (BAT) Engine switch off Below 1 Ω NG

    NG: REPAIR OR REPLACE CAN MAIN WIRE CONNECTED TO FRONT CONTROLLER (NO. 8 JUNCTION CONNECTOR - FRONT CONTROLLER)

    OK: REPLACE FRONT CONTROLLER

  94. CHECK HARNESS AND CONNECTOR (MAIN BODY ECU - BATTERY AND BODY GROUND)

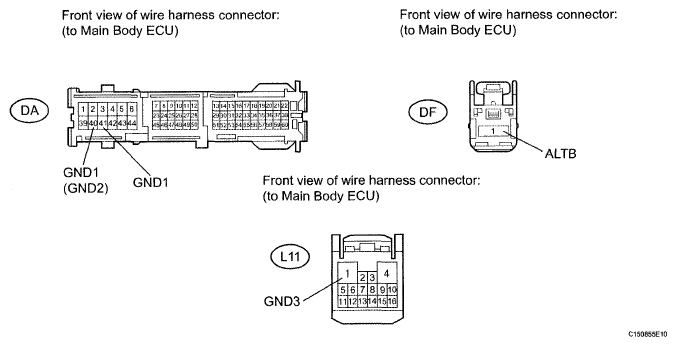

    Fig 63: Identifying Main Body ECU Connector Terminals
    G04953521Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Connect the cable to the negative (-) battery terminal.
      NOTE: When disconnecting the cable, some systems need to be initialized after the cable is reconnected (see INITIALIZATION ).
    2. Disconnect the DA and DF main body ECU connectors.
    3. Disconnect the L11 main body ECU connector.
    4. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      TESTER CONNECTION SPECIFIED CONDITION CHART

      Tester Connection Condition Specified Condition
      DA-40 (GND1) - Body ground Always Below 1 Ω
      DA-40 (GND2) - Body ground Always Below 1 Ω
      L11-1 (GND3) - DA-41 (GND1) Always Below 1 Ω
    5. Measure the voltage according to the value(s) in the table below.

      Standard voltage

      TESTER CONNECTION SPECIFIED CONDITION CHART

      Tester Connection Condition Specified Condition
      DF-1 (ALTB) - Body ground Always 11 to 14 V

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: REPLACE MAIN BODY ECU

About FixVault
