Terminals Of Ecu

HINT:

Operating the engine switch, any switches or any doors triggers related ECU and sensor communication with the CAN, which causes resistance variation.

  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    1. Disconnect the cable from the negative (-) battery terminal before measuring the resistances of the main wire and the branch wire.
      CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
      NOTE:
      • Before measuring the resistance, leave the vehicle for at least 1 minute and do not operate the engine switch, any switches or doors. If doors need to be opened in order to check connectors, open the doors and leave them open.
      • After the engine switch is turned off, the HDD navigation system requires approximately 6 minutes to record various types of memory and settings. As a result, after turning the engine switch off, wait 6 minutes or more before disconnecting the cable from the negative (-) battery terminal.
      • When disconnecting the cable, some systems need to be initialized after the cable is reconnected (see INITIALIZATION ).
  2. JUNCTION CONNECTOR
    1. NO. 1 JUNCTION CONNECTOR

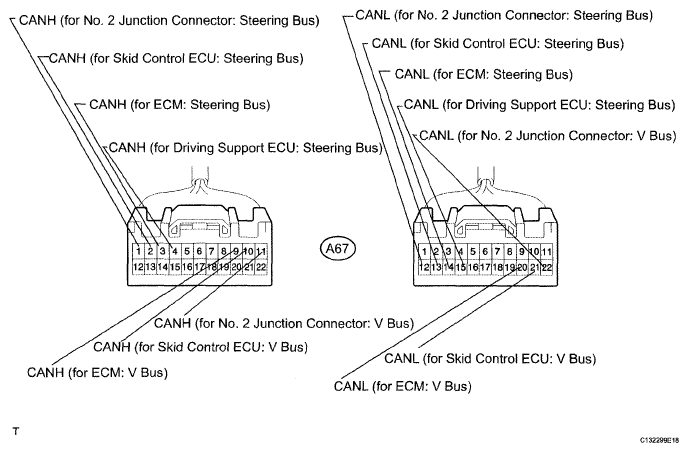

      Fig 1: Identifying Terminals Of No. 1 Junction Connector
      G04953329Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      JUNCTION CONNECTOR TERMINALS REFERENCE

      No. 1 Junction Connector Wiring Color Connect to
      A67-9 (CANH) R ECM (V bus)
      A67-20 (CANL) G ECM (V bus)
      A67-3 (CANH) B ECM (Steering bus)
      A67-14 (CANL) W ECM (Steering bus)
      A67-10 (CANH) R Skid control ECU (V bus)
      A67-21 (CANL) G Skid control ECU (V bus)
      A67-2 (CANH) B Skid control ECU (Steering bus)
      A67-13 (CANL) W Skid control ECU (Steering bus)
      A67-4 (CANH) B Driving support ECU (Steering bus)
      A67-15 (CANL) W Driving support ECU (Steering bus)
      A67-11 (CANH) R No. 2 junction connector (V bus)
      A67-22 (CANL) G No. 2 junction connector (V bus)
      A67-1 (CANH) B No. 2 junction connector (Steering bus)
      A67-12 (CANL) W No. 2 junction connector (Steering bus)
    2. NO. 2 JUNCTION CONNECTOR

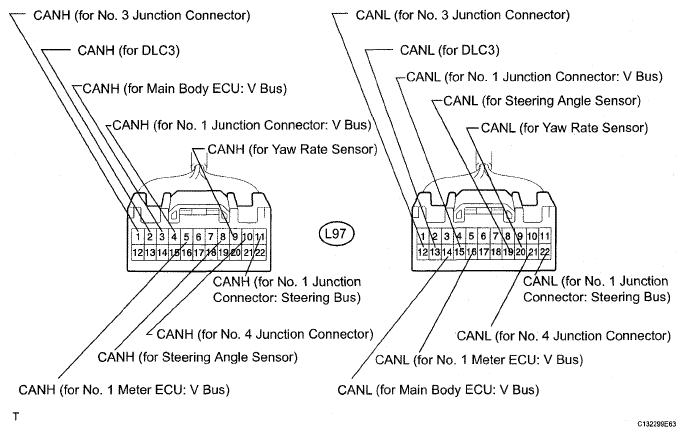

      Fig 2: Identifying Terminals Of No. 2 Junction Connector
      G04953330Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      JUNCTION CONNECTOR TERMINALS REFERENCE

      No. 2 Junction Connector Wiring Color Connect to
      L97-4 (CANH) R No. 1 junction connector (V bus)
      L97-15 (CANL) G No. 1 junction connector (V bus)
      L97-11 (CANH) B No. 1 junction connector (Steering bus)
      L97-22 (CANL) W No. 1 junction connector (Steering bus)
      L97-2 (CANH) R DLC3
      L97-13 (CANL) G DLC3
      L97-3 (CANH) R Main body ECU (V bus)
      L97-14 (CANL) G Main body ECU (V bus)
      L97-5 (CANH) R No. 1 meter ECU (V bus)
      L97-16 (CANL) G No. 1 meter ECU (V bus)
      L97-9 (CANH) B Yaw rate sensor
      L97-20 (CANL) W Yaw rate sensor
      L97-8 (CANH) R Steering angle sensor
      L97-19 (CANL) W Steering angle sensor
      L97-1 (CANH) R No. 3 junction connector
      L97-12 (CANL) G No. 3 junction connector
      L97-10 (CANH) B No. 4 junction connector
      L97-21 (CANL) W No. 4 junction connector
    3. NO. 3 JUNCTION CONNECTOR

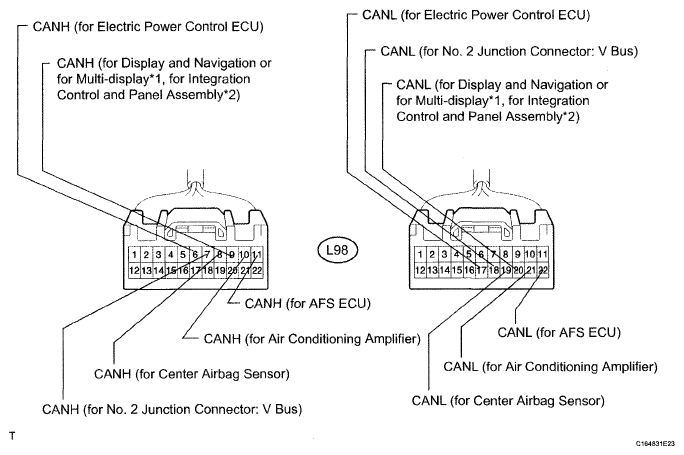

      Fig 3: Identifying Terminals Of No. 3 Junction Connector
      G04953331Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      JUNCTION CONNECTOR TERMINALS REFERENCE

      No. 3 Junction Connector Wiring Color Connect to
      L98-7 (CANH) R No. 2 junction connector (V bus)
      L98-18 (CANL) G No. 2 junction connector (V bus)
      L98-10 (CANH) R Air conditioning amplifier
      L98-21 (CANL) G Air conditioning amplifier
      L98-11 (CANH) R AFS ECU
      L98-22 (CANL) G Ar-S ECU
      L98-6 (CANH) R Electric power control ECU
      L98-17 (CANL) G Electric power control ECU
      L98-9 (CANH)M R Display and navigation (Multi-display)
      L98-20 (CANL)*1 G Display and navigation (Multi-display)
      L98-9 (CANH)*2 R Integration control and panel assembly
      L98-20 (CANL)*2 G Integration control and panel assembly
      L98-8 (CANH) R Center airbag sensor
      L98-19 (CANL) G Center airbag sensor
      HINT:
      *1: w/ Multi-display
      *2: w/o Multi-display
    4. NO. 4 JUNCTION CONNECTOR

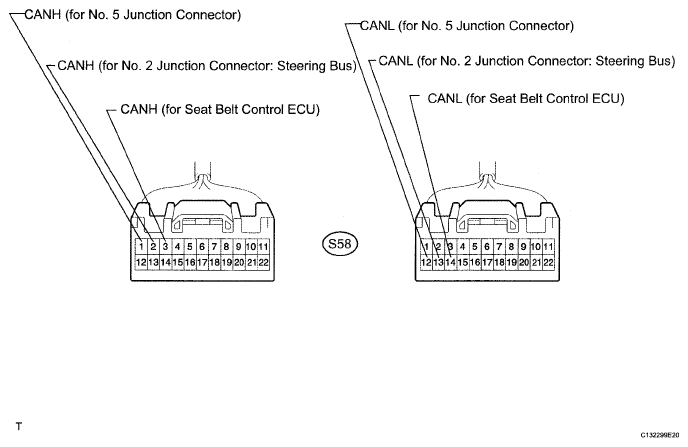

      Fig 4: Identifying Terminals Of No. 4 Junction Connector
      G04953332Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      JUNCTION CONNECTOR TERMINALS REFERENCE

      No. 4 Junction Connector Wiring Color Connect to
      S58-2 (CANH) B No. 2 junction connector (Steering bus)
      S58-13 (CANL) W No. 2 junction connector (Steering bus)
      S58-3 (CANH) B Seat belt control ECU
      S58-14 (CANL) W Seat belt control ECU
      S58-1 (CANH) B No. 5 junction connector
      S58-12 (CANL) W No. 5 junction connector
    5. NO. 5 JUNCTION CONNECTOR

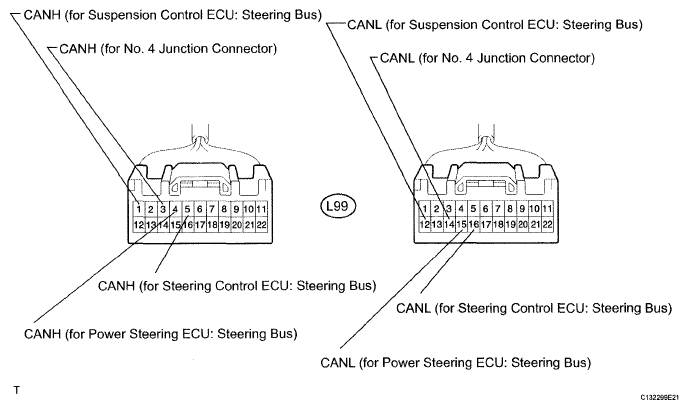

      Fig 5: Identifying Terminals Of No. 5 Junction Connector
      G04953333Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      JUNCTION CONNECTOR TERMINALS REFERENCE

      No. 5 Junction Connector Wiring Color Connect to
      L99-3 (CANH) B No. 4 junction connector
      L99-14 (CANL) W No. 4 junction connector
      L99-1 (CANH) B Suspension control ECU (Steering bus)
      L99-12 (CANL) W Suspension control ECU (Steering bus)
      L99-5 (CANH) B Steering control ECU (Steering bus)
      L99-16 (CANL) W Steering control ECU (Steering bus)
      L99-4 (CANH) B Power steering ECU (Steering bus)
      L99-15 (CANL) W Power steering ECU (Steering bus)
    6. NO. 6 JUNCTION CONNECTOR

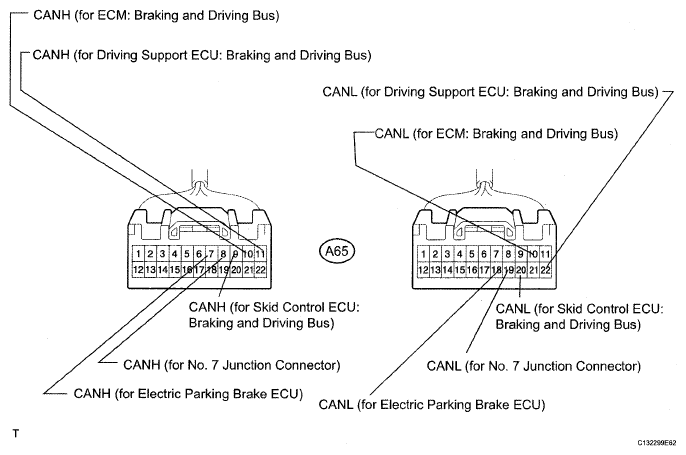

      Fig 6: Identifying Terminals Of No. 6 Junction Connector
      G04953334Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      JUNCTION CONNECTOR TERMINALS REFERENCE

      No. 6 Junction Connector Wiring Color Connect to
      A65-9 (CANH) B Skid control ECU (Braking and Driving bus)
      A65-20 (CANL) W Skid control ECU (Braking and Driving bus)
      A65-10 (CANH) B ECM (Braking and Driving bus)
      A65-21 (CANL) W ECM (Braking and Driving bus)
      A65-11 (CANH) B Driving support ECU (Braking and Driving bus)
      A65-22 (CANL) W Driving support ECU (Braking and Driving bus)
      A65-7 (CANH) B Electric parking brake ECU
      A65-18 (CANL) W Electric parking brake ECU
      A65-8 (CANH) B No. 7 junction connector
      A65-19 (CANL) W No. 7 junction connector
    7. NO. 7 JUNCTION CONNECTOR

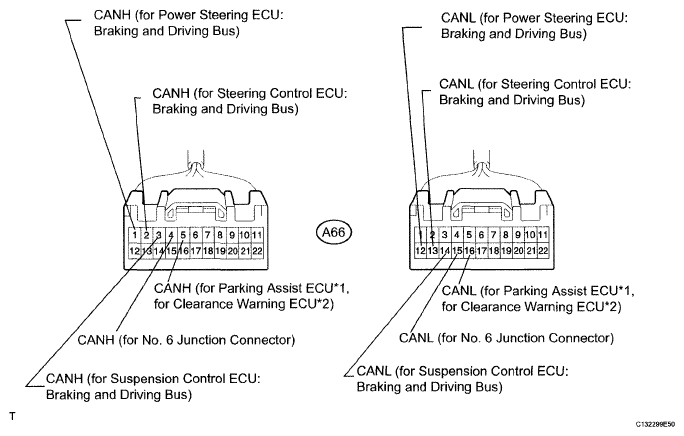

      Fig 7: Identifying Terminals Of No. 7 Junction Connector
      G04953335Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      JUNCTION CONNECTOR TERMINALS REFERENCE

      No. 7 Junction Connector Wiring Color Connect to
      A66-4 (CANH) B No. 6 Junction Connector
      A66-15 (CANL) W No, 6 Junction Connector
      A66-5 (CANH)*1 B Parking assist ECU
      A66-16 (CANL)*1 W Parking assist ECU
      A66-5 (CANH)*2 B Clearance warning ECU
      A66-16 (CANL)*2 W Clearance warning ECU
      A66-3 (CANH) B Suspension control ECU (Braking and Driving bus)
      A66-14 (CANL) W Suspension control ECU (Braking and Driving bus)
      A66-2 (CANH) B Steering control ECU (Braking and Driving bus)
      A66-13 (CANL) W Steering control ECU (Braking and Driving bus)
      A66-1 (CANH) B Power steering ECU (Braking and Driving bus)
      A66-12 (CANL) W Power steering ECU (Braking and Driving bus)
      HINT:
      *1: w/ Advanced parking guidance system and intuitive parking assist system
      *2: w/ Intuitive parking assist system
    8. NO. 8 JUNCTION CONNECTOR

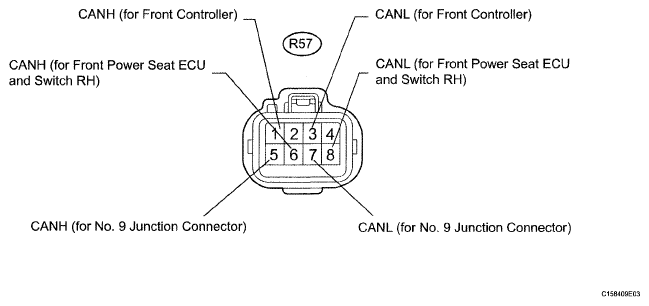

      Fig 8: Identifying Terminals Of No. 8 Junction Connector
      G04953336Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      JUNCTION CONNECTOR TERMINALS REFERENCE

      No. 8 Junction Connector Wiring Color Connect to
      R57-1 (CANH) B Front controller
      R57-3 (CANL) W Front controller
      R57-6 (CANH) R Front power seat ECU and switch RH
      R57-8 (CANL) W Front power seat ECU and switch RH
      R57-5 (CANH) B No. 9 junction connector
      R57-7 (CANL) W No. 9 junction connector
    9. NO. 9 JUNCTION CONNECTOR

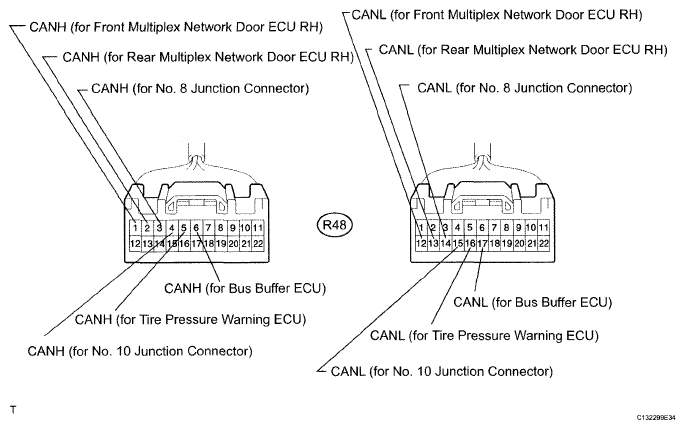

      Fig 9: Identifying Terminals Of No. 9 Junction Connector
      G04953337Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      JUNCTION CONNECTOR TERMINALS REFERENCE

      No. 9 Junction Connector Wiring Color Connect to
      R48-3 (CANH) B No. 8 Junction Connector
      R48-14 (CANL) W No. 8 Junction Connector
      R48-6 (CANH) B Bus buffer ECU
      R48-17 (CANL) W Bus buffer ECU
      R48-2 (CANH) R Rear multiplex network door ECU RH
      R48-13 (CANL) W Rear multiplex network door ECU RH
      R48-5 (CANH) B Tire pressure warning ECU
      R48-16 (CANL) W Tire pressure warning ECU
      R48-1 (CANH) R Front multiplex network door ECU RH
      R48-12 (CANL) W Front multiplex network door ECU RH
      R48-4 (CANH) B No. 10 junction connector
      R48-15 (CANL) W No. 10 junction connector
    10. NO. 10 JUNCTION CONNECTOR

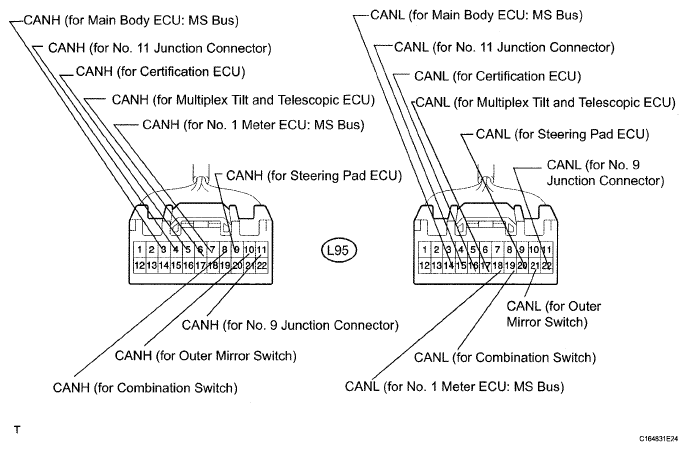

      Fig 10: Identifying Terminals Of No. 10 Junction Connector
      G04953338Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      JUNCTION CONNECTOR TERMINALS REFERENCE

      No. 10 Junction Connector Wiring Color Connect to
      L95-11 (CANH) B No. 9 Junction Connector
      L95-22 (CANL) W No. 9 Junction Connector
      L95-3 (CANH) B Main body ECU (MS bus)
      L95-14 (CANL) W Main body ECU (MS bus)
      L95-8 (CANH) R Combination switch
      L95-19 (CANL) W Combination switch
      L95-10 (CANH) B Outer mirror switch
      L95-21 (CANL) W Outer mirror switch
      L95-6 (CANH) B Multiplex tilt and telescopic ECU
      L95-17 (CANL) W Multiplex tilt and telescopic ECU
      L95-9 (CANH) R Steering pad ECU
      L95-20 (CANL) W Steering pad ECU
      L95-5 (CANH) B Certification ECU
      L95-16 (CANL) W Certification ECU
      L95-7 (CANH) B No. 1 meter ECU (MS bus)
      L95-18 (CANL) W No. 1 meter ECU (MS bus)
      L95-4 (CANH) B No. 11 junction connector
      L95-15 (CANL) W No. 11 junction connector
    11. NO. 11 JUNCTION CONNECTOR

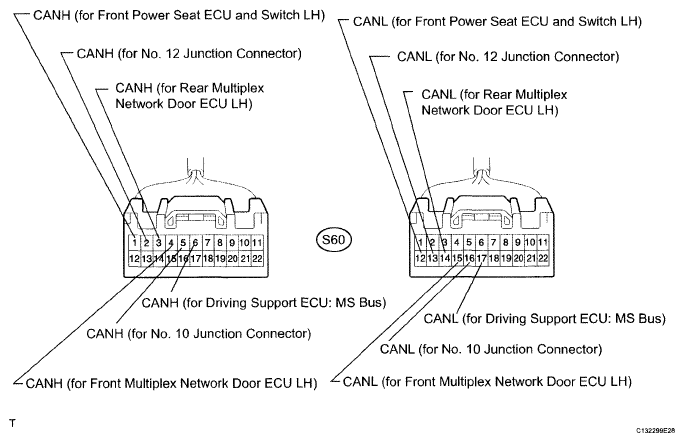

      Fig 11: Identifying Terminals Of No. 11 Junction Connector
      G04953339Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      JUNCTION CONNECTOR TERMINALS REFERENCE

      No. 11 Junction Connector Wiring Color Connect to
      S60-5 (CANH) B No. 10 Junction Connector
      S60-16 (CANL) W No. 10 Junction Connector
      S60-6 (CANH) B Driving support ECU (MS bus)
      S60-17 (CANL) W Driving support ECU (MS bus)
      S60-4 (CANH) R Front multiplex network door ECU LH
      S60-15 (CANL) W Front multiplex network door ECU LH
      S60-3 (CANH) R Rear multiplex network door ECU LH
      S60-14 (CANL) W Rear multiplex network door ECU LH
      S60-1 (CANH) R Front power seat ECU and switch LH
      S60-12 (CANL) W Front power seat ECU and switch LH
      S60-2 (CANH) B No. 12 junction connector
      S60-13 (CANL) W No. 12 junction connector
    12. NO. 12 JUNCTION CONNECTOR

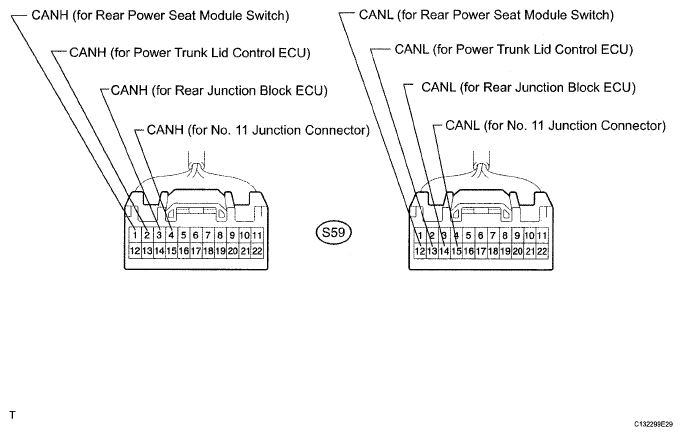

      Fig 12: Identifying Terminals Of No. 12 Junction Connector
      G04953340Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      JUNCTION CONNECTOR TERMINALS REFERENCE

      No. 12 Junction Connector Wiring Color Connect to
      S59-4 (CANH) B No. 11 junction connector
      S59-15 (CANL) W No. 11 junction connector
      S59-2 (CANH) B Power trunk lid control ECU
      S59-13 (CANL) W Power trunk lid control ECU
      S59-1 (CANH) B Rear power seat module switch
      S59-12 (CANL) W Rear power seat module switch
      S59-3 (CANH) B Rear junction block ECU
      S59-14 (CANL) W Rear junction block ECU
    13. NO. 13 JUNCTION CONNECTOR

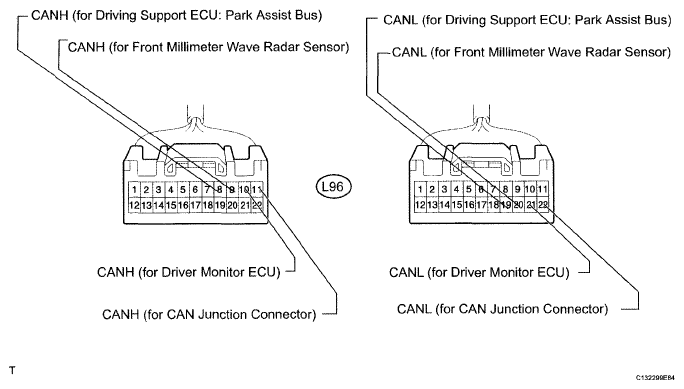

      Fig 13: Identifying Terminals Of No. 13 Junction Connector
      G04953341Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      JUNCTION CONNECTOR TERMINALS REFERENCE

      No. 13 Junction Connector Wiring Color Connect to
      L96-9 (CANH) B Front millimeter wave radar sensor
      L96-20 (CANL) W Front millimeter wave radar sensor
      L96-8 (CANH) B Driving support ECU (Park Assist bus)
      L96-19 (CANL) W Driving support ECU (Park Assist bus)
      L96-11 (CANH) B CAN junction connector
      L96-22 (CANL) W CAN junction connector
      L96-10 (CANH) B Driver monitor ECU
      L96-21 (CANL) W Driver monitor ECU
    14. CAN JUNCTION CONNECTOR
      Fig 14: Identifying Terminals Of Can Junction Connector
      G04953342Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      JUNCTION CONNECTOR TERMINALS REFERENCE

      Junction Connector A side Wiring Color (CANH Side) Wiring Color (CANL Side)
      No. 13 junction connector (R46) B W
      Object recognition ECU (R45) B W
  3. TERMINALS OF CONNECTORS FOR JUNCTION CONNECTOR (CAN JUNCTION CONNECTOR)
    Fig 15: Identifying Terminals Of Junction Connector
    G04953343Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    JUNCTION CONNECTOR TERMINALS REFERENCE

    Terminal No. Symbols
    1 CANH
    2 CANL
  4. CHECK DLC3
    1. Disconnect the cable from the negative (-) battery terminal before measuring the resistances of the main wire and the branch wire.
      NOTE: When disconnecting the cable, some systems need to be initialized after the cable is reconnected (see INITIALIZATION ).
    2. Measure the resistance according to the value(s) in the table below.
      Fig 16: Identifying Connector Terminals Of DLC3
      G04953344Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TERMINALS REFERENCE CHART

      Terminal No. (Symbols) Wiring Color Switch Condition Specified Condition
      L31-6 (CANH) - L31-14 (CANL) R - G Engine switch off 54 to 69 Ω
      L31-6 (CANH) - L31-4 (CG) R - W-B Engine switch off 200 Ω or higher
      L31-14 (CANL) - L31-4 (CG) G - W-B Engine switch off 200 Ω or higher
      L31-6 (CANH) - L31-16 (BAT) R - B Engine switch off 6 kΩ or higher
      L31-14 (CANL) - L31-16 (BAT) G - B Engine switch off 6 kΩ or higher
  5. CHECK SKID CONTROL ECU
    1. Disconnect the A19 and A21 ECU connectors.
    2. Measure the resistance according to the value(s) in the table below.

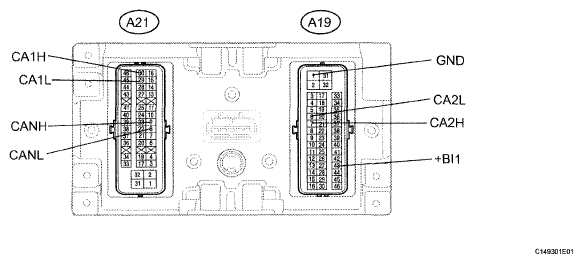

      Fig 17: Identifying Connector Terminals Of A19 And A21 ECU Connectors
      G04953345Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TERMINALS REFERENCE CHART

      Terminal No. (Symbols)
             		 Wiring Color Switch Condition Specified Condition
      A21-9 (CANH) - A21-8 (CANL)M R - G Engine switch off 54 to 69 Ω
      A21-9 (CANH) - A19-1 (GND)*1 R - W-B Engine switch off 200 Ω or higher
      A21-8 (CANL) - A19-1 (GND)*1 G - W-B Engine switch off 200 Ω or higher
      A21-9 (CANH) - A19-43 (+BI1)*1 R - B Engine switch off 6 kΩ or higher
      A21-8 (CANL) - A19-43 (+BI1)*1 G - B Engine switch off 6 kΩ or higher
      A21-30 (CA1H) - A21-29 (CA1L)*2 B - W Engine switch off 54 to 69 Ω
      A21-30 (CA1H) - A19-1 (GND)*2 B - W-B Engine switch off 200 Ω or higher
      A21-29 (CA1L) - A19-1 (GND)*2 W-W-B Engine switch off 200 Ω or higher
      A21-30 (CA1H) - A19-43 (+BI1)*2 B - B Engine switch off 6 kΩ or higher
      A21-29 (CA1L) - A19-43 (+BI1)*2 W - B Engine switch off 6 kΩ or higher
      A19-7 (CA2H) - A19-6 (CA2L)*3 B - W Engine switch off 54 to 69 Ω
      A19-7 (CA2H) - A19-1 (GND)*3 B - W - B Engine switch off 200 Ω or higher
      A19-6 (CA2L) - A19-1 (GND)*3 W-W - B Engine switch off 200 Ω or higher
      A19-7 (CA2H) - A19-43 (+BI1)*3 B - B Engine switch off 6 kΩ or higher
      A19-6 (CA2L) - A19-43 (+BI1)*3 W - B Engine switch off 6 kΩ or higher
  6. CHECK AIR CONDITIONING AMPLIFIER
    1. Disconnect the L76 and L77 amplifier connectors.

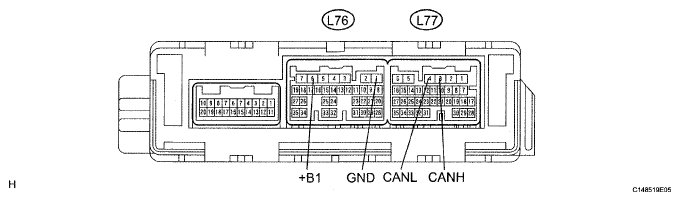

      Fig 18: Identifying Terminals Of L76 And L77 Amplifier Connectors
      G04953346Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the resistance according to the value(s) in the table below.
      TERMINALS REFERENCE CHART

      Terminal No. (Symbols) Wiring Color Switch Condition Specified Condition
      L77-3 (CANH) - L77-4 (CANL) R - G Engine switch off 54 to 69 Ω
      L77-3 (CANH) - L76-1 (GND) R - W - B Engine switch off 200 Ω or higher
      L77-4 (CANL) - L76-1 (GND) G - W - B Engine switch off 200 Ω or higher
      L77-3 (CANH) - L76-6 (+B1) R - L Engine switch off 6 kΩ or higher
      L77-4 (CANL) - L76-6 (+B1) G - L Engine switch off 6 kΩ or higher
  7. CHECK ECM
    1. Disconnect the A13, A14 and E3 ECM connectors.

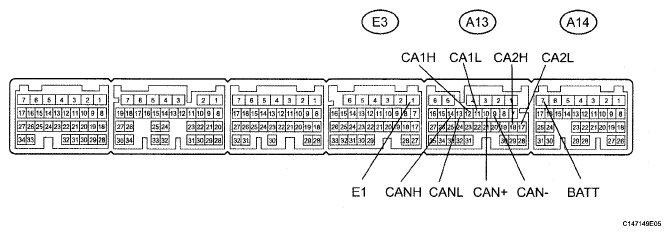

      Fig 19: Identifying Terminals Of A13, A14 And E3 ECM Connectors
      G04953347Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the resistance according to the value(s) in the table below.
      TERMINALS REFERENCE CHART

      Terminal No. (Symbols) Wiring Color Switch Condition Specified Condition
      A13-14 (CANH) - A13-13 (CANL)M R - G Engine switch off 108 to 132 Ω
      A13-14 (CANH) - E3-1 (E1)*1 R - W - B Engine switch off 200 Ω or higher
      A13-13 (CANL) - E3-1 (E1)*1 G - W - B Engine switch off 200 Ω or higher
      A13-14 (CANH) - A14-7 (BATT)*1 R - B Engine switch off 6 kΩ or higher
      A13-13 (CANL) - A14-7 (BATT)*1 G - B Engine switch off 6 kΩ or higher
      A13-12 (CA1H) - A13-11 (CA1L)*2 B - W Engine switch off 108 to 132 Ω
      A13-12 (CA1H) - E3-1 (E1)*2 B - W - B Engine switch off 200 Ω or higher
      A13-11 (CA1L) - E3-1 (E1)*2 W-W - B Engine switch off 200 Ω or higher
      A13-12 (CA1H) - A14-7 (BATT)*2 B - B Engine switch off 6 kΩ or higher
      A13-11 (CA1L) - A14-7 (BATT)*2 W - B Engine switch off 6 kΩ or higher
      A13-18 (CA2H) - A13-17 (CA2L)*3 B - W Engine switch off 54 to 69 Ω
      A13-18 (CA2H) - E3-1 (E1)*3 B - W - B Engine switch off 200 Ω or higher
      A13-17 (CA2L) - E3-1 (E1)*3 W-W - B Engine switch off 200 Ω or higher
      A13-18 (CA2H) - A14-7 (BATT)*3 B - B Engine switch off 6 kΩ or higher
      A13-17 (CA2L) - A14-7 (BATT)*3 W - B Engine switch off 6 kΩ or higher
      A13-10 (CAN+) - A13-9 (CAN-)*4 B - W Engine switch off 108 to 132 Ω
      A13-10 (CAN+) - E3-1 (E1)*4 B - W - B Engine switch off 200 Ω or higher
      A13-9 (CAN-) - E3-1 (E1)*4 W - W - B Engine switch off 200 Ω or higher
      A13-10 (CAN+) - A14-7 (BATT)*4 B - B Engine switch off 6 kΩ or higher
      A13-9 (CAN-) - A14-7 (BATT)*4 W - B Engine switch off 6 kΩ or higher
      HINT:
      *1: for V bus
      *2: for Steering bus
      *3: for Braking and Driving bus
      *4: for Powertrain bus
  8. CHECK MAIN BODY ECU
    1. Disconnect the L11 ECU connector.

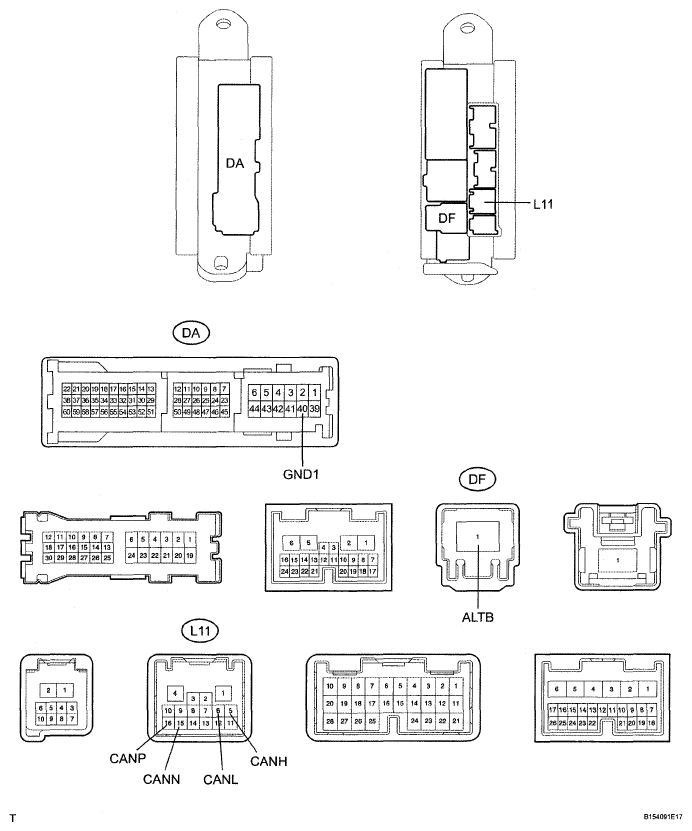

      Fig 20: Identifying Connector Terminals Of Main Body ECU
      G04953348Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the DA and DF ECU connectors.
    3. Measure the resistance according to the value(s) in the table below.
      TERMINALS REFERENCE CHART

      Terminal No. (Symbols) Wiring Color Switch Condition Specified Condition
      L11-5 (CANH) - L11-6 (CANL)*1 R - G Engine switch off 54 to 69 Ω
      L11-5 (CANH) - DA-40 (GND1)*1 R - W - B Engine switch off 200 Ω or higher
      L11-6 (CANL) - DA-40 (GND1)*1 G - W - B Engine switch off 200 Ω or higher
      L11-5 (CANH) - DF-1 (ALTB)*1 R - B Engine switch off 6 kΩ or higher
      L11-6 (CANL) - DF-1 (ALTB)*1 G - B Engine switch off 6 kΩ or higher
      L11-16 (CANP) - L11-15 (CANN)*2 B - W Engine switch off 54 to 69 Ω
      L11-16 (CANP) - DA-40 (GND1)*2 B - W - B Engine switch off 200 Ω or higher
      L11-15 (CANN) - DA-40 (GND1)*2 W-W - B Engine switch off 200 Ω or higher
      L11-16 (CANP) - DF-1 (ALTB)*2 B - B Engine switch off 6 kΩ or higher
      L11-15 (CANN) - DF-1 (ALTB)*2 W - B Engine switch off 6 kΩ or higher
      HINT:
      *1: for V bus
      *2: for MS bus
  9. CHECK NO. 1 METER ECU
    1. Disconnect the L10 ECU connector.
      Fig 21: Identifying Terminals Of L10 ECU Connector
      G04953349Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the resistance according to the value(s) in the table below.
      TERMINALS REFERENCE CHART

      Terminal No. (Symbols) Wiring Color Switch Condition Specified Condition
      L10-20 (CANH) - L10-21 (CANL)*1 R - G Engine switch off 54 to 69 Ω
      L10-20 (CANH) - L10-18 (ES)*1 R - BR Engine switch off 200 Ω or higher
      L10-21 (CANL) - L10-18 (ES)*1 G - BR Engine switch off 200 Ω or higher
      L10-20 (CANH) - L10-13 (B)*1 R - B Engine switch off 6 kΩ or higher
      L10-21 (CANL) - L10-13 (B)*1 G - B Engine switch off 6 kΩ or higher
      L10-22 (CANP) - L10-23 (CANN)*2 B - W Engine switch off 54 to 69 Ω
      L10-22 (CANP) - L10-18 (ES)*2 B - BR Engine switch off 200 Ω or higher
      L10-23 (CANN) - L10-18 (ES)*2 W - BR Engine switch off 200 Ω or higher
      L10-22 (CANP) - L10-13 (B)*2 B - B Engine switch off 6 kΩ or higher
      L10-23 (CANN) - L10-13 (B)*2 W - B Engine switch off 6 kΩ or higher
      HINT:
      *1: for V bus
      *2: for MS bus
  10. CHECK CENTER AIRBAG SENSOR
    1. Disconnect the L73 sensor connector.

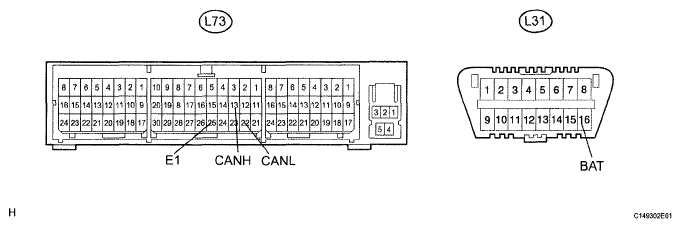

      Fig 22: Identifying Terminals Of L73 Sensor Connector
      G04953350Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the resistance according to the value(s) in the table below.
      TERMINALS REFERENCE CHART

      Terminal No. (Symbols) Wiring Color Switch Condition Specified Condition
      L73-13 (CANH) - L73-22 (CANL) R - G Engine switch off 108 to 132 Ω
      L73-13 (CANH) - L73-25 (E1) R - W - B Engine switch off 200 Ω or higher
      L73-22 (CANL) - L73-25 (E1) G - W - B Engine switch off 200 Ω or higher
      L73-13 (CANH) - L31-16 (BAT) R - B Engine switch off 6 kΩ or higher
      L73-22 (CANL) - L31-16 (BAT) G - B Engine switch off 6 kΩ or higher
  11. CHECK ELECTRIC POWER CONTROL ECU
    1. Disconnect the A69 ECU connector.

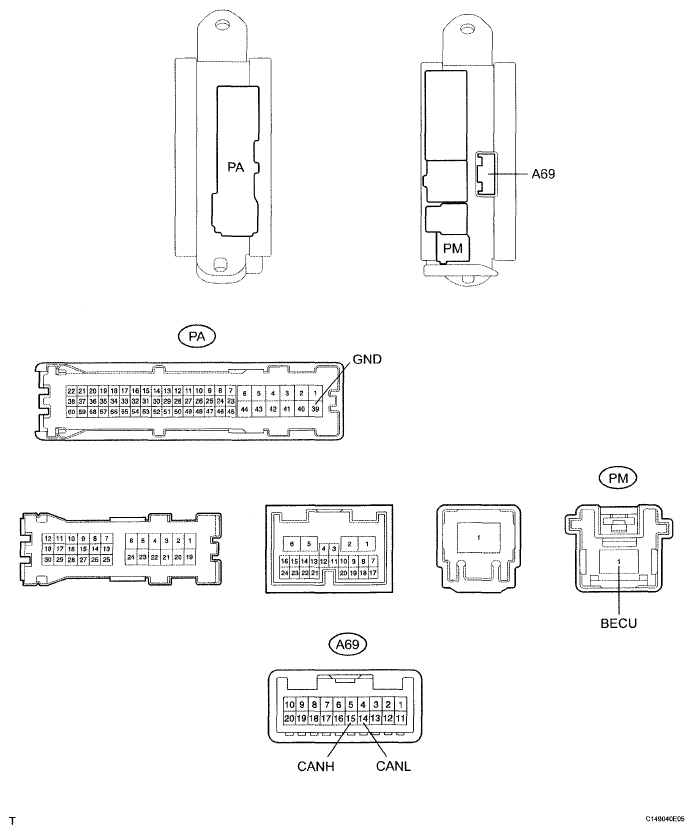

      Fig 23: Identifying Connector Terminals Of Electric Power Control ECU
      G04953351Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the PA and PM ECU connectors.
    3. Measure the resistance according to the value(s) in the table below.
      TERMINALS REFERENCE CHART

      Terminal No. (Symbols) Wiring Color Switch Condition Specified Condition
      A69-15 (CANH) - A69-14 (CANL) R - G Engine switch off 54 to 69 Ω
      A69-15 (CANH) - PA-39 (GND) R - W - B Engine switch off 200 Ω or higher
      A69-14 (CANL) - PA-39 (GND) G - W - B Engine switch off 200 Ω or higher
      A69-15 (CANH) - PM-1 (BECU) R - L Engine switch off 6 kΩ or higher
      A69-14 (CANL) - PM-1 (BECU) G - L Engine switch off 6 kΩ or higher
  12. CHECK AFS ECU
    1. Disconnect the A37 ECU connector.
      Fig 24: Identifying Connector Terminals Of A37 ECU
      G04953352Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the resistance according to the value(s) in the table below.
      TERMINALS REFERENCE CHART

      Terminal No. (Symbols) Wiring Color Switch Condition Specified Condition
      A37-12 (CANH) - A37-13 (CANL) R - G Engine switch off 54 to 69 Ω
      A37-12 (CANH) - A37-22 (E1) R - W - B Engine switch off 200 Ω or higher
      A37-13 (CANL) - A37-22 (E1) G - W - B Engine switch off 200 Ω or higher
      A37-12 (CANH) - L31-16 (BAT) R - B Engine switch off 6 kΩ or higher
      A37-13 (CANL) - L31-16 (BAT) G - B Engine switch off 6 kΩ or higher
  13. CHECK DISPLAY AND NAVIGATION (MULTI-DISPLAY)

    HINT:

    For vehicles with multi-display only.

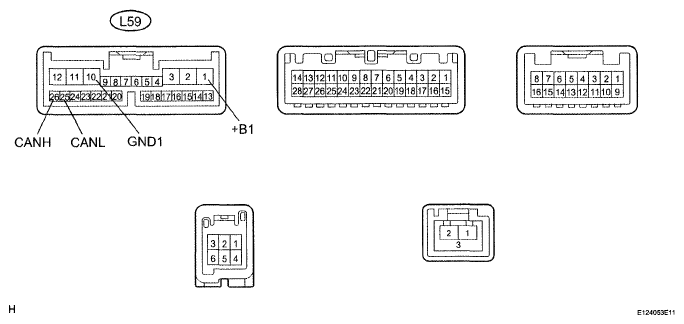

    Fig 25: Identifying Terminals Of L59 Display And Navigation Connector
    G04953353Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the L59 display and navigation (multi-display) connector.
    2. Measure the resistance according to the value(s) in the table below.
      TERMINALS REFERENCE CHART

      Terminal No. (Symbols) Wiring Color Switch Condition Specified Condition
      L59-26 (CANH) - L59-25 (CANL) R - G Engine switch off 54 to 69 Ω
      L59-26 (CANH) - L59-10 (GND1) R - W - B Engine switch off 200 Ω or higher
      L59-25 (CANL) - L59-10 (GND1) G - W - B Engine switch off 200 Ω or higher
      L59-26 (CANH) - L59-1 (+B1) R - R Engine switch off 6 kΩ or higher
      L59-25 (CANL) - L59-1 (+B1) G - R Engine switch off 6 kΩ or higher
  14. CHECK INTEGRATION CONTROL AND PANEL ASSEMBLY

    HINT:

    For vehicles without multi-display only.

    Fig 26: Identifying Terminals Of L35 Panel Assembly Connector
    G04953354Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the L35 panel assembly connector.
    2. Measure the resistance according to the value(s) in the table below.
      TERMINALS REFERENCE CHART

      Terminal No. (Symbols) Wiring Color Switch Condition Specified Condition
      L35-26 (CANH) - L35-25 (CANL) R - G Engine switch off 54 to 69 Ω
      L35-26 (CANH) - L35-10 (GND1) R - W - B Engine switch off 200 Ω or higher
      L35-25 (CANL) - L35-10 (GND1) G - W - B Engine switch off 200 Ω or higher
      L35-26 (CANH) - L35-1 (+B1) R - R Engine switch off 6 kΩ or higher
      L35-25 (CANL) - L35-1 (+B1) G - R Engine switch off 6 kΩ or higher
  15. CHECK STEERING ANGLE SENSOR
    1. Disconnect the L21 sensor connector.
      Fig 27: Identifying Connector Terminals Of Steering Angle Sensor
      G04953355Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the resistance according to the value(s) in the table below.
      TERMINALS REFERENCE CHART

      Terminal No. (Symbols) Wiring Color Switch Condition Specified Condition
      L21-10 (CA1H) - L21-9 (CA1L) R - W Engine switch off 54 to 69 Ω
      L21-10 (CA1H) - L21-2 (ESS) R - W - B Engine switch off 200 Ω or higher
      L21-9 (CA1L) - L21-2 (ESS) W-W - B Engine switch off 200 Ω or higher
      L21-10 (CA1H) - L21-3 (BAT) R - R Engine switch off 6 kΩ or higher
      L21-9 (CA1L) - L21-3 (BAT) W-R Engine switch off 6 kΩ or higher
  16. CHECK YAW RATE SENSOR
    1. Disconnect the L71 sensor connector.
      Fig 28: Identifying Connector Terminals Of Yaw Rate Sensor
      G04953356Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the resistance according to the value(s) in the table below.
      TERMINALS REFERENCE CHART

      Terminal No. (Symbols) Wiring Color Switch Condition Specified Condition
      L71-3 (CA1H) - L71-2 (CA1L) B - W Engine switch off 54 to 69 Ω
      L71-3 (CA1H) - L71-1 (GND) B - W - B Engine switch off 200 Ω or higher
      L71-2 (CA1L) - L71-1 (GND) W-W - B Engine switch off 200 Ω or higher
      L71-3 (CA1H) - L31-16 (BAT) B - B Engine switch off 6 kΩ or higher
      L71-2 (CA1L) - L31-16 (BAT) W - B Engine switch off 6 kΩ or higher
  17. CHECK POWER STEERING ECU
    1. Disconnect the A44 ECU connector.
      Fig 29: Identifying Connector Terminals Of Power Steering ECU
      G04953357Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the resistance according to the value(s) in the table below.
      TERMINALS REFERENCE CHART

      Terminal No. (Symbols) Wiring Color Switch Condition Specified Condition
      A44-2 (CA1H) - A44-3 (CA1L)*1 B - W Engine switch off 108 to 132 Ω
      A44-2 (CA1H) - A44-5 (PGND)*1 B - W - B Engine switch off 200 Ω or higher
      A44-3 (CA1L) - A44-5 (PGND)*1 W - W - B Engine switch off 200 Ω or higher
      A44-2 (CA1H) - A44-6 (+B)*1 B - R Engine switch off 6 kΩ or higher
      A44-3 (CA1L) - A44-6 (+B)*1 W - R Engine switch off 6 kΩ or higher
      A44-1 (CA2H) - A44-8 (CA2L)*2 B - W Engine switch off 108 to 132 Ω
      A44-1 (CA2H) - A44-5 (PGND)*2 B - W - B Engine switch off 200 Ω or higher
      A44-8 (CA2L) - A44-5 (PGND)*2 W - W - B Engine switch off 200 Ω or higher
      A44-1 (CA2H) - A44-6 (+B)*2 B - R Engine switch off 6 kΩ or higher
      A44-8 (CA2L) - A44-6 (+B)*2 W - R Engine switch off 6 kΩ or higher
      HINT:
      *1: for Steering bus
      *2: for Braking and Driving bus
  18. CHECK STEERING CONTROL ECU

    HINT:

    For vehicles with variable gear ratio steering system only.

    Fig 30: Identifying Connector Terminals Of Steering Control ECU
    G04953358Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the A41 and A42 ECU connectors.
    2. Measure the resistance according to the value(s) in the table below.
      TERMINALS REFERENCE CHART

      Terminal No. (Symbols) Wiring Color Switch Condition Specified Condition
      A41-9 (CA1H) - A41-20 (CA1L)*1 B - W Engine switch off 54 to 69 Ω
      A41-9 (CA1H) - A42-7 (PGND)*1 B - W - B Engine switch off 200 Ω or higher
      A41-20 (CA1L) - A42-7 (PGND)*1 W - W - B Engine switch off 200 Ω or higher
      A41-9 (CA1H) - A42-10 (+B1)*1 B - R Engine switch off 6 kΩ or higher
      A41-20 (CA1L) - A42-10 (+B1)*1 W - R Engine switch off 6 kΩ or higher
      A42-4 (CA2H) - A42-9 (CA2L)*2 B - W Engine switch off 54 to 69 Ω
      A42-4 (CA2H) - A42-7 (PGND)*2 B - W - B Engine switch off 200 Ω or higher
      A42-9 (CA2L) - A42-7 (PGND)*2 W - W - B Engine switch off 200 Ω or higher
      A42-4 (CA2H) - A42-10 (+B1)*2 B - R Engine switch off 6 kΩ or higher
      A42-9 (CA2L) - A42-10 (+B1)*2 W - R Engine switch off 6 kΩ or higher

      HINT:

      *1: for Steering bus

      *2: for Braking and Driving bus

  19. CHECK SUSPENSION CONTROL ECU

    HINT:

    For vehicles with air suspension system only.

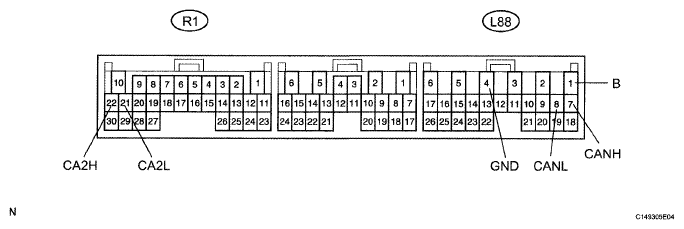

    Fig 31: Identifying Terminals Of L88 And R1 ECU Connectors
    G04953359Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the L88 and R1 ECU connectors.
    2. Measure the resistance according to the value(s) in the table below.
      TERMINALS REFERENCE CHART

      Terminal No. (Symbols) Wiring Color Switch Condition Specified Condition
      L88-7 (CANH) - L88-8 (CANL)*1 B - W Engine switch off 54 to 69 Ω
      L88-7 (CANH) - L88-4 (GND)*1 B - W - B Engine switch off 200 Ω or higher
      L88-8 (CANL) - L88-4 (GND)*1 W - W - B Engine switch off 200 Ω or higher
      L88-7 (CANH) - L88-1 (B)*1 B - W Engine switch off 6 kΩ or higher
      L88-8 (CANL) - L88-1 (B)*1 W - W Engine switch off 6 kΩ or higher
      R1-22 (CA2H) - R1-21 (CA2L)*2 B - W Engine switch off 54 to 69 Ω
      R1-22 (CA2H) - L88-4 (GND)*2 B - W - B Engine switch off 200 Ω or higher
      R1-21 (CA2L) - L88-4 (GND)*2 W - W - B Engine switch off 200 Ω or higher
      R1-22 (CA2H) - L88-1 (B)*2 B - W Engine switch off 6 kΩ or higher
      R1-21 (CA2L) - L88-1 (B)*2 W - W Engine switch off 6 kΩ or higher
      HINT:
      *1: for Steering bus
      *2: for Braking and Driving bus
  20. CHECK SEAT BELT CONTROL ECU

    HINT:

    For vehicles with pre-collision system only.

    Fig 32: Identifying Terminals Of S45 And S47 ECU Connectors
    G04953360Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the S45 and S47 ECU connectors.
    2. Measure the resistance according to the value(s) in the table below.
      TERMINALS REFERENCE CHART

      Terminal No. (Symbols) Wiring Color Switch Condition Specified Condition
      S47-1 (CANH) - S47-2 (CANL) B - W Engine switch off 54 to 69 Ω
      S47-1 (CANH) - S45-8 (PGND) B - W - B Engine switch off 200 Ω or higher
      S47-2 (CANL) - S45-8 (PGND) W - W - B Engine switch off 200 Ω or higher
      S47-1 (CANH) - S45-7 (+B) B - B Engine switch off 6 kΩ or higher
      S47-2 (CANL) - S45-7 (+B) W - B Engine switch off 6 kΩ or higher
  21. CHECK DRIVING SUPPORT ECU

    HINT:

    For vehicles with dynamic radar cruise control system or pre-collision system only.

    Fig 33: Identifying Connector Terminals Of Driving Support ECU
    G04953361Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the A33 ECU connector.
    2. Measure the resistance according to the value(s) in the table below.
      TERMINALS REFERENCE CHART

      Terminal No. (Symbols) Wiring Color Switch Condition Specified Condition
      A33-1 (CA1H) - A33-2 (CA1L)*1 B - W Engine switch off 54 to 69 Ω
      A33-1 (CA1H) - A33-25 (GND)*1 B - W - B Engine switch off 200 Ω or higher
      A33-2 (CA1L) - A33-25 (GND)*1 W - W - B Engine switch off 200 Ω or higher
      A33-1 (CA1H) - A33-13 (B)*1 B-Y Engine switch off 6 kΩ or higher
      A33-2 (CA1L) - A33-13 (B)*1 W-Y Engine switch off 6 kΩ or higher
      A33-16 (CA2H) - A33-17 (CA2L)*2 B - W Engine switch off 54 to 69 Ω
      A33-16 (CA2H) - A33-25 (GND)*2 B - W - B Engine switch off 200 Ω or higher
      A33-17 (CA2L) - A33-25 (GND)*2 W - W - B Engine switch off 200 Ω or higher
      A33-16 (CA2H) - A33-13 (B)*2 B - Y Engine switch off 6 kΩ or higher
      A33-17 (CA2L) - A33-13 (B)*2 W - Y Engine switch off 6 kΩ or higher
      A33-19 (CANP) - A33-18 (CANN)*3 B - W Engine switch off 54 to 69 Ω
      A33-19 (CANP) - A33-25 (GND)*3 B - W - B Engine switch off 200 Ω or higher
      A33-18 (CANN) - A33-25 (GND)*3 W - W - B Engine switch off 200 Ω or higher
      A33-19 (CANP) - A33-13 (B)*3 B - Y Engine switch off 6 kΩ or higher
      A33-18 (CANN) - A33-13 (B)*3 W - Y Engine switch off 6 kΩ or higher
      A33-40 (CA1P) - A33-39 (CA1N)*4 B - W Engine switch off 54 to 69 Ω
      A33-40 (CA1P) - A33-25 (GND)*4 B - W - B Engine switch off 200 Ω or higher
      A33-39 (CA1N) - A33-25 (GND)*4 W - W - B Engine switch off 200 Ω or higher
      A33-40 (CA1P) - A33-13 (B)*4 B - Y Engine switch off 6 kΩ or higher
      A33-39 (CA1N) - A33-13 (B)*4 W - Y Engine switch off 6 kΩ or higher
      HINT:
      *1: for Steering bus
      *2: for Braking and Driving bus
      *3: for MS bus
      *4: for Park Assist bus
  22. CHECK ELECTRIC PARKING BRAKE ECU
    Fig 34: Identifying Connector Terminals Of Electric Parking Brake ECU
    G04953362Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the S48 ECU connector.
    2. Measure the resistance according to the value(s) in the table below.
      TERMINALS REFERENCE CHART

      Terminal No. (Symbols) Wiring Color Switch Condition Specified Condition
      S48-9 (CA2H) - S48-1 (CA2L) B - W Engine switch off 108 to 132 Ω
      S48-9 (CA2H) - S46-3 (GND1) B - W - B Engine switch off 200 Ω or higher
      S48-1 (CA2L) - S46-3 (GND1) W - W - B Engine switch off 200 Ω or higher
      S48-9 (CA2H) - S48-2 (BECU) B-O Engine switch off 6 kΩ or higher
      S48-1 (CA2L) - S48-2 (BECU) W-O Engine switch off 6 kΩ or higher
  23. CHECK PARKING ASSIST ECU

    HINT:

    For vehicles with advanced parking guidance system and intuitive parking assist system only.

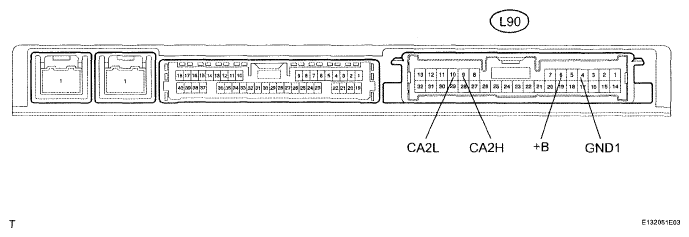

    Fig 35: Identifying Connector Terminals Of Parking Assist ECU
    G04953363Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the L90 ECU connector.
    2. Measure the resistance according to the value(s) in the table below.
      TERMINALS REFERENCE CHART

      Terminal No. (Symbols) Wiring Color Switch Condition Specified Condition
      L90-9 (CA2H) - L90-10 (CA2L) B - W Engine switch off 54 to 69 Ω
      L90-9 (CA2H) - L90-4 (GND1) B - W - B Engine switch off 200 Ω or higher
      L90-10 (CA2L) - L90-4 (GND1) W - W - B Engine switch off 200 Ω or higher
      L90-9 (CA2H) - L90-6 (+B) B - R Engine switch off 6 kΩ or higher
      L90-10 (CA2L) - L90-6 (+B) W - R Engine switch off 6 kΩ or higher
  24. CHECK CLEARANCE WARNING ECU

    HINT:

    For vehicles with intuitive parking assist system only.

    1. Disconnect the L19 ECU connector.
      Fig 36: Identifying Connector Terminals Of Clearance Warning ECU
      G04953364Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the resistance according to the value(s) in the table below.
      TERMINALS REFERENCE CHART

      Terminal No. (Symbols) Wiring Color Switch Condition Specified Condition
      L19-3 (CA2H) - L19-5 (CA2L) B - W Engine switch off 54 to 69 Ω
      L19-3 (CA2H) - L19-17 (E) B - W - B Engine switch off 200 Ω or higher
      L19-5 (CA2L) - L19-17 (E) W - W - B Engine switch off 200 Ω or higher
      L19-3 (CA2H) - L31-16 (BAT) B - B Engine switch off 6 kΩ or higher
      L19-5 (CA2L) - L31-16 (BAT) W - B Engine switch off 6 kΩ or higher
  25. CHECK FRONT CONTROLLER
    1. Disconnect the A50 controller connector.
      Fig 37: Identifying Terminals Of A50 Controller Connector
      G04953365Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the resistance according to the value(s) in the table below.
      TERMINALS REFERENCE CHART

      Terminal No. (Symbols) Wiring Color Switch Condition Specified Condition
      A50-3 (CANP) - A50-4 (CANN) B - W Engine switch off 108 to 132Ω
      A50-3 (CANP) - A50-2 (E) B - W - B Engine switch off 200 Ω or higher
      A50-4 (CANN) - A50-2 (E) W - W - B Engine switch off 200 Ω or higher
      A50-3 (CANP) - A50-1 (FMB3) B - LG Engine switch off 6 kΩ or higher
      A50-4 (CANN) - A50-1 (FMB3) W - LG Engine switch off 6 kΩ or higher
  26. CHECK OUTER MIRROR SWITCH
    1. Disconnect the L6 switch connector.
      Fig 38: Identifying Connector Terminals Of L6 Outer Mirror Switch
      G04953366Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the resistance according to the value(s) in the table below.
      TERMINALS REFERENCE CHART

      Terminal No. (Symbols) Wiring Color Switch Condition Specified Condition
      L6-2 (CANP) - L6-3 (CANN) B - W Engine switch off 54 to 69 Ω
      L6-2 (CANP) - L6-1 (E) B - W - B Engine switch off 200 Ω or higher
      L6-3 (CANN) - L6-1 (E) W - W - B Engine switch off 200 Ω or higher
      L6-2 (CANP) - L6-12 (B) B - B Engine switch off 6 kΩ or higher
      L6-3 (CANN) - L6-12 (B) W - B Engine switch off 6 kΩ or higher
  27. CHECK STEERING PAD ECU (STEERING PAD SWITCH)

    HINT:

    As there is a spiral cable between the steering pad ECU and the vehicle harness connector, a direct inspection of the steering pad ECU side of the vehicle harness connector cannot be performed.

    Fig 39: Identifying Connector Terminals Of L24 Cable Connector
    G04953367Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the L24 cable connector.
    2. Measure the resistance according to the value(s) in the table below.
      TERMINALS REFERENCE CHART

      Terminal No. (Symbols) Wiring Color Switch Condition Specified Condition
      L24-9 (CANP) - L24-8 (CANN) R - W Engine switch off 54 to 69 Ω
      L24-9 (CANP) - L24-3 (NOSB) R - W - B Engine switch off 200 Ω or higher
      L24-8 (CANN) - L24-3 (NOSB) W - W - B Engine switch off 200 Ω or higher
      L24-9 (CANP) - L24-6 (+B) R - B Engine switch off 6 kΩ or higher
      L24-8 (CANN) - L24-6 (+B) W - B Engine switch off 6 kΩ or higher
  28. CHECK MULTIPLEX TILT AND TELESCOPIC ECU
    1. Disconnect the L34 ECU connector.
      Fig 40: Identifying Terminals Of L34 ECU Connector
      G04953368Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the resistance according to the value(s) in the table below.
      TERMINALS REFERENCE CHART

      Terminal No. (Symbols) Wiring Color Switch Condition Specified Condition
      L34-5 (CANP) - L34-14 (CANN) B - W Engine switch off 54 to 69 Ω
      L34-5 (CANP) - L34-11 (GND) B - W - B Engine switch off 200 Ω or higher
      L34-14 (CANN) - L34-11 (GND) W - W - B Engine switch off 200 Ω or higher
      L34-5 (CANP) - L34-2 (+B) B - B Engine switch off 6 kΩ or higher
      L34-14 (CANN) - L34-2 (+B) W - B Engine switch off 6 kΩ or higher
  29. CHECK CERTIFICATION ECU
    1. Disconnect the L15 ECU connector.
      Fig 41: Identifying Connector Terminals Of Certification ECU
      G04953369Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the resistance according to the value(s) in the table below.
      TERMINALS REFERENCE CHART

      Terminal No. (Symbols) Wiring Color Switch Condition Specified Condition
      L15-27 (CANP) - L15-28 (CANN) B - W Engine switch off 54 to 69 Ω
      L15-27 (CANP) - L15-17 (E) B - W - B Engine switch off 200 Ω or higher
      L15-28 (CANN) - L15-17 (E) W - W - B Engine switch off 200 Ω or higher
      L15-27 (CANP) - L15-1 (+B1) B - L Engine switch off 6 kΩ or higher
      L15-28 (CANN) - L15-1 (+B1) W - L Engine switch off 6 kΩ or higher
  30. CHECK FRONT MULTIPLEX NETWORK DOOR ECU LH
    1. Disconnect the N10 ECU connector.

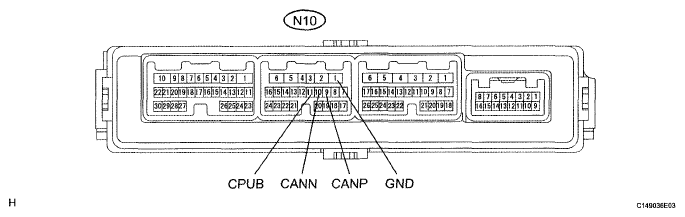

      Fig 42: Identifying Terminals Of N10 Front Multiplex Network Door ECU Connector
      G04953370Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the resistance according to the value(s) in the table below.
      TERMINALS REFERENCE CHART

      Terminal No. (Symbols) Wiring Color Switch Condition Specified Condition
      N10-9 (CANP) - N10-10 (CANN) R - W Engine switch off 54 to 69 Ω
      N10-9 (CANP) - N10-1 (GND) R - W - B Engine switch off 200 Ω or higher
      N10-10 (CANN) - N10-1 (GND) W - W - B Engine switch off 200 Ω or higher
      N10-9 (CANP) - N10-11 (CPUB) R - B Engine switch off 6 kΩ or higher
      N10-10 (CANN) - N10-11 (CPUB) W - B Engine switch off 6 kΩ or higher
  31. CHECK FRONT MULTIPLEX NETWORK DOOR ECU RH

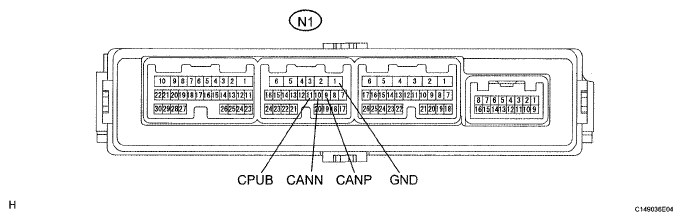

    Fig 43: Identifying Terminals Of N1 Front Multiplex Network Door ECU Connector
    G04953371Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the N1 ECU connector.
    2. Measure the resistance according to the value(s) in the table below.
      TERMINALS REFERENCE CHART

      Terminal No. (Symbols) Wiring Color Switch Condition Specified Condition
      N1-9 (CANP) - N1-10 (CANN) R - W Engine switch off 54 to 69 Ω
      N1-9 (CANP) - N1-1 (GND) R - W - B Engine switch off 200 Ω or higher
      N1-10 (CANN) - N1-1 (GND) W - W - B Engine switch off 200 Ω or higher
      N1-9 (CANP) - N1-11 (CPUB) R - R Engine switch off 6 kΩ or higher
      N1-10 (CANN) - N10-11 (CPUB) W - R Engine switch off 6 kΩ or higher
  32. CHECK REAR MULTIPLEX NETWORK DOOR ECU LH
    1. Disconnect the O14 ECU connector.
      Fig 44: Identifying Terminals Of O14 Rear Multiplex Network Door ECU Connector
      G04953372Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the resistance according to the value(s) in the table below.
      TERMINALS REFERENCE CHART

      Terminal No. (Symbols) Wiring Color Switch Condition Specified Condition
      014-9 (CANP) - O14-10 (CANN) R - W Engine switch off 54 to 69 Ω
      O14-9 (CANP) - O14-1 (GND) R - W - B Engine switch off 200 Ω or higher
      014-10 (CANN) - O14-1 (GND) W - W - B Engine switch off 200 Ω or higher
      O14-9 (CANP) - O14-11 (CPUB) R - R Engine switch off 6 kΩ or higher
      014-10 (CANN) - O4-11 (CPUB) W - R Engine switch off 6 kΩ or higher
  33. CHECK REAR MULTIPLEX NETWORK DOOR ECU RH
    1. Disconnect the O3 ECU connector.
      Fig 45: Identifying Terminals Of O3 Rear Multiplex Network Door ECU Connector
      G04953373Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the resistance according to the value(s) in the table below.
      TERMINALS REFERENCE CHART

      Terminal No. (Symbols) Wiring Color Switch Condition Specified Condition
      03-9 (CANP) - O3-10 (CANN) R - W Engine switch off 54 to 69 Ω
      03-9 (CANP) - O3-1 (GND) R - W - B Engine switch off 200 Ω or higher
      03-10 (CANN) - O3-1 (GND) W - W - B Engine switch off 200 Ω or higher
      O3-9 (CANP) - O3-11 (CPUB) R - R Engine switch off 6 kΩ or higher
      03-10 (CANN) - O3-11 (CPUB) W - R Engine switch off 6 kΩ or higher
  34. CHECK FRONT POWER SEAT ECU AND SWITCH LH
    1. Disconnect the e45 and e46 switch connectors.
      Fig 46: Identifying Terminals Of E45 And E46 Switch Connectors
      G04953374Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the resistance according to the value(s) in the table below.
      TERMINALS REFERENCE CHART

      Terminal No. (Symbols) Wiring Color Switch Condition Specified Condition
      e46-25 (CANP) - e46-24 (CANN) R - W Engine switch off 54 to 69 Ω
      e46-25 (CANP) - e45-6 (GND) R - W - B Engine switch off 200 Ω or higher
      e46-24 (CANN) - e45-6 (GND) W - W - B Engine switch off 200 Ω or higher
      e46-25 (CANP) - e45-7 (+B) R - B - R Engine switch off 6 kΩ or higher
      e46-24 (CANN) - e45-7 (+B) W - B - R Engine switch off 6 kΩ or higher
  35. CHECK FRONT POWER SEAT ECU AND SWITCH RH

    HINT:

    For vehicles with rear power seat control system only.

    Fig 47: Identifying Terminals Of E18 And E20 Switch Connectors
    G04953375Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the e18 and e20 switch connectors.
    2. Measure the resistance according to the value(s) in the table below.
      TERMINALS REFERENCE CHART

      Terminal No. (Symbols) Wiring Color Switch Condition Specified Condition
      e20-25 (CANP) - e20-24 (CANN) R - W Engine switch off 54 to 69 Ω
      e20-25 (CANP) - e18-6 (GND) R - W - B Engine switch off 200 Ω or higher
      e20-24 (CANN) - e18-6 (GND) W - W - B Engine switch off 200 Ω or higher
      e20-25 (CANP) - e18-7 (+B) R - B Engine switch off 6 kΩ or higher
      e20-24 (CANN) - e18-7 (+B) W - B Engine switch off 6 kΩ or higher
  36. CHECK REAR POWER SEAT MODULE SWITCH

    HINT:

    For vehicles with rear power seat control system or seat heater system and rear power seat control system (w/Ottoman).

    Fig 48: Identifying Connector Terminals Of Rear Power Seat Module Switch
    G04953376Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the r2*1 and S15*2 switch connectors.
    2. Measure the resistance according to the value(s) in the table below.
      TERMINALS REFERENCE CHART

      Terminal No. (Symbols) Wiring Color Switch Condition Specified Condition
      r2-1 {CANP) - r2-2 (CANN)*1 B - W Engine switch off 54 to 69 Ω
      r2-1 (CANP) - r2-3 (E)*1 B - W Engine switch off 200 Ω or higher
      r2-2 (CANN) - r2-3 (E)*1 W - W Engine switch off 200 Ω or higher
      r2-1 (CANP) - r2-11 (B)*1 B - W Engine switch off 6 kΩ or higher
      r2-2 (CANN) - r2-11 (B)*1 W - W Engine switch off 6 kΩ or higher
      S15-1 (CANP) - S15-2 (CANN)*2 B - W Engine switch off 54 to 69 Ω
      S15-1 (CANP) - S15-5 (E)*2 B - W - B Engine switch off 200 Ω or higher
      S15-2 (CANN) - S15-5 (E)*2 W - W - B Engine switch off 200 Ω or higher
      S15-1 (CANP) - S15-6 (B)*2 B - R Engine switch off 6 kΩ or higher
      S15-2 (CANN) - S15-6 (B)*2 W - R Engine switch off 6 kΩ or higher
      HINT:
      • *1: w/o Ottoman
      • *2: w/ Ottoman
  37. CHECK COMBINATION SWITCH
    1. Disconnect the L25 switch connector.
      Fig 49: Identifying Terminals Of L25 Combination Switch Connector
      G04953377Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the resistance according to the value(s) in the table below.
      TERMINALS REFERENCE CHART

      Terminal No. (Symbols) Wiring Color Switch Condition Specified Condition
      L25-5 (CANP) - L25-6 (CANN) R - W Engine switch off 54 to 69 Ω
      L25-5 (CANP) - L25-8 (E) R - W - B Engine switch off 200 Ω or higher
      L25-6 (CANN) - L25-8 (E) W - W - B Engine switch off 200 Ω or higher
      L25-5 (CANP) - L25-1 (B) R - B Engine switch off 6 kΩ or higher
      L25-6 (CANN) - L25-1 (B) W - B Engine switch off 6 kΩ or higher
  38. CHECK POWER TRUNK LID CONTROL ECU

    HINT:

    For vehicles with power trunk lid system only.

    Fig 50: Identifying Terminals Of S43 Power Trunk LID Control ECU Connector
    G04953378Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the S43 ECU connector.
    2. Measure the resistance according to the value(s) in the table below.
      TERMINALS REFERENCE CHART

      Terminal No. (Symbols) Wiring Color Switch Condition Specified Condition
      S43-6 (CANH) - S43-5 (CANL) B - W Engine switch off 54 to 69 Ω
      S43-6 (CANH) - S43-11 (GND) B - W - B Engine switch off 200 Ω or higher
      S43-5 (CANL) - S43-11 (GND) W - W - B Engine switch off 200 Ω or higher
      S43-6 (CANH) - S43-10 (ECUB) B - B Engine switch off 6 kΩ or higher
      S43-5 (CANL) - S43-10 (ECUB) W - B Engine switch off 6 kΩ or higher
  39. CHECK REAR JUNCTION BLOCK ECU (LUGGAGE ROOM JUNCTION BLOCK)
    1. Disconnect the S62 ECU connector.

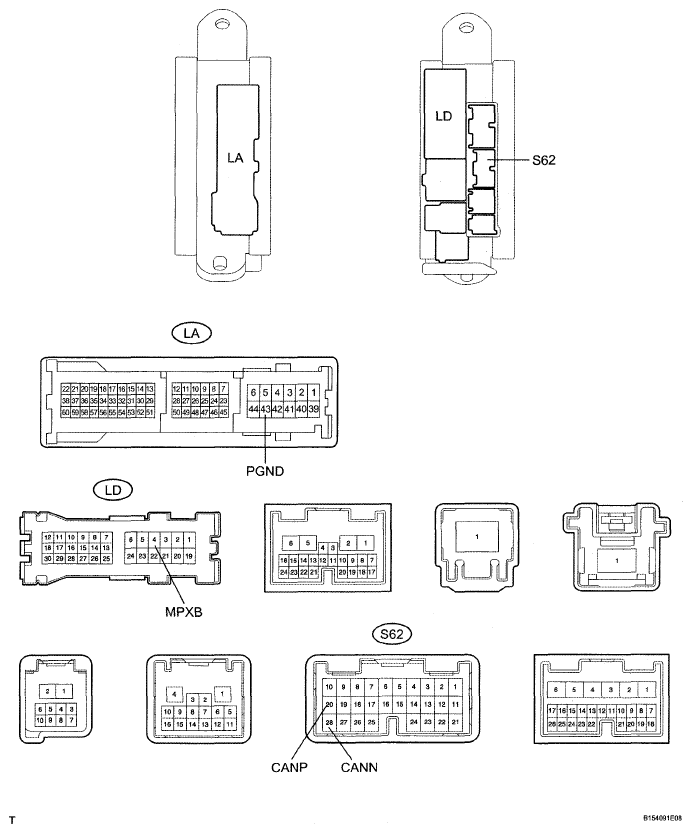

      Fig 51: Identifying Connector Terminals Of Rear Junction Block ECU
      G04953379Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the LA and LD junction block connectors.
    3. Measure the resistance according to the value(s) in the table below.
      TERMINALS REFERENCE CHART

      Terminal No. (Symbols) Wiring Color Switch Condition Specified Condition
      S62-20 (CANP) - S62-28 (CANN) B - W Engine switch off 108 to 132 Ω
      S62-20 (CANP) - LA-43 (PGND) B - W - B Engine switch off 200 Ω or higher
      S62-28 (CANN) - LA-43 (PGND) W - W - B Engine switch off 200 Ω or higher
      S62-20 (CANP) - LD-4 (MPXB) B - R Engine switch off 6 kΩ or higher
      S62-28 (CANN) - LD-4 (MPXB) W - R Engine switch off 6 kΩ or higher
  40. CHECK TIRE PRESSURE WARNING ECU
    1. Disconnect the L89 connector.
      Fig 52: Identifying Connector Terminals Of Tire Pressure Warning ECU
      G04953380Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the resistance according to the value(s) in the table below.
      TERMINALS REFERENCE CHART

      Terminal No. (Symbols) Wiring Color Switch Condition Specified Condition
      L89-6 (CANP) - L89-12 (CANN) B - W Engine switch off 54 to 69 Ω
      L89-6 (CANP) - L89-7 (GND) B - B Engine switch off 200 Ω or higher
      L89-12 (CANN) - L89-7 (GND) W - B Engine switch off 200 Ω or higher
      L89-6 (CANP) - L31-16 (BAT) B - B Engine switch off 6 kΩ or higher
      L89-12 (CANN) - L31-16 (BAT) W - B Engine switch off 6 kΩ or higher
  41. CHECK FRONT MILLIMETER WAVE RADAR SENSOR

    HINT:

    For vehicles with dynamic radar cruise control system or pre-collision system only.

    Fig 53: Identifying Connector Terminals Of Front Millimeter Wave Radar Sensor
    G04953381Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the B9 sensor connector.
    2. Measure the resistance according to the value(s) in the table below.
      TERMINALS REFERENCE CHART

      Terminal No. (Symbols) Wiring Color Switch Condition Specified Condition
      B9-4 (CA1P) - B9-3 (CA1N) B - W Engine switch off 108 to 132 Ω
      B9-4 (CA1P) - L31-4 (CG) B - W - B Engine switch off 200 Ω or higher
      B9-3 (CA1N) - L31-4 (CG) W - W - B Engine switch off 200 Ω or higher
      B9-4 (CA1P) - L31-16 (BAT) B - B Engine switch off 6 kΩ or higher
      B9-3 (CA1N) - L31-16 (BAT) W - B Engine switch off 6 kΩ or higher
  42. CHECK BUS BUFFER ECU

    HINT:

    For vehicles with LEXUS link system only.

    Fig 54: Identifying Terminals Of L93 ECU Connector
    G04953382Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the L93 ECU connector.
    2. Measure the resistance according to the value(s) in the table below.
      TERMINALS REFERENCE CHART

      Terminal No. (Symbols) Wiring Color Switch Condition Specified Condition
      L93-1 (CAN+) - L93-2 (CAN-) B - W Engine switch off 54 to 69 Ω
      L93-1 (CAN+) - L93-4 (GND) B - W - B Engine switch off 200 Ω or higher
      L93-2 (CAN-) - L93-4 (GND) W - W - B Engine switch off 200 Ω or higher
      L93-1 (CAN+) - L93-3 (+B) B - R Engine switch off 6 kΩ or higher
      L93-2 (CAN-) - L93-3 (+B) W - R Engine switch off 6 kΩ or higher
  43. CHECK OBJECT RECOGNITION ECU

    HINT:

    For vehicles with driver monitor camera only.

    Fig 55: Identifying Connector Terminals Of R25 Object Recognition ECU
    G04953383Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the R25 ECU connector.
    2. Measure the resistance according to the value(s) in the table below.
      TERMINALS REFERENCE CHART

      Terminal No. (Symbols) Wiring Color Switch Condition Specified Condition
      R25-16 (CA1P) - R25-5 (CA1N) B - W Engine switch off 54 to 69 Ω
      R25-16 (CA1P) - R25-10 (GND) B - W - B Engine switch off 200 Ω or higher
      R25-5 (CA1N) - R25-10 (GND) W - W - B Engine switch off 200 Ω or higher
      R25-16 (CA1P) - L31-16 (BAT) B - B Engine switch off 6 kΩ or higher
      R25-5 (CA1N) - L31-16 (BAT) W - B Engine switch off 6 kΩ or higher
  44. CHECK DRIVER MONITOR ECU

    HINT:

    For vehicles with driver monitor camera only.

    Fig 56: Identifying Terminals Of L18 Driver Monitor ECU Connector
    G04953384Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the L18 ECU connector.
    2. Measure the resistance according to the value(s) in the table below.
      TERMINALS REFERENCE CHART

      Terminal No. (Symbols) Wiring Color Switch Condition Specified Condition
      L18-9 (CA1P) - L18-24 (CA1N) B - W Engine switch off 54 to 69 Ω
      L18-9 (CA1P) - L18-11 (GND) B - B Engine switch off 200 Ω or higher
      L18-24 (CA1N) - L18-11 (GND) W - B Engine switch off 200 Ω or higher
      L18-9 (CA1P) - L31-16 (BAT) B - B Engine switch off 6 kΩ or higher
      L18-24 (CA1N) - L31-16 (BAT) W - B Engine switch off 6 kΩ or higher
  45. CHECK TCM

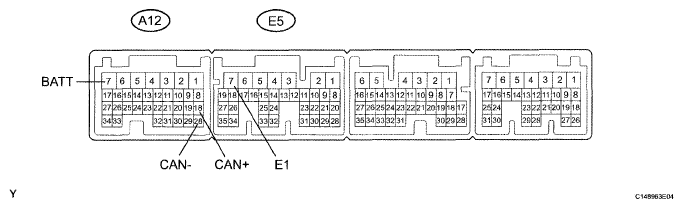

    Fig 57: Identifying Terminals Of A12 And E5 TCM Connectors
    G04953385Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the A12 and E5 TCM connectors.
    2. Measure the resistance according to the value(s) in the table below.
      TERMINALS REFERENCE CHART

      Terminal No. (Symbols) Wiring Color Switch Condition Specified Condition
      A12-18 (CAN+) - A12-28 (CAN-) B - W Engine switch off 108 to 132 Ω
      A12-18 (CAN+) - E5-7 (E1) B - BR Engine switch off 200 Ω or higher
      A12-28 (CAN-) - E5-7 (E1) W - BR Engine switch off 200 Ω or higher
      A12-18 (CAN+) - A12-7 (BATT) B - LG Engine switch off 6 kΩ or higher
      A12-28 (CAN-) - A12-7 (BATT) W - LG Engine switch off 6 kΩ or higher
About FixVault
