Repair and Diagnosis
›
Body & Frame
›
Door Locks
›
Door Lock
›
Smart Access System With Push-Button Start
›
Room Oscillator does not Recognize Key
›
Wiring Diagram
Room Oscillator does not Recognize Key: Wiring Diagram

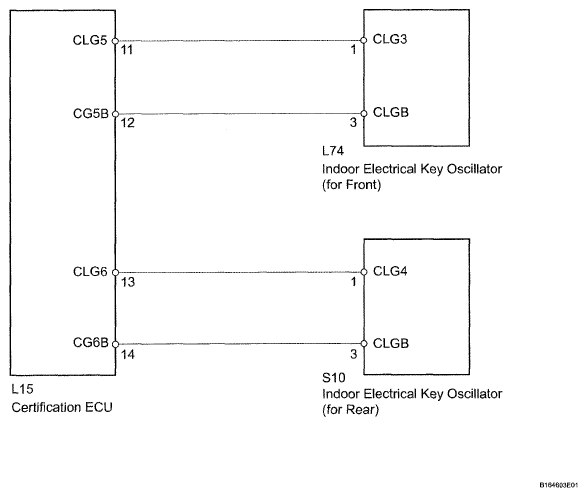

Fig 1: Indoor Electrical Key Oscillator - Wiring Diagram
