Security Horn Assembly: Components

Fig 1: Identifying Security Horn Assembly Components (1 Of 3)
G04951365Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Identifying Security Horn Assembly Replacement Components With Torque Specifications (2 Of 3)
G04951366Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

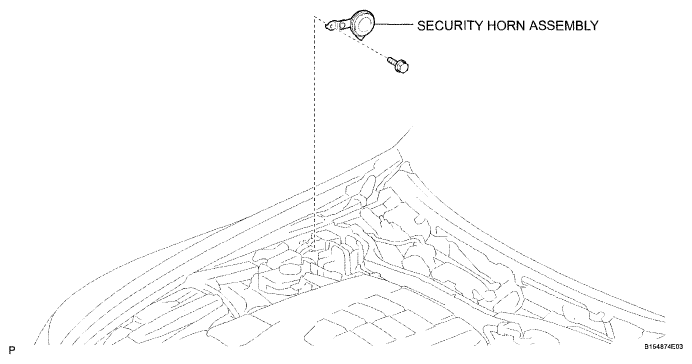

Fig 3: Identifying Security Horn Assembly Components (3 Of 3)
G04951367Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
