Rocker Panel Moulding: Disassembly

  1. REMOVE ROCKER PANEL MOULDING CLIP
    1. for Standard Body:

      Remove the 10 rocker panel moulding clips.

    2. for Long Body:

      Remove the 11 rocker panel moulding clips.

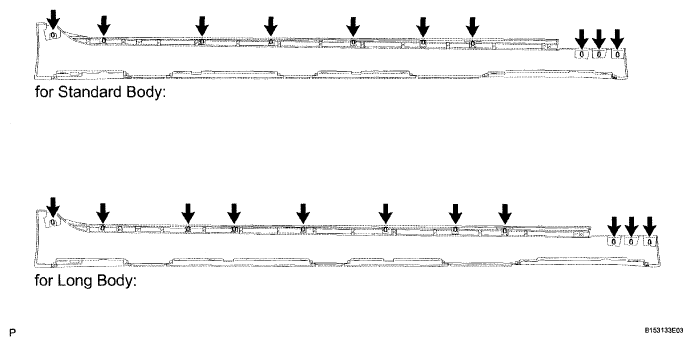

      Fig 1: Identifying Rocker Panel Moulding Clips
      G04946582Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE NO. 1 ROCKER PANEL MOULDING PROTECTOR
    1. Remove the 4 No. 1 rocker panel moulding protectors.

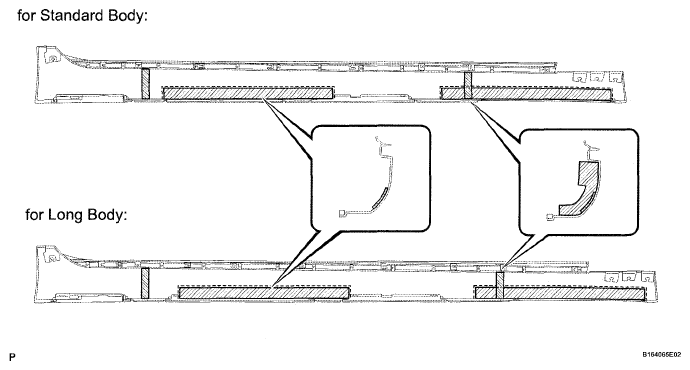

      Fig 2: Identifying No. 1 Rocker Panel Moulding Protectors
      G04946583Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE NO. 2 ROCKER PANEL MOULDING PROTECTOR
    1. Remove the No. 2 rocker panel moulding protector.

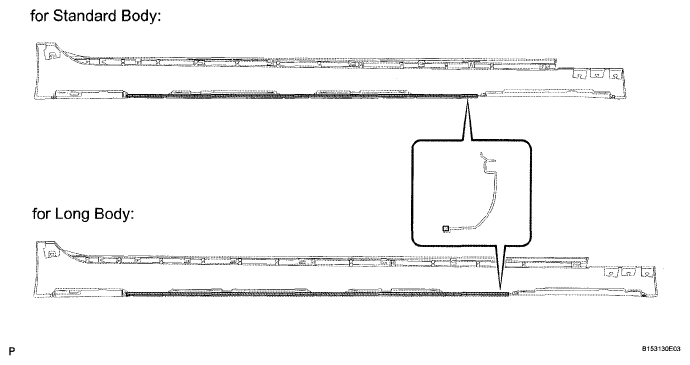

      Fig 3: Identifying No. 2 Rocker Panel Moulding Protector
      G04946584Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE NO. 3 ROCKER PANEL MOULDING PROTECTOR
    1. Remove the 2 No. 3 rocker panel moulding protectors.
      Fig 4: Identifying No. 3 Rocker Panel Moulding Protectors
      G04946585Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE NO. 4 ROCKER PANEL MOULDING PROTECTOR
    1. Remove the 4 No. 4 rocker panel moulding protectors.
      Fig 5: Identifying No. 4 Rocker Panel Moulding Protectors
      G04946586Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
