Rocker Panel Moulding: Reassembly

  1. INSTALL NO. 4 ROCKER PANEL MOULDING PROTECTOR
    1. Install 4 new No. 4 protectors.
      Fig 1: Identifying No. 4 Rocker Panel Moulding Protector
      G04946587Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL NO. 3 ROCKER PANEL MOULDING PROTECTOR
    1. Install 2 new No. 3 protectors.
      Fig 2: Identifying No. 3 Rocker Panel Moulding Protector
      G04946588Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE NO. 2 ROCKER PANEL MOULDING PROTECTOR
    1. Install new No. 2 protectors.

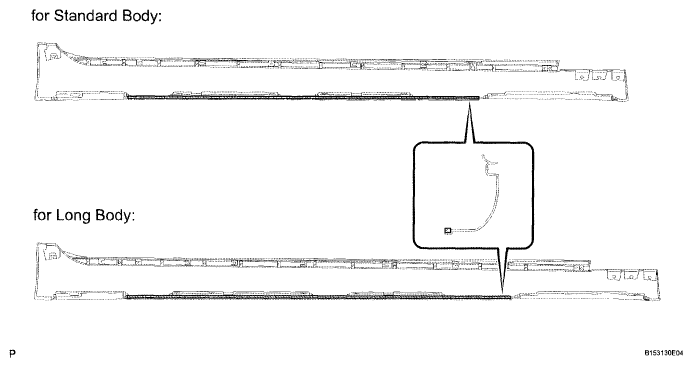

      Fig 3: Identifying No. 2 Rocker Panel Moulding Protector
      G04946589Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. INSTALL NO. 1 ROCKER PANEL MOULDING PROTECTOR
    1. Install 4 new protectors to the areas shown in the illustration.

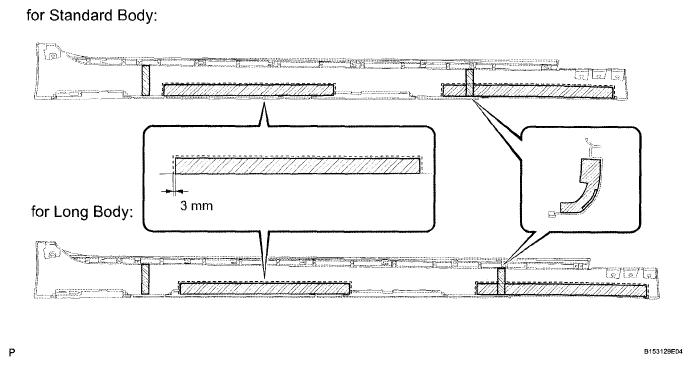

      Fig 4: Identifying No. 1 Rocker Panel Moulding Protector
      G04946590Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. INSTALL ROCKER PANEL MOULDING CLIP
    1. for Standard Body:

      Install the 10 rocker panel moulding clips.

    2. for Long Body:

      Install the 11 rocker panel moulding clips.

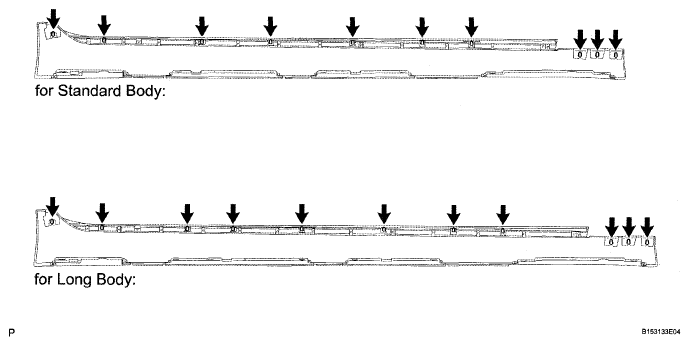

      Fig 5: Identifying Rocker Panel Moulding Clips
      G04946591Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
