Front Console Box: Components

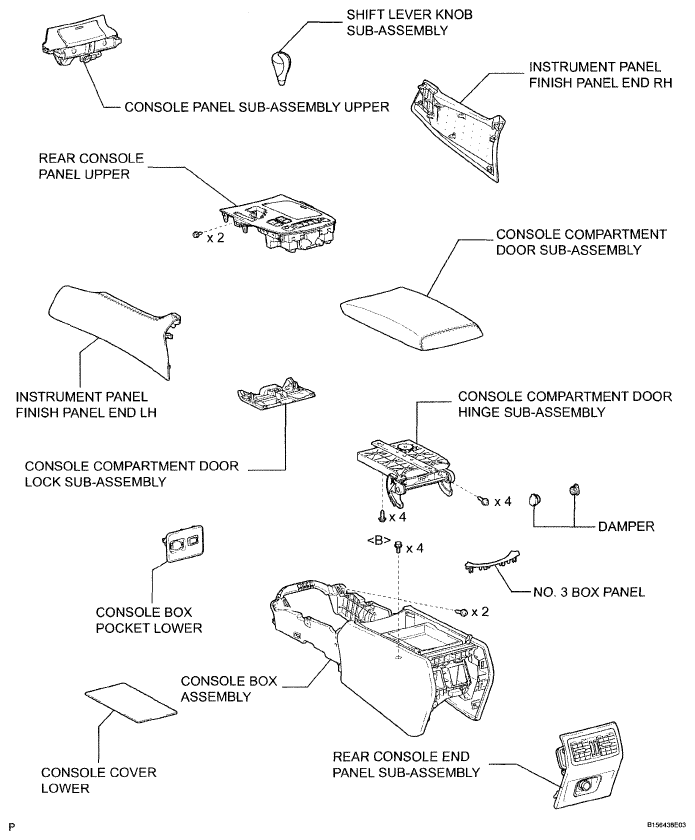

Fig 1: Identifying Front Console Box Components

G04946855

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
