DTC B2650 Slide Sensor Malfunction: Wiring Diagram

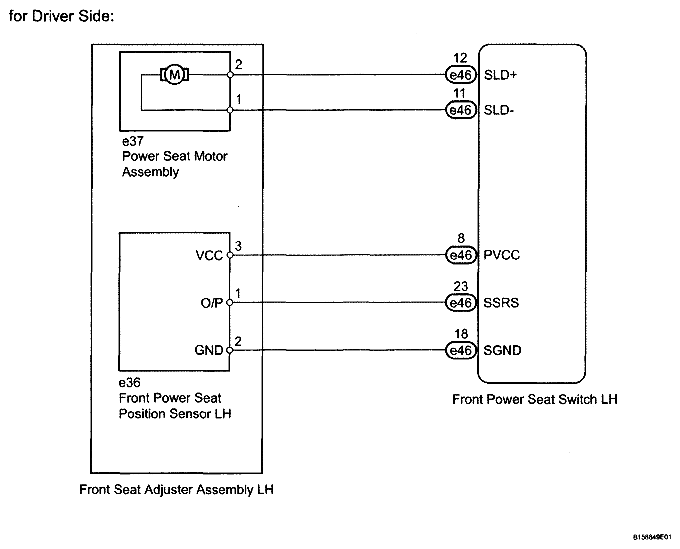

Fig 1: Wiring Diagram - Slide Sensor Malfunction (Driver Side)
G04952422Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

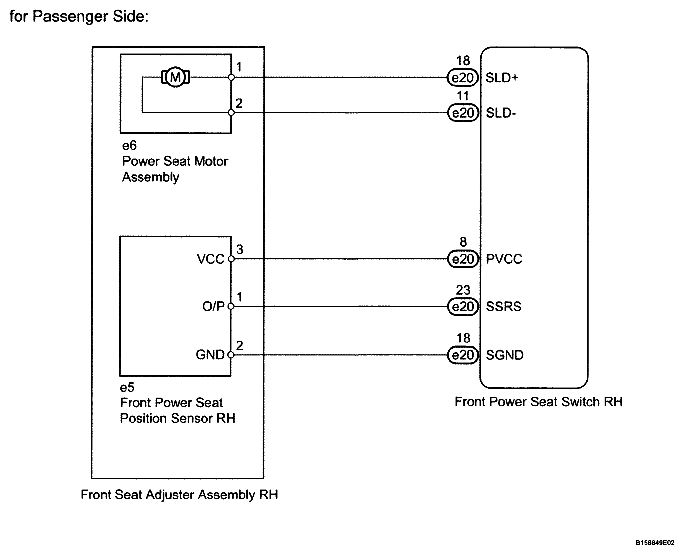

Fig 2: Wiring Diagram - Slide Sensor Malfunction (Passenger Side)
G04952423Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
