POWER WINDOW REGULATOR MOTOR (for Front Door): Components

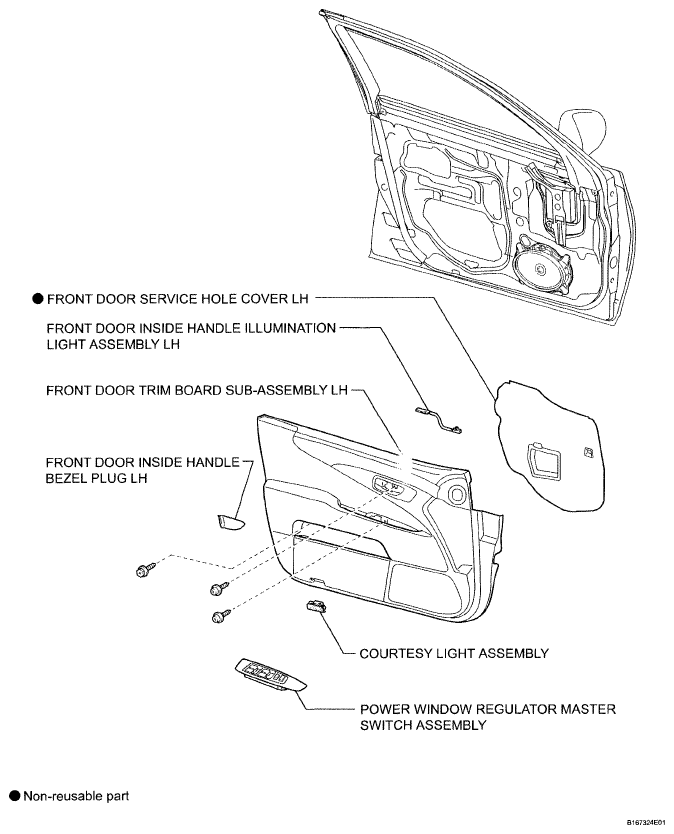

Fig 1: Identifying Power Window Regulator Motor Components (For Front Door) (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

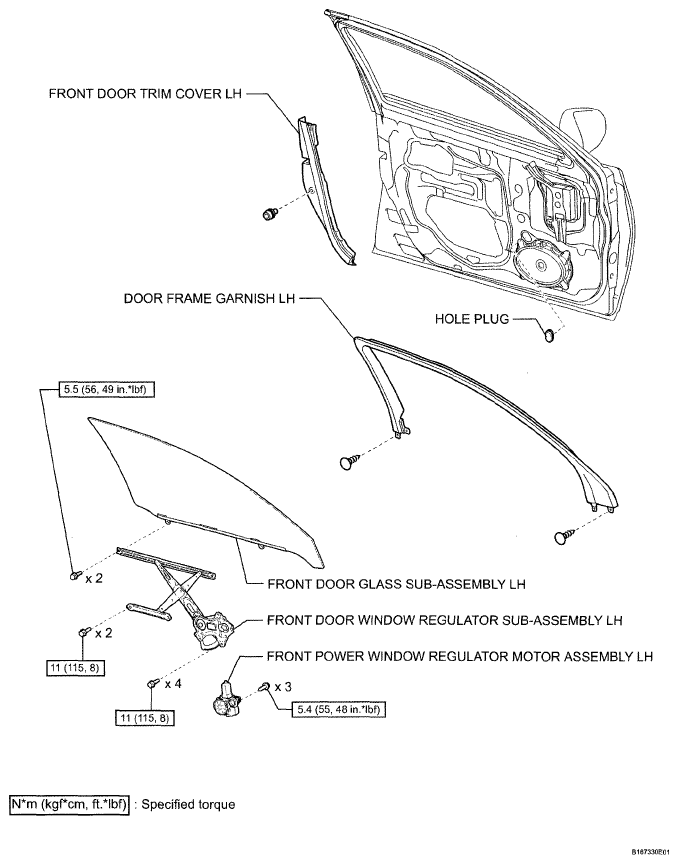

Fig 2: Power Window Regulator Motor Replacement Components With Torque Specifications (For Front Door) (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
