Windshield Deicer does not Operate: Wiring Diagram

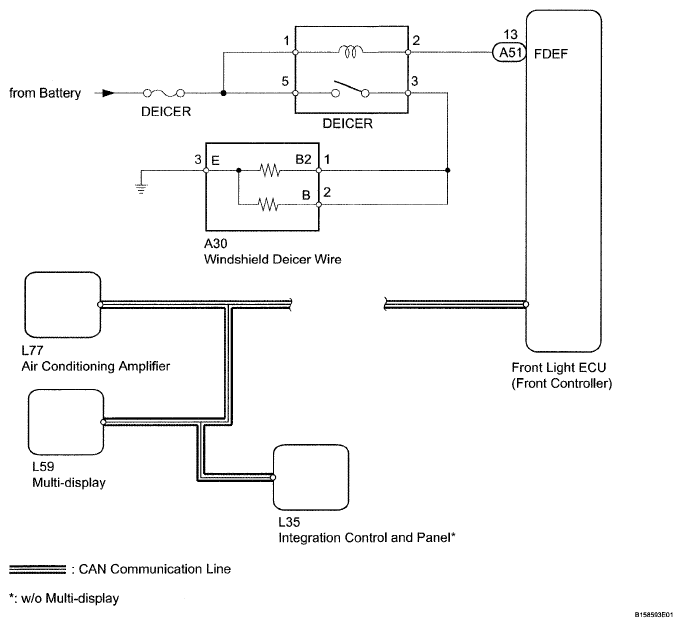

Fig 1: Windshield Deicer Does Not Operate - Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
