DTC C1377/43 Capacitor Malfunction
›
Wiring Diagram
DTC C1377/43 Capacitor Malfunction: Wiring Diagram

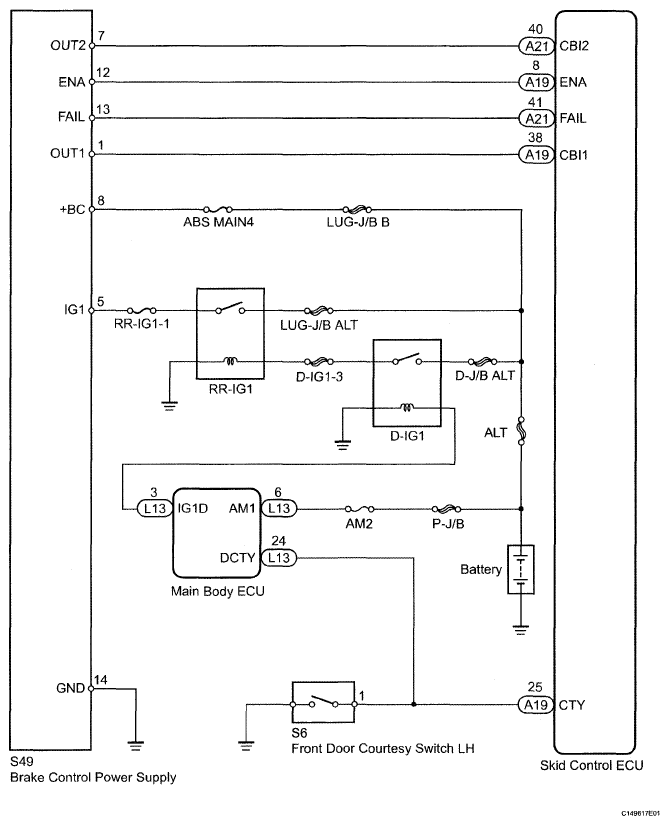

Fig 1: Capacitor Malfunction - Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
