Skid Control Buzzer: Components

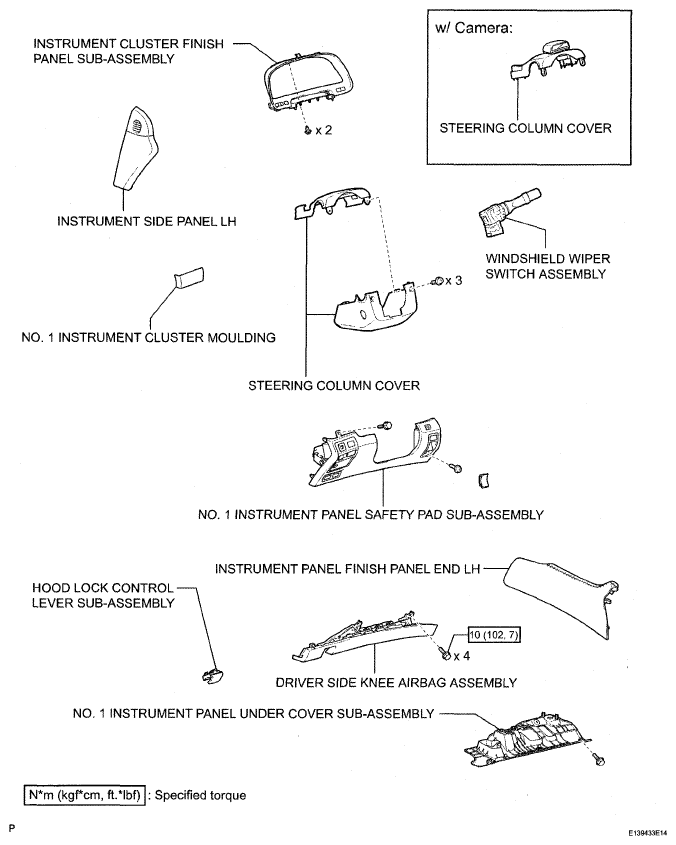

Fig 1: Skid Control Buzzer Replacement Components With Torque Specifications (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

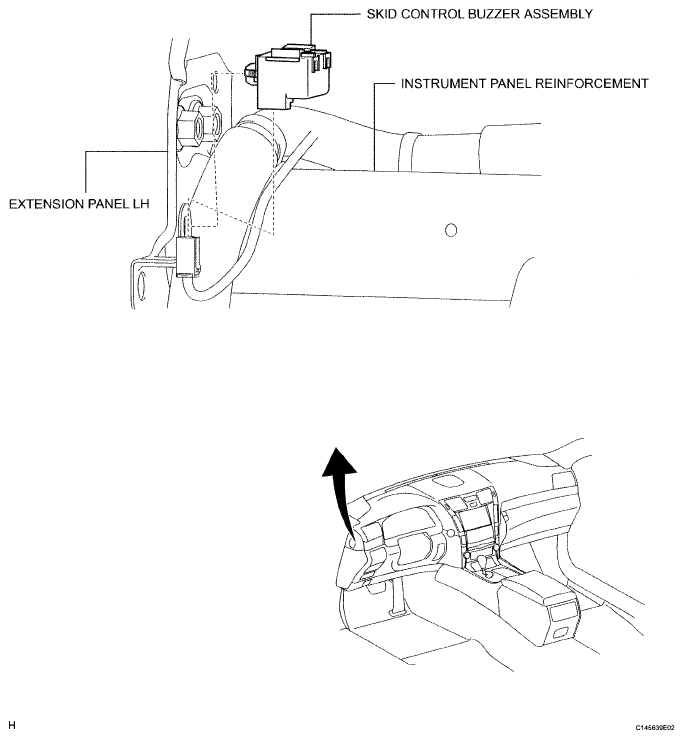

Fig 2: Identifying Skid Control Buzzer Components (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
