Garage Door Opener: Notes

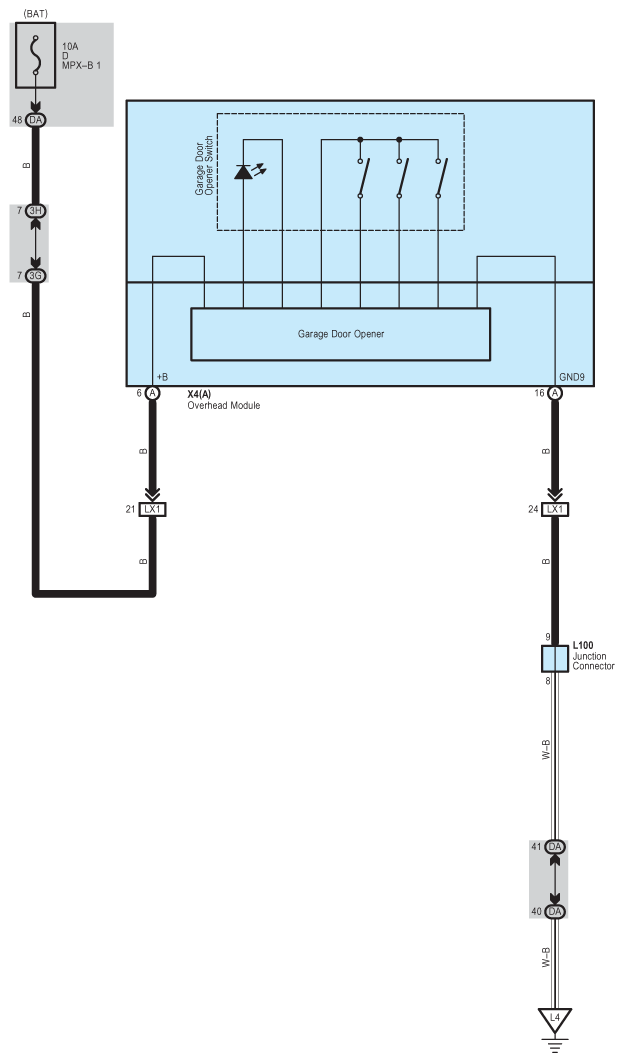

Fig 1: Garage Door Opener System Wiring Diagram

G08920841

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
