Multiplex Communication System - AVC-LAN: Notes

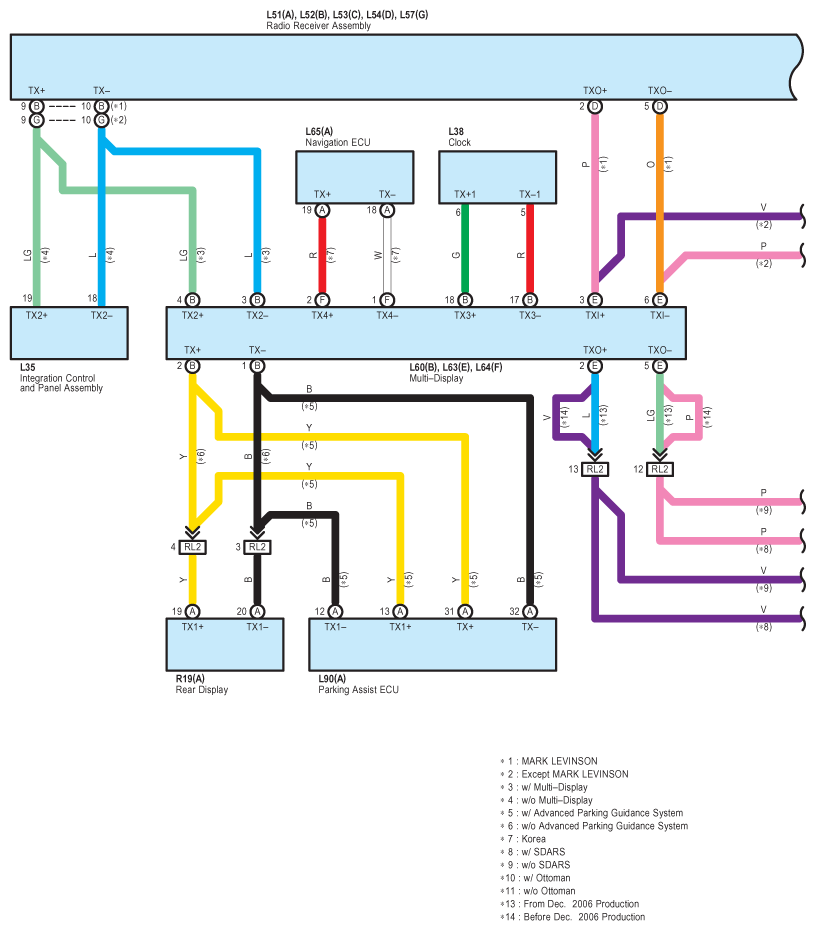

Fig 1: Multiplex Communication System - AVC-LAN System Wiring Diagram (1 Of 2)
G08920570Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

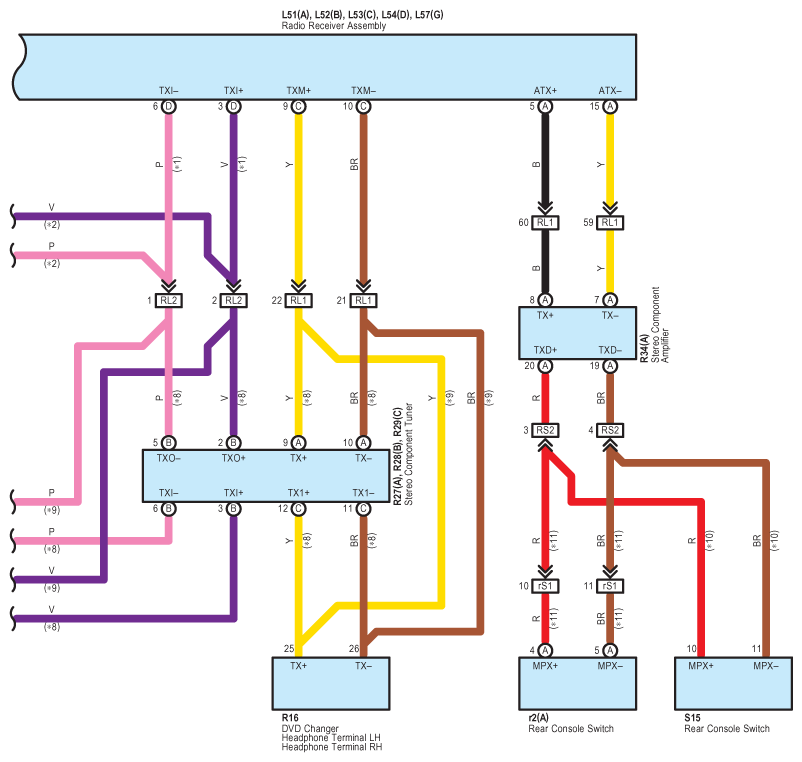

Fig 2: Multiplex Communication System - AVC-LAN System Wiring Diagram (2 Of 2)
G08920571Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
